Abstract
Bioactive sulfated polysaccharides, including ulvan, known for their broad therapeutic uses, are abundant in green algae. In this study, Ulva lactuca ulvan was produced under optimized conditions involving temperature, pH, extraction time, and solvent concentration adjustments. The extracted ulvan (U. lactuca ulvan, ULU) was identified using analytical methods such as Fourier Transform Infrared Spectroscopy (FTIR), Thermogravimetric Analysis (TGA), X-ray Diffraction (XRD), Scanning Electron Microscopy (SEM), High-Performance Liquid Chromatography (HPLC), and Energy-Dispersive X-ray Spectroscopy (EDX) to confirm its compositional stability. A maximum yield of 23.33 ± 0.28% was achieved, with rhamnose as the main sugar, accounting for 14.10 µg/g of dried weight. Ulvan’s biological activities are likely influenced by its sulfate content, which measured 35.35 ± 0.25%. The bioactivity of ULU was tested for anticancer, antioxidant, and antiviral effects. ULU showed significant anticancer activity against pancreatic cancer cells (Panc-1). At a dose of 1000 µg/ml, ULU achieved an inhibition rate of 86.15%, with an IC50 of 123.51 ± 10.95 µg/ml, demonstrating substantial effectiveness in inhibiting pancreatic cancer cell growth. In antioxidant tests, ULU exhibited moderate free radical scavenging activity against DPPH, with a maximum inhibition rate of 88.31% ±2.64% at 1000 µg/ml and an IC50 of 263.73 ± 9.41 µg/ml. These results highlight the benefits of improved extraction and optimized conditions, indicating that ULU has potential as a natural antioxidant, though with modest efficacy compared to ascorbic acid. ULU also demonstrated limited antiviral activity, with an inhibition rate of 40.25 ± 2.61% against Hepatitis A virus (HAV) at 50 µg/ml, as measured by the MTT assay. The cytotoxicity test showed a CC₅₀ value of 230.53 ± 2.09 µg/ml, indicating a moderate safety margin. Despite its limited antiviral effectiveness, further research into combining ULU with other drugs or exploring synergistic effects could enhance its therapeutic potential.
Introduction
Saltwater algae (seaweeds) have considerable potential as a resource for next-generation biorefineries1. According to González Fernández et al.2, the distinctive algal extracts render it an increasingly promising alternative for diverse applications. Macroalgae could be classified into green, red, and brown categories3. Chlorophyta includes species that are called green algae4.
Some green algae species inhabit freshwater and saltwater ecosystems. Marine macroalgae from the Chlorophyta phylum mainly include the Ulvophyceae class5. Ulva lactuca, a species of green seaweed, constitutes a significant biomass. It is distinguished by a notably unique biological composition, particularly its elevated concentration of cell wall polysaccharides6. Sulfated polysaccharides (SPs) are negatively charged polysaccharides characterized by sulfate groups within their carbohydrate backbone, which may be naturally occurring or synthetically produced.
Ulvan (Ulv) is predominant in Ulva algae walls7, which constitutes 9–36% of Ulva dry weight8. Research indicated that Ulv primarily consists of different monosaccharides with different degrees of sulfation, exhibiting variability according to harvest season, species, growth environment, cultivation methods, and extraction techniques, and the interest in Ulv is due to its effective biological activity9,10.
Cancer, a significant health threat, primarily results from abnormalities in cell division. Disruptions may arise from genetic, chemical, and environmental factors11. Pancreatic cancer (PDAC) has become the third most lethal solid malignancy in the United States, following lung and colorectal cancer, and is projected to become the second-leading cause of cancer-related deaths in the United States by 203012. Exposure to chemical agents, including heavy metals, particularly at sufficiently high doses, can induce severe toxic effects such as cardiotoxicity, hepatotoxicity, neurotoxicity, nephrotoxicity, and potentially fatal hematopoietic toxicity, which may contribute to carcinogenic processes13. Therefore, novel antitumor compounds that exhibit minimal toxicity should be discovered14. Consequently, numerous researchers have concentrated on identifying novel anticarcinogenic compounds derived from algae and plants15.
Impairs the transmission and control of redox signals has the potential to cause molecular damage; this is known as oxidative stress. It has a role in the etiology of many diseases and the aging process16. Sulfated polysaccharides produced from algae, particularly ulvan, offer antioxidant and free-radical scavenging properties that may protect living things from oxidative harm17,18.
Viral infections are prevalent and impose considerable strain on healthcare systems globally. The availability of specific antiviral drugs for numerous viral infections is limited, resulting in symptomatic treatment and systemic supportive therapy being the main approaches14. There is an urgent requirement for innovative and efficient agents19. Investigations into natural antiviral agents exhibiting carbohydrate characteristics have underscored the significance of sulfated polysaccharides, such as ulvan, which exhibit notable antiviral properties20.
Herein, U. lactuca ulvan (ULU) was extracted, optimized, characterized, and assessed for its biological activities, such as anticancer effects against Panc-1 (pancreatic cancer), along with DPPH free radical scavenging assay, and potential of anti-Hepatitis A virus (HAV). Based on the findings, this study will be essential in exploring Ulvan’s potential utility as a natural molecule in cancer treatment, antioxidant therapy, and perhaps antiviral applications, laying the groundwork for future research and development in the biomedical and pharmaceutical industries.
Experimental section
Ulva lactuca sampling
Ulva lactuca was collected by Prof. Fekry Ashour Mourad, affiliated with the National Oceanography and Fisheries Institute in Egypt, during May 2022, specifically from the Gulf Suez coast of Egypt. Algal samples were collected from a non-protected public beach, where no permission or licence was required, and where no commercial use or genetic resource export was involved. Morphological and taxonomic identification were then conducted using the methods outlined by Aleem21,22, accompanied by a microscopic examination as described by Lipkin23, and subsequently verified through the Algae Base website24,25. After collection, samples underwent multiple H2O washes to exclude any associated biota or sand, etc. Following this, U. lactuca were rinsed again with fresh H2O to exclude salts, then 72 h in a shaded area before being oven-dried at 60 °C for 3 h using a Memmert oven from Germany; milling occurred via Brown Mill coffee grinder from Berlin, Germany, to obtain U. lactuca powder (ULp) that was stored for future experimental use. The voucher specimen (Ulva lactuca—Herb. Nasr-1Gr7-5–2022) has been deposited at the herbarium of late Professor Abdel-Halim Nasr at the Botany and Microbiology Department, Faculty of Science, Alexandria University, Egypt, with the help of Prof. Mohamed Saad Abdelkareem.
(ULU) extraction optimization
ULp de-pigmentation involved using 100 mL hexane for a day, accompanied by 3000 rpm shaking to eliminate non-polar impurities. The ULp was subsequently filtered. Then, it was submerged in 120 mL of 95% ethanol for another whole day, with moderate agitation, to eliminate soluble contaminants26. Following a three-hour exposure to a vacuum at 60 °C, the residue underwent drying.
In the subsequent phase of the experiment, 30 g of dried seaweed powder underwent a series of hot water extraction processes aimed at isolating ulvan (sulfated heteropolysaccharides) under a range of conditions, temperatures (40 °C, 60 °C, 80 °C, 100 °C, 120 °C, 140 °C, and 160 °C), seaweed-to-water ratios (1/10, 1/20, 1/30, 1/40, 1/50, and 1/60 w/v), a variety of pH levels (1.5, 3, 4.5, 6, and 7.5), and a range of extraction durations (20, 35, 50, 65, 80, 95, 110, and 125 min). Following filtration, the liquid portion underwent centrifugation at 6708× g for a quarter-hour, after which the supernatant was dialyzed for 2 days at 4 °C against H2O to eliminate minor contaminants. The obtained liquid portion volume was reduced via rotary evaporator and precipitated with four volumes of 100% ethanol at − 20 °C. Following 48 h, the precipitate was centrifuged and dried under vacuum at 60 °C.
Final ulvan extract yield (UY) measured as follows:
UY % = (ULU wt./ULp wt.) × 10027.
Chemical analysis of (ULU)
Sulfate content (SC)
According to Torres et al.28, sulfate content was estimated, which corroborates its consistency with traditional procedures29. Gelatin reagent (GR) and BaCl2 were initially made by mixing 75 mg gelatin in 25 mL H2O, then incubation occur at 80 °C for 10 min with vigorous mixing, then the addition of 250 mg barium chloride took place, finally kept at 4 °C. By using 96-well clear polystyrene microplate (WPM), 140 µL of 0.5 mol/L HCl were added in each well followed by the addition of 20 µL (non-hydrolyzed and hydrolyzed ULU) and 0.5 mol/L of the negative control HCl. After mixing with 40 µL GR in each well for 20 min, absorbance at 405 nm was determined via a Sunrise microplate reader device (TECAN, Woburn, Inc, USA, MA), subsequently SC was determined as follow:
SC = {(µH)− (µN) }± p σH² + σN².
Where σH and µH represent the standard deviation and mean of SC for hydrolyzed ULU, respectively and σN and µN represent those for non-hydrolyzed ULU, respectively.
Total Sugar Composition (TSC) and Total Protein Composition (TPC)
TSC and TPC were calculated in order to determine the Purity degree of ULU according to phenol–sulfuric acid method30 and the Lowry method31, respectively.
Moisture and ash content
Via oven heating ULU for 24 h at 103 °C, % dry weight was measured32. Ash content was calculated gravimetrically by drying 70 mg ULU at 550 °C for 14 h8.
Elemental analysis (EA)
C, N, H, and S in ULU were performed with a Vario Micro Cube(VMC), Germany Elementer (GE).
Uronic acid (UA)
UA was calculated via the meta-hydroxy diphenyl method33. In this procedure, 0.4 mL of 1 mg/mL ULU was applied to 2.4 mL of conc H2SO4, the mixture was heated for 30 min up to 100 °C with 120 mM sodium tetraborate, after cooling, 150 µL of m-hydroxydiphenyl reagent was applied with 15 min incubation, then ab was determined at a range (400 to 700 nm).
(ULU) characterization
HPLC
Monosaccharide composition of ULU was determined via HPLC (Agilent, USA, California) after a process of acid hydrolysis using different reference monosugars34.
FTIR
ULU active chemical groups were analyzed using an FTIR spectrometer (Bruker, Germany, ALPHA), which measured within the 4000–400 cm⁻¹ range, using a resolution of 4.0 cm⁻¹ and averaged over 128 scans35.
XRD
The crystallinity of Ulvan were detected using the Bruker D2 Phaser X-ray diffractometer, which is equipped with Cu Kα radiation (λ = 1.5412 Å) and operates at 30 mA and 40 kV over a 2θ range of 5° to 85°.
TGA
Thermogravimetric analysis (TGA) tests were conducted on a Netzsch (DSC) 204 through a stable flow of nitrogen. An amount of 1.71 mg ULU was progressively heated at 20 °C to 1000 °C per min., with recording the thermo-gram8.
(SEM & EDX) analysis
High Resolution Scan Electron Microscope {(HRSEM), Jeol, JSM-IT 200, Japan} using a 15 kV accelerating voltage was applied to study ULU surface morphology36,37. While ULU element composition was determine via the same device with an energy-dispersive X-ray spectrometer (EDX)38.
ULU cytotoxicity
Vero Cells (VCs) (derived from the kidney of an African green monkey) with the Panc-1 cell line supplied by the American Type Culture Collection (ATCC), Rockville, M, culturing in Dulbecco’s modified Eagle’s medium (DMEM) was done with a day of incubation in 37 °C at conc 5 × 10⁴ cells/well, ULU was then added to the 96-WP, with six wells containing media or 0.5% DMSO, used as controls and after a whole day, cell viability was measured and viability % was determine as follow39.
Viability%= {(ODs/ODc)} × 100%, where ODs and ODc represent the optical density of ULU and the control, respectively. Inhibitory conc (IC50), defined as the concentration inducing 50% toxicity in intact cells, was measured using the software GraphPad (CA, San Diego, USA).
DPPH free radical scavenging activity of (ULU)
Different concentrations of ULU were used at concentrations ranging from 2 to 1000 µg/mL, from each conc 4 µL was added to 3 mL of a DPPH solution prepared at 0.004% (w/v). Using the UV spec (Spectronic 1201, Milton Roy), absorbance was measured at 515 nm using ascorbic acid as reference, inhibition percentage % (IP) was measured as described below:
IP = {(AS - AC)/AS} x 100], where AS and AC represent the ab of test and control, respectively40.
Antiviral activity of (ULU) against Hepatitis A virus(HAV)
HAV (HM175) strain (ATCC, VR:1402) was cultured and tested in relation to vero cells (VCs) via MTT method41,42,43; after viral and VCs propagation with conc 2 × 105 cells/100 L, ULU was added for each well, OD at 590 nm was then measured with an ELISA reader (SunRise, TECAN, Inc., USA), to viral determine inhibition % (VI) with the evaluation of IC50 as follow39.
VI=(A − N)/(B − N) ˣ100%.
In which A, N, and B corresponded to the OD of ULU in virus-infected cells, the OD of the virus control and the OD of the cell control, respectively.
Statistical analysis
Statistical analysis was performed using SPSS software, version 9.4.1 (CA, San Diego, USA). Comparisons were made using one-way ANOVA, followed by Tukey’s post hoc test, with significance set at p < 0.05.
Results and discussion
Ulvans were produced using hot-water extraction followed by ethanol precipitation, as described by Binsuwaidan et al.44. Hot water extraction produced the maximum yield when compared to other studies45,46. The extraction conditions were optimized at 120 °C for 50 min, with a pH of 4.5 and a 1:30 ratio of algal powder to water (Figs. 1, 2, 3 and 4). This process yielded 23.33 ± 0.28% from 30 g of algal powder (Table 1). The yield was twice that reported by Binsuwaidan et al.44 (11.20 ± 0.32%) and exceeded those reported by Ponce et al.47 for Ulva ohnoi (14.84%), Chen et al.48 (17.8 ± 0.6%), and Klongklaewad et al.49 (15.2%). Table 1 summarizes the chemical composition and elemental analysis of the extracted ulvan (ULU), while Table 2 presents a comparison of Ulva species regarding extraction and purification methods, conditions, yield, and sulfate content44,45,46,47,48,49,50,51,52,53. Although advanced techniques such as microwave-assisted extraction (MAE) and ultrasound-assisted extraction (UAE) can achieve higher ulvan yields, they require specialized equipment, precise control of energy, and may cause partial degradation or alteration of sensitive compounds54,55. In contrast, our hot water extraction method offers a simpler, cost-effective, and reproducible approach suitable for large-scale production. The concentration of uronic acid was 5.19 µg/while the sulfate content was 35.35 ± 0.25%, considerably better than sulfate amounts reported by Ibrahim et al.56 (19.72%) and Binsuwaidan et al.44 (14.95%), which is responsible for the majority of the activities of ulvans57,58. Furthermore, TSC was 42.74 ± 0.32%, surpassing that of Ibrahim et al.56 (24.27%) and Binsuwaidan et al.44 (33.66%). The elevated sugar content (42.74 ± 0.32%) and reduced protein content (5.15 ± 0.05%) may be associated with heightened photosynthetic activity in May, which promotes growth and development59,60. The extract exhibited a moisture content of 56.4 ±0.35%, indicative of the hydrophilic and hygroscopic characteristics of ulvan polysaccharides61. In addition, the ash content was 39.001 ±0.26%, indicating a correlation between high ash content and raised sulfate levels, as shown by Costa et al.62, Olasehinde et al.63, and Ibrahim et al.56. The HPLC analysis (Fig. 5) delineated the monosaccharide composition of ULU, which includes rhamnose (14.10 µg/g dry weight), fucose (11.04 µg/g dry weight), fructose (10.35 µg/g dry weight), and galactose (7.41 µg/g dry weight), with rhamnose as the predominant sugar. Rhamnose is a significant indicator of ulvan64, with a small amount of galactose10.

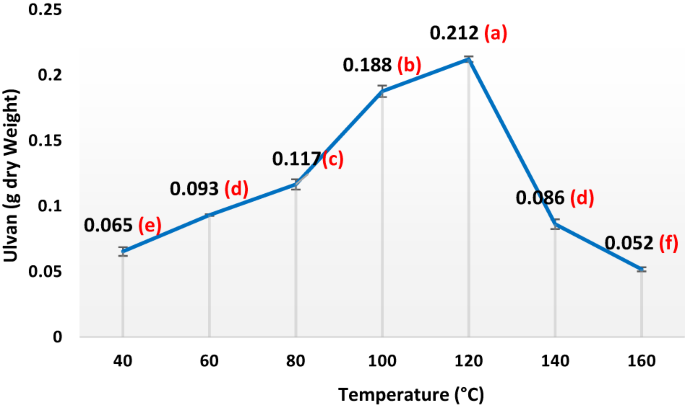

Effect of different temperature degrees on ulvan production from Ulva lactauca using a one factor at a time (OFAT) approach with (Time:30 min., pH:4, alga: water ratio,1:20 kept constant). Yield per 1 g of dry alga increased from 0.065 g at 40 ℃ to 0.212 g at 120 ℃. *The letters (a, b, and c) indicate a significance level of P < 0.05. *Values sharing the same letter are not significantly different. *Note: All experimental data representing the effect of optimized conditions were statistically analyzed using SPSS software (version 9.4.1, San Diego, CA, USA). One-way ANOVA followed by Tukey’s post hoc test was applied, and differences were considered significant at p < 0.05.

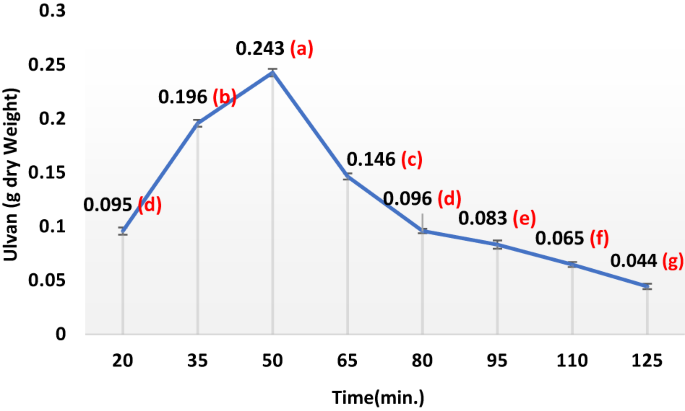

Impact of varying extraction times on ulvan yield from Ulva lactauca using a one factor at a time (OFAT) approach with (Temperature 120 ℃, pH:4, alga: water ratio, 1:20 kept constant). Yield per 1 g of dry alga increased from 0.095 at 20 min to 0.243 at 50 min.

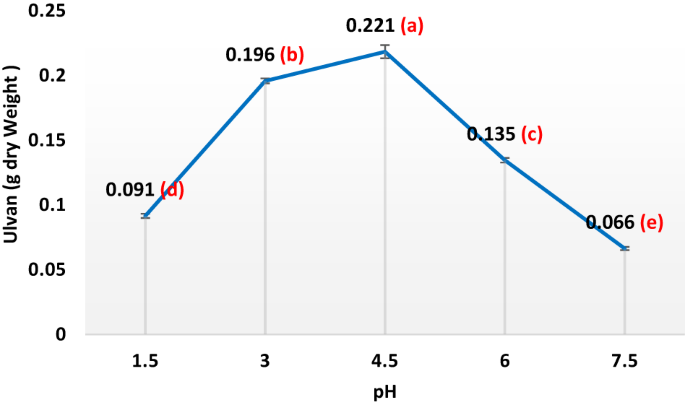

Effect of varying pH levels on ulvan production in Ulva lactauca using a one factor at a time (OFAT) approach with (Temperature 120 ℃, Time:50 min, alga: water ratio, 1:20 kept constant). Yield per 1 g of dry alga increased from 0.091 at pH 1.5 to 0.221 at pH 4.5.

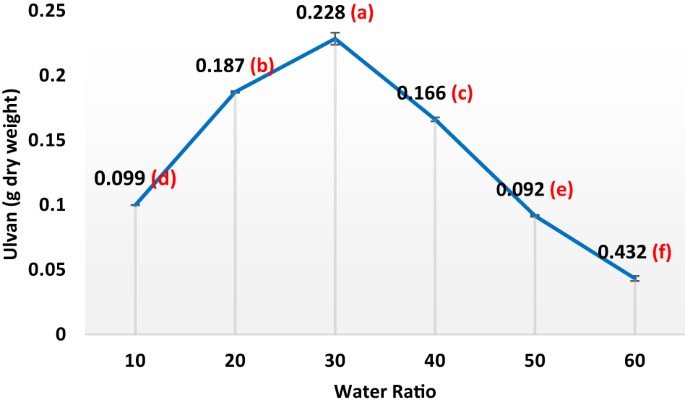

Impact of varying water volumes on ulvan production in Ulva lactauca using a one factor at a time (OFAT) approach with (Temperature 120 ℃, Time:50 min, pH 4.5 kept constant).Yield per 1 g of dry alga increased from 0.099 at 1:10 to 0.228 at 1:30, the final optimized yield.

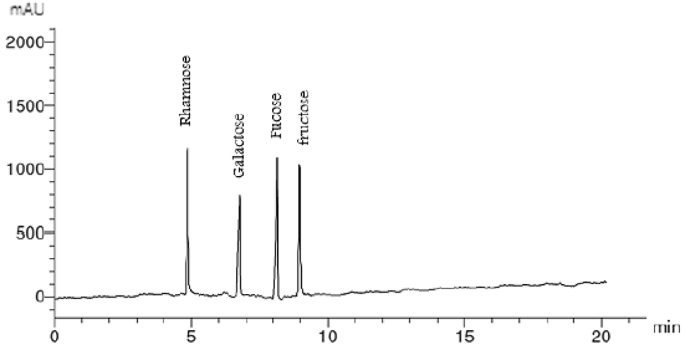

HPLC Chromograph of Ulvan from Ulva lactauca.
FTIR

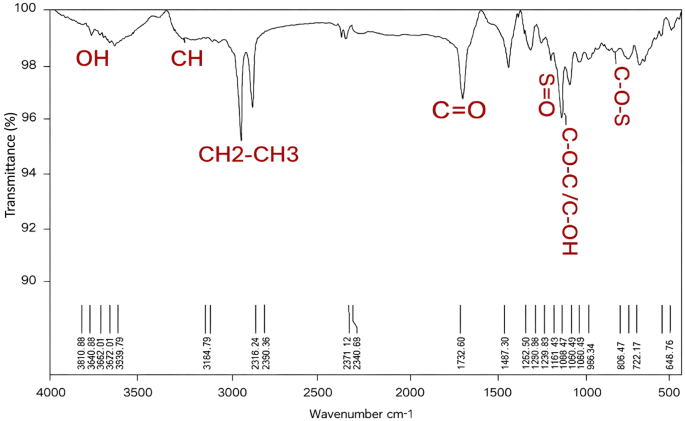

The FTIR spectrum of ULU (Fig. 6) demonstrates multiple functional groups that signify its chemical structure, with purity similar to that of other Ulvamembers, according to Quemener et al.65; Tian et al.66; Mhatre et al.67; Olasehinde et al.63; Ibrahim et al.56; Binsuwaidan et al.44 and Maray et al.68.
FT-IR spectra of ulvan extracted from Ulva lactauca.
The distinctive hydroxyl groups (OH) present in polysaccharides are responsible for the wide absorption band in the 3810.80–3629.79 cm⁻¹ area. That means the Ulvan structure does include sugar-based functional groups. A peak at 3184.79 cm⁻¹ indicates C-H vibrations, particularly from CH₂ groups. The observed peaks at 2918.24 and 2850.36 cm⁻¹ correspond to the C-H vibrations, which are characteristic of hydrocarbon chains (CH₂ and CH₃) found in the sugar backbone of polysaccharides, thereby reinforcing the organic composition of Ulvan69. Atmospheric interferences or CO₂ may be present in the region 2371.12–2340.69 cm⁻¹. It is a typical feature of FTIR spectra and has no impact on the analysis of Ulvan’s fundamental functional groups. The absorption at 1732.80 cm⁻¹ corresponds to C = O stretching vibrations, signifying carbonyl groups (C = O), often associated with uronic acids, a constituent of the Ulvan structure, hence corroborating the existence of polymeric characteristics in the sample70. The peaks at 1467.30–1342.50 cm⁻¹ indicate C-H bending and O-H deformation vibrations linked to aliphatic and hydroxyl groups within the polysaccharide66. The strong absorption in the range of 1280.88–1161.47 cm⁻¹ is due to S = O groups, indicating the presence of sulfate groups, a characteristic feature of Ulvan56, which contributes to its biological activities58. The range 1098.62–986.34 cm⁻¹ is related to C-O-C and C-OH restricting glycosidic bonds and hydroxyl groups in the polysaccharide sugar backbone66. The absorption within the range of 805.07–648.17 cm⁻¹ indicates C-O-S vibrations, hence substantiating the existence of sulfate esters, a crucial structural component in sulfated polysaccharides such as Ulvan. The peak at 455.76 cm⁻¹ is ascribed to low-frequency vibrations, presumably associated with the skeletal modes of the sugar backbone, offering more structural insights.
XRD

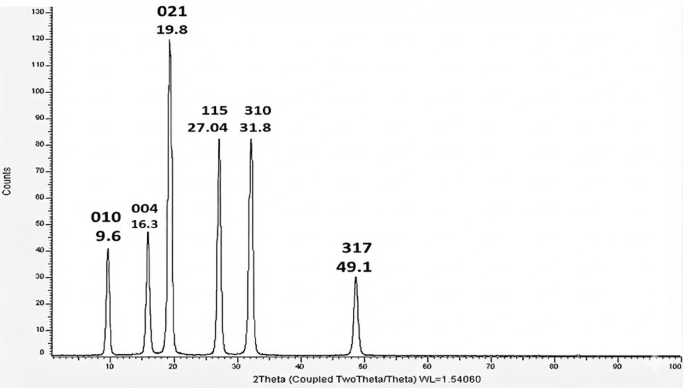

Figure 7shows that ULU has a semi-crystalline nature characterized by prominent peaks in accordance with Binsuwaidan et al.44.
X-ray diffraction (XRD) analysis of ulvan extracted from Ulva lactauca.
The dominant peak at 2θ = 19.8° correlates to 021 plane, exhibiting a substantial level of structural order characteristic of semi-crystalline polysaccharides. Further peaks identified at 2θ values of 9.6° (010), 16.3° (004), 27.04° (115), 31.8° (310), and 49.1° (317) substantiate the ordered structure inside the ulvan matrix, enhancing its rigidity and stability. Although ulvan and similar polysaccharides are often considered amorphous71, this pattern demonstrates harmony between amorphous and semi-crystalline areas.
Olasehinde et al.63 proposed that repeated aldobiouronic units may explain its crystalline area, whereas Barakat et al.71 suggested that its amorphous region could be due to its heterogeneous chemical makeup. In biomaterials, the semi-crystalline areas improve thermal stability and structural integrity; in medicinal formulations, the amorphous parts improve bioavailability by increasing solubility and flexibility.
TGA

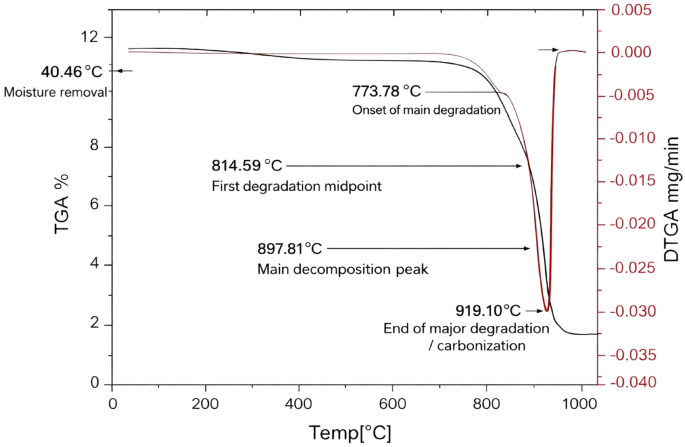

The thermal stability and decomposition characteristics of the ULU (Fig. 8) have been examined using thermogravimetric analysis (TGA). The findings are similar to those reported by Gruskiene et al.72. The TGA curve revealed the weight loss pattern over a temperature range from 40 °C to 1000 °C, emphasizing key stages of thermal breakdown. Weight loss started between 40.46 °C and 860.73 °C, with a notable beginning at 773.78 °C and ending at 864.86 °C. The midpoint of this phase was 814.59 °C, with a total weight decrease of 3.304 mg, equal to a 23.419% reduction. This phase likely indicates the removal of residual moisture and volatile organic compounds, suggesting that the original components of Ulvan stay stable up to about 770 °C, after which significant thermal disintegration begins. The main decomposition occurred between 860.73 °C and 994.93 °C, starting at 876.15 °C and ending at 919.10 °C, with a midpoint at 897.81 °C. During this phase, substantial weight loss was observed, with a reduction of 8.275 mg, or 58.656% of the total weight. This large weight loss suggests the breakdown of the core polysaccharide structure and its conversion into volatile products. The notable degradation at high temperatures highlights the durability of Ulvan’s molecular framework against decomposition, indicating the temperature at which its thermal stability is most tested. The results show that Ulvan maintains significant thermal stability up to about 770 °C, after which gradual decomposition occurs. The initiation of decomposition at higher temperatures indicates that Ulvan polysaccharides have inherent thermal resistance, likely due to their complex structure with sulfated polysaccharide chains.
TGA of Ulvan from Ulva lactauca.
ULU SEM and EDX
According to Binsuwaidan et al.44, ULU has a semi-crystalline structure, is not smooth, and resembles Ulva lactauca in its irregular forms (Fig. 9 [A]). Further EDX examination (Fig. 9 [B]) revealed a variety of elements, with oxygen (O) accounting for 51.57%, carbon (C) for 12.08%, sulfur (S) for 14.78%, magnesium (Mg) for 2.71%, potassium (K) for 0.43%, calcium (Ca) for 0.48%, sodium (Na) for 16.08%, and chloride (Cl) for 1.86%.

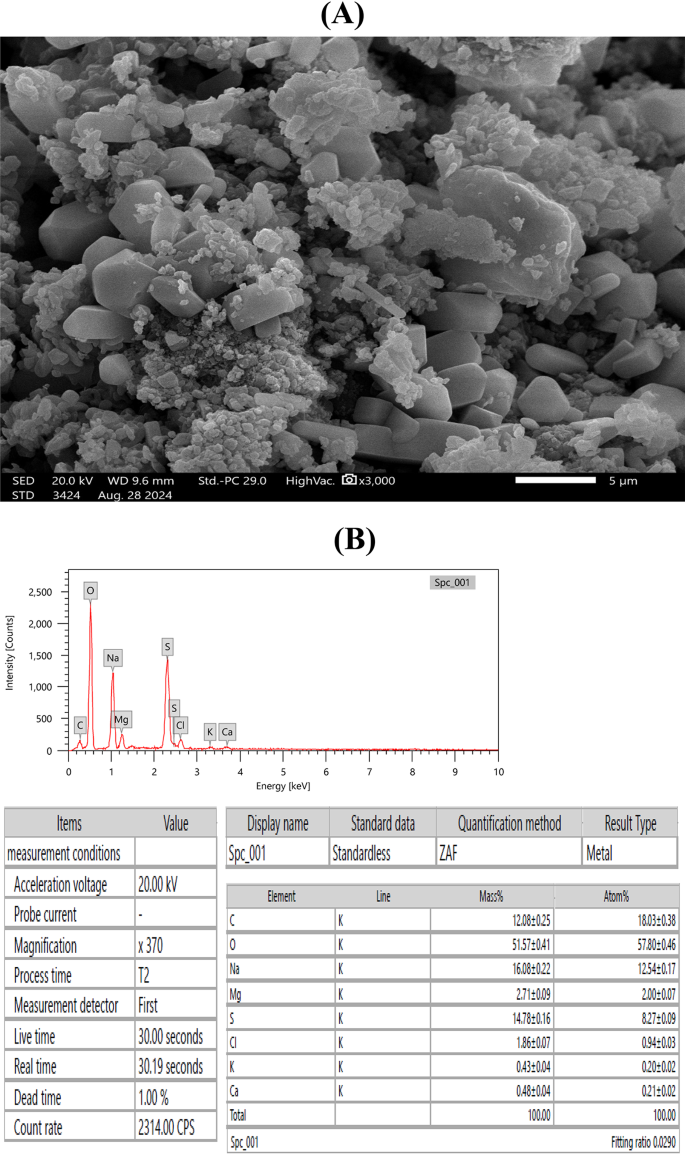

SEM micrographs (A), (scale bar 5 μm) and corresponding EDX elemental of ulvan (B) extracted from Ulva lactuca, showing various surface morphologies. The SEM images reveal semi-crystalline structures, which are closely correlated with the distribution of elements such as sulfur (S), sodium (Na), and magnesium (Mg) detected by EDX, suggesting that these elemental compositions may contribute to the observed crystalline-like features rather than originating solely from the polymeric chains of ulvan.
Cytotoxicity of ULU

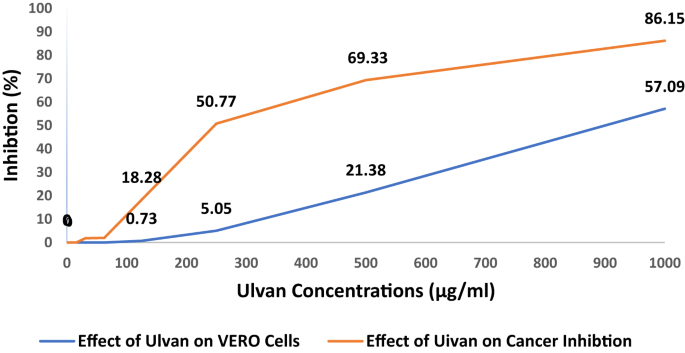

The cytotoxicity illustrated in Fig. 10 reveals a dose-dependent inhibitory activity. At lower concentrations (2–62.5 µg/ml), the compound exhibited minimal or no significant cytotoxicity, with viability percentages surpassing 98%. However, at concentrations of 125 µg/ml and higher, a noticeable decrease in cell viability was observed, indicating a significant cytotoxic effect. The maximum inhibition (86.15%) occurred at 1000 µg/ml, resulting in a viability of 13.85%. The determined IC50value of 123.51 ± 10.95 µg/ml suggests that ULU has considerable cytotoxicity towards Panc-1 cells; this agrees with Maray et al.68, who reported nearly similar results of natural polysaccharides tested against lung cancer cells. The close alignment in IC50 values indicates that ULU shares comparable potency with previously studied polysaccharides in targeting cancer cells. Previous studies stated that the heteropolysaccharide ulvan extracted from Ulva showed significant antitumor growth activity73. As shown in Fig. 10, increasing concentrations of ulvan led to significant inhibition of cancer cell proliferation while exhibiting minimal effects on healthy cells. This suggests that ulvan possesses selective cytotoxicity towards cancer cells, highlighting its potential as a therapeutic agent.
Cytotoxic effect of ulvan from Ulva lactauca on Panc-1 and Vero cell lines.
DPPH scavenging
Many studies demonstrate the antioxidant properties of ulvan48,74,75. Results in Table 3 suggest a concentration-dependent increase in scavenging activity, substantiating the compound’s antioxidant capability. At the lowest evaluated concentration (2 µg/mL), the scavenging activity was negligible (0.98% ±0.13). As the concentration increased, the activity markedly elevated, reaching 88.31% ±2.64 at the maximum concentration (1000 µg/mL). The IC50value, indicating the concentration necessary to scavenge 50% DPPH radicals, was established at 263.73 ± 9.41 µg/mL. Conversely, Maray et al.68 extracted ulvan from Ulva lactuca with similar techniques but indicated little antioxidant activity, with an IC50 value significantly above 263.73 µg/mL. This divergence underscores the heterogeneity in antioxidant activity, which may be associated with changes in algae species or the extraction methods utilized in contrast46. Antioxidant action relies on the sulfate content76. Although seasonal variation was not assessed in this study, recent research has demonstrated seasonal changes in the composition and antioxidant potential of Ulva lacinulata77. Such findings indicate that environmental and seasonal factors may influence ulvan’s antioxidant activity.
The present work reveals that ULU has considerable antioxidant activity, with a notably lower IC50 value, signifying higher effectiveness than previously documented. While the current study did not explore chemical modifications or combinations with other bioactive compounds, such approaches could be investigated in future research to assess their potential impact on ulvan’s antioxidant capacity for broader medicinal and commercial applications.
ULU Virucidal
Koenighofer et al.78 indicate that ulvan significantly inhibits several virus strains. These chemicals inhibit viral entry by disrupting its binding with the target cell. ULU Virucidal effect could originate from ULU binding with viruses or receptors located on its surfaces79. Table 4 revealed moderate antiviral activity (40.25 ± 2.61%) at conc 50 µg/ml. EC₅₀ value for Ulvan was 60.95 ± 0.43 µg/ml, whereas the cytotoxic concentration (CC₅₀) was 230.53 ± 2.09 µg/ml, resulting in a Selectivity Index (SI) of 3.7.
The results indicate moderate antiviral activity of ulvan. Previous studies have shown that combining ulvan with other polysaccharides, such as fucoidan, can modulate antiviral effects, although synergistic activity is not guaranteed, and ulvan may antagonize certain effects80. Additionally, recent studies have highlighted that extraction conditions and algal morphology can significantly influence the chemical, thermal, and molecular properties of ulvan81,82,83, providing context for understanding the physicochemical profile of the polysaccharide observed in this study.
Conclusion
The Ulvan polysaccharide derived from Ulva lactuca (ULU) has significant anticancer activities, particularly at elevated amounts, highlighting its role as a promising viable treatment option; also, it may serve as a biosubstitute for chemical antioxidants. Nonetheless, its antiviral is also taken into consideration; recommended studies should focus on augmenting its virucidal effectiveness by optimizing its amounts, investigating synergizing medicines, or any other promising technique to boost its activities.
Data availability
All data generated or analyzed during this study are included in the current article, and any further requests for data should be from the corresponding author.
References
El-Sheekh, M. M., Abu-Resha, A. M., Morsi, H., Abou El-Souod, G. W. & Makhlof, M. Extraction, optimization, and characterization of fucoidan from Polycladia myrica with the evaluation of its anticancer, antioxidant, and antiviral activities. S. Afr. J. Bot. 184, 899–910 (2025).
González Fernández, L. A., Castillo Ramos, V., Sánchez Polo, M. & Medellín Castillo, N. A. Fundamentals in applications of algae biomass: A review. J. Environ. Manage. 338, 117830. https://doi.org/10.1016/j.jenvman.2023.117830 (2023).
Abu-Resha, A. M., Abou-El-Souod, G. W. & Morsi, H. H. Optimization and characterization of fucoidan extracted from the brown alga Polycladia myrica. Egypt. J. Phycol. 26(1), 61–69 (2025).
Abidin, Z. U., Shah, G. M. & Gul, A. Morphology and ecological studies of the Chlorophyta in relation with water quality parameters of the Dor River Abbottabad, Pakistan. J. Freshw. Ecol. 40(1), 2591635 (2025).
Camara, P. E. et al. Eukaryotic diversity associated with the phycosphere of the seaweed Ulvaria obscura (Kützing) Gayral (Chlorophyta, Ulvophyceae) in the Svalbard Archipelago, Arctic region assessed using DNA metabarcoding. An. Acad. Bras. Cienc. 97(4), e20240808 (2025).
Lailaturramadhini, N. et al. The comparison of phytochemical composition, total polysaccharides, and highest nutrient content in seaweed (Ulva lactuca) from two different locations. J. Aquac. Fish Health https://doi.org/10.20473/jafh.v14i2.70265 14(2), 284-296 (2025).
Zheng, L. et al. What causes the great green tide disaster in the South Yellow Sea of China in 2021?. Ecol. Indic. 140, 108988 (2022).
Paini, J. et al. Ulvan-based electrospun nanofibres from water solutions: Process conditions and characterisations. J. Appl. Polym. Sci. 143(4), e58093 (2026).
Felipe, A. T. D. M. et al. Green macroalgae biomass upcycling as a sustainable resource for value-added applications. Appl. Sci. 15(14), 7927 (2025).
Ning, L., Yao, Z. & Zhu, B. Ulva (Enteromorpha) polysaccharides and oligosaccharides: A potential functional food source from green-tide-forming macroalgae. Mar. Drugs 20(3), 202 (2022).
Ajayi, R. O. & Ogunjobi, T. T. Environmental exposures and cancer risk: A comprehensive review. Medinformatics 2(2), 80–92 (2025).
Mannucci, A. & Goel, A. Advances in pancreatic cancer early diagnosis, prevention, and treatment: The past, the present, and the future. CA: A Cancer Journal for Clinicians. (2025).
Mititelu, M. et al. Assessing heavy metal contamination in food: Implications for human health and environmental safety. Toxics 13(5), 333 (2025).
Mustafa, M., Rashed, M. & Winum, J. Y. Novel anticancer drug discovery strategies targeting hypoxia-inducible factors. Expert Opin. Drug Discov. 20 (1), 103–121 (2025).
Pradhan, B. et al. Algal phlorotannins as novel antibacterial agents with reference to the antioxidant modulation: Current advances and future directions. Mar. Drugs 20(6), 403 (2022).
Chen, Y., Lin, Q., Wang, J., Mu, J. & Liang, Y. Proteins, polysaccharides and their derivatives as macromolecular antioxidant supplements: a review of in vitro screening methods and strategies. Int. J. Biol. Macromol. 224, 958-971 (2023).
Bhuyan, P. P. et al. Seaweed-derived sulfated polysaccharides; The new age chemopreventives: A comprehensive review. Cancers 15, 715 (2023).
Pradhan, B., Bhuyan, P. P. & Ki, J. S. Immunomodulatory, antioxidant, anticancer, and pharmacokinetic activity of Ulvan, a seaweed-derived sulfated polysaccharide: An updated comprehensive review. Mar. Drugs 21(5), 300 (2023).
Nagori, K., Nakhate, K. T., Yadav, K., Thakur, A. & Pradhan, M. Innovative strategies for overcoming blood-brain barrier challenges in Alzheimer’s disease: A focus on green-synthesized metallic nanoparticles. Inorg. Chem. Commun. 171, 113604 (2025).
Dong, X. et al. Recent advances of edible marine algae-derived sulfated polysaccharides in antiviral treatments: Challenges vs. opportunities. Front. Nutr. 12, 1561119 (2025).
Aleem, A. A. Contributions to the study of the marine algae of the Red Sea. I—The algae in the neighborhood of Al-Ghardaqa, Egypt (Cyanophyceae, Chlorophyceae, and Phaeophyceae). Bull. Fac. Sci. (Jeddah King Abdul Aziz Univ.) 2, 73–88 (1978).
Aleem, A. A. Marine Algae in Alexandria, Egypt 1–135 (Alexandria Privately Published, 1993).
Lipkin, Y. S. Marine algae and seagrasses of the Dahlak Archipelago, Southern Red Sea. Nova Hedwigia 75, 1–90 (2002).
Braune, W. Meeresalgen: Ein Farbbildführer zu den Verbreiteten Benthischen Grün-, Braun- und Rotalgen der Weltmeere [Seaweeds: A Colour Guide to the Widespread Benthic Green, Brown and Red Algae of the World’s Oceans] Vol. 596 (Braun- und Rotalgen Dder Weltmeere Gantner Verlag Ruggell; Gantner, 2008).
Guiry, M. D. & Guiry, G. M. Algae Base. Worldwide Electronic Publication (National University of Ireland, 2018).
Huang, H. J., Ramaswamy, S., Al-Dajani, W. W. & Tschirner, U. Process modeling and analysis of pulp mill-based integrated biorefinery with hemicellulose pre-extraction for ethanol production: A comparative study. Bioresour. Technol. 101, 624–631 (2010).
Figueira, T. A., da Silva, A. J. R., Enrich-Prast, A., Yoneshigue-Valentin, Y. & de Oliveira, V. P. Structural characterization of ulvan polysaccharide from cultivated and collected Ulva fasciata (Chlorophyta). Adv. Biosci. Biotechnol. 11(05), 206 (2020).
Torres, P. B. et al. Determination of sulfate in algal polysaccharide samples: A step-by-step protocol using microplate reader. Ocean Coast. Res. 69, e21021 (2021).
Dodgson, K. S. & Price, R. G. A note on the determination of the ester sulfate content of sulfated polysaccharides. Biochem. J. 84, 106–110 (1962).
DuBois, M., Gilles, K. A., Hamilton, J. K., Rebers, P. A. & Smith, F. Colorimetric method for determination of sugars and related substances. Anal. Chem. 28, 350–356 (1956).
Lowry, O. H., Rosebrough, N. J., Farr, A. L. & Randall, R. J. Protein measurement with the Folin Phenol Reagent. J. Biol. Chem. 193, 265–275 (1951).
Madany, M. A., Abdel-Kareem, M. S., Al-Oufy, A. K., Haroun, M. & Sheweita, S. A. The biopolymer Ulvan from Ulva fasciata: Extraction towards nanofibers fabrication. Int. J. Biol. Macromol. 177, 401–412 (2021).
Filisetti-Cozzi, T. M. & Carpita, N. C. Measurement of uronic acids without interference from neutral sugars. Anal. Biochem. 197(1), 157–162 (1991).
Tu, X. et al. Determination of the composition and monosaccharide content of Atractylodes polysaccharides using pre-column derivatization and a quantitative analysis of multicomponents by a single marker method. J. Chromatogr. Open 7, 100224 (2025). https://doi.org/10.1016/j.jcoa.2025.100224
Kamali, M., Shabanpour, B., Pourashouri, P. & Kordjazi, M. Ulvan from Ulva intestinalis of the Caspian Sea: Characteristics, antioxidant, and antibacterial activities. Carbohydr. Polym. Technol. Appl.11, 100872 (2025). https://doi.org/10.1016/j.carpta.2025.100872
Quan, T. T., Le, G. H. & Phan, B. T. Ulvan polysaccharide stabilized selenium nanoparticles: Synthesis and antidiabetic ability. Mater. Res. Express 12(12), 125401 (2025).
Freile-Pelegrín, Y., Robledo, D., Chávez-Quintal, C., Chalé-Dzul, J. B. & Zertuche-González, J. A. Valorization of the cell wall polysaccharides of commercially cultivated Ulva ohnoi in Mexico. Journal Appl. Phycology, 1–13 (2025).https://doi.org/10.1007/s10811-025-03681-z
de Moura Crescencio, K. M. et al. High-purity ulvan from Ulva ohnoi: green extraction and physicochemical insights into a biomedical polysaccharide. Academia Mater. Science, 2(4), 1-12(2025).https://doi.org/10.20935/AcadMatSci7931
Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 65, 55–63 (1983).
Yen, G. C. & Duh, P. D. Scavenging effect of methanolic extracts of peanut hulls on free radical and active oxygen species. J. Agric. Food Chem. 42, 629–632 (1994).
Hu, J. M. & Hsiung, G. D. Evaluation of new antiviral agents I: In vitro prospective. Antivir. Res. 11, 217–232 (1989).
Al-Salahi, R. et al. Docking and antiherpetic activity of 2-Aminobenzo[de]-isoquinoline-1,3-diones. Molecules 20, 5099–5111 (2015).
Randazzo, J. W., Piqueras, J., Diaz, R., Aznar, R. & Sanchez, G. Improving efficiency of viability-qPCR for selective detection of infectious HAV in food and water samples. J. Appl. Microbiol. 124, 958–964 (2017).
Binsuwaidan, R. et al. Prospective antiviral effect of Ulva lactuca aqueous extract against COVID-19 infection. Mar. Drugs. 22(1), 30 (2023).
Robic, A., Rondeau-Mouro, C., Sassi, J.-F., Lerat, Y. & Lahaye, M. Structure and interactions of ulvan in the cell wall of the marine green algae Ulva rotundata (Ulvales, Chlorophyceae). Carbohydr. Polym. 77, 206–216 (2009).
Wahlström, N. et al. Composition and structure of cell wall ulvans recovered from Ulva spp. along the Swedish west coast. Carbohydr. Polym. 233, 115852 (2020).
Ponce, M., Zuasti, E., Anguís, V. & Fernández-Díaz, C. Effects of the sulfated polysaccharide ulvan from Ulva ohnoi on the modulation of the immune response in Senegalese sole (Solea senegalensis). Fish Shellfish Immunol. 100, 27–40 (2020).
Chen, J. et al. Physicochemical properties and anti-oxidation activities of ulvan from Ulva pertusa Kjellm. Algal Res. 55, 102269 (2021).
Klongklaewad, N., Praiboon, J., Tamtin, M. & Srisapoome, P. Chemical composition of a hot water crude extract (HWCE) from Ulva intestinalis and its potential effects on growth performance, immune responses, and resistance to white spot syndrome virus and yellowhead virus in Pacific white shrimp (Litopenaeus vannamei). Fish Shellfish Immunol. 112, 8–22 (2021).
Istiqlaal, S., Sukarno, S., Uju, U., Sitanggang, A. B. & Wijaya, C. H. Impact of ultrasonic-assisted extraction period on physical properties of ulvan. In BIO Web of Conferences 169, 01005 (EDP Sciences, 2025).
Yuan, Y. et al. Microwave-assisted hydrothermal extraction of polysaccharides from Ulva prolifera: Functional properties and bioactivities. Carbohydr. Polym. 181, 902–910 (2018).
Matsuzaki, K. et al. Accelerating sulfated polysaccharides extraction from fast-growing Ulva green seaweed by frequency-controlled microwaves. ACS Omega 9(27), 29896–29903 (2024).
Malvis Romero, A., Picado Morales, J. J., Klose, L. & Liese, A. Enzyme-assisted extraction of ulvan from the green macroalgae Ulva fenestrata. Molecules 28(19), 6781 (2023).
Esquivel-Hernández, D. A. et al. Green extraction technologies for high‐value metabolites from algae: a review. Biofuels, Bioprod. Biorefin. 11 (1), 215–231 (2017).
Carreira-Casais, A. et al. Benefits and drawbacks of ultrasound-assisted extraction for the recovery of bioactive compounds from marine algae. Int. J. Environ. Res. Public Health. 18 (17), 9153 (2021).
Ibrahim, M. I., Amer, M. S., Ibrahim, H. A. & Zaghloul, E. H. Considerable production of ulvan from Ulva lactuca with special emphasis on its antimicrobial and anti-fouling properties. Appl. Biochem. Biotechnol. 194(7), 3097–3118 (2022).
Liang, W., Mao, X., Peng, X. & Tang, S. Efects of sulfate group in red seaweed polysaccharides on anticoagulant activity and cytotoxicity. Carbohyd. Polym. 101, 776–785 (2014).
Ismail, M. M. & Amer, M. S. Characterization and biological properties of sulfated polysaccharides of Corallina ofcinalis and Pterocladia capillacea. Acta. Bot. Bras. 34, 623–632 (2021).
Rico, J. M. & Fernández, C. Seasonal nitrogen metabolism in an intertidal population of Gelidium latifolium (gelidiaceae, rhodophyta). Eur. J. Phycol. 31, 149–155 (1996).
Fareeha, A., Atika, A. & Aliya, R. Protein extraction from Ulva lactuca and padinapavonica found at Buleji Coast, Karachi. Pak. Int. J. Phycol. Phycochem. 9, 49–52 (2013).
Alves, A., Caridade, S. G., Mano, J. F., Sousa, R. A. & Reis, R. L. Extraction and physico-chemical characterization of a versatile biodegradable polysaccharide obtained from green algae. Carbohydr. Res. 345, 2194–2200 (2010).
Costa, C. et al. Characterization of Ulvan Extracts to Assess the Effect of Different Steps in the Extraction Procedure. Carbohydr. Polym. 88, 537–546 (2012).
Olasehinde, T. A., Mabinya, L. V., Olaniran, A. O. & Okoh, A. I. Chemical characterization of sulfated polysaccharides from Gracilaria gracilis and Ulva lactuca and their radical scavenging, metal chelating, and cholinesterase inhibitory activities. Int. J. Food Prop. 22, 100–110 (2019).
Tziveleka, L. A., Ioannou, E. & Roussis, V. Ulvan, a bioactive marine sulphated polysaccharide as a key constituent of hybrid biomaterials: A review. Carbohydr. Polym. 218, 355–370 (2019).
Quemener, B., Lahaye, M. & Bobin-Dubigeon, C. Sugar determination in ulvans by a chemical-enzymatic method coupled to high-performance anion exchange chromatography. J. Appl. Phycol. 9, 179–188 (1997).
Tian, H., Yin, X., Zeng, Q., Zhu, L. & Chen, J. Isolation, structure, and surfactant properties of polysaccharides from Ulva lactuca L. from South China Sea. Int. J. Biol. Macromol. 79, 577–582 (2015).
Mhatre, A., Navale, M., Trivedi, N., Pandit, R. & Lali, A. M. Pilot scale flat panel photobioreactor system for mass production of Ulva lactuca (chlorophyta). Bioresour. Technol. 249, 582–591 (2018).
Maray, S. O., Abdel-Kareem, M. S., Mabrouk, M. E., El-Halmouch, Y. & Makhlof, M. E. In vitro assessment of antiviral, antimicrobial, antioxidant and anticancer activities of ulvan extracted from the green seaweed Ulva lactuca. Thalassas Int. J. Mar. Sci. 39(2), 779–790 (2023).
Mao, W., Zang, X., Li, Y. & Zhang, H. Sulfated polysaccharides from marine green algae Ulva conglobata and their anticoagulant activ-ity. J. Appl. Phycol. 18, 9–14 (2006).
Andrade, F. T., Silva, D., Enrich-Prast, A., Yoneshigue-Valentin, A. & Yocie Oliveira, V. Structural characterization of ulvan polysaccharide from cultivated and collected Ulva fasciata (Chlorophyta). Adv. Biosci. Biotechnol. 11, 206–216 (2020).
Barakat, K. M., Ismail, M. M., Abou El Hassayeb, H. E., El Sersy, N. A. & Elshobary, M. E. Chemical characterization and biological activities of ulvan extracted from Ulva fasciata (Chlorophyta). Rend. Lincei Sci. Fis. Nat. 33(4), 829–841 (2022).
Gruskiene, R. et al. Nisin-loaded ulvan particles: Preparation and characterization. Foods 10 (5), 1007 (2021).
Pradhan, B., Rout, L. & Ki, J.-S. Immunomodulatory and anti-inflammatory and anticancer activities of porphyran, a sulfated galactan. Carbohydr. Polym. 301, 120326 (2023).
Rahimi, F., Tabarsa, M. & Rezaei, M. Ulvan from green algae Ulva intestinalis: Optimization of ultrasound-assisted extraction and antioxidant activity. J. Appl. Phycol. 28, 2979–2990. https://doi.org/10.1007/s10811-016-0824-5 (2016).
Li, W. et al. Antioxidant and antihyperlipidemic activities of purified polysaccharides from Ulva pertusa. J. Appl. Phycol. https://doi.org/10.1007/s10811-018-1475-5 (2018).
Cindana Mo’o, F. R., Wilar, G., Devkota, H. P. & Wathoni, N. Ulvan, a polysaccharide from macroalga Ulva sp.: A review of chemistry, biological activities and potential for food and biomedical applications. Appl. Sci. 10(16), 5488 (2020).
Sousa, C., Sousa-Pinto, I., Oliveira, I. & Marinho, G. S. Seasonal variation in the composition and antioxidant potential of Codium tomentosum and Ulva lacinulata produced in a land-based integrated multi-trophic aquaculture system. J. Appl. Phycol. 37(3), 1557–1572 (2025).
Koenighofer, M. et al. Carrageenan nasal spray in virus confirmed common cold: Individual patient data analysis of two randomized controlled trials. Multidiscip Resp Med 9, 57–68 (2014).
Sunn. Y., et al. Antiviral activity against Avian Leucosis Virus Subgroup J of degraded polysaccharides from Ulva pertusa. BioMed. Res. Inter 2018, 9415965, 1-11. (2018).
Aguilar-Briseño, J. A. et al. Sulphated polysaccharides from Ulva clathrata and Cladosiphon okamuranus seaweeds both inhibit viral attachment/entry and cell-cell fusion, in NDV infection. Mar. Drugs. 13(2), 697–712 (2015).
Gonzales, K. N., Torres, F. G., Carsí, M. & Sanchis, M. J. Effects of morphology and extraction procedures on the chemical, thermal and dielectric properties of ulvan polysaccharides. Int. J. Biol. Macromol.321(2), 146121 (2025). https://doi.org/10.1016/j.ijbiomac.2025.146121
Gonzales, K. N., Torres, F. G., Carsí, M. & Sanchis, M. J. Exploring the Effects of Extraction Procedures on the Molecular Relaxation Processes of Ulvan Obtained from Ulva Papenfussii. J. Polym. Environ., 33(12), 6371–5384 (2025).
Guidara, M. et al. Effect of extraction procedures on the chemical structure, antitumor and anticoagulant properties of ulvan from Ulva lactuca of Tunisia coast. Carbohydr. Polym. 253, 117283 (2021).
