Fig. 5

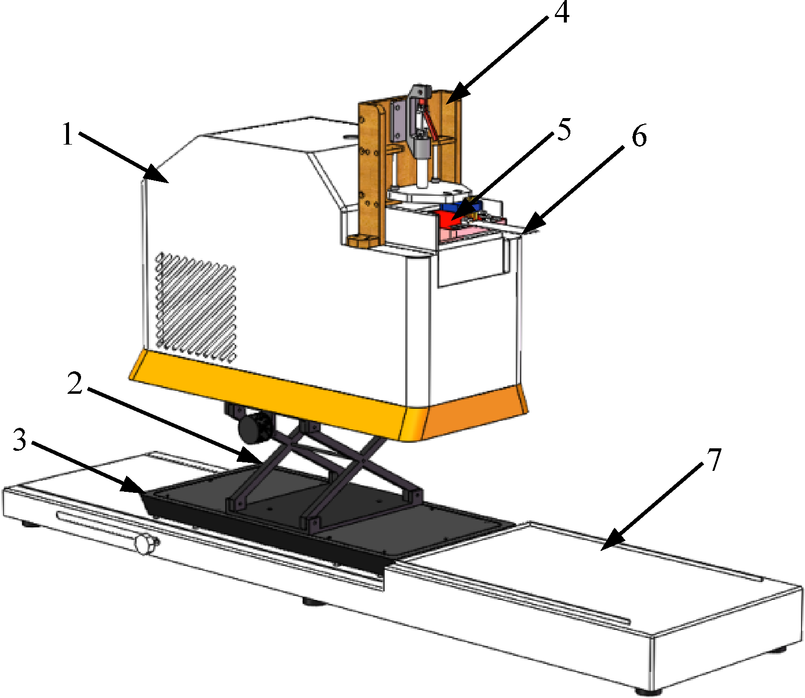

Overall structure of the reference end thermostat. Key: (1) Shell; (2) Z-axis lifting platform; (3) Base; (4) Special thin-film thermocouple clamp; (5) Working surface; (6) Thin-film thermocouple; (7) Pulling-out device.
