Fig. 1
From: Novel approaches for understanding and improving the effectiveness of seed biopriming

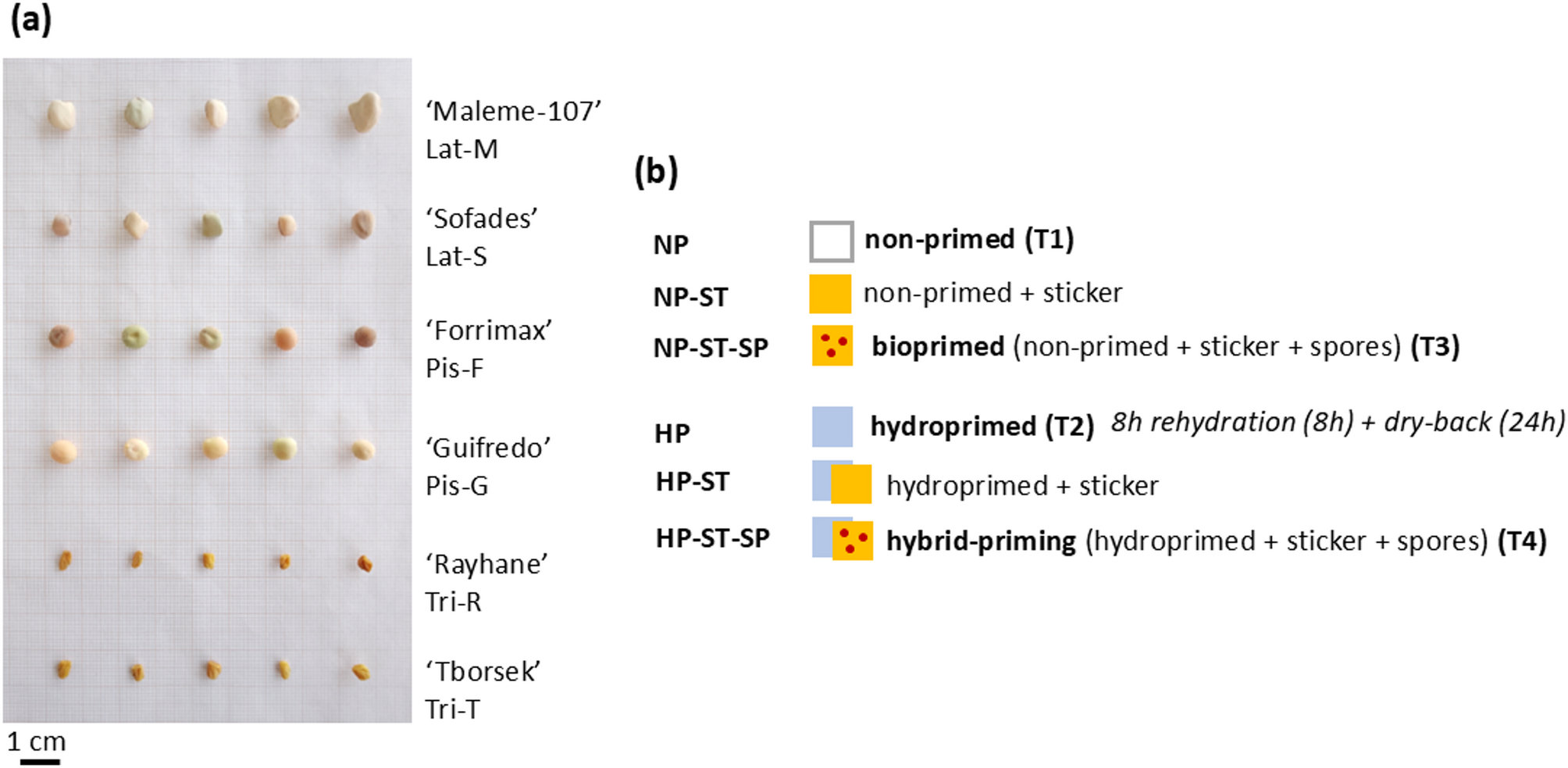

(a) Seeds of Lathyrus sativus L. ‘Maleme-107’ and ‘Sofades’ (Lat-M and Lat-S), Pisum sativum var. arvense ‘Forrimax’ and ‘Guifredo’ (Pis-F and Pis-G) and Trigonella foenum-graecum L. ‘Rayhane’ and ‘Tborsek’ (Tri-R and Tri-T). (b) The experimental system included four different treatments: non-primed control (NP, T1), hydroprimed (HP, T2), bioprimed (NP-ST-SP, T3), and hybrid primed (HP-ST-SP, T4) seeds. NP and HP seeds treated with the sticker solution (ST) are also indicated as NP-ST and HP-ST, respectively. HP was applied for 8 h followed by dry-back (24 h). Germination was monitored every 12 h for seven days.
