Fig. 7
From: Novel approaches for understanding and improving the effectiveness of seed biopriming

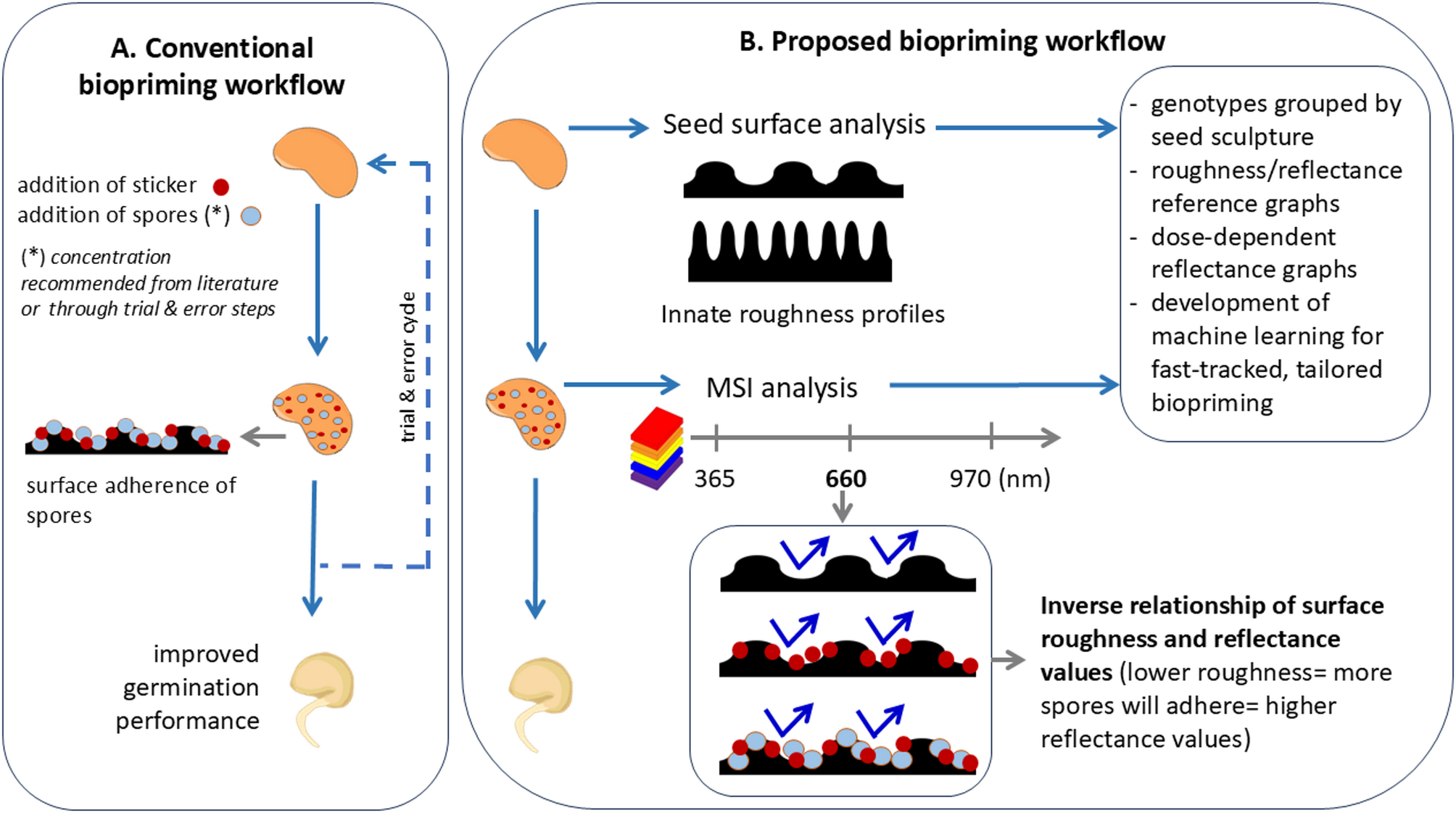

(A) Schematic representation of the workflow currently used to design optimised biopriming protocols with Bacillus spp. spores. (B) Schematic representation of the proposed workflow that exploits SEM technology to gain the quantitative profiles of innate seed roughness and MSI as a tool to measure the spore concentration, based on the reflectance value.
