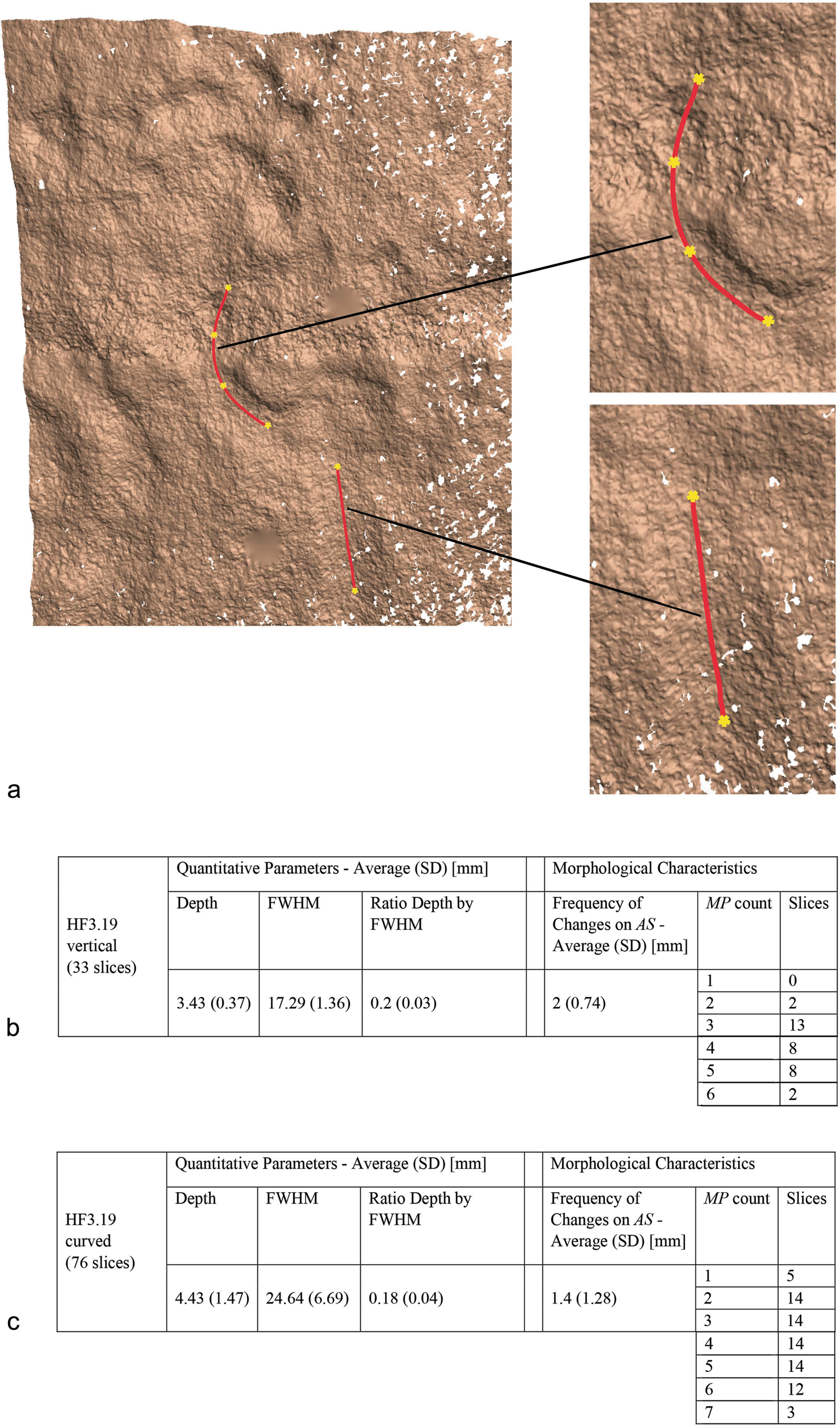

Fig. 9: HF3.19.
From: Recognizing technique variation in rock engravings: ArchCUT3-D for micromorphological analysis
a 3-D model, with annotated slicing paths of vertical and curved lines. b Measurements extracted from sample slices from the Ibexes Engraving’s Figure HF3.19, vertical incision. c Measurements extracted from sample slices from the Ibexes Engraving’s Figure HF3.19, curved incision.
