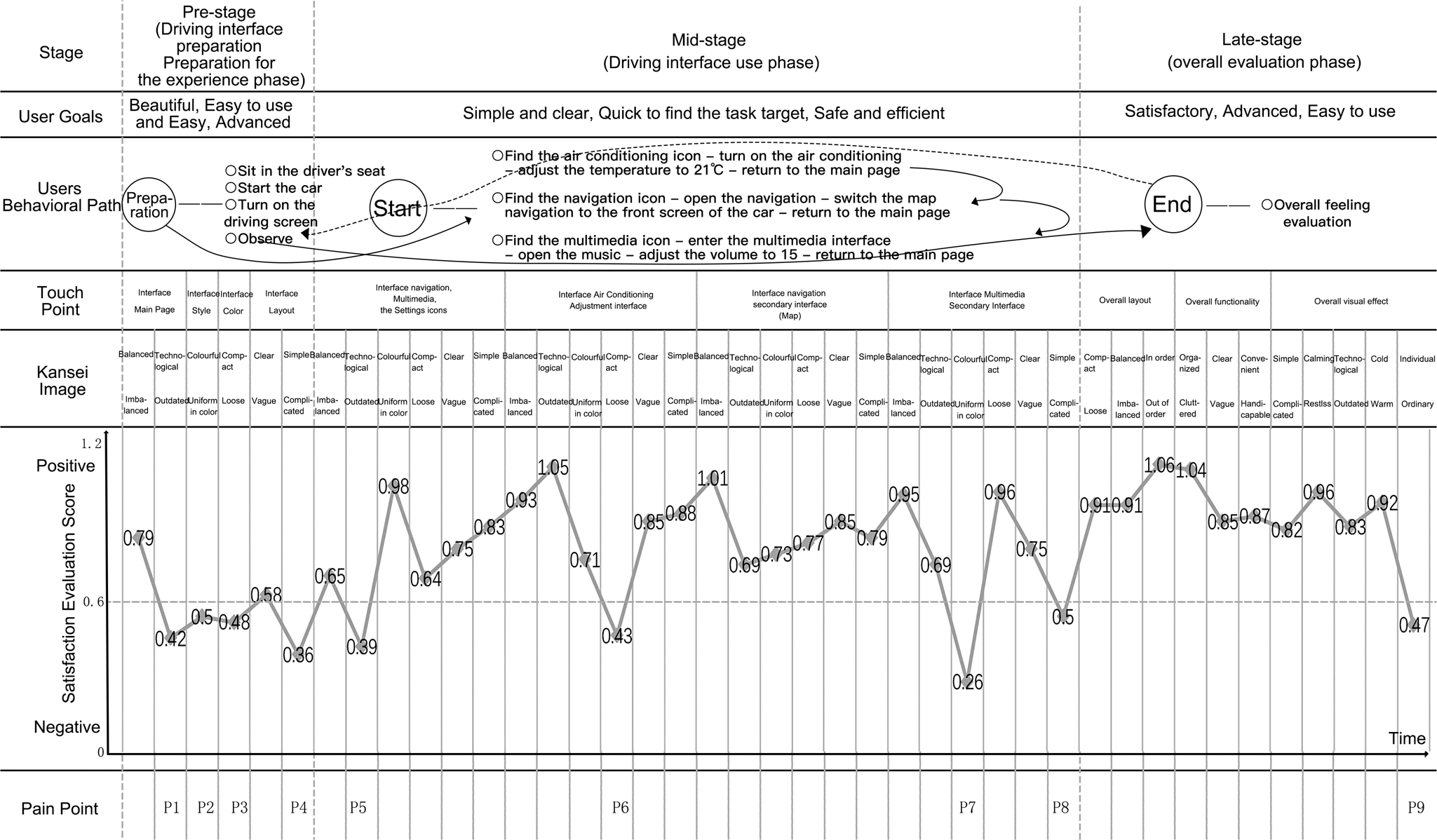

Fig. 4: Before the revision, the smart car central control interface user experience map score statistics results.
From: A user experience map design method based on emotional quantification of in-vehicle HMI
The figure shows the calculating results of the Kansai imagery words on the scale, which represented the user satisfaction of each touchpoint, and the quantitative graph of user experience before revision. This figure is not covered by the Creative Commons Attribution 4.0 International License. Reproduced with permission of the author; copyright © Faren Huo, all rights reserved.
