Fig. 2: Institutional and contextual distribution of IHE media visibility. | Humanities and Social Sciences Communications

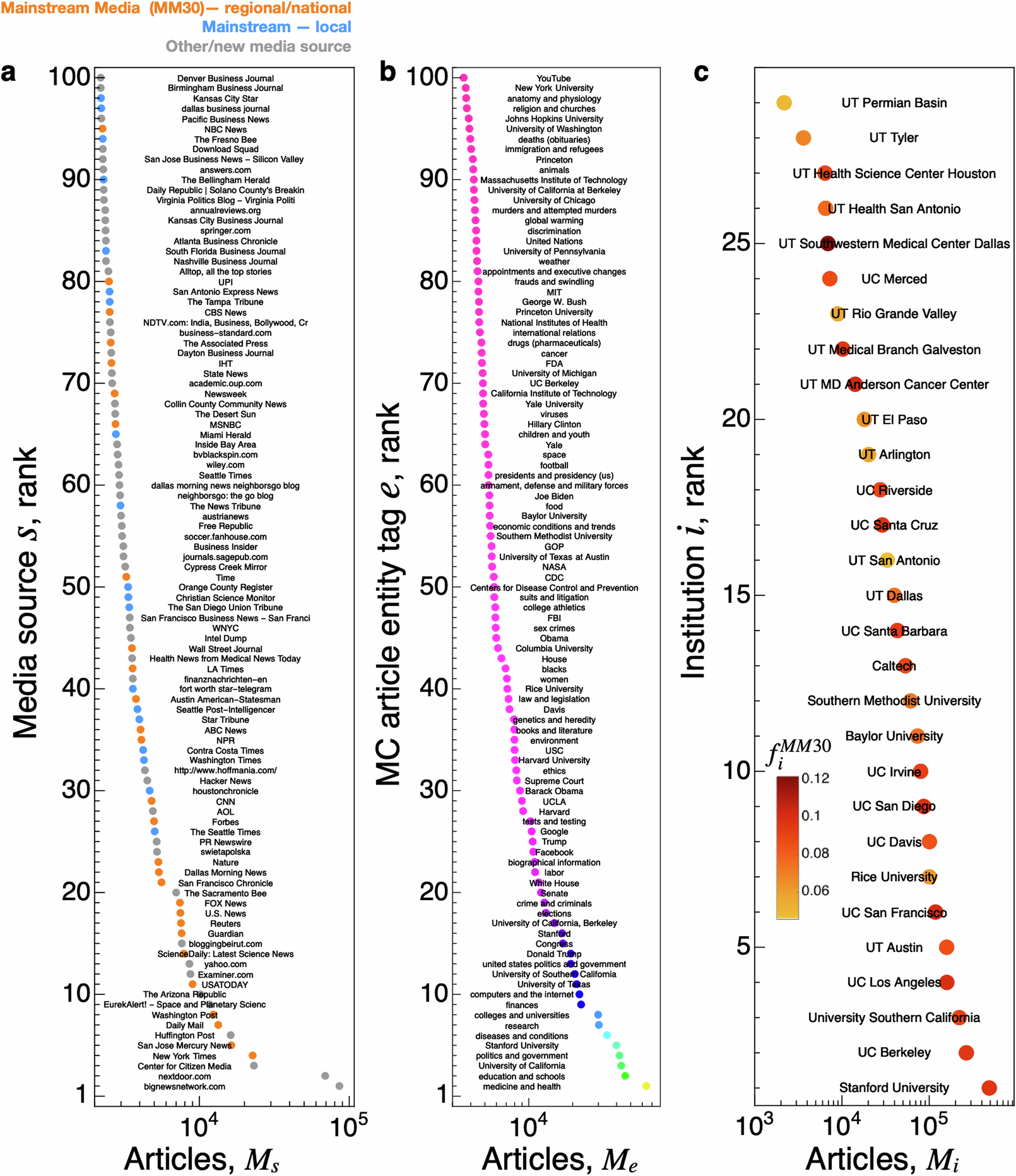

Fig. 2: Institutional and contextual distribution of IHE media visibility.

From: University digital media co-occurrence networks reveal structure and dynamics of brand visibility in the attention economy

Fig. 2

Descriptive statistics including media source, Media Cloud entity tags, and total IHE media visibility. a The top-100 media sources ranked according to article count, Ms. Colors indicate media source group: 30 select regional/national mainstream media sources (MM30, orange); local mainstream media (blue); other (gray). b Media Cloud annotates articles by entity tags identifying distinct entities and topic categories. Shown are the top-100 entities ranked according to the article count, Me. c Institutions ranked according to the total number of media articles Mi featuring each institution i over 2000–2020. Each data point is shaded according to the fraction \({f}_{i}^{MM30}\) of the Mi articles that were published by mainstream MM30 sources indicated in (a).
