Fig. 1: Projected hailstone size changes. | npj Climate and Atmospheric Science

Fig. 1: Projected hailstone size changes.

From: Hailstone size dichotomy in a warming climate

Fig. 1

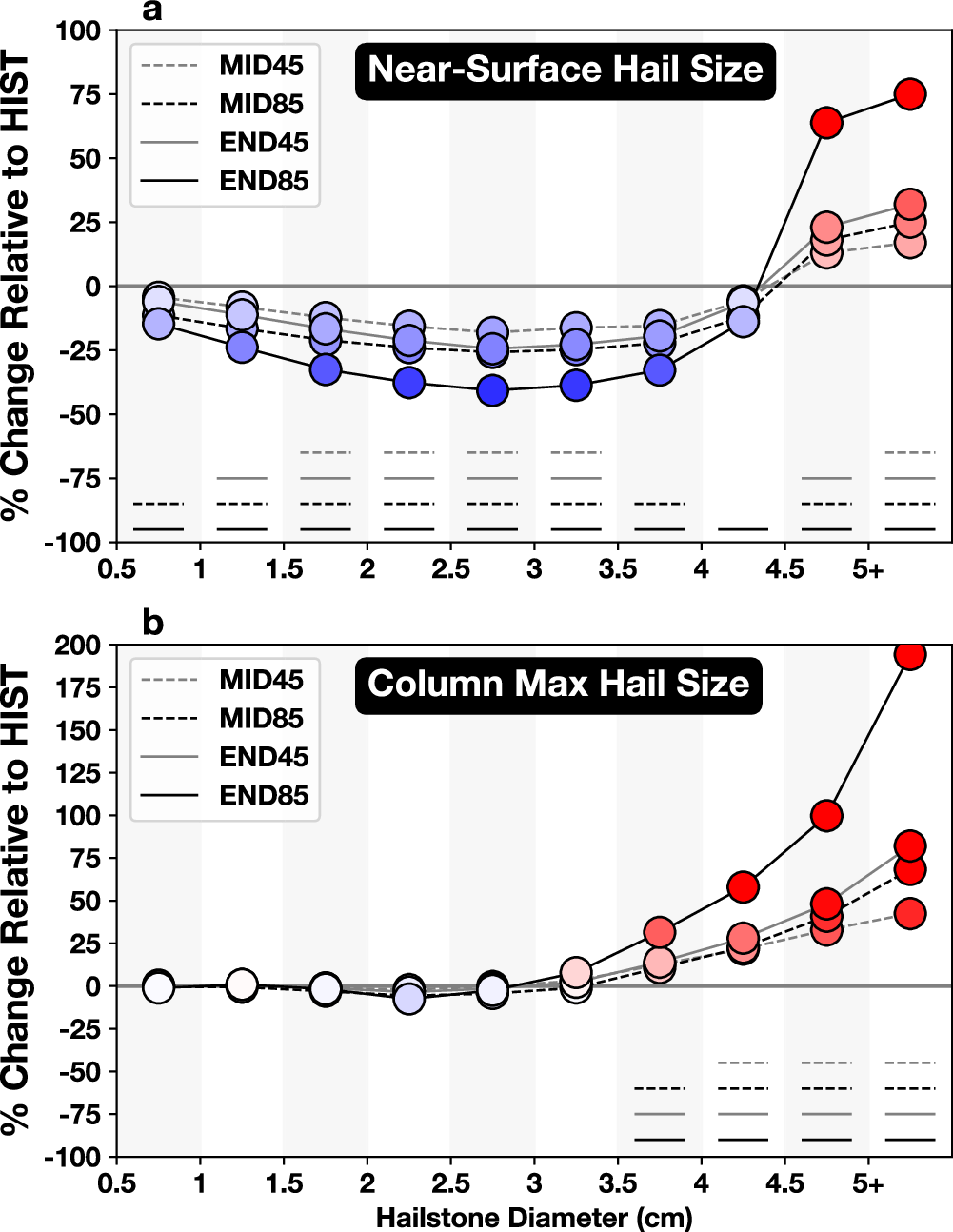

Binned a near-surface and b column max hailstone diameter frequency for each WRF-BCC future epoch expressed as percent change relative to HIST. Statistically significant differences are displayed along the abscissa for each bin (i.e., horizontal lines corresponding to each experiment).
