Fig. 3: Projected changes in seasonal mean severe hail days. | npj Climate and Atmospheric Science

Fig. 3: Projected changes in seasonal mean severe hail days.

From: Hailstone size dichotomy in a warming climate

Fig. 3

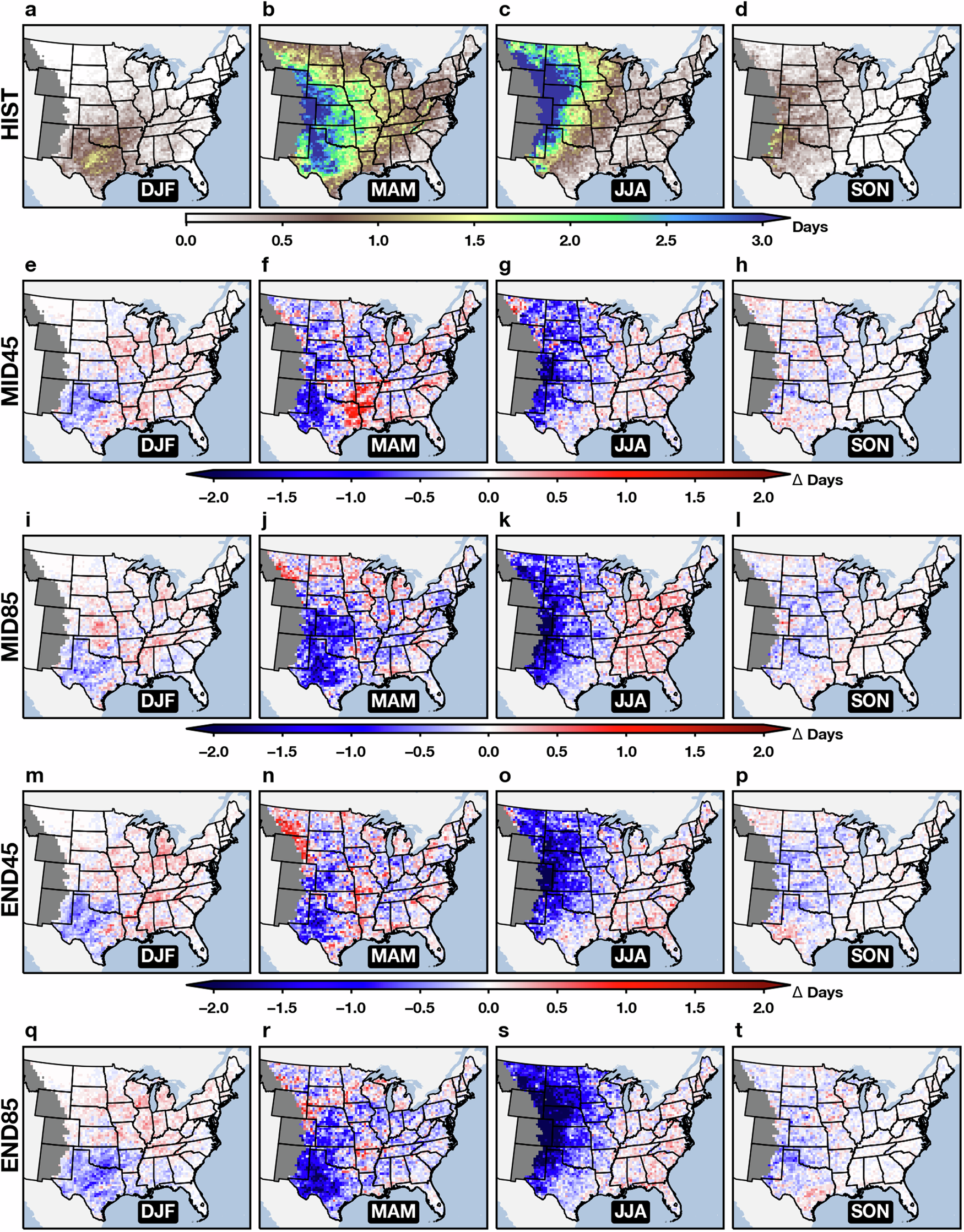

HIST mean annual frequency of near-surface severe hail days for a DJF, b MAM, c JJA, and d SON. e–h, i–l, m–p, and q–t represents the change in mean annual near-surface severe hail days from the HIST period for the MID45, END45, MID85, and END85 experiments, respectively.
