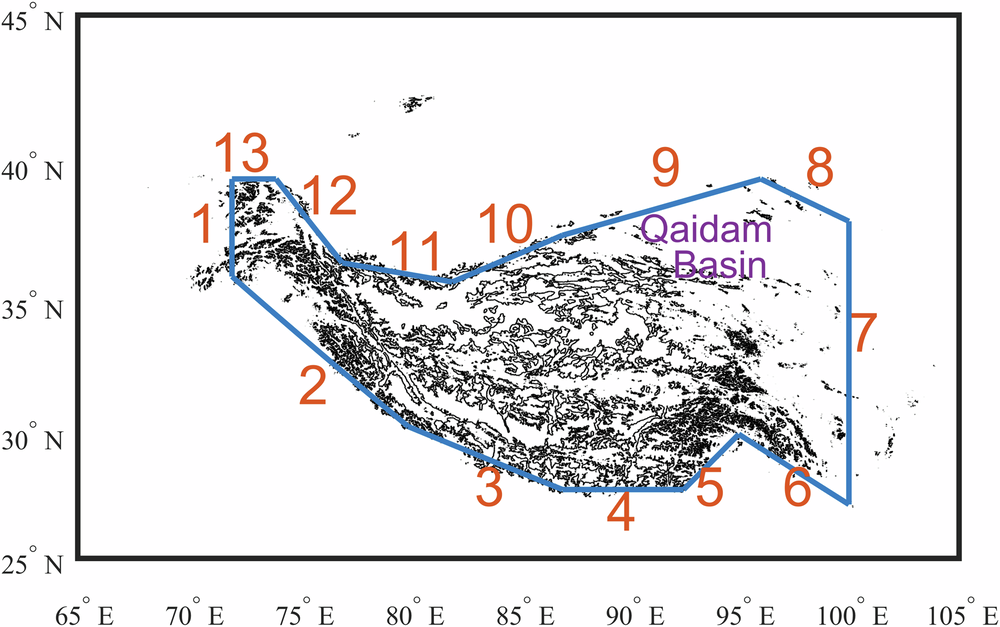

Fig. 7: Distribution of the 13 transects defined in this study (blue lines).

From: Evaluation of atmospheric moisture transport to the Tibetan Plateau from 33 CMIP6 models

Fig. 7

The black contours are the elevation of 4000 m a. s. l. over the TP. Length of each transect: transect 1: 389.18 km; transect 2: 1092.30 km; transect 3: 826.52 km; transect 4: 611.57 km; transect 5: 370.30 km; transect 6: 637.22 km; transect 7: 1200.90 km; transect 8: 475.02 km; transect 9: 1025.20 km; transect 10: 587.23 km; transect 11: 561.40 km; transect 12: 471.76 km; transect 13: 222.39 km.
