Fig. 5: Spatial distribution of surface climatic variables in REF and their differences between three levels (I, II, III) and REF.

From: Mechanisms and quantification: How anthropogenic aerosols weaken the East Asian summer monsoon

Fig. 5

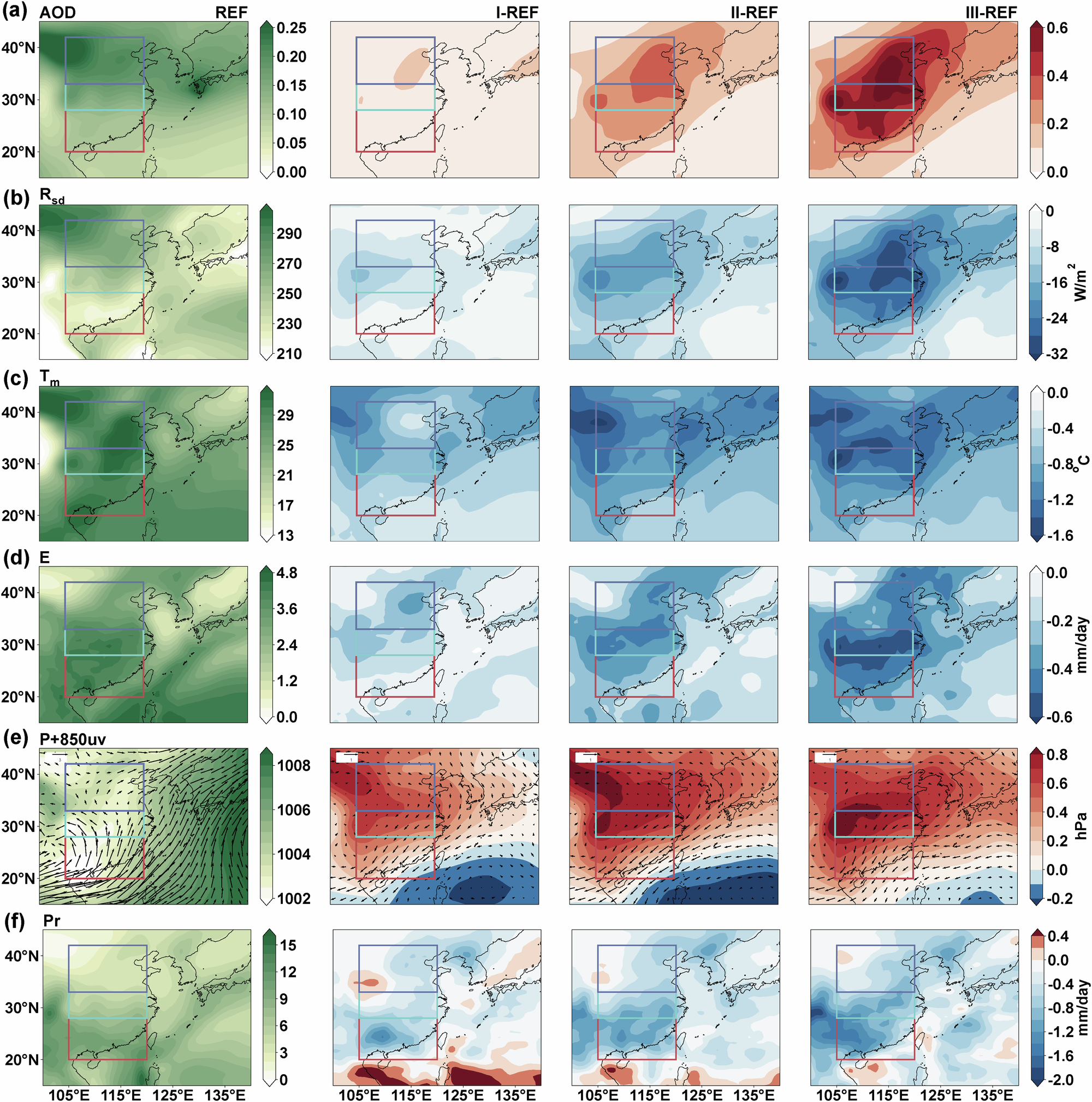

a Aerosol Optical Depth (AOD); b Surface solar radiation (Rsd, unit: W/m2); c Maximum surface temperature (Tm, unit: ° C); d Evaporation (E, unit: mm/day); e 850 hPa wind vectors (uv, unit: m/s) and pressure (P, shading, unit: hPa); (f) Precipitation (Pr, unit: mm/day). The first column is REF, and the second to fourth columns show the difference between Level I, II, III and REF, respectively.
