Fig. 7: Historical and projected moisture flux and associated dynamics over the AP.

From: Dynamics of intensification of extreme precipitation events over the Arabian Peninsula derived from CMIP6 simulations

Fig. 7

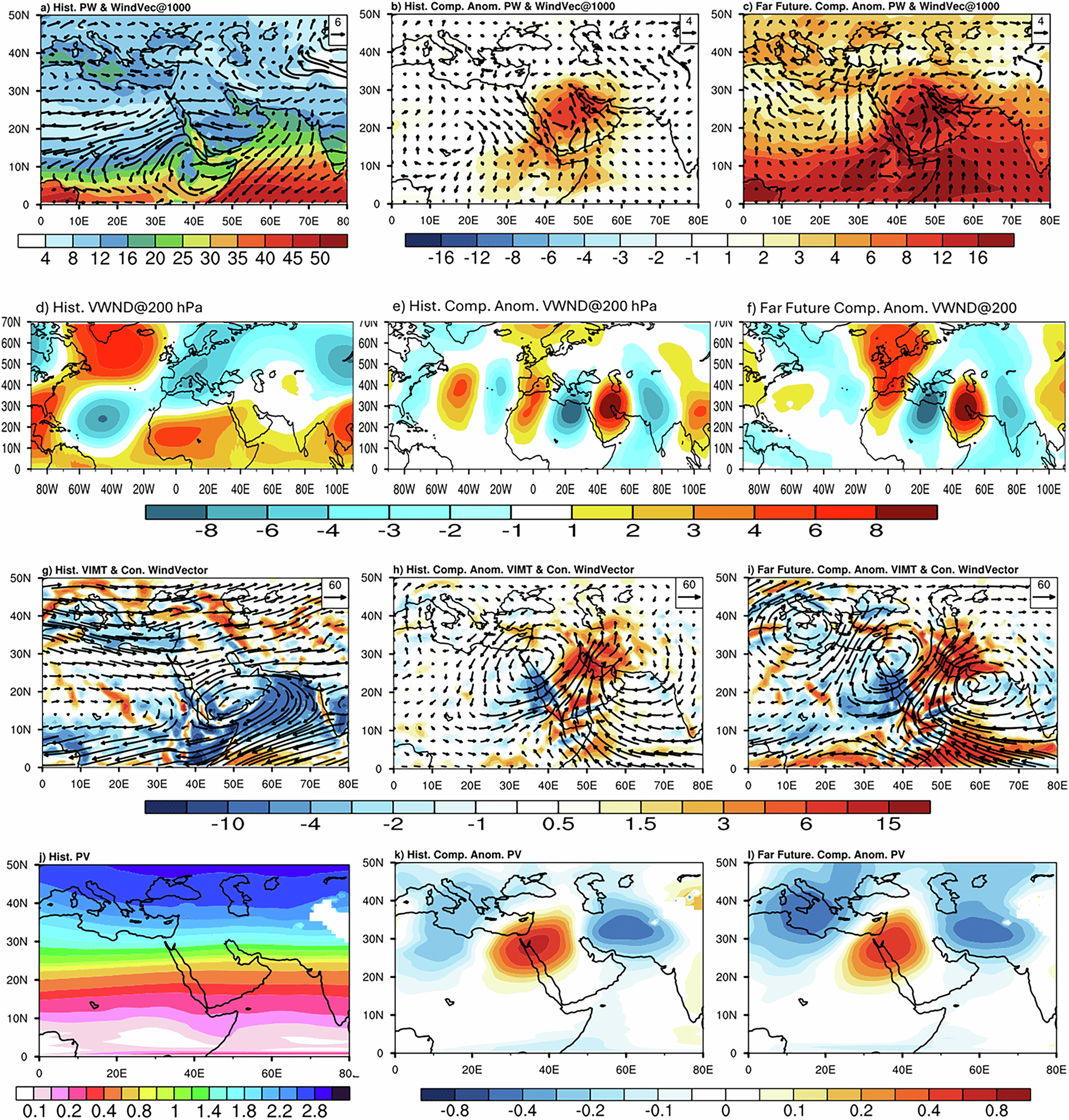

(a–c) Contours of total precipitable water from surface to 400 hPa, overlaid with wind patterns at 1000 hPa: (a) climatological mean conditions during the wet season, (b) composite anomalies of historical EPEs, and (c) composite anomalies of far-future EPEs. The second row (d–f) presents results from meridional wind at 200 hPa; third row (g–i) shows integrated moisture convergence from 1000 to 400 hPa; and the fourth row (j–l) depicts potential vorticity. In the moisture convergence plots (g–i), contours are overlaid with wind vectors illustrating integrated horizontal moisture advection.
