Fig. 5: Results for tropical cirrus.
From: Dissecting cirrus clouds: navigating effects of turbulence on homogeneous ice formation

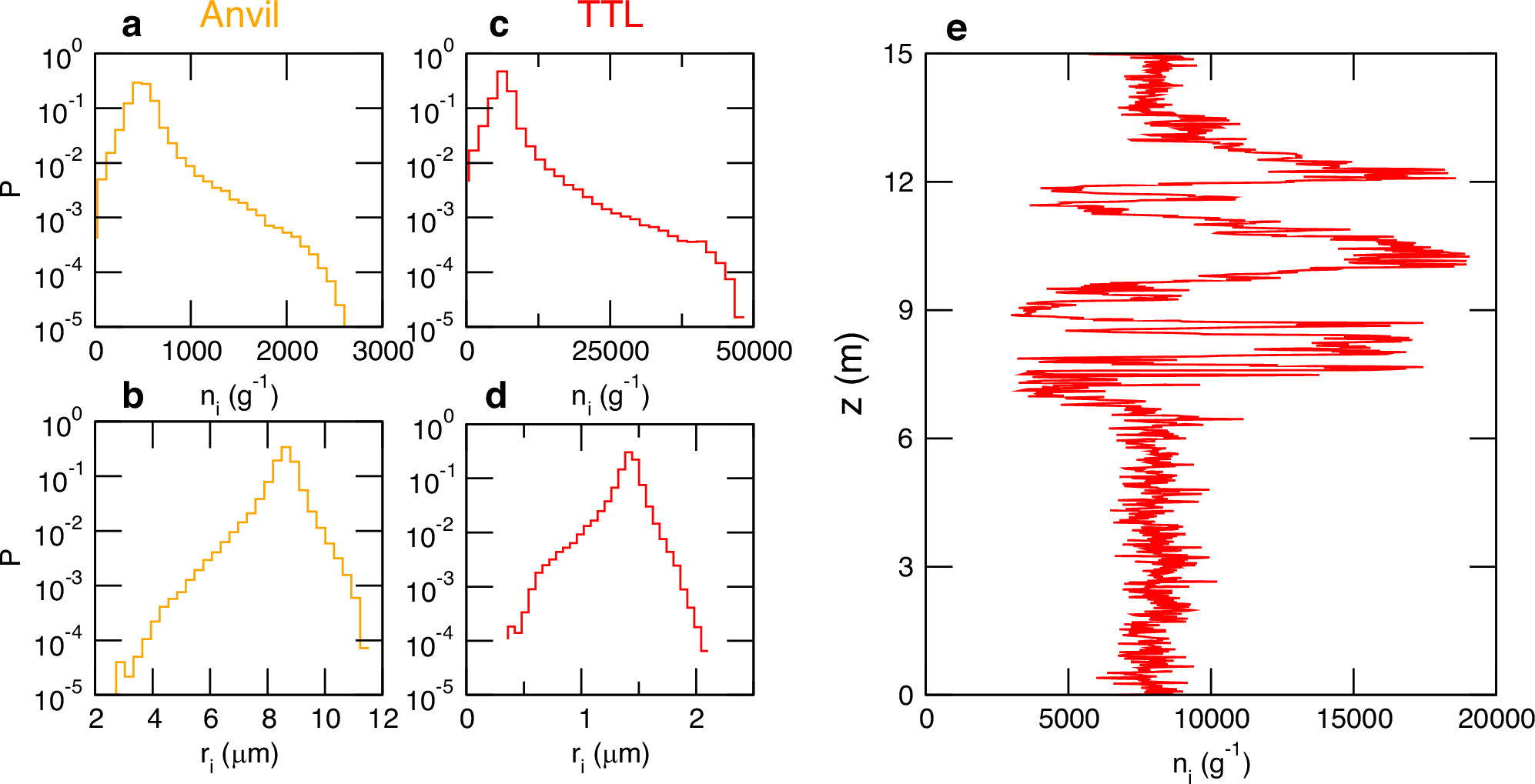

a–d show probability (P) distributions of ice crystal number mixing ratio (ni) and radius (ri), for the Anvil and TTL scenario, respectively, derived from all vertical profiles per ensemble. e presents a snapshot of an ICNC profile with narrow layers taken from one arbitrary statistical realisation of the full TTL ensemble.
