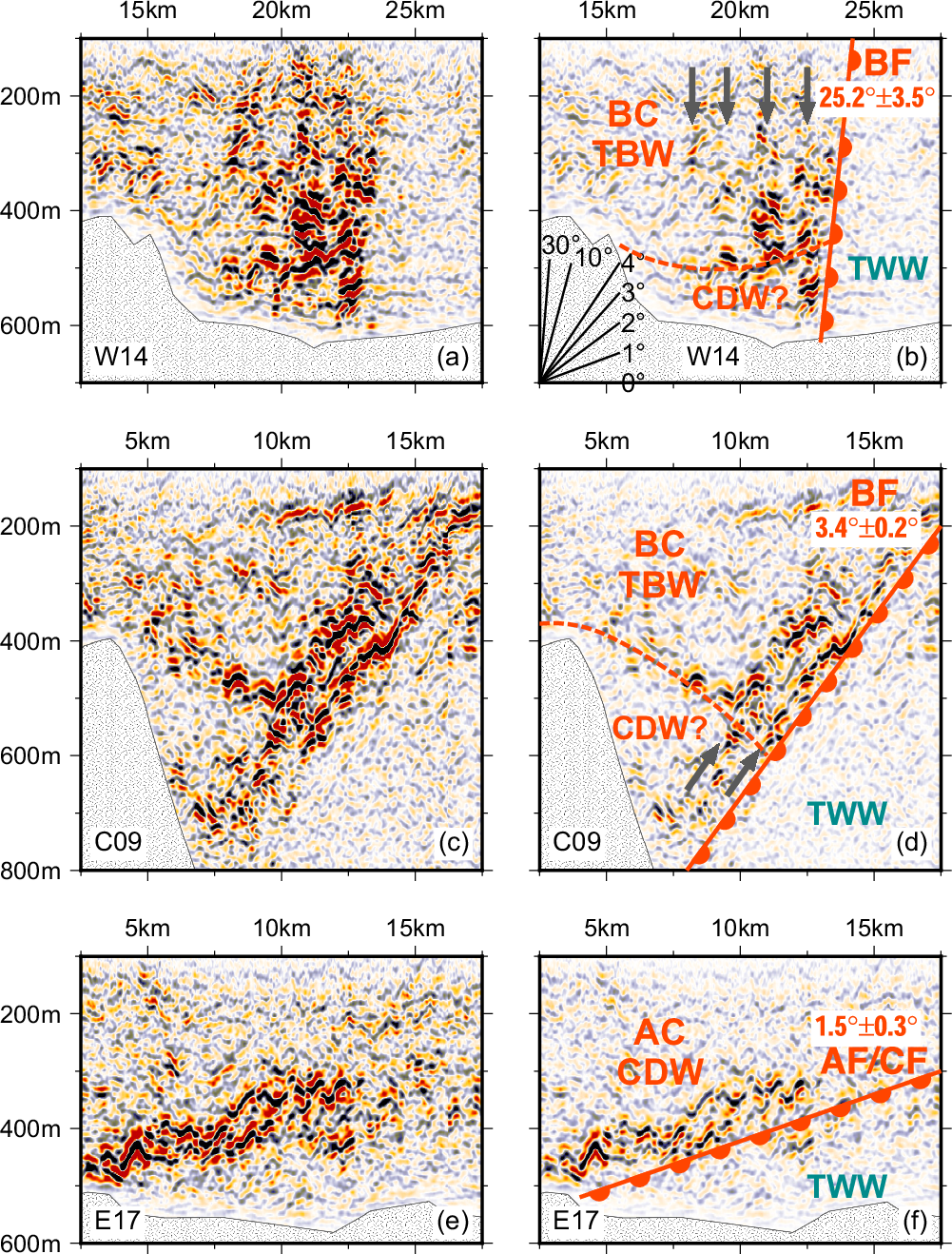

Fig. 6: Detailed seismic frontal structures.
From: Intensifying stratified turbulence and mixing towards the oceanic submesoscale front
Three representative frontal structures (a, c, e) and their corresponding possible interpretation (b, d, f) for Lines W14, C09, and E17 in each sub-basin from Fig. 3. The color palettes are the same as in Fig. 2. Note the multi-front features (gray arrows in (b) and (d)) for the Bransfield Front. AC (AF) Anticyclonic eddy Current/Front, CDW (CF) Circumpolar Deep Water (Front).
