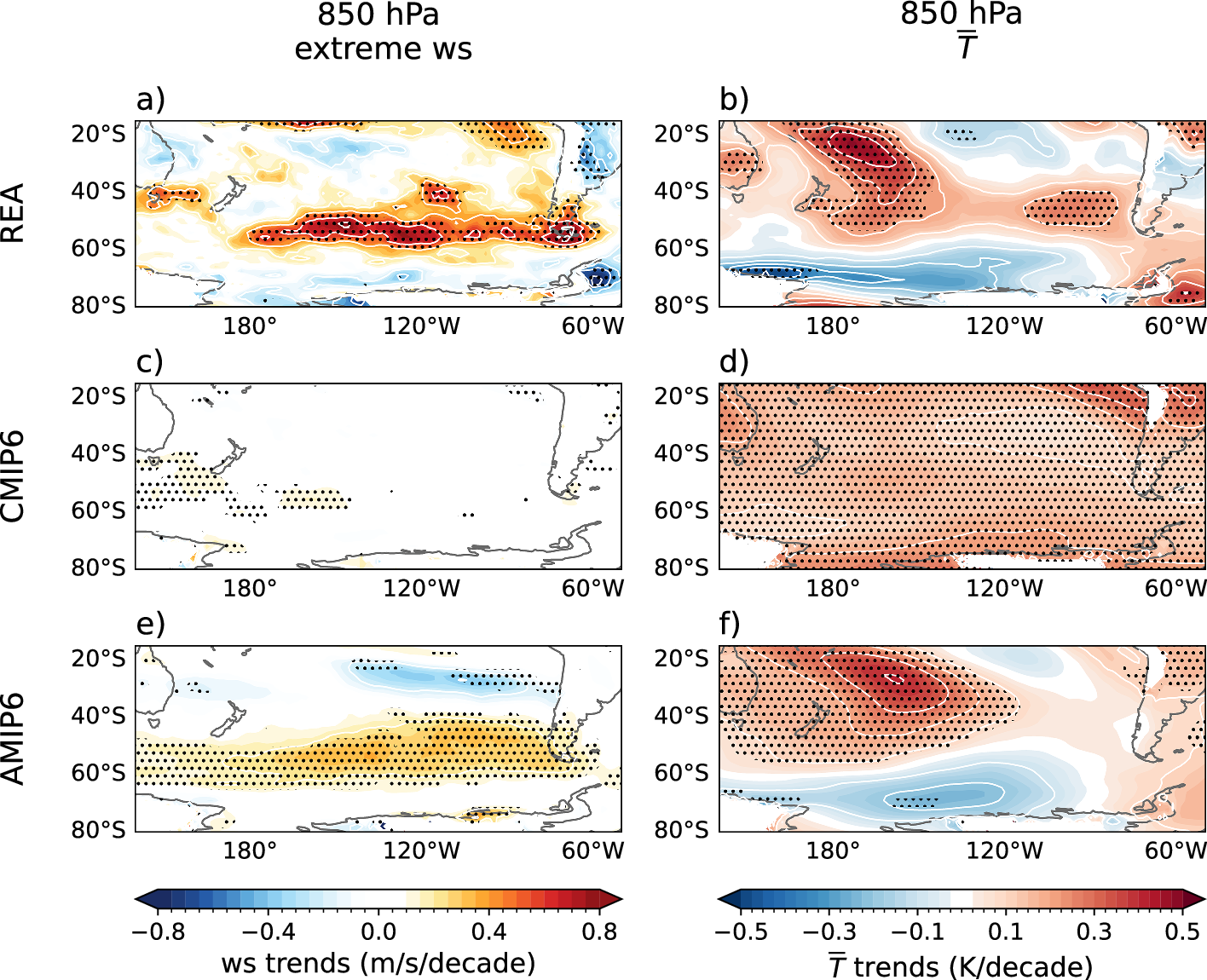

Fig. 4: Recent low-level extreme wind speed and seasonal mean air temperature trends in the South Pacific during austral winter. | npj Climate and Atmospheric Science

Fig. 4: Recent low-level extreme wind speed and seasonal mean air temperature trends in the South Pacific during austral winter.

From: Human influence on recent trends in extratropical low-level wind speed

Fig. 4

Multi-reanalyses or multi-model mean trends (1980–2013) in (left) 850 hPa extreme wind speeds and (right) 850 hPa seasonal mean air temperature in (a, b) reanalyses, c, d CMIP6, and e, f AMIP6 models in AMJJAS. Statistically significant trends (p-value < 0.05) are stippled.
