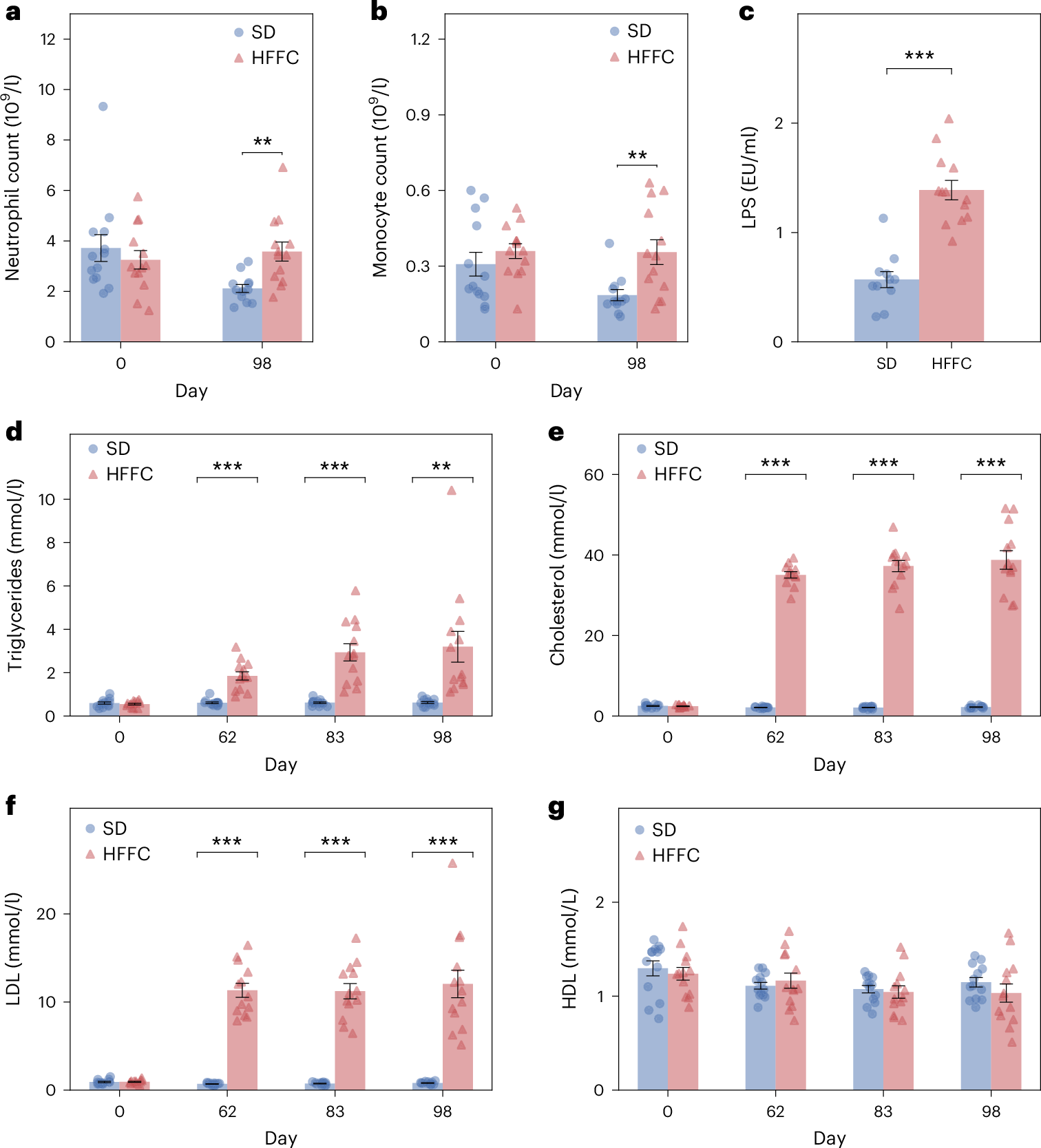

Fig. 4: The HFFC diet induces changes to circulating leukocytes and leads to endotoxemia and dyslipidemia.
From: Meta-inflammation and endotoxemia in a highly translational porcine model of diet-induced obesity
a, Circulating neutrophil counts. b, Circulating monocyte counts. c, Serum LPS concentration (in endotoxin units (EU)) on day 99 after initiation of diet regimes. d, Circulating triglyceride concentrations. e, Circulating total cholesterol concentration. f, Circulating LDL concentrations. g, Circulating HDL concentrations. Statistical significance of differences between cell counts and lipid concentrations in the HFFC (n = 13) and SD (n = 13) group was determined using Welch’s t-test with Benjamini–Hochberg corrections applied for multiple testing (**P < 0.01, ***P < 0.001). Bars and error bars show the mean and s.e.m.
