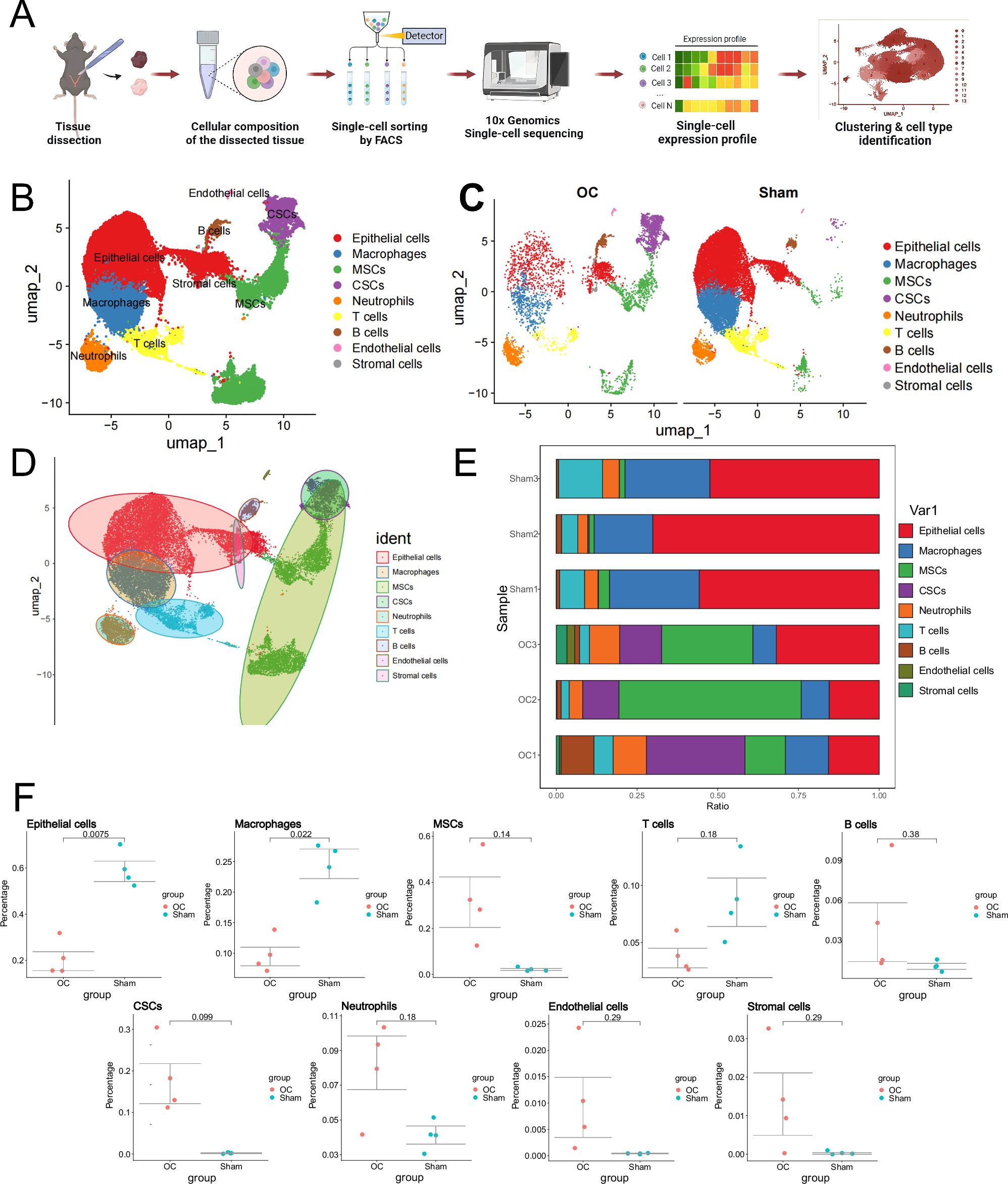

Fig. 1: scRNA-seq reveals microscale changes in lung tissue cells during OC.
From: ALKBH5-Mediated ITGB1 m6A Modification in Ovarian Cancer Progression and Immune Evasion
A Schematic diagram of single-cell sequencing process (Created with BioRender.com); B, C Overall (B) and grouped (C) visualizations of cell annotations in UMAP clustering results; D Visualization of confidence intervals for cell clustering based on UMAP, where each color represents a unique cell subset, with distinct color boundaries indicating the distribution range of each subset; E Proportion of 9 different cell subsets in each sample, represented by different colors for cell subset types; F Differential P-values in cell composition between Sham and OC group samples analyzed by t-test (Sham group: n = 3; OC group: n = 3). Quantitative data are presented as mean ± standard deviation, with between-group comparisons conducted using unpaired t-tests.
