Fig. 4: Structural analysis of GaSe on Al2O3 and GaP/Si. | npj 2D Materials and Applications

Fig. 4: Structural analysis of GaSe on Al2O3 and GaP/Si.

From: MOCVD growth of covalent and 2D GaxSey: a phase validation and characterization

Fig. 4

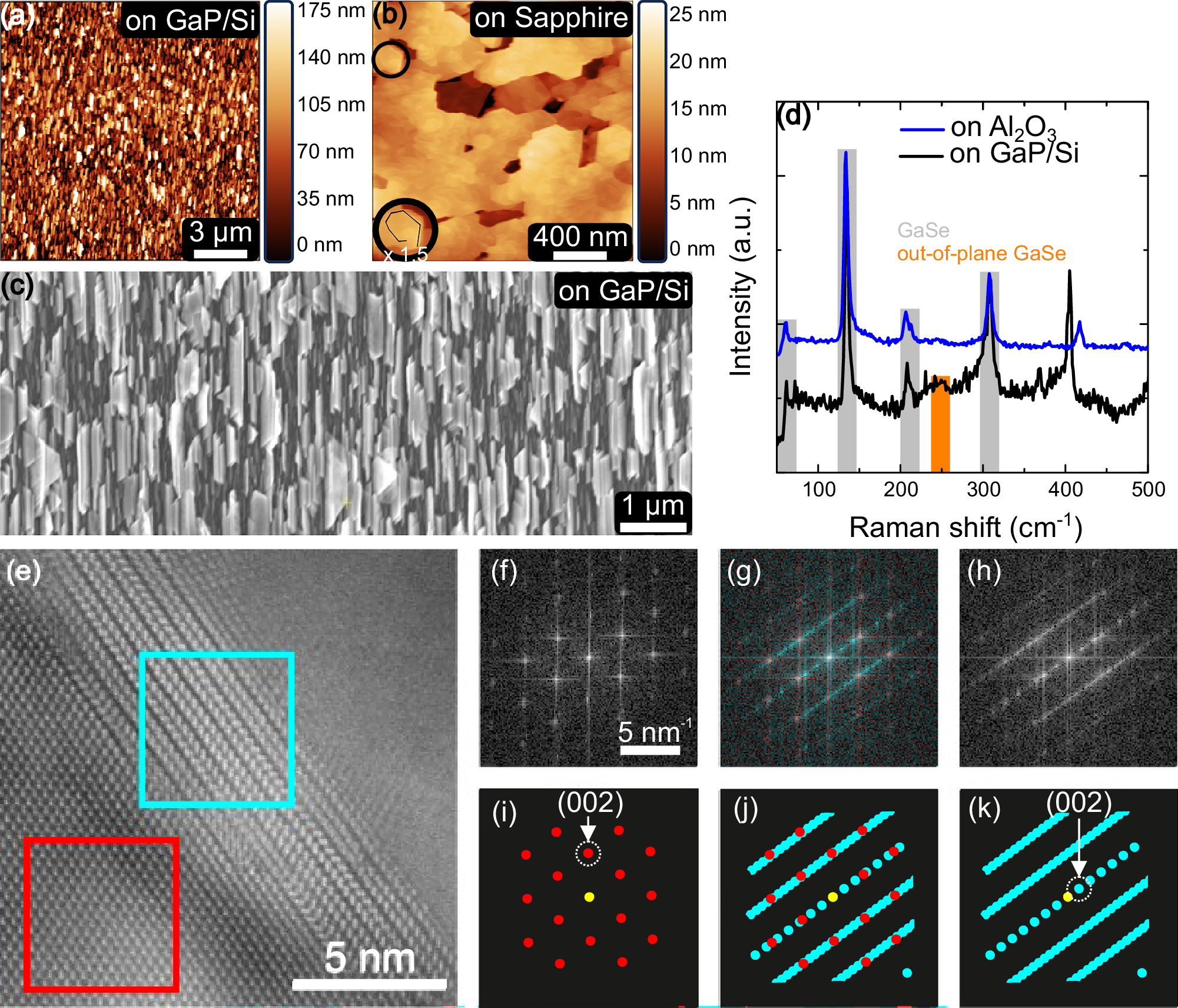

a 15 × 15 µm2 AFM image of 175 nm-high, out-of-plane GaSe sheets on GaP/Si. b 2 × 2 µm2 AFM image of planar GaSe on Al2O3, showing screw dislocations and hexagonal/trigonal edges, with a 1.5× magnified inset of an individual screw dislocation. c SEM image of GaSe on GaP/Si showing sheet-like out-of-plane growth in 〈111〉 directions of GaP substrate. EDX analysis verifies the stoichiometry, yielding a Ga:Se ratio of 1:1, as shown in Fig. S9. d Raman spectra for (a) and (b) show vibrational modes consistent with GaSe, including an additional out-of-plane mode (marked in orange), as reported in literature13,24,61,62,63. Substrate peaks are not marked for clarity but are consistent with reported spectra68,69,70,71,72,73, and the corresponding Raman spectra of the substrates are provided in the Supplementary Information (Fig. S7). e A high-resolution STEM image of the GaP/GaSe interface. The red and cyan squares indicate the regions of GaP and GaSe, respectively, from which FFTs were generated. The FFTs of GaP and GaSe are shown in (f) and (h), respectively. The FFT of the full field of view is shown in (g). The corresponding simulated diffraction patterns are depicted in (i)–(k). To highlight the epitaxial orientation relation, the (002) diffraction spots of each material are marked.
