Engineering altermagnetism via layer shifts and spin order in bilayer MnPS₃

Abstract

Altermagnetic materials combine compensated magnetic order with momentum-dependent spin splitting, offering a fundamentally new route for spintronic functionality beyond conventional ferromagnets and antiferromagnets. While most studies have focused on three-dimensional compounds, the emergence of altermagnetism in few-layer two-dimensional materials remains largely unexplored. Here, we demonstrate that bilayer MnPS₃, a prototypical 2D van der Waals magnet, can host stacking-induced altermagnetic phases. Using density-functional theory and spin-Laue symmetry analysis, we show that interlayer spin alignment and lateral displacement act as coupled symmetry control parameters that switch the system between Type II (collinear AFM) and Type III (altermagnetic) phases. These results establish stacking engineering as a powerful, purely structural route for designing tunable altermagnetic states in 2D magnets, opening pathways toward symmetry-driven spintronic and magnetoelectronic devices.

Introduction

Altermagnetic (AM) materials have emerged as a compelling class of magnetic systems, uniquely combining compensated magnetic order with momentum-dependent spin splitting. This distinctive feature makes them promising candidates for next-generation spintronic applications, offering an alternative to conventional antiferromagnets¹. While most foundational studies have focused on three-dimensional compounds, the investigation of AM behavior in two-dimensional (2D) systems remains at an early stage^2,3,4,5. Importantly, 2D magnets exhibit enhanced sensitivity to external perturbations such as strain, electric fields, and stacking, making them ideal platforms for engineering tunable spin phenomena. Incorporating AM characteristics into 2D materials could enable controllable switching of magnetic states, opening new avenues for functional device design.

Extending altermagnetic behavior to two-dimensional few-layer systems has presented several challenges^3,4,6. High structural symmetry tends to protect spin degeneracy: spatial operations such as inversion P, out-of-plane mirror M_z, or out-of-plane twofold rotation C_2z (and their combinations with time reversal) enforce degeneracy and thereby suppress momentum-dependent splitting³. Realizing AM states in van der Waals systems therefore requires breaking those degeneracy-enforcing symmetries while retaining or generating a valid spin-exchanging connector. Bilayers provide a flexible platform because stacking displacement and interlayer spin alignment independently tune which spatial and antiunitary symmetries survive. Recent proposals have invoked layer flipping or twisting to induce AM in antiferromagnetically coupled layers^4,6,7; a central requirement in these schemes is the existence of a spatial operation that, when paired with a spin inversion, relates opposite-spin sublattices without itself enforcing degeneracy. Symmetry analysis identifies two necessary ingredients for Type III altermagnetism: (i) a surviving spin-exchanging connector $[a| | {C}_{{\rm{spin}}}^{2}]$, where the spatial part a is not one of the degeneracy-enforcing operations ${\mathcal{P}}$, M_z, or C_2z, and (ii) that connector maps opposite-spin sublattices, producing the alternating, momentum-dependent splitting characteristic of altermagnets^6,8,9. Here, ${C}_{{\rm{spin}}}^{2}$ denotes a 180^∘ spin-space rotation that flips the quantization axis (e.g., S_z → − S_z). Pure spatial operations such as [C_2z∣∣E] or [M_z∣∣E] (or their nonsymmorphic variants) do not qualify as connectors by themselves; they must be accompanied by the spin flip ${C}_{{\rm{spin}}}^{2}$ to lift degeneracy^8,10.

In this context, TMPX₃ MnPX₃ (X = S and Se) compounds are attracting increasing attention due to their robust in-plane antiferromagnetic order. Depending on the transition metal (TM), the interlayer spins can align either parallel or antiparallel, giving rise to distinct magnetic couplings and stacking-dependent responses¹. Among them, bilayers^2,11 stand out as promising candidates for altermagnetism, since their Néel-type structure naturally fulfills the required symmetry constraints². Stacking-dependent studies on related Fe- and Ni-based TMPS₃ systems have shown that interlayer shifts can strongly modulate the magnetic coupling¹², and similar effects are now being uncovered in MnPX₃. In particular, bilayer MnPX₃ provides a versatile platform where stacking and parallel (↑↓/↑↓) v/s antiparallel (↑↓/↓↑) interlayer spin alignment (see Fig. 1) may dictate whether the ground state favors AFM or AM order. Recent work on MnPSe₃ further reveals robust AM signatures coupled to sliding ferroelectricity, opening routes for magnetoelectric cross-control². Yet the precise nature of the ground state in MnPX₃ bilayers, AFM or AM, remains unsettled across stacking configurations.

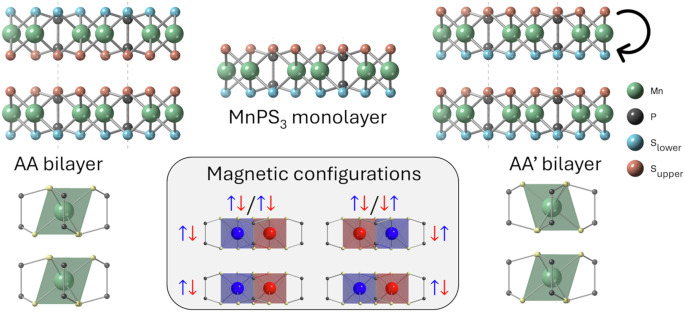

Fig. 1: Atomic and magnetic configurations of MnPS₃ monolayer and bilayers.

Top: Crystal structures of the MnPS₃ monolayer, AA and ${{\rm{AA}}}^{{\prime} }$ bilayers. The two distinct sulfur planes (upper and lower) are highlighted in the monolayer structure to clarify how their relative alignment defines the AA and ${{\rm{AA}}}^{{\prime} }$ stacking geometries. In the ${{\rm{AA}}}^{{\prime} }$ geometry, the upper layer is inverted along the out-of-plane axis (z → − z). Bottom left and right: Local Mn coordination environments in AA and ${{\rm{AA}}}^{{\prime} }$ bilayers, respectively. Bottom center: Interlayer magnetic configurations derived from the antiferromagnetic monolayer. The bilayer can adopt either parallel AFM (↑↓/↑↓) or antiparallel AFM (↑↓/↓↑), each leading to distinct symmetry and magnetic phase behaviors.

In this work, we investigate bilayer MnPS₃ using first-principles calculations combined with spin-Laue symmetry analysis, a rigorous framework for classifying magnetic phases based on their unitary and antiunitary symmetries^8,13. By systematically varying stacking and interlayer magnetic order, we reveal the conditions under which Type II (collinear AFM) and Type III (altermagnetic) phases emerge. Our results identify the symmetry elements responsible for preserving or lifting spin degeneracy, establishing stacking and magnetic order as coupled symmetry control parameters for spintronic design in 2D magnets.

Results

Stacking-dependent energy landscape

We constructed bilayer MnPS₃ structures from two fundamental stacking motifs to assess how interlayer configuration influences energetic stability, as schematically illustrated in Fig. 1. In the AA stacking, the second monolayer is placed directly above the first at the equilibrium interlayer distance d, preserving the in-plane atomic registry. In the ${{\rm{AA}}}^{{\prime} }$ stacking, the upper layer is first reflected across the out-of-plane axis (z → − z), an operation that, for a centrosymmetric monolayer, is equivalent to a combination of inversion and a 180^∘ in-plane rotation, and then translated vertically by the same distance. Each base structure was subsequently displaced by a lateral vector t, defined as a fractional translation within the xy plane. The resulting energy maps appear in Fig. 2.

Fig. 2: Relative energy maps for bilayer MnPS₃ under lateral displacement in the parallel (↑↓/↑↓) magnetic configuration.

Left: AA stacking series. Right:${{\rm{AA}}}^{{\prime} }$ stacking series. Color scale indicates the relative energy (in meV) for each in-plane displacement, referenced to the lowest-energy configuration found within that stacking series (AA or ${{\rm{AA}}}^{{\prime} }$). The global energy minimum of the AA series is 7.67 meV lower than that of the ${{\rm{AA}}}^{{\prime} }$ series.

The AA stacking is energetically preferred: its global minimum lies 7.67 meV per unit cell below the most stable ${{\rm{AA}}}^{{\prime} }$ configuration. In the AA landscape, minima occur at high-symmetry lateral displacements such as (1/3, 1/3), (2/3, 1/3), and (1/3, 2/3), corresponding to AB-type registries that preserve an interlayer inversion-like symmetry. In contrast, the ${{\rm{AA}}}^{{\prime} }$ profile features several nearly degenerate local minima at commensurate offsets (n/3, m/3), including the so-called ${{\rm{AB}}}^{{\prime} }$ configuration at (1/3, 1/3)². For example, the configurations at (0, 1/3), and (1/3, 0) differ in energy by less than 2 meV/cell, illustrating the greater stacking flexibility in ${{\rm{AA}}}^{{\prime} }$. Despite this flexibility, ${{\rm{AA}}}^{{\prime} }$ remains close in energy to AA, with its average energy only 2.73 meV per unit cell higher.

Importantly, symmetry-equivalent or similar-looking displacements do not guarantee equal energetics. For instance, (1/3, 1/3) and (1/3, 2/3) nominally correspond to different space groups (e.g., C2/m versus $P\overline{3}$) and differ by 7.21 meV. We attribute such contrasts primarily to the vertical registry of sulfur atoms: configurations in which S atoms sit above metal or P sites tend to minimize interlayer Coulomb repulsion and are energetically favored, whereas those with S atop S enhance repulsion and become higher in energy (highlighted with the yellow hexagon)¹². More details on the energy differences among the high-symmetry stackings are provided in the Supplementary Information. In the following section, we present the analysis for these high-symmetry configurations, while the (1/2,0) stacking is included for comparison.

Crystallographic symmetry analysis

We analyze how stacking geometry modifies the symmetry of bilayer MnPS₃, a central factor in enabling or suppressing nonrelativistic spin splitting. The key distinction is not simply the presence of spatial inversion (${\mathcal{P}}$) or time-reversal symmetry (${\mathcal{T}}$), but the preservation of their combined antiunitary product ${\mathcal{P}}{\mathcal{T}}$. This operation can enforce a Kramers-like spin degeneracy across the Brillouin zone in compensated antiferromagnets, even though ${({\mathcal{P}}{\mathcal{T}})}^{2}=+1$^8,10,14. We adopt the shorthand ${\mathcal{P}}{\mathcal{T}}\equiv [{\mathcal{P}}| | {\mathcal{T}}]$ throughout the text to refer to this combined symmetry.

While the conventional Kramers theorem requires time-reversal symmetry with ${{\mathcal{T}}}^{2}=-1$, the antiunitary operator ${\mathcal{P}}{\mathcal{T}}$ can still protect twofold degeneracies under specific conditions. As shown in related antiferromagnetic systems such as MnPSe₃ and MnSe^15,16, this protection arises when Bloch states transform as real representations under ${\mathcal{P}}{\mathcal{T}}$. In collinear antiferromagnets with negligible spin-orbit coupling, ${\mathcal{P}}{\mathcal{T}}$ maps each Bloch state to an orthogonal partner with opposite spin, enforcing a robust symmetry-protected degeneracy that mimics the Kramers mechanism. This mechanism is fundamentally tied to the invariance of the system under the combined ${\mathcal{P}}{\mathcal{T}}$ operation. When this symmetry is preserved, as in centrosymmetric antiferromagnets, spin degeneracy persists at all k-points¹⁶. When it is explicitly broken, for instance, due to stacking geometry or interlayer spin orientation, the degeneracy lifts, allowing momentum-dependent spin splitting, a hallmark of altermagnetic behavior^14,15. The presence or absence of ${\mathcal{P}}{\mathcal{T}}$ therefore provides a clear symmetry-based distinction between Type II antiferromagnetic phases and the Type III or quasi-altermagnetic regimes.

In AA stacking, both layers share the same in-plane lattice. The survival of ${\mathcal{P}}{\mathcal{T}}$ depends on the lateral shift t and the interlayer spin alignment. At high-symmetry offsets such as (1/3, 2/3), the nonmagnetic and parallel (↑↓/↑↓) magnetic states admit centrosymmetric magnetic space groups (e.g., $P\overline{3}1{m}^{{\prime} }$ (162.75), $P{\overline{3}}^{{\prime} }$ (147.15)) that preserve ${\mathcal{P}}{\mathcal{T}}$ and protect spin degeneracy. In contrast, antiparallel (↑↓/↓↑) alignment always breaks ${\mathcal{P}}{\mathcal{T}}$. In this case, spin splitting depends on whether a valid spin-exchanging connector survives. The spatial operation a must not belong to the degeneracy-protecting set $\langle {\mathcal{P}},{M}_{z},{C}_{2z}\rangle$, and must combine with spin inversion to form $[a| | {C}_{{\rm{spin}}}^{2}]$. Examples include in-plane twofold rotations such as C_2,[110] or mirrors like m_x. If such a connector remains, the system exhibits Type III altermagnetism. If no connector survives (e.g., at t = (1/3, 2/3) with tightened symmetry tolerances), the phase becomes quasi-altermagnetic. We provide a detailed symmetry-based definition and diagnostic of the Quasi-AM regime in the next sections.

In ${{\rm{AA}}}^{{\prime} }$ stacking, the inversion of the top layer about the z axis (z → − z) combined with a vertical translation τ_z reshapes the symmetry picture, usually eliminating global inversion and thereby breaking ${\mathcal{P}}{\mathcal{T}}$. However, when $2{\bf{t}}\in {\mathcal{L}}$, with ${\mathcal{L}}$ the in-plane Bravais lattice, the composite stacking operation $[{\mathcal{P}}\parallel {\tau }_{z}]$ can combine with time reversal ${\mathcal{T}}$ to form an effective antiunitary symmetry $[{\mathcal{P}}\parallel {\tau }_{z}]{\mathcal{T}}$, which enforces spin degeneracy in the parallel alignment^6,8,17. In the generic case, however, ${{\rm{AA}}}^{{\prime} }$ displacements lower the symmetry to noncentrosymmetric magnetic space groups (MSGs)^13,18, which lack exact ${\mathcal{P}}{\mathcal{T}}$. As a result, degeneracy protection is lost and Type III altermagnetism emerges, unless the effective antiunitary symmetry is reconstructed.

Figure 3 summarizes the magnetic space groups for different lateral shifts. AA configurations mostly fall under Type-II MSGs in the parallel state, consistent with protected spin degeneracy. In contrast, ${{\rm{AA}}}^{{\prime} }$ stackings span lower-symmetry, often noncentrosymmetric groups. Only at special displacements does inversion-like pairing re-emerge to preserve ${\mathcal{P}}{\mathcal{T}}$. Although conventional space group assignment offers structural insight, it alone does not determine whether nonrelativistic spin splitting occurs. Altermagnetism depends on an intricate interplay of spatial, spin, and antiunitary symmetries, particularly ${\mathcal{P}}{\mathcal{T}}$. In many configurations, it is the existence of a valid spin-exchanging connector that dictates whether splitting arises. To expose these subtleties, we adopt the spin-Laue formalism, which explicitly treats symmetries as composite operations in real and spin space, including both $[a| | {C}_{{\rm{spin}}}^{2}]$ and antiunitary elements like ${\mathcal{P}}{\mathcal{T}}$^6,8,13.

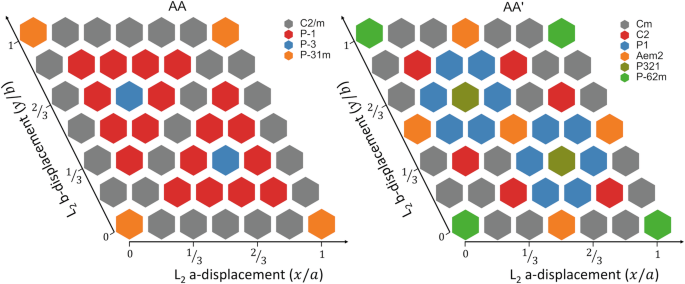

Fig. 3: Calculated space group symmetry maps for bilayer MnPS₃ under lateral displacement.

Left: AA stacking series. Right:${{\rm{AA}}}^{{\prime} }$ stacking series. Color coding indicates the space group symmetry of the bilayer for each relative in-plane displacement vector t applied to the second layer (L₂).

Magnetic configurations of the bilayer

We consider two collinear antiferromagnetic alignments in bilayer MnPS₃ to isolate how stacking geometry controls magnetic symmetry. Each monolayer hosts the established Néel order on the honeycomb Mn sublattice^19,20, with alternating up and down moments. Stacking two such layers produces four Mn sites per unit cell and two distinct interlayer arrangements: in the parallel configuration (↑↓/↑↓) the spin pattern is the same in both layers, while in the antiparallel (↑↓/↓↑) the top layer is flipped relative to the bottom. These magnetic geometries and their relation to stacking are illustrated in Fig. 1^12,21.

Although both alignments are collinear and compensated, they yield distinct spin-Laue structures under lateral displacement, leading to different electronic responses. In all relaxed configurations the net magnetic moment vanishes within numerical tolerance, so the observed spin splitting cannot originate from ferromagnetism but instead reflects symmetry breaking consistent with altermagnetism. The robust intralayer Néel order in MnPS₃, stabilized by strong in-plane exchange, is only weakly perturbed by bilayer formation¹². Thus, the two AFM configurations directly link stacking to either symmetry preservation or the emergence of altermagnetic and quasi-altermagnetic spin splitting.

Band structure

To explore how stacking-dependent symmetry affects the electronic structure, we analyze the spin-resolved band structures of bilayer MnPS₃ for both AA and ${{\rm{AA}}}^{{\prime} }$ stackings (Figs. 4 and 5).

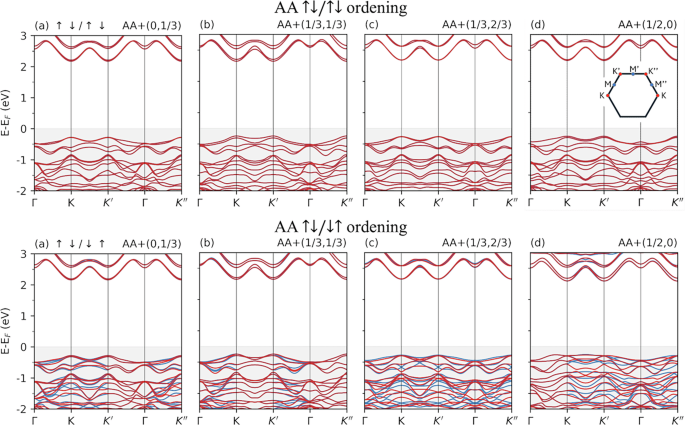

Fig. 4: Spin-resolved electronic band structure of AA-stacked MnPS₃ bilayers for different in-plane displacements of the top layer.

a (0, 1/3), b (1/3, 1/3), c (1/3, 2/3), and d (1/2, 0), given in fractional lattice coordinates. Top row shows the parallel (↑↓/↑↓) and bottom row the antiparallel (↑↓/↓↑) interlayer spin configuration. Red and blue indicate spin-up and spin-down bands, with the Fermi energy set at E_F = 0.

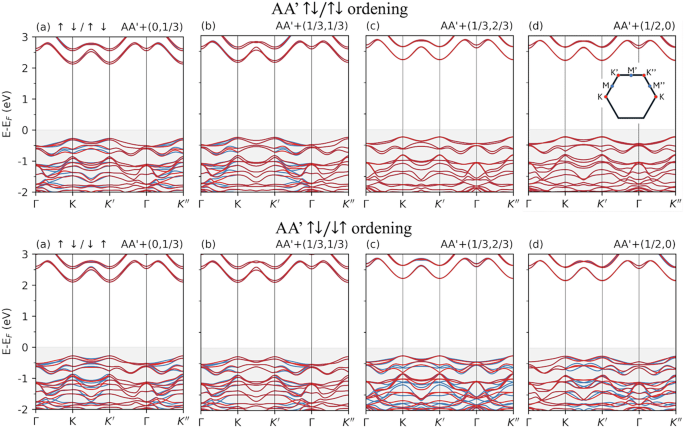

Fig. 5: Spin-resolved electronic band structure of ${{\rm{AA}}}^{{\prime} }$-stacked MnPS₃ bilayers for different in-plane displacements of the top layer.

a (0, 1/3), b (1/3,1/3), c (1/3,2/3) and d (1/2,0), given in fractional lattice coordinates. Top row shows the parallel (↑↓/↑↓) and bottom row the antiparallel (↑↓/↓↑) interlayer spin configuration. Red and blue denote spin-up and spin-down bands, with the Fermi energy set to E_F = 0.

In AA stacking, the parallel spin aliment configuration (Fig. 4, top row) yields fully spin-degenerate bands across all considered in-plane displacements. This spectral regularity directly reflects the preservation of key symmetry elements under such shifts. As shown in Fig. 3 (left panel), displacements like (1/3, 2/3) and (1/2, 0) maintain inversion or vertical mirror symmetries, which constrain the band structure and enforce identical dispersion for both spin channels throughout the Brillouin zone. In contrast, the antiparallel configuration (Fig.4, bottom row) exhibits a more varied k-dependent spin-splitting response. The lateral displacement t directly determines which spatial symmetries are preserved or broken (see Fig.3, left panel). For instance, in the AA+(1/3, 2/3) stacking, the antiparallel spin alignment removes global inversion symmetry ${\mathcal{P}}$, yielding a noncentrosymmetric magnetic space group (P3) with no surviving spin-exchanging connectors. This symmetry-starved regime produces significant spin splitting near Γ and ${{\rm{K}}}^{{\prime} }$, consistent with the quasi-altermagnetic behavior described in recent symmetry-based classifications^6,8. Overall, AA-based bilayers demonstrate that systematic shifts in stacking registry, combined with interlayer spin order, act as a powerful symmetry control knob for generating tunable spin-resolved features in the electronic structure.

The ${{\rm{AA}}}^{{\prime} }$ stacking geometry intrinsically breaks out-of-plane symmetry due to the reflection of the top layer along z → −z. As a result, the system becomes more sensitive to in-plane displacements, with Fig. 3 (right panel) showing that most lateral shifts reduce the symmetry to lower space groups lacking inversion and mirrors. This reduction in symmetry is directly manifested in the spin-resolved band structures of Fig. 5. In the parallel configuration (top row), configurations like ${{\rm{AA}}}^{{\prime} }$+(1/3, 2/3) and (1/2, 0), which retain partial symmetries, show relatively symmetric bands and weak spin splitting. In contrast, for displacements such as (1/3, 1/3) and (0, 1/3), where Fig. 3 indicates the absence of inversion or mirror symmetry, the bands become visibly asymmetric between spin channels, with noticeable differences in curvature and extrema. The antiparallel configuration (Fig. 5, bottom row) exhibits robust spin splitting across all displacements, being consistent with the lack of any global or partial symmetry connecting the spin sublattices, as confirmed by the stacking-dependent space group analysis. These results establish a clear correspondence between lateral displacement, symmetry reduction, and the emergence of momentum-dependent spin polarization in the band structure.

Notably, the band path includes three non-equivalent K points (K, ${{\rm{K}}}^{{\prime} }$, and K^″), allowing us to resolve anisotropic spin splitting in k-space. In altermagnetic configurations, spin splitting is selectively observed along only two of the three Γ-K segments, reflecting the momentum-filtered action of residual symmetry operations. We next present a momentum-resolved analysis of the spin splitting, computed by evaluating the energy difference between spin channels across the Brillouin zone. The combined evolution of spin degeneracy, gap character, and band extrema demonstrates the tunability of stacking and magnetism as a platform for designing spin-functional van der Waals materials.

The stability of each magnetic configuration and stacking is discussed in Supplementary Information.

Stacking-dependent band splitting

To quantify spin splitting in momentum space, we compute the average energy difference between spin-up and spin-down states across the N occupied bands at each k-point:

$$\delta E({\bf{k}})=\frac{1}{N}\mathop{\sum }\limits_{n=1}^{N}\left[{E}_{{\rm{up}}}({\bf{k}},n)-{E}_{{\rm{dn}}}({\bf{k}},n)\right],$$

(1)

where E_up and ${E}_{{\rm{dn}}}$ are spin-resolved eigenvalues from self-consistent DFT calculations. This function, δE(k), serves as a local measure of spin polarization in reciprocal space²². Interpolated over a dense k-grid, it yields the spin-splitting maps shown in Fig. 6, which provide complementary insight to the spin-resolved band structures in Fig. 5.

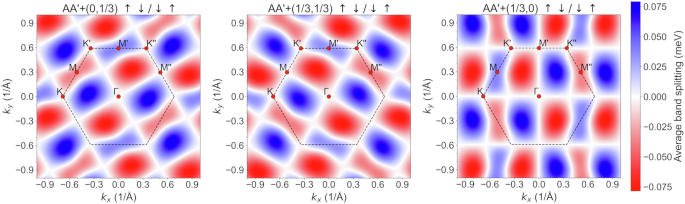

Fig. 6: Average spin splitting δE(k) (meV) over occupied bands, for ${{\rm{AA}}}^{{\prime} }$-stacked MnPS₃ bilayers in the antiparallel (↑↓/↓↑) ordering with magnetic space group Cm, shown in the 2D Brillouin zone.

From left to right: lateral displacements (0, 1/3), (1/3, 1/3), and (1/3, 0). Dashed lines mark the hexagonal zone boundary; high-symmetry points are labeled. Positive (blue) values correspond to E_↑ > E_↓, negative (red) to E_↓ > E_↑, so the sign encodes the direction of spin polarization. The orientation and selection of nonzero splitting reflect the mirror symmetries preserved in each stacking configuration.

Figure 6 focuses on three low-energy ${{\rm{AA}}}^{{\prime} }$ configurations with antiparallel spin alignment, lateral displacements (0, 1/3), (1/3, 1/3), and (1/3, 0), that all share the monoclinic space group Cm (Fig. 3) but differ in their active mirror content. These subtle differences control the orientation of the spin-splitting texture. For (0, 1/3), the mirror

$${M}_{(0,1/3)}=\left(\begin{array}{ll}-1&0\\ -1&1\end{array}\right)$$

(2)

enforces reflection symmetry about k_y; for (1/3, 0),

$${M}_{(1/3,0)}=\left(\begin{array}{ll}1&-1\\ 0&-1\end{array}\right)$$

(3)

imposes symmetry about k_x; and for (1/3, 1/3),

$${M}_{(1/3,1/3)}=\left(\begin{array}{ll}0&1\\ 1&0\end{array}\right)$$

(4)

exchanges k_x and k_y, producing a diagonal reflection. All three configurations exhibit alternating (checkerboard-like) spin polarization, but the patterns rotate or reflect by their respective mirror constraints. The three textures are related approximately by combinations of the underlying hexagonal lattice rotations and reflections, illustrating that lateral shifts tune not only the magnitude but also the orientation of the anisotropic spin splitting.

Because ${{\rm{AA}}}^{{\prime} }$ stacking generally breaks exact inversion-related pairing, it relaxes valley equivalences (e.g., between K, ${{\rm{K}}}^{{\prime} }$, and K^″) that would otherwise be enforced, allowing distinct splitting profiles in different valleys. The surviving or broken connector symmetries further select which Γ − K directions carry nonzero splitting: in true altermagnetic regimes, the splitting appears only along a subset of these segments, reflecting the momentum-filtered action of the residual $[a| | {C}_{{\rm{spin}}}^{2}]$ symmetries.

To illustrate the key features of the altermagnetic phase, Fig. 6 showcases the spin-splitting maps for three degenerate, low-energy ${{\rm{AA}}}^{{\prime} }$ configurations with ↑↓/↓↑ alignment. These structures, with lateral displacements of (0,1/3), (1/3,1/3), and (1/3,0), all share the monoclinic space group Cm (Fig. 3) but differ in their in-plane mirror content. These subtle symmetry differences dictate the orientation of the spin-splitting textures, showing that a simple lateral displacement controls both the magnitude and the orientation of the spin anisotropy in momentum space. This stacking-controlled functionality provides the foundation for engineering spatially modulated altermagnetic textures in moiré heterostructures. In twisted bilayers of antiferromagnetic van der Waals materials, the moiré superlattice generates a periodic array of local stacking registries, each defined by a distinct symmetry environment. As demonstrated by our results, such a moiré pattern can host coexisting altermagnetic and quasi-altermagnetic domains, where each domain exhibits a distinct momentum-dependent spin texture governed by its local stacking displacement t. This perspective is consistent with recent theoretical proposals for twist-controlled spin splitting in MnPSe₃¹⁵ and with the broader potential of moiré engineering in magnetic van der Waals materials⁶. Interfaces between these domains may support unconventional phenomena, such as spin-polarized edge states or emergent gauge fields arising from spatially varying symmetry constraints. Exploring such domain boundaries can therefore bridge the physics of altermagnetism with moiré engineering, paving the way for spatially programmable, symmetry-defined spin functionalities in compensated magnets.

Layer and Laue spin groups

The classification of magnetic phases in two-dimensional van der Waals magnets requires a framework that distinguishes between symmetry-protected spin degeneracy, momentum-dependent spin splitting, and unprotected splitting arising from broken symmetry. We adopt the spin-Laue formalism^8,13, expressing magnetic symmetry operations as combined spatial and spin actions [R_spatial∣∣S_spin], where R_spatial acts on lattice coordinates and S_spin on spin. This classification yields an unambiguous taxonomy of compensated collinear magnets according to which symmetries survive:

Type II antiferromagnet

A degeneracy-enforcing antiunitary symmetry, most prominently the combined inversion-time reversal operation ${\mathcal{P}}{\mathcal{T}}$, remains. When this symmetry commutes with the Hamiltonian and the system supports real or pseudoreal electronic states, it guarantees spin degeneracy at all k-points, even though ${({\mathcal{P}}{\mathcal{T}})}^{2}=+1$, in contrast to the conventional ${{\mathcal{T}}}^{2}=-1$ case^10,23. This degeneracy, while not guaranteed by the standard Kramers theorem, emerges as a symmetry-enforced consequence of the compensated magnetic structure and centrosymmetric arrangement. The magnetic space group must therefore be centrosymmetric or contain an equivalent composite operation that enforces such a degeneracy.

Type III altermagnet

${\mathcal{P}}{\mathcal{T}}$ is broken, but a spin-exchanging connector $[a| | {C}_{{\rm{spin}}}^{2}]$ survives, where the spatial part a is not a degeneracy-enforcing operation such as inversion ${\mathcal{P}}$, out-of-plane mirror M_z, or out-of-plane twofold rotation C_2z. Examples include in-plane twofold rotations (e.g., C_2,[110]) or in-plane mirrors (e.g., m_x). Such a, when paired with the spin inversion ${C}_{{\rm{spin}}}^{2}$, relates opposite-spin sublattices and imposes the alternating, momentum-dependent spin splitting characteristic of altermagnetism^6,8.

Quasi-altermagnet (Quasi-AM)

This phase constitutes a specific subclass within the SST-4 class of compensated antiferromagnets, characterized by nonrelativistic spin splitting at time-reversal-invariant momenta such as Γ, in the absence of spin-orbit coupling²⁴. Unlike Type III altermagnets, the Quasi-AM phase lacks both the combined antiunitary symmetry ${\mathcal{P}}{\mathcal{T}}$ and any valid spin-exchanging connector $[a| | {C}_{{\rm{spin}}}^{2}]$, where the spatial operation a lies outside the degeneracy-enforcing set $\langle {\mathcal{P}},{M}_{z},{C}_{2z}\rangle$. The absence of such symmetries implies that the two opposite-spin sublattices are not related by any preserved operation of the magnetic space group, leading to a complete lifting of spin degeneracy even at Γ. The resulting spin splitting is unprotected and does not exhibit the symmetry-enforced alternating sign in momentum space that characterizes true altermagnets.

Before presenting the symmetry-based classification of stacking geometries, we clarify the criteria that determine whether a spin-exchanging connector $[a| | {C}_{{\rm{spin}}}^{2}]$ is operative. Such a connector is valid only if the spatial operation a does not generate a degeneracy-enforcing antiunitary symmetry when combined with time reversal ${\mathcal{T}}$. In particular, operations like ${\mathcal{P}}$, M_z, and C_2z belong to the set $\langle {\mathcal{P}},{M}_{z},{C}_{2z}\rangle$, which can protect spin degeneracy when preserved alongside ${\mathcal{T}}$^8,9,17. The symmetry analysis is framed in terms of the magnetic point group H, defined as the set of spatial operations that preserve both the atomic structure and the magnetic configuration. Each element h ∈ H corresponds to a symmetry operation (such as a rotation, mirror, or glide) that leaves the spin texture invariant. These generate spin-space operations of the form [h∥S], where S acts on the spin degrees of freedom. The subgroup {[h∥E]: h ∈ H}, with E the identity in spin space, preserves local spin orientation and forms the spin-conserving core of the spin-Laue group^13,18.

In contrast, a spin-exchanging connector $[a| | {C}_{{\rm{spin}}}^{2}]$ flips the spin while the spatial part a maps spin-up sites to spin-down counterparts. For example, although ${C}_{2z}\in \langle {\mathcal{P}},{M}_{z},{C}_{2z}\rangle$, the connector $[{C}_{2z}\parallel {C}_{{\rm{spin}}}^{2}]$ becomes operative only if the composite antiunitary symmetry $[{C}_{2z}\parallel {\mathcal{T}}]$ is broken. This occurs in antiparallel interlayer alignments (↑↓/↓↑), where C_2z maps spin-up sites to spin-down sites in a manner incompatible with time reversal. When this condition is met, spin degeneracy is lifted, and alternating momentum-dependent spin splitting emerges, characteristic of Type III altermagnetism⁹.

The specific composition of the spin-Laue group determines the resulting magnetic phase. A purely spin-conserving group produces spin-degenerate bands (Type II AFM); the inclusion of valid spin-exchanging connectors leads to alternating spin splitting (Type III); and the absence of either symmetry channel results in unprotected splitting (Quasi-AM)²⁴. All magnetic space groups reported below are derived from fully relaxed structures (forces < 10⁻³ eV/Å), using strict symmetry tolerances. Phase labels are cross-validated against DFT band structures, which directly reveal whether spin degeneracy is preserved or lifted.

Spin-Laue classification: AA stacking

AA stacking provides a tunable framework for controlling spin degeneracy in bilayer MnPS₃, since lateral displacement t and interlayer spin alignment act as largely independent symmetry control parameters^6,25. In AA-stacked MnPS₃, the magnetic phase is dictated by the presence of ${\mathcal{P}}{\mathcal{T}}$ or, when absent, by the survival of a valid connector $[a| | {C}_{{\rm{spin}}}^{2}]$ across spin sublattices^8,9. We identify the magnetic space group (MSG) of each configuration to determine which symmetries remain after stacking and magnetic ordering¹³. The resulting classification appears in Table 1.

Table 1 Spin-Laue classification for AA-stacked bilayer MnPS₃ under parallel (↑↓/↑↓) and antiparallel (↑↓/↓↑) configurations

In the parallel alignment (↑↓/↑↓) the combined inversion-time reversal ${\mathcal{P}}{\mathcal{T}}$ persists for all tested offsets^7,17. Although the MSG varies with t (e.g., $P\overline{3}1{m}^{{\prime} }$ at (0, 0), $C{2}^{{\prime} }/{m}^{{\prime} }$ at (0, 1/3) or (1/2, 0), and $P{\overline{3}}^{{\prime} }$ at (1/3, 2/3)), the centrosymmetric character guarantees the survival of ${\mathcal{P}}{\mathcal{T}}$ and enforces a Kramers-like spin degeneracy throughout the Brillouin zone. Hence all parallel AA configurations are Type II AFMs, as confirmed by the absence of intrinsic splitting in DFT^3,4.

The antiparallel alignment (↑↓/↓↑) breaks ${\mathcal{P}}{\mathcal{T}}$ for any t, so splitting depends on connector survival. At high-symmetry offsets such as (0, 0), spatial operations like C_2z and C_2,[110], when paired with ${C}_{{\rm{spin}}}^{2}$, yield valid connectors $[{C}_{2z}| | {C}_{{\rm{spin}}}^{2}]$ and $[{C}_{2,[110]}| | {C}_{{\rm{spin}}}^{2}]$, producing the alternating, momentum-dependent splitting of a Type III altermagnet^8,26,27. Similarly, at (0, 1/3) or (1/2, 0) surviving mirrors (e.g., m_x) combine with ${C}_{{\rm{spin}}}^{2}$ to give $[{m}_{x}| | {C}_{{\rm{spin}}}^{2}]$ connectors and altermagnetic behavior, with the expected vanishing at symmetry-imposed nodes^10,15.

The offset t = (1/3, 2/3) presents a distinct case. Under antiparallel alignment, detailed symmetry analysis with tightened numerical thresholds confirms the absence of a valid inversion pairing required for preserving ${\mathcal{P}}{\mathcal{T}}$¹⁸. No spin-exchanging connector $[a| | {C}_{{\rm{spin}}}^{2}]$ survives either. The resulting magnetic space group reduces to noncentrosymmetric P3 (No. 144), leading to unprotected spin splitting, even at Γ (see Fig. 4c, lower panel). This symmetry-starved configuration fits the SST-4 class and is best described as a Quasi-Altermagnet²⁴.

The progression from a protected Type II AFM through structured Type III altermagnets to a Quasi-AM under AA stacking demonstrates predictable phase selection via combined control of interlayer registry and spin alignment.

Spin-Laue classification: ${{\rm{AA}}}^{{\prime} }$ stacking

${{\rm{AA}}}^{{\prime} }$ stacking modifies the symmetry environment of bilayer MnPS₃ by inverting the top monolayer about its center and translating it vertically by τ_z. This defines the composite spatial operation [P∥τ_z], absent in the monolayer but allowed in the bilayer for specific in-plane displacements t. When $2{\bf{t}}\in {\mathcal{L}}$, with ${\mathcal{L}}$ the in-plane Bravais lattice, the antiunitary symmetry [P∥τ_z]T becomes exact and enforces a Kramers-like degeneracy by mapping each Bloch state to an orthogonal partner with opposite spin, even though ${([P\parallel {\tau }_{z}]T)}^{2}=+1$^6,8,17. In the parallel interlayer configuration (↑↓/↑↓), this degeneracy is preserved, stabilizing a Type II antiferromagnetic phase with spin-degenerate bands^7,9. In contrast, the antiparallel configuration (↑↓/↓↑) breaks [P∥τ_z]T, lifting the degeneracy and enabling momentum-dependent spin splitting characteristic of quasi-altermagnetic phases^3,15. We identify the magnetic space group of each ${{\rm{AA}}}^{{\prime} }$ configuration to determine the symmetries that survive after stacking and magnetic ordering. The full classification appears in Table 2.

Table 2 Spin-Laue classification for ${{\rm{AA}}}^{{\prime} }$-stacked bilayer MnPS₃ under parallel (↑↓/↑↓) and antiparallel (↑↓/↓↑) magnetic orderings

Magnetic phase outcomes depend on both interlayer spin alignment and lateral shift t. In the antiparallel alignment (↑↓/↓↑), the exact ${\mathcal{P}}{\mathcal{T}}$ is broken for all t, since layer inversion maps spin-up sites to spin-down sites in a way that time reversal alone cannot compensate. Nonetheless, specific shifts retain non-degeneracy-enforcing spatial operations that, when paired with the spin inversion ${C}_{{\rm{spin}}}^{2}$, act as valid connectors. For instance, at (0, 0) and (1/3, 2/3) the twofold rotation C_2z survives and yields $[{C}_{2z}| | {C}_{{\rm{spin}}}^{2}]$, while at (0, 1/3) and (1/3, 1/3) in-plane mirrors such as m_x produce $[{m}_{x}| | {C}_{{\rm{spin}}}^{2}]$. These connectors enforce the alternating, momentum-dependent splitting of Type III altermagnetism, so the antiparallel ${{\rm{AA}}}^{{\prime} }$ stack generally hosts robust Type III AM phases, as corroborated by DFT.

The parallel alignment (↑↓/↑↓) presents a different scenario. Layer inversion does not automatically forbid a degeneracy-enforcing composite symmetry, but restoring an effective ${\mathcal{P}}{\mathcal{T}}$ requires geometric compatibility: only when $2{\bf{t}}\in {\mathcal{L}}$ (with ${\mathcal{L}}$ the in-plane Bravais lattice) does the combination of layer inversion and translation reconstruct an inversion pairing that properly relates opposite-spin sublattices. At the special offset t = (1/2, 0) this condition holds, the system exhibits spin-degenerate bands, and the phase behaves as a Type II AFM; the spatial group is Aem2 (39), which supports the effective ${\mathcal{P}}{\mathcal{T}}$. For shifts with $2{\bf{t}}\notin {\mathcal{L}}$, the effective inversion fails and if a valid spin-exchanging connector survives (e.g., $[{C}_{2z}| | {C}_{{\rm{spin}}}^{2}]$ in appropriate cases), the system enters the Type III altermagnetic regime.

This contrasts with AA stacking, where the parallel case universally preserves ${\mathcal{P}}{\mathcal{T}}$ and the antiparallel case requires connector survival to realize altermagnetism or, in its absence, a Quasi-AM. In ${{\rm{AA}}}^{{\prime} }$, the internal inversion renders Type III altermagnetism the default for antiparallel order, while the parallel alignment permits a controlled reentry into a Type II AFM only at specific high-symmetry registries. Thus stacking geometry provides a distinct symmetry control pathway: intrinsic symmetry breaking stabilizes altermagnetism except when precise registry restores an effective degeneracy-enforcing composite symmetry.

Stacking geometry and interlayer spin alignment provide two independent yet combinatorially effective symmetry control parameters whose interplay deterministically selects the magnetic phase in bilayer MnPS₃. In AA stacking, the parallel (↑↓/↑↓) order preserves ${\mathcal{P}}{\mathcal{T}}$, yielding a robust Type II antiferromagnet. The antiparallel (↑↓/↓↑) order breaks it, opening a switchable pathway to either structured Type III altermagnetism when a non-degeneracy-enforcing connector $[a| | {C}_{{\rm{spin}}}^{2}]$ survives, or to a symmetry-starved Quasi-AM (SST-4) if no such connector remains. ${{\rm{AA}}}^{{\prime} }$ stacking intrinsically breaks ${\mathcal{P}}{\mathcal{T}}$ via layer inversion and therefore generically hosts Type III altermagnetism in the antiparallel case, with a controlled return to Type II AFM only at the special high-symmetry shift (1/2, 0) where an effective ${\mathcal{P}}{\mathcal{T}}$ is recovered. The AA (1/3, 2/3), ↑↓/↓↑ configuration provides a concrete SST-4 realization: lacking both ${\mathcal{P}}{\mathcal{T}}$ and any $[a| | {C}_{{\rm{spin}}}^{2}]$ connector, it exhibits nonrelativistic spin splitting throughout the Brillouin zone, including at Γ, without the symmetry-enforced alternation of true altermagnets. This symmetry-engineered tunability establishes a practical design principle for realizing compensated magnetic phases in two-dimensional van der Waals materials^6,8,10,24.

Notes on symmetry tolerances

The identification and classification of magnetic phases in bilayer MnPS₃ hinge sensitively on small structural distortions and the numerical thresholds used in symmetry extraction. Idealized geometries might formally admit degeneracy-enforcing operations such as [C_2z∥E] or ${\mathcal{P}}{\mathcal{T}}$, but atomic relaxations at the 0.01–0.02 Å scale can eliminate them once realistic tolerances are applied. These displacements are comparable to thermal root-mean-square atomic fluctuations at temperatures of order 100–300 K, as estimated from Debye-Waller physics where ${\langle {u}^{2}\rangle }^{1/2} \sim 0.01$–0.03 Å for typical van der Waals crystals^28,29, underscoring that some apparent symmetry breaking is physically plausible even in well-relaxed structures.

To avoid misclassification, we choose tolerances that strike a balance between (i) retaining spurious symmetries that contradict electronic structure (false positives) and (ii) overpruning genuine, physically relevant symmetries (false negatives). Specifically, we adopt position tolerances up to 0.1 Å and angular deviations up to 5^∘, and verify stability across reasonable tolerance variations to ensure that reported magnetic space groups and connector survivals are not artifacts of a particular threshold choice. When a candidate symmetry lies near the detection boundary or yields tension with other diagnostics, we do not accept it purely on algorithmic grounds. Instead, we corroborate its relevance by comparing to the DFT band structure: the presence or absence of nonrelativistic spin splitting, especially at high-symmetry points such as Γ, serves as a direct electronic fingerprint of whether a degeneracy-enforcing symmetry (e.g., ${\mathcal{P}}{\mathcal{T}}$) truly survives or whether a purported connector is physically operative. This dual approach, tolerance-aware group-theoretic extraction supplemented by first-principles spectral validation, ensures that the phase labels reflect the actual symmetry constraints experienced by the magnetic state, not numerical coincidences.

Discussion

Our findings demonstrate that stacking configuration and magnetic alignment act as intertwined symmetry control parameters, enabling the deliberate switching of bilayer MnPS₃ between distinct magnetic phases. This symmetry-driven mechanism produces tunable momentum-dependent spin splitting in the electronic band structure, even in the absence of spin-orbit coupling, a defining characteristic of altermagnetic systems. To quantify these effects, we extract spin splittings δE(k) = ϵ_↑(k) − ϵ_↓(k) from the calculated band structures (Figs. 4 and 5), averaging them over the Brillouin zone to obtain stacking-resolved trends. As summarized in Fig. 6, particular stacking displacements, notably the ${{\rm{AA}}}^{{\prime} }$ arrangement with ↑↓/↓↑ spin order, yield momentum-dependent spin splittings reaching ~60–80 meV. These splittings, prominent near high-symmetry points such as K and Γ, are comparable to those in other 2D altermagnets like MnTe³⁰ and induced monolayers³. Crucially, their magnitude exceeds the thermal energy scale at room temperature, suggesting robustness against thermal smearing and experimental visibility. Such sizable splittings present clear experimental opportunities, especially via spin- and momentum-resolved angle-resolved photoemission spectroscopy (ARPES). The observed asymmetry between K and $K{\prime}$ valleys implies emergent valley-contrasting spin textures, accessible through circular dichroism ARPES or nonlinear optics, such as second-harmonic generation. Specifically, we predict splittings of 60–80 meV in occupied bands near Γ and K, within the resolution of modern ARPES systems.

Beyond spectroscopy, broken ${\mathcal{P}}{\mathcal{T}}$ symmetry and non-centrosymmetric stacking lead to anisotropic spin-split Fermi surfaces. This supports unconventional transport phenomena, including angle-dependent Hall and spin Hall drag³¹, with predicted drag resistivities of 10–100 Ω and angular modulations governed by the layer’s spin-Laue symmetry. Maximum drag is expected when current flows along high-symmetry directions, reflecting the momentum-dependent spin polarization. Complementary transport experiments, such as angular-dependent magnetoresistance (AMR), offer another robust probe. Following demonstrations in MnTe³⁰, we predict that reorienting the Néel vector in MnPS₃ bilayers will induce resistivity anisotropies, with twofold or sixfold modulations tied to stacking geometry and magnetic alignment. Following the symmetry-based framework of Sheoran and Dev³², we expect ${{\rm{AA}}}^{{\prime} }$ stacking with ↑↓/↓↑ order to realize a d-wave altermagnetic phase that allows a symmetry-permitted in-plane anomalous Hall effect (AHE). In contrast, AA stacking preserves ${\mathcal{P}}{\mathcal{T}}$ symmetry, suppressing such responses. This enables detection of Néel vector orientation through transverse Hall signals, complementing AMR and drag measurements. Estimated AHE conductivities (σ_xy) in MnPS₃ bilayers, by analogy to MnPSe₃ and MnSe, range from 20 to 100 S/cm³², aligning with ARPES-predicted splittings near K and Γ of 60–80 meV, consistent with values in MnTe³⁰ and symmetry-induced systems³. For AMR, observed modulations of 3–5% in MnTe suggest expected signals of 2–6% in MnPS₃, depending on stacking and interlayer coupling. Beyond these transport and spectroscopic signatures, recent theory suggests that 2D altermagnets may host unconventional superconducting phenomena when integrated into superconductor-magnet hybrid devices³³. In particular, d-wave altermagnets like bilayer MnPS₃ could enable spin-singlet to spin-triplet conversion, anomalous Josephson effects, and symmetry-driven superconducting diode behavior, even without net magnetization or spin-orbit coupling.

While our study focuses on MnPS₃, the underlying mechanisms are broadly applicable to other van der Waals bilayers with antiferromagnetic order. Systems such as NiPS₃ and CrI₃, with their distinct anisotropies, interlayer couplings, and spin-orbit strengths, offer promising platforms for stacking-tunable altermagnetic behavior. Moreover, the ability to control spin splitting in a layer-resolved fashion opens avenues for advanced multifunctional applications. In particular, integrating stacking-induced altermagnetism with intercalated molecules or external electric fields enables coupling to ferroelectric switching³⁴, laying the groundwork for non-volatile memory and tunable magnetoelectric devices that combine electric writing with magnetic reading.

Finally, the range of experimental signatures discussed, such as ARPES splittings, angle-dependent drag, anisotropic magnetoresistance, and ferroelectric coupling provides a robust framework for probing and harnessing stacking-tunable altermagnetism.

Density functional theory combined with spin-Laue symmetry analysis demonstrates that interlayer stacking geometry and relative spin alignment serve as effective symmetry-tuning knobs that determine the magnetic phase of bilayer MnPS₃. The monolayer is a conventional collinear antiferromagnet with no intrinsic momentum-dependent spin splitting. In the bilayer, particular combinations of stacking offset and interlayer order selectively break or preserve spin-space symmetries, enabling transitions among Type II antiferromagnetic, Type III altermagnetic, and quasi-altermagnetic (SST-4) regimes.

The essential distinction lies in the surviving spin-Laue group: if it retains a degeneracy-enforcing antiunitary symmetry such as ${\mathcal{P}}{\mathcal{T}}$ (Type II), spin degeneracy persists; if ${\mathcal{P}}{\mathcal{T}}$ is broken but a proper spin-exchanging connector $[a| | {C}_{{\rm{spin}}}^{2}]$ survives with $a\notin \langle {\mathcal{P}},{C}_{2z},{M}_{z}\rangle$, the system realizes Type III altermagnetism with alternating, momentum-dependent splitting. Pure spatial operations like [C_2z∣∣E] or their nonsymmorphic relatives [C_2z∣∣t] do not induce splitting unless accompanied by the spin inversion ${C}_{{\rm{spin}}}^{2}$. When neither ${\mathcal{P}}{\mathcal{T}}$ nor any valid $[a| | {C}_{{\rm{spin}}}^{2}]$ remains, the phase enters the quasi-altermagnetic (SST-4/Type I) regime, where splitting reflects symmetry starvation rather than a protected pattern. Notably, ${\mathcal{P}}{\mathcal{T}}$, despite ${({\mathcal{P}}{\mathcal{T}})}^{2}=+1$, enforces a Kramers-like degeneracy in compensated antiferromagnets, stabilizing the Type II phase¹⁰.

In AA stacking, the ↑↓/↑↓ order universally preserves ${\mathcal{P}}{\mathcal{T}}$, producing a symmetry-protected Type II antiferromagnet across lateral shifts. The ↑↓/↓↑ alignment breaks ${\mathcal{P}}{\mathcal{T}}$, and the emergent phase depends on connector survival: if a non-degeneracy-enforcing connector such as $[{C}_{2z}| | {C}_{{\rm{spin}}}^{2}]$, $[{C}_{2,[110]}| | {C}_{{\rm{spin}}}^{2}]$, or $[{m}_{x}| | {C}_{{\rm{spin}}}^{2}]$ survives, the system shows Type III altermagnetic splitting; if no such connector remains (notably at t = (1/3, 2/3)), the result is a Quasi-Altermagnet, a concrete SST-4 realization that lacks both ${\mathcal{P}}{\mathcal{T}}$ and any valid $[a| | {C}_{{\rm{spin}}}^{2}]$ yet exhibits nonrelativistic spin splitting even at Γ without the symmetry-enforced alternation of true altermagnets.

In ${{\rm{AA}}}^{{\prime} }$ stacking, the inversion-related symmetries become more nuanced due to the internal layer inversion. For antiparallel order, ${\mathcal{P}}{\mathcal{T}}$ is broken in all cases, but surviving non-degeneracy-enforcing connectors consistently link opposite-spin sublattices, making Type III altermagnetism the generic outcome. For parallel order, an effective ${\mathcal{P}}{\mathcal{T}}$ can re-emerge only at special high-symmetry offsets satisfying $2{\bf{t}}\in {\mathcal{L}}$ via the composite stacking-operator mechanism of Pan et al.⁶, restoring spin degeneracy and reverting the system to a Type II AFM.

Our DFT results corroborate this symmetry-based classification, distinguishing (i) phases with exact ${\mathcal{P}}{\mathcal{T}}$ that exhibit no intrinsic nonrelativistic splitting (Type II AFM), (ii) phases where opposite-spin sublattices are connected by a valid $[a| | {C}_{{\rm{spin}}}^{2}]$, producing the momentum-dependent splitting of Type III altermagnets, and (iii) quasi-altermagnetic states lacking both protections, where splitting reflects the absence of symmetry constraints rather than a symmetry-generated pattern. The mechanism stacking-controlled emergence or suppression of spin-exchanging symmetry operations is not unique to MnPS₃ and should extend to other van der Waals antiferromagnets with tunable interlayer registry. The resulting modifications of the band structure, particularly the presence, symmetry, and orientation of nonrelativistic spin splitting near high-symmetry points, are accessible to spin- and momentum-resolved probes such as spin-resolved ARPES.

Methods

Computational details

We carried out density functional theory (DFT) calculations using the Perdew–Burke–Ernzerhof (PBE) generalized gradient approximation³⁵, as implemented in the Vienna ab initio Simulation Package (VASP)³⁶, within the plane-wave pseudopotential framework. To account for London dispersion forces, we employed the optB86b-vdW functional³⁷. A plane-wave energy cutoff of 500 eV was used. Monkhorst–Pack 8 × 8 × 1 and 12 × 12 × 1 k-point meshes were adopted for structural relaxation and self-consistent calculations, respectively³⁸. Electronic correlations in Mn atoms were treated using a Hubbard on-site Coulomb parameter of U = 5 eV within the Dudarev approach³⁹. This value is well established in the literature for MnPS₃, as it reproduces key experimental observables such as the band gap and magnetic moment^40,41. For all stacking configurations and magnetic alignments studied, the total magnetic moment per unit cell remains zero within 10⁻⁴, μ_B, confirming that each phase is fully compensated and satisfies the defining zero-net-magnetization condition for altermagnetism.

Constrained relaxation

To preserve the intended stacking during relaxation, we fixed the in-plane (x, y) positions of the outermost atoms (including Mn) while allowing relaxation along z, with all inner atoms fully relaxed. This ensures optimization of interlayer distances and bonding while maintaining the target geometry. Convergence was reached when residual forces on unconstrained atoms were below 10⁻³ eV/ Å. While such constraints are required to construct the energy map^12,42,43, we also performed fully unconstrained relaxations, which confirmed that the high-symmetry stacking configurations (m/3, n/3) with m, n = 0, 1, 2 are indeed stable.
