Fig. 1: The study workflow. | npj Digital Medicine

Fig. 1: The study workflow.

From: Interpretable longitudinal glaucoma visual field estimation deep learning system from fundus images and clinical narratives

Fig. 1

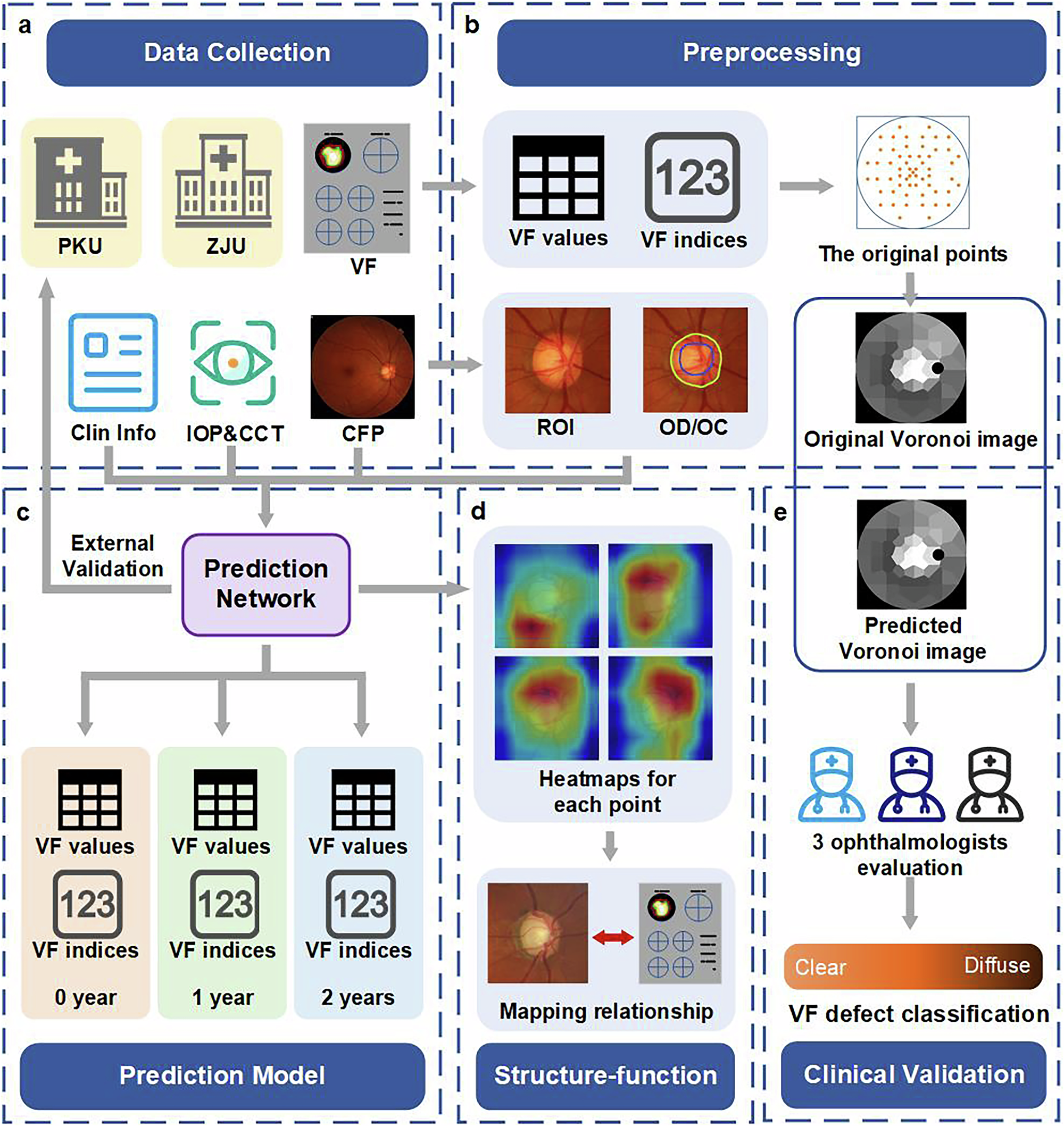

a Different types of data collected from Zhejiang University. b The preprocessing of color fundus photographs (CFPs) and visual field (VF). c The development of 5 prediction models that allows different input format. d heatmaps generated for structure-function relationship exploration.e VFs were graded by 3 ophthalmologists for clinical validation.
