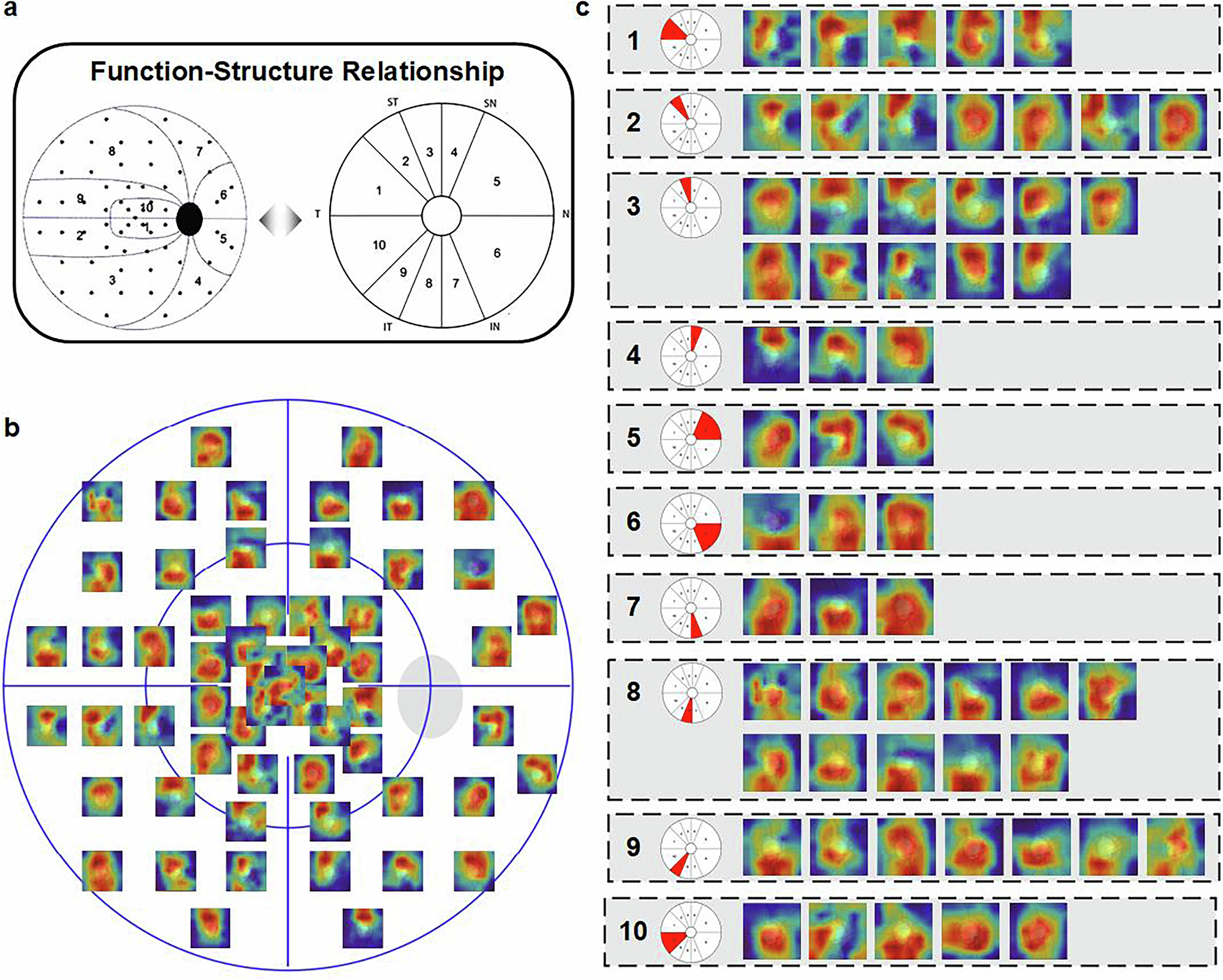

Fig. 4: The heatmap and exploration of structure-function relationship of glaucoma.

a The function-structure mapping proposed by previous study in Octopus perimeter. b Heatmap covering optic disc images arranged by original visual field (VF) positions. c Heatmaps divided according to 10 VF clusters.
