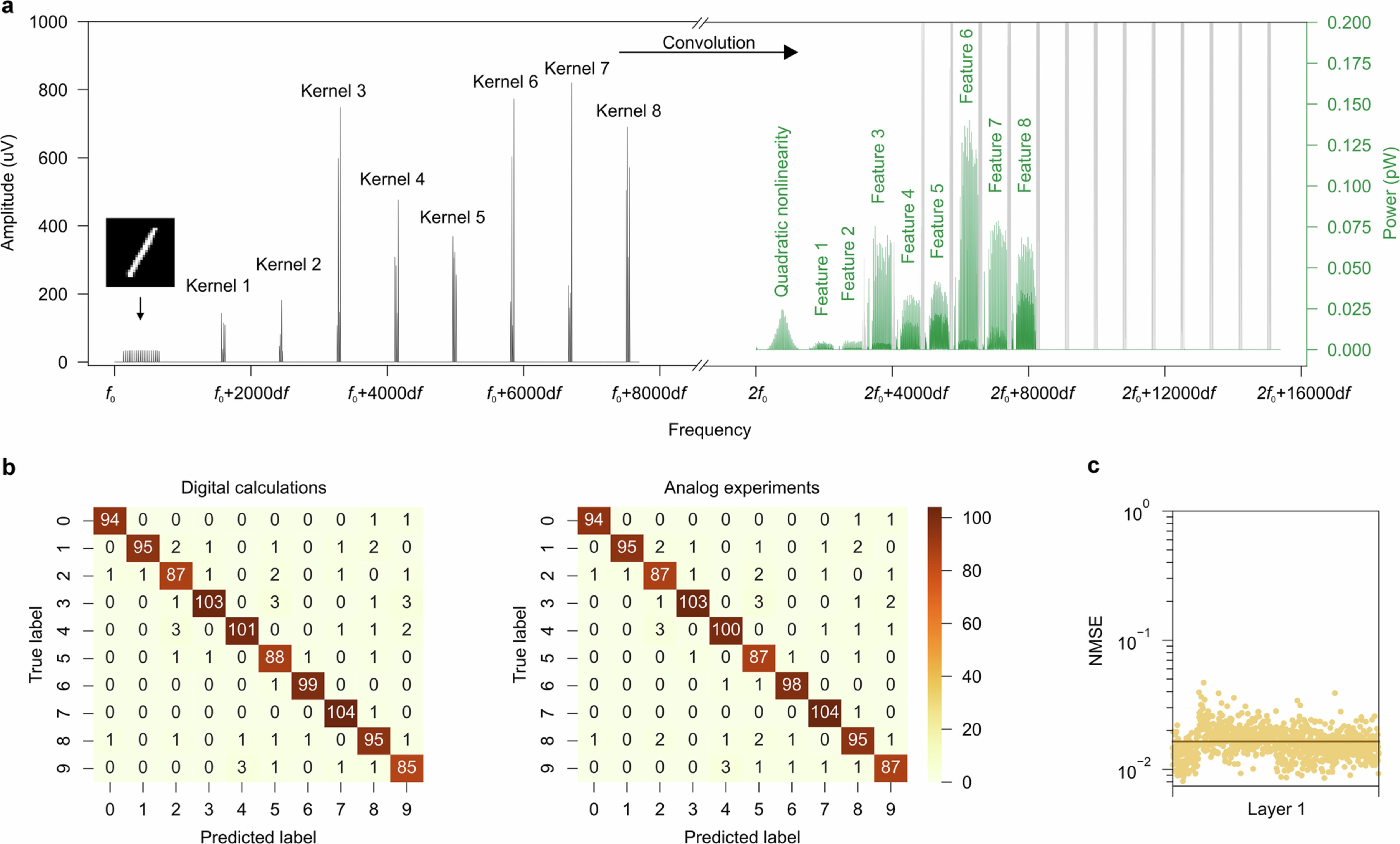

Extended Data Fig. 4: Ten-digits MNIST classification using kernel-based convolution neural network fit on our device.
