A travelling-wave parametric amplifier isolator

Nature Electronics volume 8, pages 1089–1098 (2025)Cite this article

Subjects

Abstract

Superconducting travelling-wave parametric amplifiers are promising devices for the near-quantum-limited broadband amplification of microwave signals and are essential for high-quantum-efficiency microwave read-out lines. Built-in isolation, as well as gain, could address their primary limitation: a lack of true directionality due to the potential backward travel of electromagnetic radiation to their input port. Here we report a travelling-wave parametric amplifier isolator that is based on Josephson junctions. The approach uses third-order nonlinearity for amplification and second-order nonlinearity for the frequency upconversion of backward-propagating modes to provide reverse isolation. These parametric processes, enhanced by a phase-matching mechanism, exhibit gain of up to 20 dB and reverse isolation of up to 30 dB over a static 3-dB bandwidth greater than 500 MHz and maintain near-quantum-limited added noise.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

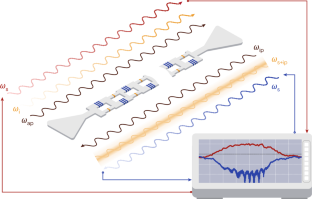

Fig. 1: Parametric amplification and isolation in the TWPAI.

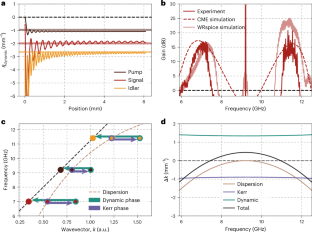

Fig. 2: Dynamic phase matching for amplification.

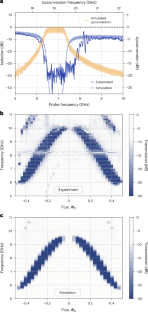

Fig. 3: Isolation utilizing 3WM upconversion.

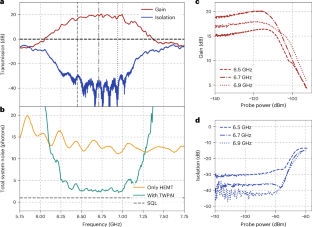

Fig. 4: Amplification with isolation.

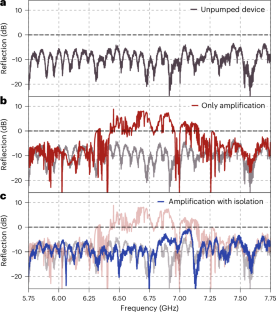

Fig. 5: Efficacy of isolation.

Similar content being viewed by others

Data availability

The data that support the findings of this study are available from the corresponding author upon reasonable request.

References

  1. Aumentado, J. Superconducting parametric amplifiers: the state of the art in Josephson parametric amplifiers. IEEE Microw. Mag. 21, 45–59 (2020).

    Article  Google Scholar

  2. Esposito, M., Ranadive, A., Planat, L. & Roch, N. Perspective on traveling wave microwave parametric amplifiers. Appl. Phys. Lett. 119, 120501 (2021).

    Article  Google Scholar

  3. Blais, A., Grimsmo, A. L., Girvin, S. M. & Wallraff, A. Circuit quantum electrodynamics. Rev. Mod. Phys. 93, 025005 (2021).

    Article  MathSciNet  Google Scholar

  4. Eichler, C., Bozyigit, D. & Wallraff, A. Characterizing quantum microwave radiation and its entanglement with superconducting qubits using linear detectors. Phys. Rev. A 86, 032106 (2012).

    Article  Google Scholar

  5. Nakamura, Y. & Yamamoto, T. Breakthroughs in photonics 2012: breakthroughs in microwave quantum photonics in superconducting circuits. IEEE Photon. J. 5, 0701406 (2013).

    Article  Google Scholar

  6. Fraudet, D. et al. Direct detection of down-converted photons spontaneously produced at a single Josephson junction. Phys. Rev. Lett. 134, 013804 (2025).

    Article  Google Scholar

  7. Stehlik, J. et al. Fast charge sensing of a cavity-coupled double quantum dot using a Josephson parametric amplifier. Phys. Rev. Appl. 4, 014018 (2015).

    Article  Google Scholar

  8. Krantz, P. et al. A quantum engineer’s guide to superconducting qubits. Appl. Phys. Rev. 6, 021318 (2019).

    Article  Google Scholar

  9. Schaal, S. et al. Fast gate-based readout of silicon quantum dots using Josephson parametric amplification. Phys. Rev. Lett. 124, 067701 (2020).

    Article  Google Scholar

  10. Elhomsy, V. et al. Broadband parametric amplification for multiplexed SiMOS quantum dot signals. Preprint at https://arxiv.org/abs/2307.14717 (2023).

  11. Teufel, J. D. et al. Sideband cooling of micromechanical motion to the quantum ground state. Nature 475, 359–363 (2011).

    Article  Google Scholar

  12. Bienfait, A. et al. Reaching the quantum limit of sensitivity in electron spin resonance. Nat. Nanotechnol. 11, 253–257 (2016).

    Article  Google Scholar

  13. Smith, D. M. P., Bakker, L., Witvers, R. H., Woestenburg, B. E. M. & Palmer, K. D. Low noise amplifier for radio astronomy. Int. J. Microw. Wirel. Technol. 5, 453–461 (2013).

    Article  Google Scholar

  14. Bockstiegel, C. et al. Development of a broadband NbTiN traveling wave parametric amplifier for MKID readout. J. Low Temp. Phys. 176, 476–482 (2014).

    Article  Google Scholar

  15. Jeong, J. et al. Search for invisible axion dark matter with a multiple-cell haloscope. Phys. Rev. Lett. 125, 221302 (2020).

    Article  Google Scholar

  16. Braine, T. et al. Extended search for the invisible axion with the axion dark matter experiment. Phys. Rev. Lett. 124, 101303 (2020).

    Article  Google Scholar

  17. Grenet, T. et al. The Grenoble Axion Haloscope platform (GrAHal): development plan and first results. Preprint at https://arxiv.org/abs/2110.14406 (2021).

  18. The MADMAX Collaboration. Simulating MADMAX in 3D: requirements for dielectric axion haloscopes. J. Cosmol. Astropart. Phys. 2021, 034 (2021).

  19. Di Vora, R. et al. Search for galactic axions with a traveling wave parametric amplifier. Phys. Rev. D 108, 062005 (2023).

    Article  Google Scholar

  20. Caves, C. M. Quantum limits on noise in linear amplifiers. Phys. Rev. D 26, 1817–1839 (1982).

    Article  Google Scholar

  21. Clerk, A. A., Devoret, M. H., Girvin, S. M., Marquardt, F. & Schoelkopf, R. J. Introduction to quantum noise, measurement, and amplification. Rev. Mod. Phys. 82, 1155–1208 (2010).

    Article  MathSciNet  Google Scholar

  22. Macklin, C. et al. A near–quantum-limited Josephson traveling-wave parametric amplifier. Science 350, 307–310 (2015).

    Article  Google Scholar

  23. Malnou, M. et al. Three-wave mixing kinetic inductance traveling-wave amplifier with near-quantum-limited noise performance. PRX Quantum 2, 010302 (2021).

    Article  Google Scholar

  24. Planat, L. et al. Photonic-crystal Josephson traveling-wave parametric amplifier. Phys. Rev. X 10, 021021 (2020).

    Google Scholar

  25. Ranadive, A. et al. Kerr reversal in Josephson meta-material and traveling wave parametric amplification. Nat. Commun. 13, 1737 (2022).

    Article  Google Scholar

  26. Fadavi Roudsari, A. et al. Three-wave mixing traveling-wave parametric amplifier with periodic variation of the circuit parameters. Appl. Phys. Lett. 122, 052601 (2023).

    Article  Google Scholar

  27. Kamal, A., Clarke, J. & Devoret, M. H. Noiseless non-reciprocity in a parametric active device. Nat. Phys. 7, 311–315 (2011).

    Article  Google Scholar

  28. Abdo, B., Sliwa, K., Frunzio, L. & Devoret, M. Directional amplification with a Josephson circuit. Phys. Rev. X 3, 031001 (2013).

    Google Scholar

  29. Metelmann, A. & Clerk, A. A. Nonreciprocal photon transmission and amplification via reservoir engineering. Phys. Rev. X 5, 021025 (2015).

    Google Scholar

  30. Sliwa, K. M. et al. Reconfigurable Josephson circulator/directional amplifier. Phys. Rev. X 5, 041020 (2015).

    Google Scholar

  31. Lecocq, F. et al. Nonreciprocal microwave signal processing with a field-programmable Josephson amplifier. Phys. Rev. Appl. 7, 024028 (2017).

    Article  Google Scholar

  32. Ranzani, L. et al. Wideband isolation by frequency conversion in a Josephson-junction transmission line. Phys. Rev. Appl. 8, 054035 (2017).

    Article  Google Scholar

  33. Chapman, B. J. et al. Widely tunable on-chip microwave circulator for superconducting quantum circuits. Phys. Rev. X 7, 041043 (2017).

    Google Scholar

  34. Zhang, D. & Tsai, Jaw-Shen Magnetic-free traveling-wave nonreciprocal superconducting microwave components. Phys. Rev. Appl. 15, 064013 (2021).

    Article  Google Scholar

  35. Beck, M. A., Selvanayagam, M., Carniol, A., Cairns, S. & Mancini, C. P. Wideband Josephson parametric isolator. Phys. Rev. Appl. 20, 034054 (2023).

    Article  Google Scholar

  36. Kwende, R., White, T. & Naaman, O. Josephson parametric circulator with same-frequency signal ports, 200 MHz bandwidth, and high dynamic range. Appl. Phys. Lett. 122, 224001 (2023).

    Article  Google Scholar

  37. Ramos, T., Gómez-León, Á., García-Ripoll, J. J., González-Tudela, A. & Porras, D. Directional Josephson traveling-wave parametric amplifier via non-Hermitian topology. Preprint at https://arxiv.org/abs/2207.13728 (2022).

  38. Naghiloo, M., Peng, K., Ye, Y., Cunningham, G. & O’Brien, K. P. Broadband microwave isolation with adiabatic mode conversion in coupled superconducting transmission lines. Preprint at https://arxiv.org/abs/2103.07793 (2021).

  39. Ranzani, L. & Aumentado, José A geometric description of nonreciprocity in coupled two-mode systems. New J. Phys. 16, 103027 (2014).

    Article  Google Scholar

  40. Frattini, N. E. et al. 3-wave mixing Josephson dipole element. Appl. Phys. Lett. 110, 222603 (2017).

    Article  Google Scholar

  41. Frattini, N. E., Sivak, V. V., Lingenfelter, A., Shankar, S. & Devoret, M. H. Optimizing the nonlinearity and dissipation of a SNAIL parametric amplifier for dynamic range. Phys. Rev. Appl. 10, 054020 (2018).

    Article  Google Scholar

  42. Esposito, M. et al. Observation of two-mode squeezing in a traveling wave parametric amplifier. Phys. Rev. Lett. 128, 153603 (2022).

    Article  Google Scholar

  43. Zorin, A. B. Quasi-phasematching in a poled Josephson traveling-wave parametric amplifier with three-wave mixing. Appl. Phys. Lett. 118, 222601 (2021).

    Article  Google Scholar

  44. Levochkina, A. Y. et al. Investigating pump harmonics generation in a SNAIL-based traveling wave parametric amplifier. Supercond. Sci. Technol. 37, 115021 (2024).

    Article  Google Scholar

  45. Planat, L. et al. Fabrication and characterization of aluminum SQUID transmission lines. Phys. Rev. Appl. 12, 064017 (2019).

    Article  Google Scholar

  46. Ranadive, A. Nonlinear Quantum Optics with Josephson Meta-Materials. PhD thesis, Univ. Grenoble Alpes (2023).

  47. Whiteley, S. R. Josephson junctions in SPICE3. IEEE Trans. Magn. 27, 2902–2905 (1991).

    Article  Google Scholar

  48. Ranzani, L., Spietz, L., Popovic, Z. & Aumentado, José Two-port microwave calibration at millikelvin temperatures. Rev. Sci. Instrum. 84, 034704 (2013).

    Article  Google Scholar

  49. Ranzani, L. et al. Kinetic inductance traveling-wave amplifiers for multiplexed qubit readout. Appl. Phys. Lett. 113, 242602 (2018).

    Article  Google Scholar

  50. Babenko, A. A. et al. Cryogenic decade-passband superconducting integrated diplexer. In Proc. IEEE/MTT-S International Microwave Symposium 156–159 (IEEE, 2022).

  51. Zorin, A. B. Josephson traveling-wave parametric amplifier with three-wave mixing. Phys. Rev. Appl. 6, 034006 (2016).

    Article  Google Scholar

Download references

Acknowledgements

N.R. and G.L.G. acknowledge funding from European Union’s Horizon Europe 2021–2027 project TruePA (grant agreement number 101080152) and from the French ANR-22-PETQ-0003 grant under the ‘France 2030’ plan. B.F. acknowledges the QMIC project under program DOS0195438/00. We acknowledge M. Esposito for her significant assistance with the sample fabrication and for enlightening discussions. The samples were fabricated at the cleanroom facility Nanofab of Institut Néel in Grenoble. We thank the cleanroom staff and L. Cagnon for their assistance with the device fabrication. We express our gratitude to J. Jarreau, L. Del Rey, D. Dufeu, F. Balestro and W. Wernsdorfer for their support with the experimental equipment. We are grateful to the superconducting quantum circuits group members at Néel Institute for helpful discussions. We thank R. Albert, O. Buisson, A. Coissard, M. Esposito and Q. Ficheux for their critical reading and constructive feedback on the paper. We thank M. Malnou, F. Lecocq and P. Campagne-Ibarcq for insightful discussions.

Author information

Author notes

  1. Guilliam Butseraen

    Present address: Silent Waves, Grenoble, France

Authors and Affiliations

  1. University Grenoble Alpes, CNRS, Grenoble INP, Institut Néel, Grenoble, France

    Arpit Ranadive, Bekim Fazliji, Gwenael Le Gal, Giulio Cappelli, Guilliam Butseraen, Edgar Bonet, Eric Eyraud & Nicolas Roch

  2. Silent Waves, Grenoble, France

    Bekim Fazliji, Luca Planat & Nicolas Roch

  3. Institute for Theory of Condensed Matter and Institute for Quantum Materials and Technology, Karlsruhe Institute of Technology, Karlsruhe, Germany

    Sina Böhling & A. Metelmann

  4. Institut de Science et d’Ingénierie Supramoléculaires (ISIS, UMR7006), University of Strasbourg and CNRS, Strasbourg, France

    A. Metelmann

Authors
  1. Arpit Ranadive
    View author publications

    Search author on:PubMed Google Scholar

  2. Bekim Fazliji
    View author publications

    Search author on:PubMed Google Scholar

  3. Gwenael Le Gal
    View author publications

    Search author on:PubMed Google Scholar

  4. Giulio Cappelli
    View author publications

    Search author on:PubMed Google Scholar

  5. Guilliam Butseraen
    View author publications

    Search author on:PubMed Google Scholar

  6. Edgar Bonet
    View author publications

    Search author on:PubMed Google Scholar

  7. Eric Eyraud
    View author publications

    Search author on:PubMed Google Scholar

  8. Sina Böhling
    View author publications

    Search author on:PubMed Google Scholar

  9. Luca Planat
    View author publications

    Search author on:PubMed Google Scholar

  10. A. Metelmann
    View author publications

    Search author on:PubMed Google Scholar

  11. Nicolas Roch
    View author publications

    Search author on:PubMed Google Scholar

Contributions

A.R., B.F. and N.R. conceptualized the experiment. A.R. fabricated the device and measured in the cryogenic setup with the help of G.L.G., B.F., G.C. and G.B., whereas L.P., E.B., E.E. and N.R. provided support with the measurement setup. A.R. and B.F. analysed the measurement data with the help of G.L.G., G.C. and N.R. A.R. and B.F. performed the simulations with inputs from G.L.G., S.B., A.M. and N.R. A.R., B.F., G.L.G. and N.R. drafted the paper with contributions from all authors.

Corresponding author

Correspondence to Nicolas Roch.

Ethics declarations

Competing interests

N.R. and L.P. are founders and shareholders of Silent Waves. A.R., B.F. and G.B. are equity and/or options holders in Silent Waves. The authors associated with Silent Waves have financial interests in the company. The other authors declare no competing interests.

Peer review

Peer review information

Nature Electronics thanks Nikita Klimovich and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Fabrication process.

The device is fabricated using a double-angle evaporation process to form aluminum Josephson junction arrays on a silicon substrate. This is followed by the deposition of an alumina dielectric layer via atomic layer deposition (ALD), and subsequently, a copper top ground layer is deposited.

Extended Data Fig. 2 The circuit used for WRspice simulations.

The losses were modeled as equivalent series resistors with the ground capacitance. Mutual inductances were used to introduce the flux effect from an external magnetic field across the SNAIL. The orientation of the SNAIL relative to the external magnetic flux was modeled by the direction of the direct current in the inductors.

Extended Data Fig. 3 The experimental setup and measurement configurations.

The experimental setup allowing for forward and backward characterization is shown on the left along with the different configurations used at the base (20 mK) of the cryostat for the calibrations and the measurements on the right.

Extended Data Fig. 4 Loss in the device.

Low power (~ 1 photon) dissipation in the TWPAI at two selected flux values, Φext = 0.19Φ0 and Φext = 0.5Φext.

Extended Data Fig. 5 In situ gain and isolation band tunability.

Various gain and isolation profiles were measured by simply adjusting the corresponding pump frequencies. The red curves represent the gain, while the blue curves indicate the corresponding isolation. The forward (amplification) pump frequencies used were 9 GHz, 9.5 GHz, and 9.15 GHz from left to right. Similarly, the backward (isolation) pump frequencies were 13.71 GHz, 13.85 GHz, and 7.57 GHz in the same order. The external flux applied were Φext = 0.26, 0.19, and 0.35 Φ0 respectively.

Supplementary information

Supplementary Information (download PDF )

Supplementary Section 1 and Fig. 1.
