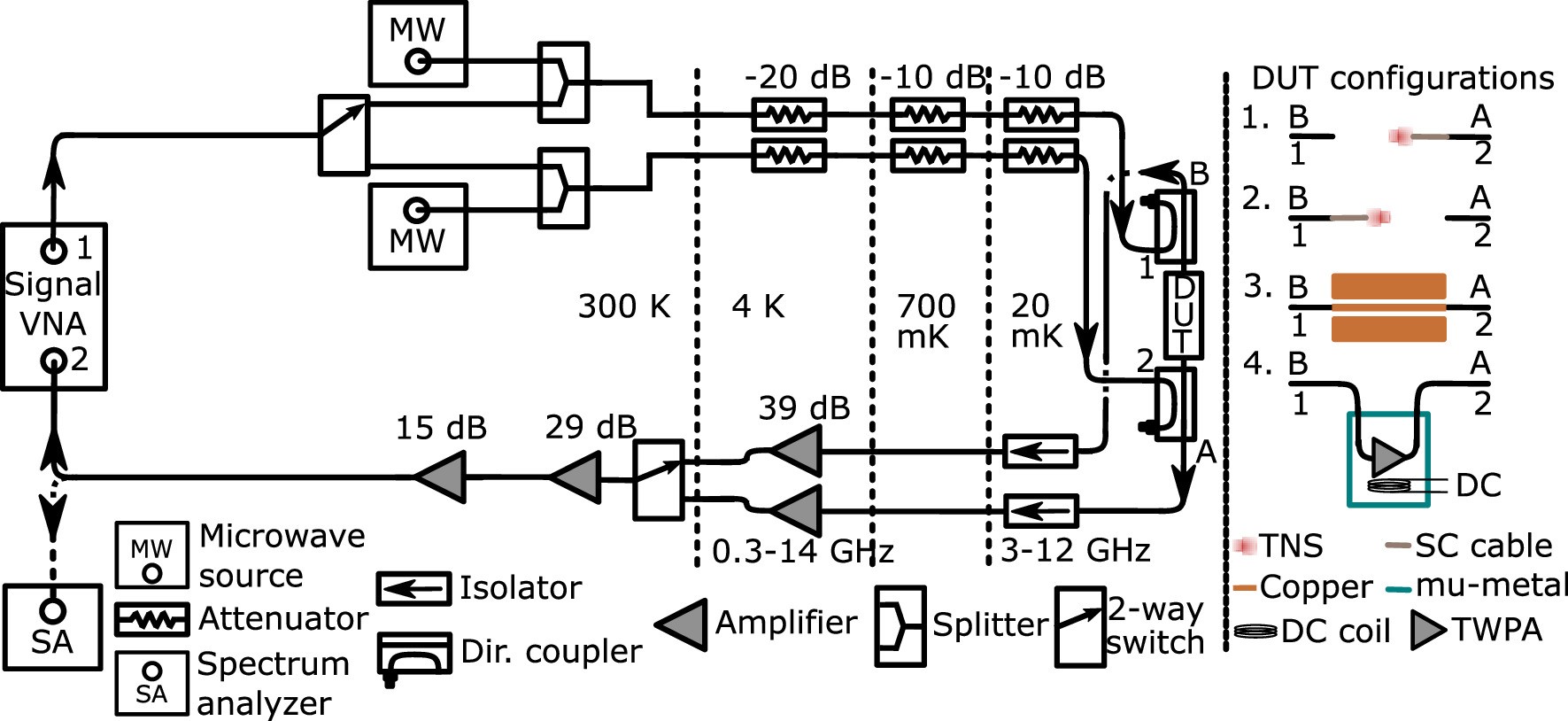

Extended Data Fig. 3: The experimental setup and measurement configurations.

The experimental setup allowing for forward and backward characterization is shown on the left along with the different configurations used at the base (20 mK) of the cryostat for the calibrations and the measurements on the right.
