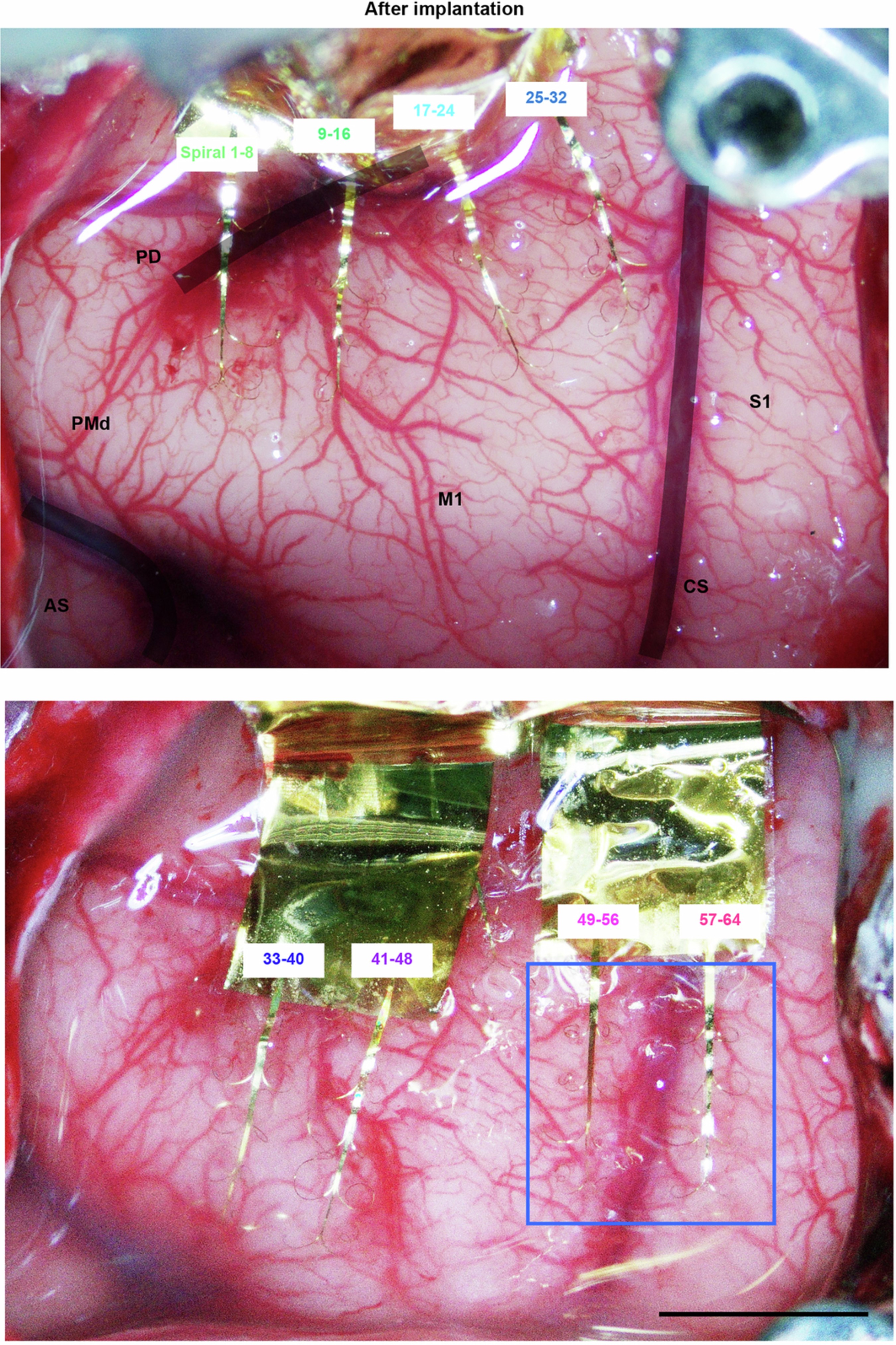

Extended Data Fig. 9: Large-scale implantation of ki-MEAs into a macaque monkey brain.
From: Flexible kirigami microelectrode arrays for neuronal activity recordings in non-human primate brains
A monkey was implanted with ki-MEAs in the PMd, M1, and S1 regions for simultaneous 1024-channel recordings. The 1024 microelectrodes covered a recording volume of ~15 mm (AP) * 11 mm (ML)* 3 mm (DV). Blue box highlights the region shown in Fig. 4b (right). Scale bar, 5 mm.
