Flexible kirigami microelectrode arrays for neuronal activity recordings in non-human primate brains

Nature Electronics (2026)Cite this article

Subjects

Abstract

The development of brain–computer interfaces requires implantable microelectrode arrays that can interface with numerous neurons across large spatial and temporal scales. However, creating arrays that can effectively accommodate the substantial movements and deformations of primate brains remains challenging. Here we report a kirigami-inspired flexible microelectrode array that has a reconfigurable spiral thread design and can be used for large-scale, long-term neuronal activity recordings in the primate brain. Each array can be transferred onto a hydrogel-coated brain surface using a water-dissolvable carrier, providing high-throughput delivery of multiple spiral threads across a large brain area. Stretchable spiral threads can be implanted into the cerebral cortex, with their base floating conformally on the brain surface to accommodate the large movements of the primate brain inside the skull. We show that the implanted array can provide simultaneous activity recordings from over 700 cortical neurons in a macaque monkey brain. We also demonstrate the accurate decoding of upper-limb kinematics from the spiking activity of the primary motor cortex (M1) neurons with a recurrent neural network model.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Fig. 1: Structure of ki-MEAs.

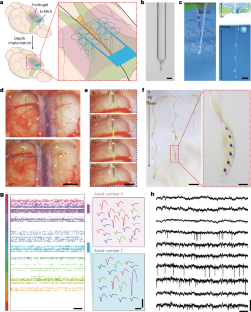

Fig. 2: Depth implantation of ki-MEAs and neuronal activity recordings in rat brains.

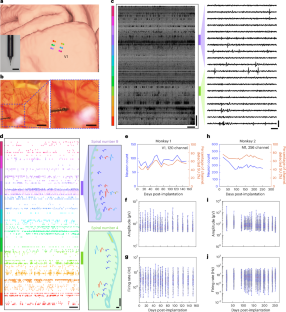

Fig. 3: Neuronal activity recordings in rhesus macaque monkey brains.

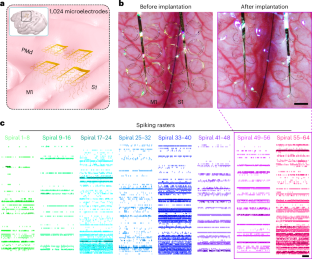

Fig. 4: Large-scale neuronal activity recordings in a rhesus macaque monkey brain.

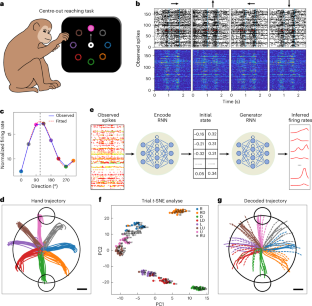

Fig. 5: Neuronal activity recordings in a rhesus macaque brain.
