High-mobility holes in gallium nitride and their quantum oscillations

Nature Electronics (2026)Cite this article

Subjects

Abstract

Gallium nitride (GaN) is used in solid-state lighting and in high-performance radio frequency and power electronics. However, due to inefficient hole doping and low hole mobility, quantum oscillations in p-type GaN have not been observed, which limits studies of valence bands and hole transport engineering. Here we report high hole mobilities in a polarization-induced two-dimensional hole gas at a gallium nitride/aluminium nitride interface. The holes degenerately occupy two valence bands of GaN—the light-hole and heavy-hole bands—and have mobilities of 2,000 cm2 V−1 s−1 and 400 cm2 V−1 s−1 at 2 K, respectively. We use Shubnikov–de Haas oscillations of holes from both valence bands to extract their respective sheet densities and quantum scattering times and the effective masses of light holes and heavy holes. The hole mobilities of our heterostructure highlight the possibility of developing cryogenic GaN complementary metal–oxide–semiconductor technology with potential applications in quantum computing control electronics.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

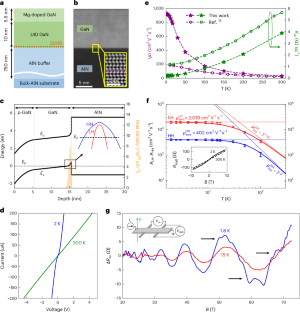

Fig. 1: Structural and transport properties of a GaN/AlN 2DHG.

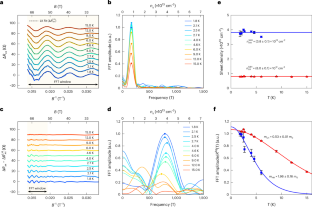

Fig. 2: FFT analysis of SdH oscillations.

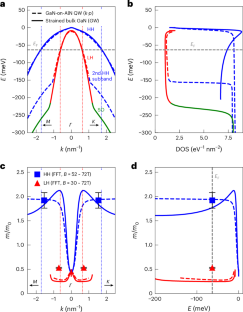

Fig. 3: Calculated band dispersions and effective masses.

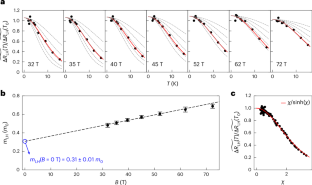

Fig. 4: Field dependence of LH mass.

Similar content being viewed by others

Data availability

Source data that support the findings of this study are available from the corresponding authors upon reasonable request.

References

  1. Amano, H. Nobel lecture: growth of GaN on sapphire via low-temperature deposited buffer layer and realization of p-type GaN by Mg doping followed by low-energy electron beam irradiation. Rev. Mod. Phys. 87, 1133–1138 (2015).

    Article  Google Scholar

  2. Amano, H. et al. The 2018 GaN power electronics roadmap. J. Phys. D Appl. Phys. 51, 163001 (2018).

    Article  Google Scholar

  3. Hoo Teo, K. et al. Emerging GaN technologies for power, RF, digital, and quantum computing applications: recent advances and prospects. J. Appl. Phys. 130, 160902 (2021).

    Article  Google Scholar

  4. Fay, P., Jena, D. & Maki, P. (eds) High-Frequency GaN Electronic Devices (Springer, 2020).

  5. Nomoto, K. et al. GaN/AlN p-channel HFETs with Imax > 420 mA/mm and 20 GHz fT/fMAX. In Proc. 2020 IEEE International Electron Devices Meeting (IEDM) 8.3.1–8.3.4 (IEEE, 2020).

  6. Bader, S. J. et al. Wurtzite phonons and the mobility of a GaN/AlN 2D hole gas. Appl. Phys. Lett. 114, 253501 (2019).

    Article  Google Scholar

  7. Poncé, S., Jena, D. & Giustino, F. Route to high hole mobility in GaN via reversal of crystal-field splitting. Phys. Rev. Lett. 123, 096602 (2019).

    Article  Google Scholar

  8. Narita, T. et al. Progress on and challenges of p-type formation for GaN power devices. J. Appl. Phys. 128, 090901 (2020).

    Article  Google Scholar

  9. Zheng, Z. et al. Gallium nitride-based complementary logic integrated circuits. Nat. Electron. 4, 595–603 (2021).

    Article  Google Scholar

  10. Bader, S. J. et al. Prospects for wide bandgap and ultrawide bandgap CMOS devices. IEEE Trans. Electron Devices 67, 4010–4020 (2020).

    Article  Google Scholar

  11. Chowdhury, N. et al. p-Channel GaN transistor based on p-GaN/AlGaN/GaN on Si. IEEE Electron Device Lett. 40, 1036–1039 (2019).

    Article  Google Scholar

  12. Khan, M. A., Kuznia, J. N., Van Hove, J. M., Pan, N. & Carter, J. Observation of a two-dimensional electron gas in low pressure metalorganic chemical vapor deposited GaN-AlxGa1−xN heterojunctions. Appl. Phys. Lett. 60, 3027–3029 (1992).

    Article  Google Scholar

  13. Chaudhuri, R. et al. A polarization-induced 2D hole gas in undoped gallium nitride quantum wells. Science 365, 1454–1457 (2019).

    Article  Google Scholar

  14. Shoenberg, D. Magnetic Oscillations in Metals (Cambridge Univ. Press, 2009).

  15. Tsukazaki, A. et al. Quantum Hall effect in polar oxide heterostructures. Science 315, 1388–1391 (2007).

    Article  Google Scholar

  16. Ramshaw, B. J. et al. Quasiparticle mass enhancement approaching optimal doping in a high- T c superconductor. Science 348, 317–320 (2015).

    Article  Google Scholar

  17. Xiang, Z. et al. Quantum oscillations of electrical resistivity in an insulator. Science 362, 65–69 (2018).

    Article  Google Scholar

  18. Lodari, M. et al. Valley splitting in silicon from the interference pattern of quantum oscillations. Phys. Rev. Lett. 128, 176603 (2022).

    Article  Google Scholar

  19. Nichele, F. et al. Spin-orbit splitting and effective masses in p-type GaAs two-dimensional hole gases. Phys. Rev. B 89, 081306 (2014).

    Article  Google Scholar

  20. Hendrickx, N. W. et al. Gate-controlled quantum dots and superconductivity in planar germanium. Nat. Commun. 9, 2835 (2018).

    Article  Google Scholar

  21. Tang, N. et al. Influence of the magnetic field on the effective mass of the two-dimensional electron gas in AlxGa1–xN /GaN heterostructures. Phys. Status Solidi C 3, 2246–2249 (2006).

    Article  Google Scholar

  22. Tang, N. et al. Abnormal Shubnikov–de Haas oscillations of the two-dimensional electron gas in AlxGa1–xN /GaN heterostructures in tilted magnetic fields. Phys. Rev. B 79, 073304 (2009).

    Article  Google Scholar

  23. Hang, D. R. et al. Effective mass of two-dimensional electron gas in an Al0.2Ga0.8N /GaN heterojunction. Appl. Phys. Lett. 79, 66–68 (2001).

    Article  Google Scholar

  24. Eisenstein, J. P., Störmer, H. L., Narayanamurti, V., Gossard, A. C. & Wiegmann, W. Effect of inversion symmetry on the band structure of semiconductor heterostructures. Phys. Rev. Lett. 53, 2579–2582 (1984).

    Article  Google Scholar

  25. Habib, B. et al. Spin splitting in GaAs (100) two-dimensional holes. Phys. Rev. B 69, 113311 (2004).

    Article  Google Scholar

  26. Lo, I. et al. Second subband population of the two-dimensional electron gas in strongly coupled GaAs/ Al0.3Ga0.7 As double quantum wells. Phys. Rev. B 67, 195317 (2003).

    Article  Google Scholar

  27. Lai, K. Two-flux composite fermion series of the fractional quantum Hall states in strained Si. Phys. Rev. Lett. 93, 156805 (2004).

  28. Mironov, O. A. Fractional quantum Hall states in a Ge quantum well. Phys. Rev. Lett. 116, 176802 (2016).

  29. Stormer, H. L. Nobel lecture: the fractional quantum Hall effect. Rev. Mod. Phys. 71, 875–889 (1999).

    Article  MathSciNet  Google Scholar

  30. Manfra, M. J. et al. High mobility AlGaN/GaN heterostructures grown by plasma-assisted molecular beam epitaxy on semi-insulating GaN templates prepared by hydride vapor phase epitaxy. J. Appl. Phys. 92, 338–345 (2002).

    Article  Google Scholar

  31. Takahide, Y. et al. Quantum oscillations of the two-dimensional hole gas at atomically flat diamond surfaces. Phys. Rev. B 89, 235304 (2014).

    Article  Google Scholar

  32. Sasama, Y. et al. Quantum oscillations in diamond field-effect transistors with a h-BN gate dielectric. Phys. Rev. Mater. 3, 121601 (2019).

    Article  Google Scholar

  33. Horita, M. et al. Hall-effect measurements of metalorganic vapor-phase epitaxy-grown p-type homoepitaxial GaN layers with various Mg concentrations. Jpn. J. Appl. Phys. 56, 031001 (2017).

    Article  Google Scholar

  34. Song, J. O., Ha, J.-S. & Seong, T.-Y. Ohmic-contact technology for GaN-based light-emitting diodes: role of p-type contact. IEEE Trans. Electron Devices 57, 42–59 (2010).

    Article  Google Scholar

  35. Zhang, Z. et al. Polarization-induced 2D hole gases in pseudomorphic undoped GaN/AlN heterostructures on single-crystal AlN substrates. Appl. Phys. Lett. 119, 162104 (2021).

    Article  Google Scholar

  36. Chaudhuri, R., Chen, Z., Muller, D. A., Xing, H. G. & Jena, D. High-conductivity polarization-induced 2D hole gases in undoped GaN/AlN heterojunctions enabled by impurity blocking layers. J. Appl. Phys. 130, 025703 (2021).

    Article  Google Scholar

  37. Bondokov, R. T. et al. Two-inch aluminum nitride (AIN) single crystal growth for commercial applications. ECS Trans. 104, 37 (2021).

    Article  Google Scholar

  38. Cho, Y. et al. Molecular beam homoepitaxy on bulk AlN enabled by aluminum-assisted surface cleaning. Appl. Phys. Lett. 116, 172106 (2020).

    Article  Google Scholar

  39. Lee, K. et al. Surface control and MBE growth diagram for homoepitaxy on single-crystal AlN substrates. Appl. Phys. Lett. 116, 262102 (2020).

    Article  Google Scholar

  40. Dill, J. E., Chang, C. F. C., Jena, D. & Xing, H. G. Two-carrier model-fitting of Hall effect in semiconductors with dual-band occupation: a case study in GaN two-dimensional hole gas. J. Appl. Phys. 137, 025702 (2025).

    Article  Google Scholar

  41. Santic, B. On the hole effective mass and the free hole statistics in wurtzite GaN. Semicond. Sci. Technol. 18, 219–224 (2003).

    Article  Google Scholar

  42. Im, J. S. et al. Radiative carrier lifetime, momentum matrix element, and hole effective mass in GaN. Appl. Phys. Lett. 70, 631–633 (1997).

    Article  Google Scholar

  43. Rodina, A. V. et al. Free excitons in wurtzite GaN. Phys. Rev. B 64, 115204 (2001).

    Article  Google Scholar

  44. Shields, P. A. et al. Free-carrier effects in gallium nitride epilayers: Valence-band dispersion. Phys. Rev. B 64, 081203 (2001).

    Article  Google Scholar

  45. Kasic, A., Schubert, M., Einfeldt, S., Hommel, D. & Tiwald, T. E. Free-carrier and phonon properties of n- and p-type hexagonal GaN films measured by infrared ellipsometry. Phys. Rev. B 62, 7365–7377 (2000).

    Article  Google Scholar

  46. Feneberg, M. et al. Valence band tomography of wurtzite GaN by spectroscopic ellipsometry. Appl. Phys. Express 11, 101001 (2018).

    Article  Google Scholar

  47. Das Sarma, S. & Stern, F. Single-particle relaxation time versus scattering time in an impure electron gas. Phys. Rev. B 32, 8442–8444 (1985).

    Article  Google Scholar

  48. Chuang, S. L. & Chang, C. S. k.p method for strained wurtzite semiconductors. Phys. Rev. B 54, 2491–2504 (1996).

    Article  Google Scholar

  49. Mireles, F. & Ulloa, S. E. Ordered Hamiltonian and matching conditions for heterojunctions with wurtzite symmetry: GaN/ AlxGa1−xN quantum wells. Phys. Rev. B 60, 13659–13667 (1999).

    Article  Google Scholar

  50. Jiao, L. et al. Enhancement of the effective mass at high magnetic fields in CeRhIn5. Phys. Rev. B 99, 045127 (2019).

    Article  Google Scholar

  51. Kuszynski, J. E. et al. Effective mass for holes in paramagnetic, plasmonic Cu5FeS4 semiconductor nanocrystals. J. Phys. Chem. C. Nanomater. Interfaces 126, 12669 (2022).

    Article  Google Scholar

  52. Falson, J. et al. Electron scattering times in ZnO based polar heterostructures. Appl. Phys. Lett. 107, 082102 (2015).

    Article  Google Scholar

  53. Maryenko, D. et al. Interplay of spin–orbit coupling and Coulomb interaction in ZnO-based electron system. Nat. Commun. 12, 3180 (2021).

    Article  Google Scholar

  54. Tsukazaki, A. et al. Observation of the fractional quantum Hall effect in an oxide. Nat. Mater. 9, 889–893 (2010).

    Article  Google Scholar

  55. Falson, J. & Kawasaki, M. A review of the quantum Hall effects in MgZnO/ZnO heterostructures. Rep. Prog. Phys. 81, 056501 (2018).

    Article  MathSciNet  Google Scholar

  56. Sazawa, H. & Yamaguchi, H. High-mobility 2D electron gas in carbon-face 3C-SiC/4H-SiC heterostructure with single-domain 3C-SiC layer. Appl. Phys. Lett. 120, 212102 (2022).

    Article  Google Scholar

  57. Wang, J. et al. THz cyclotron resonance of a 2D hole gas in a GaN/AlN heterostructure. Appl. Phys. Lett. 126, 213102 (2025).

    Article  Google Scholar

  58. Birner, S. et al. nextnano: general purpose 3-D simulations. IEEE Trans. Electron Devices 54, 2137–2142 (2007).

    Article  Google Scholar

  59. Janicki, Ł et al. Electric fields and surface Fermi level in undoped GaN/AlN two-dimensional hole gas heterostructures. Phys. Status Solidi Rapid Res. Lett. 15, 2000573 (2021).

    Article  Google Scholar

  60. Rinke, P. et al. Consistent set of band parameters for the group-III nitrides AlN, GaN, and InN. Phys. Rev. B 77, 075202 (2008).

    Article  Google Scholar

  61. Yan, Q., Rinke, P., Janotti, A., Scheffler, M. & Van de Walle, C. G. Effects of strain on the band structure of group-III nitrides. Phys. Rev. B 90, 125118 (2014).

    Article  Google Scholar

  62. Burt, M. G. Fundamentals of envelope function theory for electronic states and photonic modes in nanostructures. J. Phys. Condens. Matter 11, 53–83 (1999).

    Article  Google Scholar

  63. Bader, S. J. GaN-on-AlN as a Platform for High-Voltage Complementary Electronics. PhD thesis, Cornell Univ. (2020); https://doi.org/10.7298/98NJ-7755

  64. Vurgaftman, I. & Meyer, J. R. Band parameters for nitrogen-containing semiconductors. J. Appl. Phys. 94, 3675–3696 (2003).

    Article  Google Scholar

  65. Giannozzi, P. et al. Advanced capabilities for materials modelling with Quantum ESPRESSO. J. Phys. Condens. Matter 29, 465901 (2017).

    Article  Google Scholar

  66. Deslippe, J. et al. BerkeleyGW: a massively parallel computer package for the calculation of the quasiparticle and optical properties of materials and nanostructures. Comput. Phys. Commun. 183, 1269–1289 (2012).

    Article  Google Scholar

  67. Mostofi, A. A. et al. wannier90: a tool for obtaining maximally-localised Wannier functions. Comput. Phys. Commun. 178, 685–699 (2008).

    Article  Google Scholar

  68. Ceperley, D. M. Ground state of the electron gas by a stochastic method. Phys. Rev. Lett. 45, 566–569 (1980).

    Article  Google Scholar

  69. Hamann, D. R. Optimized norm-conserving Vanderbilt pseudopotentials. Phys. Rev. B 88, 085117 (2013).

  70. Hybertsen, M. S. & Louie, S. G. Electron correlation in semiconductors and insulators: band gaps and quasiparticle energies. Phys. Rev. B 34, 5390–5413 (1986).

    Article  Google Scholar

Download references

Acknowledgements

We thank V. Protasenko for help with the operation of the molecular beam epitaxy system. We thank E. Mueller, N. Harrison, J. Palmstrom, J. Singleton, L. Winter, C. Yu and R. Chaudhuri for fruitful discussions on quantum transport and epitaxy. We thank D. Deen with Quantinuum for discussions on cryogenic CMOS. C.F.C.C., J.E.D., Z.Z., J.-C.C., S.J.B, J.E., F.G., D.J. and H.G.X are grateful for support by SUPREME, one of seven centres in JUMP 2.0, Semiconductor Research Corporation (SRC) programme sponsored by DARPA. C.F.C.C., J.E.D. and H.G.X. acknowledge support by the NSF FuSe programme, grant no. CMMI-2329063. J.E.D., D.J. and H.G.X. acknowledge support as part of ULTRA, an Energy Frontier Research Center funded by the US Department of Energy (DOE), Office of Science, Basic Energy Sciences (BES), under grant no. DE-SC0021230. N.P., D.A.M., D.J. and H.G.X. acknowledge support by the Army Research Office grant no. W911NF2220177. Characterizations and measurements were performed in part at Cornell NanoScale Facility, a National Nanotechnology Coordinated Infrastructure (NNCI) member supported by NSF grant no. NNCI-2025233. We also made use of the Cornell Center for Materials Research Shared Facilities. The Thermo Fisher Spectra 300 X-CFEG was acquired with support from PARADIM, an NSF MIP (grant no. DMR-2039380) and Cornell University. O.E.A.V., S.A.C., F.F.B., R.D.M. and the National High Magnetic Field Laboratory are supported by the National Science Foundation through grant no. NSF/DMR-2128556, the State of Florida and the US DOE.

Author information

Author notes

  1. Samuel J. Bader

    Present address: Foundry Technology Research, Intel Corporation, Hillsboro, OR, USA

Authors and Affiliations

  1. Department of Physics, Cornell University, Ithaca, NY, USA

    Chuan F. C. Chang

  2. School of Applied and Engineering Physics, Cornell University, Ithaca, NY, USA

    Joseph E. Dill, Samuel J. Bader & David A. Muller

  3. School of Electrical and Computer Engineering, Cornell University, Ithaca, NY, USA

    Zexuan Zhang, Jimy Encomendero, Debdeep Jena & Huili Grace Xing

  4. Department of Physics, The University of Texas Austin, Austin, TX, USA

    Jie-Cheng Chen & Feliciano Giustino

  5. Oden Institute for Computational Engineering and Sciences, The University of Texas Austin, Austin, TX, USA

    Jie-Cheng Chen & Feliciano Giustino

  6. Department of Materials Science and Engineering, Cornell University, Ithaca, NY, USA

    Naomi Pieczulewski, Debdeep Jena & Huili Grace Xing

  7. National High Magnetic Field Laboratory, Los Alamos National Laboratory, Los Alamos, NM, USA

    Oscar E. Ayala Valenzuela, Scott A. Crooker, Fedor F. Balakirev & Ross D. McDonald

  8. Kavli Institute at Cornell for Nanoscale Science, Ithaca, NY, USA

    David A. Muller, Debdeep Jena & Huili Grace Xing

Authors
  1. Chuan F. C. Chang
    View author publications

    Search author on:PubMed Google Scholar

  2. Joseph E. Dill
    View author publications

    Search author on:PubMed Google Scholar

  3. Zexuan Zhang
    View author publications

    Search author on:PubMed Google Scholar

  4. Jie-Cheng Chen
    View author publications

    Search author on:PubMed Google Scholar

  5. Naomi Pieczulewski
    View author publications

    Search author on:PubMed Google Scholar

  6. Samuel J. Bader
    View author publications

    Search author on:PubMed Google Scholar

  7. Oscar E. Ayala Valenzuela
    View author publications

    Search author on:PubMed Google Scholar

  8. Scott A. Crooker
    View author publications

    Search author on:PubMed Google Scholar

  9. Fedor F. Balakirev
    View author publications

    Search author on:PubMed Google Scholar

  10. Ross D. McDonald
    View author publications

    Search author on:PubMed Google Scholar

  11. Jimy Encomendero
    View author publications

    Search author on:PubMed Google Scholar

  12. David A. Muller
    View author publications

    Search author on:PubMed Google Scholar

  13. Feliciano Giustino
    View author publications

    Search author on:PubMed Google Scholar

  14. Debdeep Jena
    View author publications

    Search author on:PubMed Google Scholar

  15. Huili Grace Xing
    View author publications

    Search author on:PubMed Google Scholar

Contributions

H.G.X. and D.J. supervised the project. C.F.C.C. and Z.Z. grew the GaN/AlN epitaxial structures. J.E.D. and J.E. fabricated the Hall bar devices. C.F.C.C., J.E.D., O.E.A.V., F.F.B. and S.A.C. performed the pulsed-field magnetotransport experiments. C.F.C.C. performed the 9 T magnetotransport experiments. N.P. and D.A.M. provided STEM images. C.F.C.C. analysed the magnetotransport data. J.-C.C. and F.G. performed first-principle GW calculations. C.F.C.C performed other theoretical calculations. C.F.C.C. wrote the manuscript. C.F.C.C., S.A.C., R.D.M., S.J.B., D.J. and H.G.X. revised the manuscript.

Corresponding authors

Correspondence to Chuan F. C. Chang, Debdeep Jena or Huili Grace Xing.

Ethics declarations

Competing interests

H.G.X., D.J. and S.J.B. are inventors on US patent no. 11158709B2 held by Cornell University, which covers the polarization-induced 2DHG heterostructure used in this study. The remaining authors declare no competing interests.

Peer review

Peer review information

Nature Electronics thanks Zheyang Zheng and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Low-field magnetotransport measurement and two-channel Drude model fitting.

a-b, Longitudinal resistance (Rxx) and Hall resistance (RHall = Rxy = VHall/Ix) up to 9 T were measured in a PPMS system using DC current and static magnetic fields. Data for T = 2 K (a) and T = 17 K (b) are shown as examples. Solid circles are data, and the dashed lines are fits to a two-channel classical Drude model (see Supplementary Note I). As discussed in Supplementary Note I, table-top Hall effect measurements using a small B (for example, up to ±1 T) give an apparent Hall density (napparent) and an apparent mobility (μapparent) based on Rsh (Rxx at 0 T) and the slope of Rxy in the ±1 T range, as shown in (a) and (b); PPMS measurements of Rxx and Rxy up to 9 T allow for the separation of LH and HH mobilities (c) and densities (d) via two-channel fitting. Error bars indicate the range spanned by three independent fitting procedures (to Rxx(B), to Rxy(B), and simultaneously to both); the symbols denote the midpoint of this range. This systematic spread constitutes the primary source of uncertainty as discussed in ref. 40. SdH oscillations were subsequently observed for both LHs and HHs using pulsed magnetic field up to 72 T.

Extended Data Fig. 2 Fabricated sample with a Hall bar structure.

a, Optical micrograph of the fabricated sample mounted on the measurement puck with Cu wires attached as electrical leads for current injection (Ix) and voltage measurement (Vxx). b, Close-up view of the Hall bar showing its dimensions. The longitudinal resistance Rxx is calculated as Rxx = (Vxx/Ix) × (W/L).

Extended Data Fig. 3 Rxx measured up to 72 T with a 40 kHz AC injection current for lock-in measurement.

a, Rxx(B) recorded during the rising-field (0 → 72 T, dashed curves) and falling-field (72 → 0 T, solid curves) portions of the pulsed-field measurements (the field sweep profile is shown in the inset). Only four temperatures are shown as examples. b-e, Falling-field Rxx(B) measured at 1.8 K (b, c) and 4.0 K (d, e) using IRMS = 50 μA (colored) versus IRMS = 25 μA (grey).

Extended Data Fig. 4 Background subtraction of Rxx.

a, Solid lines show the measured Rxx, from which a fifth-order polynomial background (dashed lines) is fitted. b, Subtracting out the polynomial background yields the combined light hole and heavy hole oscillations (curves offset for clarity). The combined oscillations are then fitted to the single-channel LK equation (black dashed lines) to obtain the LH oscillations which, when subtracted, reveal the HH oscillations shown in Fig. 2c. See Methods and Supplementary Fig. 1 for more details on background subtraction.

Extended Data Fig. 5 FFT analysis using different window functions.

a-d, Prior to performing FFT, both LH and HH oscillation signals (see Fig. 2) are multiplied by Tukey windows (black solid lines) of different r-values—r = 1.0 (a), which is the Hanning window; r = 0.8; r = 0.6 (b); r = 0.4 (c); r = 0.2 (d)—to obtain the mean and standard deviation in extracted FFT peak frequencies and amplitudes.

Extended Data Fig. 6 Rxx measured with DC injection current.

DC-current measurement of Rxx was taken at T = 1.4 K (blue) and T = 17 K (red) to approximate the true, undistorted background resistance \({R}_{{xx}}^{{\rm{bg}}}\) (see Methods). A simple linear interpolation was used to approximate \({R}_{{xx}}^{{\rm{bg}}}(B,\,T)\) at intermediate temperatures between 1.4 K and 17 K (grey).

Extended Data Fig. 7 Extraction of the quantum mobility μq.

(Left) Dingle plot of the LH oscillation peaks at 1.8 K and 15 K. \(\widetilde{{\boldsymbol{\Delta }}{{\boldsymbol{R}}}_{{\bf{LH}}}}=\frac{{\boldsymbol{\Delta }}{{\boldsymbol{R}}}_{{\bf{LH}}}}{{{\boldsymbol{R}}}^{{\bf{bg}}}({\boldsymbol{T}},{\boldsymbol{B}})}\) is the background-normalized light hole oscillation amplitude. A linear fit (dashed line, with slope s) gives the quantum mobility as μq = −π/s. (Right) μq as a function of temperature, showing no discernable temperature dependence.

Extended Data Fig. 8 Summary of electrical transport results for a similar sample consisting of InGaN:Mg/UID-GaN/AlN measured in a van der Pauw geometry.

a, b, Analysis of two-channel fitting of Hall measurements up to 9 T. See the caption of Extended Data Fig. 1 for more description, including the definition of the plotted error bars. c-h, Data and analysis of 58 T pulsed-field measurements showing LH SdH oscillations. See the captions of Fig. 2 and Fig. 4 for more description, including the definition of the numerical uncertainties and plotted error bars.

Extended Data Fig. 9 Landau level calculations.

a-d, The quantized wave vectors k (vertical lines) were calculated for B = 32 T (a-b) and B = 72 T (c-d) as described in Methods. Their intersections with the HH (a,c) and LH (b,d) dispersions determine the LLs. Only the occupied LLs and the lowest unoccupied LL are shown. e, The Landau fan diagram showing the LLs for HH (solid blue lines) and LH (dashed red lines). Despite band nonparabolicity, both LH and HH LLs are approximately uniformly spaced near EF. Consistently, the cyclotron masses of the LLs near EF converge to 0.28–0.29 m0 for LH and 1.94 m0 for HH at both magnetic fields.
