Discovery of a distinct type of methylenetetrahydrofolate reductase family that couples with tetrahydrofolate-dependent demethylases

Yu, HongYang; Kamimura, Naofumi; Kato, Ryo; Genoveso, Michelle Jane; Senda, Miki; Masai, Eiji; Senda, Toshiya

doi:10.1038/s42003-025-07762-0

Download PDF

Article
Open access
Published: 27 February 2025

Discovery of a distinct type of methylenetetrahydrofolate reductase family that couples with tetrahydrofolate-dependent demethylases

Communications Biology volume 8, Article number: 323 (2025) Cite this article

3829 Accesses
3 Citations
Metrics details

Subjects

Abstract

Methylenetetrahydrofolate reductase (MTHFR) is a key enzyme in one-carbon (1C) metabolism, catalyzing the reduction of methylenetetrahydrofolate to methyltetrahydrofolate. Interestingly, Sphingobium lignivorans SYK-6, a model bacterium for the catabolism of lignin-derived aromatic compounds, possesses a unique MTHFR (S6MTHFR) that catalyzes the reverse reaction of typical MTHFRs—namely, the oxidation of methyltetrahydrofolate. However, no direct evidence supports this function. Here, we show that S6MTHFR catalyzes the oxidation of methyltetrahydrofolate and elucidate the molecular mechanism underlying the unique enzymatic properties of S6MTHFR based on its crystal structure. Furthermore, a database search reveals that a group of bacteria, including S. lignivorans SYK-6, utilize tetrahydrofolate-dependent demethylases to produce methyltetrahydrofolate, which is subsequently oxidized by an S6MTHFR-type enzyme. We propose that the combination of a demethylase with an S6MTHFR-type enzyme represents a distinct type of 1C metabolism that may regulate methionine biosynthesis.

Structural basis of S-adenosylmethionine-dependent allosteric transition from active to inactive states in methylenetetrahydrofolate reductase

Article Open access 17 June 2024

Dynamic inter-domain transformations mediate the allosteric regulation of human 5, 10-methylenetetrahydrofolate reductase

Article Open access 15 April 2024

Formate overflow drives toxic folate trapping in MTHFD1 inhibited cancer cells

Article Open access 03 April 2023

Introduction

One-carbon (1C) metabolism, a fundamental metabolic pathway for life, can be divided into folate and methionine cycles¹. In the folate cycle, tetrahydrofolate (THF) accepts several types of 1C units, forming a series of intermediates¹. Two of these intermediates, methylenetetrahydrofolate (CH₂-THF) and methyltetrahydrofolate (CH₃-THF), play pivotal roles in 1C metabolism. In most organisms, a 1C unit is introduced into the folate cycle by serine hydroxymethyltransferase or the glycine cleavage system as a form of methylene. The methylene group is transferred to THF to produce CH₂-THF^2,3,4, which is used to synthesise thymidylate. 10-Formyl-THF, used in the biosynthesis of fMet-tRNA and purine, is also generated from CH₂-THF via methenyl-THF⁵. The remaining CH₂-THF is converted by methylenetetrahydrofolate reductase (MTHFR; EC1.5.1.20) into CH₃-THF, which transfers the 1C unit to homocysteine for methionine synthesis. The synthesised methionine can be converted to S-adenosylmethionine (Fig. 1a)⁶. MTHFR, which is a FAD-containing flavoenzyme, utilises NADH (NADPH in mammals) to reduce FAD, which in turn reduces CH₂-THF to form CH₃-THF (Fig. 1a)^7,8. While CH₃-THF can also reduce FAD, most MTHFRs have significantly higher FAD-reducing activity with NADH than with CH₃-THF⁹. Additionally, the typical 1C metabolism synthesises CH₂-THF prior to the MTHFR reaction. Therefore, MTHFR is generally thought to convert only CH₂-THF to CH₃-THF (i.e., forward reaction) in cells due to high concentrations of NADH/NADPH in physiologically conditions^10,11.

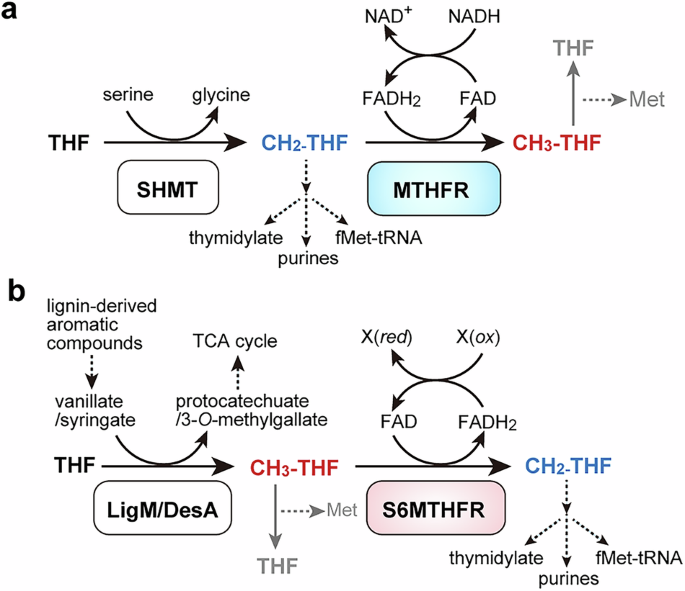

**Fig. 1: Reaction schemes of typical MTHFR and S6MTHFR.**

Sphingobium lignivorans SYK-6 (formerly Sphingobium sp. SYK-6, hereafter SYK-6) is the most well-characterised bacterial degrader of lignin-derived aromatic compounds and is a promising platform for producing value-added chemicals from lignin^12,13. Therefore, it is crucial to elucidate not only the catabolism of lignin-derived aromatic compounds in SYK-6 but also the metabolic system linked to it. SYK-6 can degrade various aromatic dimers and monomers with methoxy groups through vanillate and syringate. LigM and its homologue DesA, which are THF-dependent O-demethylases, convert vanillate to protocatechuate and syringate to 3-O-methylgallate by transferring a 1C unit from a methoxy group of the substrates to THF (Fig. 1b)^14,15. Although LigM is structurally similar to an aminomethyltransferase of the Gly cleavage system, with 26% amino acid sequence identity, its product is not CH₂-THF as in the typical glycine cleavage system, but CH₃-THF^15,16. Interestingly, SYK-6 exhibits methionine auxotrophy when growing on protocatechuate, which lacks a methoxy group, as a carbon source¹⁴. This fact suggests that CH₂-THF and its derivatives, methenyl-THF and 10-formyl-THF, are produced during the growth of SYK-6 on protocatechuate, but CH₂-THF cannot be converted to CH₃-THF; thus, demethylation of the carbon source seems to directly affect methionine synthesis. Furthermore, ¹³C metabolic flux analysis of SYK-6 suggested that MTHFR of SYK-6 (S6MTHFR) catalyses only the oxidization of CH₃-THF¹⁷. Thus, it is reasonable to consider that the S6MTHFR favours the reverse reaction of typical MTHFRs to produce CH₂-THF from CH₃-THF (Fig. 1b). Because of the unique characteristics of S6MTHFR, demethylation of the carbon source seems to directly affect methionine synthesis in SYK-6.

Although multiple studies have suggested that S6MTHFR has unique properties, no direct evidence of these properties has been obtained^{12,13,14,15,16,17}; the exact biochemical and biological functions of S6MTHFR remain elusive. Since the four catalytically essential residues in Escherichia coli MTHFR (hereafter EcMTHFR)^{7,18,19,20,21}—Glu28, Asp120, Gln183, and Phe223—are conserved in S6MTHFR, it is reasonable to assume that unknown key residues control the direction of the catalytic reaction of S6MTHFR. To investigate this possibility, we biochemically characterised S6MTHFR and determined its crystal structures. Our study revealed that S6MTHFR catalyses the reverse catalytic reaction of typical MTHFRs. It also elucidated the molecular mechanism underlying S6MTHFR based on those crystal structures. Moreover, structure-based amino acid sequence analysis showed that S6MTHFR can be classified into an unprecedented cluster in the MTHFR family. Some bacteria with methionine auxotrophy utilise THF-dependent demethylases to obtain a 1C unit and produce CH₃-THF. In these bacteria, S6MTHFR-type enzymes appear to play an essential role in the oxidation of CH₃-THF to CH₂-THF, forming a unique folate cycle.

Results

Enzymatic characterization of S6MTHFR

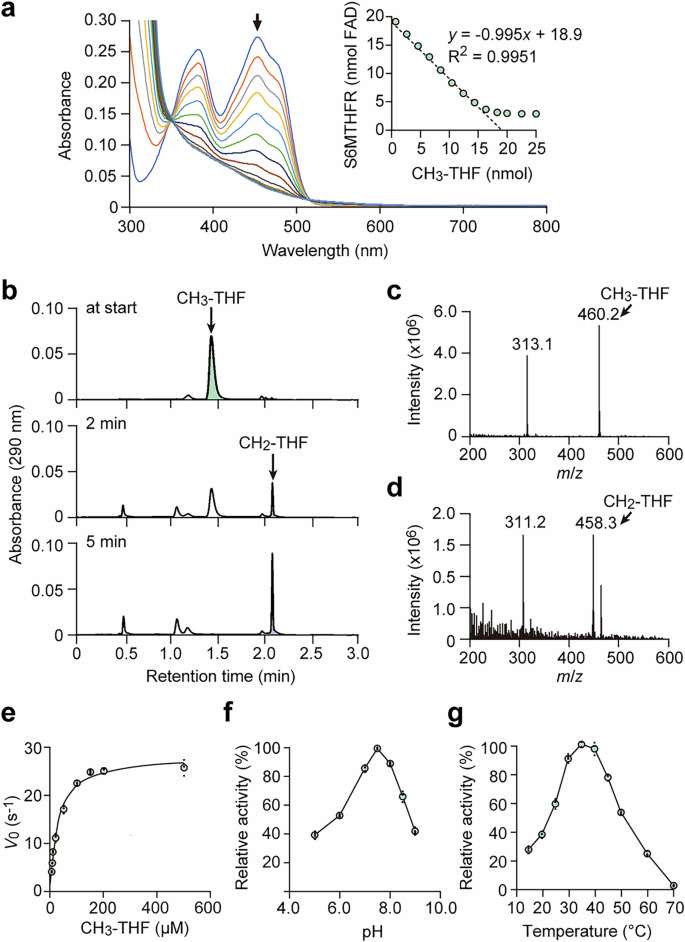

To elucidate the enzymatic properties of S6MTHFR, we evaluated its FAD reduction activity using NADH, with EcMTHFR serving as a control (Supplementary Fig. 1). As expected, S6MTHFR exhibited very low specific activity, reaching only 0.03 μmol·min⁻¹·mg⁻¹, compared to the significantly higher activity of EcMTHFR, which measured 125.4 μmol·min⁻¹·mg⁻¹, even in the presence of 250 μM NADH (Supplementary Table 1). In addition, no electron transfer from chemically reduced FAD (FADH₂) to NAD⁺ was detected, suggesting that NADH and NAD⁺ hardly bind to S6MTHFR (Supplementary Fig. 2). Next, we analysed the CH₃-THF oxidation activity in which FAD serves as the electron acceptor. The specific activity of the FAD reduction with CH₃-THF (44.92 ± 0.71 μmol·min⁻¹·mg⁻¹) was significantly higher than that of EcMTHFR (1.88 ± 0.05 μmol·min⁻¹·mg⁻¹) (Supplementary Table 1). Additionally, unlike EcMTHFR, S6MTHFR showed no detectable CH₃-THF generation when NADH and CH₂-THF are used as substrates (Supplementary Fig. 3). An anaerobic titration experiment showed that the FAD in S6MTHFR was almost completely reduced by an equimolar amount of CH₃-THF, suggesting that one hydride ion appears to be transferred from CH₃-THF to FAD (Fig. 2a). High-performance liquid chromatography–mass spectrometry (HPLC–MS) analysis revealed that S6MTHFR converts CH₃-THF to CH₂-THF with k_cat and K_m values of 29.2 ± 0.412 s⁻¹ and 0.0282 ± 0.00152 mM, respectively (Fig. 2b-e). The optimal pH and temperature of the catalytic reaction were 7.5 and 35°C, respectively (Fig. 2f, g). These results demonstrated that S6MTHFR has a different characteristic from typical MTHFRs: S6MTHFR catalyses the oxidation of CH₃-THF as a substrate. Interestingly, despite the difference in enzymatic character, all critical residues for the catalytic reaction of EcMTHFR are conserved in S6MTHFR. We then determined the crystal structure of S6MTHFR to elucidate the molecular basis of the unique enzymatic properties of S6MTHFR.

Crystal structures of S6MTHFR and active site structure

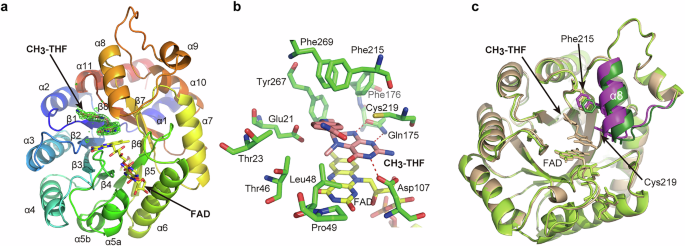

The crystal structures of S6MTHFR in the substrate-free and complex forms were determined at 1.5 Å and 1.85 Å resolution, respectively (Table 1). Although the asymmetric unit of the crystal contains two subunits, size exclusion chromatography with multiangle light scattering (SEC-MALS) analysis revealed that S6MTHFR exists as a monomer in solution (Supplementary Fig. 4). S6MTHFR adopts a TIM-barrel fold centred on eight parallel β-strands surrounded by eight α-helices (Fig. 3a). This fold is commonly observed in MTHFR structures²². The secondary structures are listed in Supplementary Fig. 5. Each loop region is designated using the names of the N- and C-terminal secondary structures.

Table 1 Crystallographic summary

Full size table

In the substrate (CH₃-THF) complex, CH₃-THF is located at the C-terminal edge of the TIM-barrel structure (Fig. 3a). While the glutamate moiety density of CH₃-THF was not observed in the omit map, the rest of the CH₃-THF was observed. The pterin ring of the CH₃-THF is stacked on the isoalloxazine ring of FAD in a nearly parallel manner, with an average spacing of about 3.9 Å. The p-aminobenzoic acid (pABA) moiety of the CH₃-THF is located in the cavity formed by Glu21, Thr23, Thr46, Leu48, Phe176, Phe215, Cys219, Tyr267, and Phe269 (Fig. 3b). Interestingly, the bound CH₃-THF has a folded conformation (Fig. 3b), whereas CH₃-THF bound to EcMTHFR adopts an extended conformation¹⁸.

Least-squares (LSQ) fitting of substrate-free and complex forms using Cα atoms (residues 7 to 288) yielded a root-mean-square deviation (rmsd) of 0.58 Å (Supplementary Table 2). Large differences were found at residues 210-224 (helix α8 to loop α8-α9) (Fig. 3c). Upon CH₃-THF binding, helix α8 shifts approximately 1.5 Å towards the active site, and the side chains of Phe215 and Cys219, both located on helix α8, make van der Waals interactions with CH₃-THF (Fig. 3b, c). Furthermore, the side chain of Phe215 forms a π‒π interaction with that of Phe269. The side chains of Phe215 and Phe269 interact with the bound CH₃-THF, resulting in its folded conformation in S6MTHFR (Fig. 3b).

Structural comparison with EcMTHFR

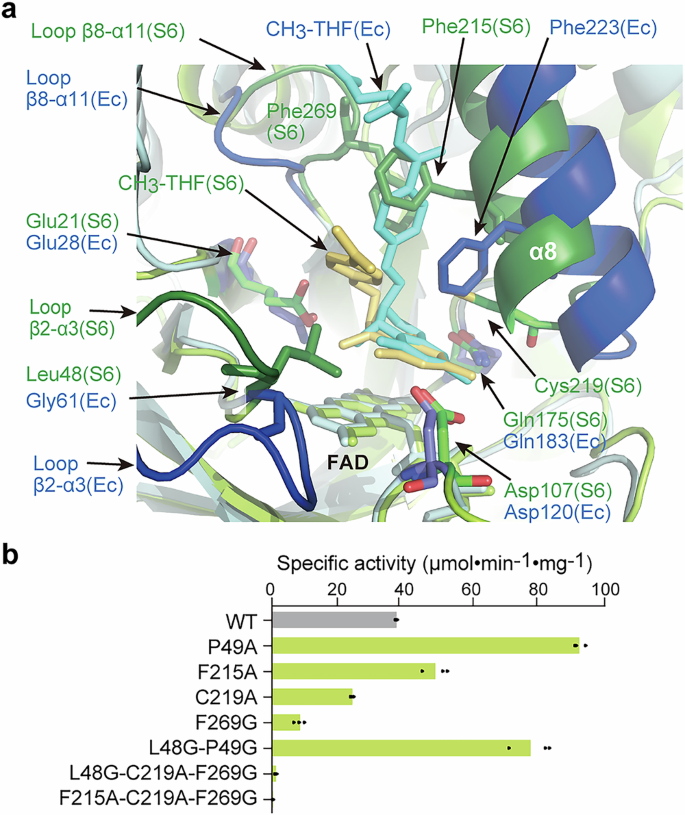

Next, we analysed the structural differences between S6MTHFR and EcMTHFR. LSQ fitting of the CH₃-THF complexes between S6MTHFR and EcMTHFR (PDB ID: 1ZP4) yielded an rmsd value of about 0.7 Å (58 Cα atoms in the eight parallel β-strands). The isoalloxazine ring of FAD and the pterin moiety of CH₃-THF are located at nearly the same positions in both structures (Fig. 4a). Of the four catalytically essential residues of EcMTHFR (Glu28, Asp120, Gln183, and Phe223^{7,18,19,20,21}), Glu28, Asp120, and Gln183 interact with the pterin moiety of CH₃-THF. Their corresponding residues in S6MTHFR—Glu21, Asp107, and Gln175—showed nearly the same interactions with CH₃-THF (Fig. 4a). However, the position of Phe215 in the S6MTHFR-CH₃-THF complex is significantly different from that of Phe223, the corresponding residue of Phe215 in EcMTHFR (Fig. 4a).

In EcMTHFR, the side chain of Phe223 underwent a large conformational change upon CH₃-THF binding, resulting in the side chain of Phe223 interacting with the pterin moiety of CH₃-THF. This interaction appears to contribute to the proper positioning of the pterin moiety for the catalytic reaction. Notably, the conformation of loop β8-α11 of EcMTHFR does not interfere with the accommodation of an extended conformer of CH₃-THF (Fig. 4a). In S6MTHFR, Phe215, which corresponds to Phe223 of EcMTHFR, shifts by 1.5 Å and forms a π‒π interaction with Phe269 upon CH₃-THF binding. Phe215 and Phe269 then make van der Waals interactions with the pABA moiety of CH₃-THF, causing CH₃-THF to adopt a folded conformation. Notably, CH₃-THF in the extended conformation is unlikely to be accommodated in the active site of S6MTHFR due to a collision with loop β8-α11 (Fig. 4a).

S6MTHFR residues required for CH₃-THF oxidation

To identify residues crucial for CH₃-THF oxidation, we prepared some variants of S6MTHFR based on its crystal structures. Single amino acid substitutions of Cys219Ala and Phe269Gly reduced CH₃-THF oxidation activity, whereas Pro49Ala, Leu48Gly-Pro49Gly, and Phe215Ala increased it (Fig. 4b). The negative and positive effects of the substitutions on CH₃-THF oxidation can be explained by the crystal structures of S6MTHFR. Since Cys219 and Phe269 interact with CH₃-THF, Cys219Ala, and Phe269Gly seem to change the shape of the active site and weaken the interaction with CH₃-THF. On the other hand, substitutions of Pro49, Leu48, and Phe215 seem to reduce close contacts with the substrate. A combination of positive (Leu48Gly or Phe215Ala) and negative (Cys219Ala and Phe269Gly) mutations resulted in substantially reduced activity (Fig. 4b), suggesting the crucial roles of Cys219 and Phe269 in CH₃-THF oxidation.

Creation of S6MTHFR variants with NADH oxidation activity

To further examine the difference between S6MTHFR and EcMTHFR, we analysed the interaction between S6MTHFR and NADH using the superimposed structures of S6MTHFR and the EcMTHFR‒NADH complex (PDB ID: 1ZPT). The complex’s crystal structure shows that NADH in EcMTHFR adopts a folded conformation¹⁸ (Fig. 5a). The superimposed structures suggested that S6MTHFR cannot accommodate the folded NADH due to multiple collisions with it. First, NADH’s adenine moiety seems to collide with the side chains of Phe215 and Phe269. The conformation of loop β8-α11 in S6MTHFR appears to cause the clash between Phe269 and NADH (Fig. 5a). In EcMTHFR, the corresponding loop is positioned away from the adenine ring, allowing it to accommodate NADH. Second, the nicotinamide mononucleotide moiety of NADH appears to collide with Leu48 and Pro49, presumably inhibiting NADH binding (Fig. 5a). Third, Cys219, located near the adenine ring of the NADH, also seems to clash with NADH (Fig. 5a). These structural features of S6MTHFR are likely to prevent NADH binding to the active site, thereby preventing the reduction of FAD by NADH.

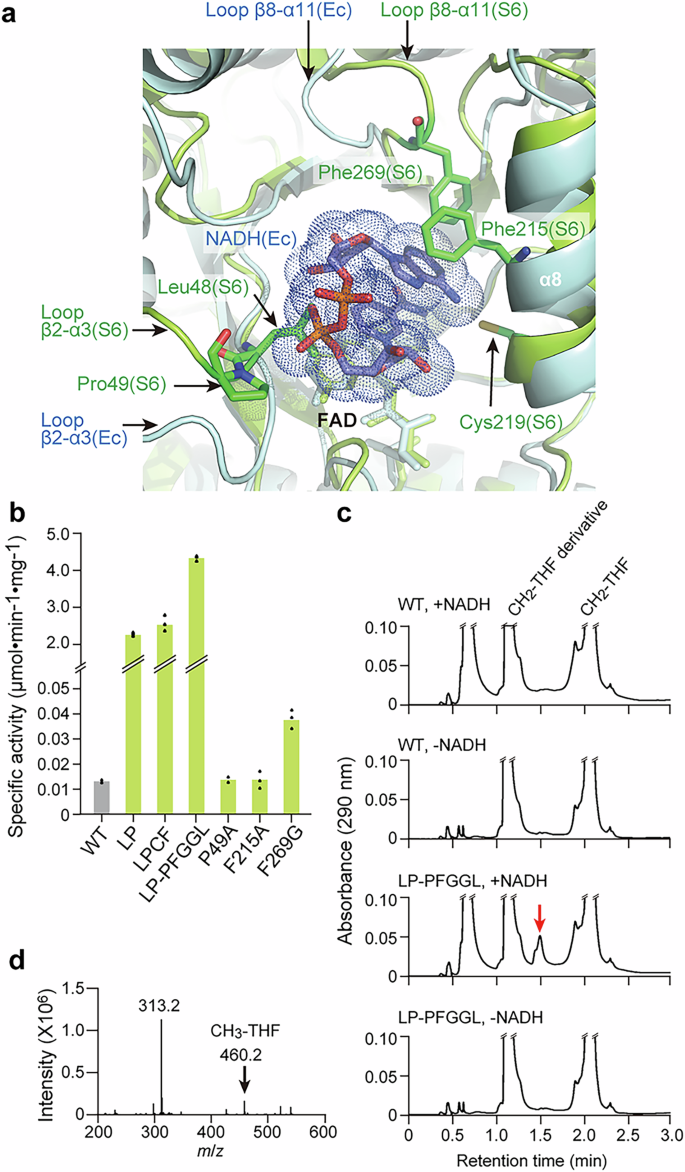

Fig. 5: Amino acid substitutions enable S6MTHFR to catalyse the reduction of CH2-THF using NADH as an electron donor. — **Fig. 5: Amino acid substitutions enable S6MTHFR to catalyse the reduction of CH₂-THF using NADH as an electron donor.**

With these results in hand, we then attempted to confer NADH oxidation activity on S6MTHFR by making amino acid substitutions. In the first variant, L48G-P49G (LP), the clashing amino acids were replaced with small side chains. This variant increased the specific activity for NADH oxidation approximately 38-fold compared to the wild type (Fig. 5b). The second variant, L48G-P49G-C219A-F269G (LPCF), exhibited no significant change in activity compared to the LP variant, highlighting the critical role of Leu48 and Pro49 in NADH binding. The third variant, L48G-P49G-P268T-F269L-G270N-G271R-L272A (LP-PFGGL), was designed to incorporate clash-avoiding substitutions at Leu48 and Pro49 along with five amino acid substitutions from loop β8-α11 to the respective residues of EcMTHFR. This design aimed to alter the conformation of loop β8-α11 to match that of EcMTHFR. The NADH oxidation activity of wild-type S6MTHFR did not saturate, even with NADH concentrations of up to 10 mM, and exhibited a turnover of 0.42 ± 0.02 s⁻¹. In contrast, the LP-PFGGL variant displayed significantly improved activity, with k_cat and K_m values for NADH oxidation of 21.4 ± 1.71 s⁻¹ and 2.96 ± 0.59 mM, respectively (Supplementary Fig. 6 and Supplementary Table 3). Moreover, this variant could convert CH₂-THF into CH₃-THF using electrons from NADH in the manner of typical MTHFRs (Fig. 5c,d). A structural change in loop β8-α11 of S6MTHFR may cause similar interactions not only with NADH but also with CH₃-THF, as observed in typical MTHFRs.

S6MTHFR homologues form a distinct cluster in the MTHFR family

The amino acid sequence of S6MTHFR suggests that it has evolved from a typical MTHFR. However, S6MTHFR catalyses the reverse catalytic reaction of typical MTHFRs. This characteristic of S6MTHFR seems to be related to the unique auxotrophy of SYK-6. SYK-6 cannot utilise protocatechuate, a carbon source lacking methoxy groups, and instead needs a 1C unit from aromatic compounds containing a methoxy group, such as vanillate^14,15. The methyl moiety of the methoxy group of vanillate is transferred to THF by LigM, producing CH₃-THF. S6MTHFR then converts CH₃-THF to CH₂-THF (Fig. 1b). Due to the functional link between LigM and S6MTHFR, the metF (the S6MTHFR gene) and ligM genes are components of the ligM-metF-ligH operon²³. However, it is unclear whether the combination of LigM and S6MTHFR is a unique example found only in SYK-6.

Previous studies revealed that Methylorubrum extorquens CM4 and Rhizorhabdus dicambivorans Ndbn-20 each have a THF-dependent demethylase: CmuAB^24,25,26 (a different type of methyltransferase than LigM) and Dmt²⁷, respectively. Since these enzymes produce CH₃-THF, it is reasonable to consider that these bacteria have an S6MTHFR homologue. As expected, M. extorquens CM4 and R. dicambivorans Ndbn-20 have S6MTHFR homologues, designated as CM4MTHFR and N20MTHFR, respectively (Supplementary Fig. 5). Importantly, short amino acid fragments in loop β2-α3, helix α8, and loop β8-α11 of S6MTHFR, which are crucial for its unique enzymatic properties, are conserved in CM4MTHFR and N20MTHFR (Fig. 6a), suggesting that both likely have the same enzymatic properties as S6MTHFR. Indeed, N20MTHFR has been reported to exhibit CH₃-THF oxidation activity and does not oxidise NADH²⁸.

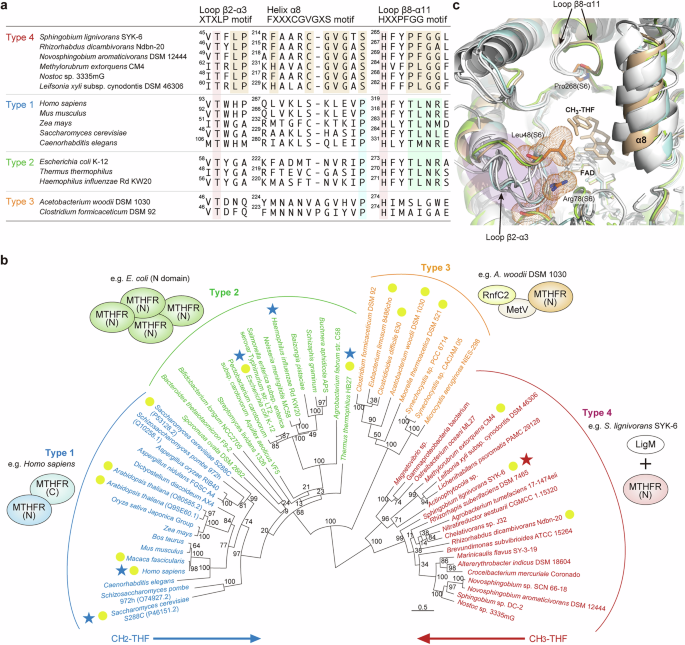

**Fig. 6: Phylogenetic analysis of MTHFRs.**

On the basis of this result, we performed a database search for S6MTHFR homologues using a two-step search. First, we searched for bacteria with one or more THF-dependent demethylases similar to LigM, DesA, CmuAB, and Dmt, yielding more than 50 bacteria with their homologues. We then searched for S6MTHFR homologues in these bacteria and found 68 S6MTHFR homologues (Supplementary Data 1) that share the amino acid sequences in loop β2-α3, helix α8, and loop β8-α11 of S6MTHFR (Fig. 6a). The conservation of the three fragments suggests that they likely share with S6MTHFR the ability to catalyse CH₃-THF oxidation.

We next performed phylogenetic analysis of MTHFRs. The obtained phylogenetic tree showed that MTHFRs can be categorised into four groups, labelled type 1 to type 4 (Fig. 6b). Type 1 MTHFRs consist of eukaryotic MTHFRs, which are represented by human MTHFR (HuMTHFR)²⁹ and comprise the N-terminal catalytic and C-terminal regulatory domains. Type 2 MTHFRs include bacterial ordinary MTHFRs such as EcMTHFR, which are composed of only the catalytic domain²². Type 3 MTHFRs are heteromultimers with an electron transfer subunit containing an Fe-S-cluster^30,31. While these three types of MTHFR have different domain and subunit compositions, they likely catalyse the reduction of CH₂-THF. Indeed, they do not have the three S6MTHFR-specific motifs required for CH₃-THF oxidation. In addition, all structurally known type 1 or 2 MTHFRs have structural features similar to those of EcMTHFR. First, the structure of a loop region corresponding to loop β8-α11 of S6MTHFR is similar to that of EcMTHFR (Fig. 6c). Second, these MTHFRs lack a protruding side chain that prevents NADH binding at the position of Leu48 (of S6MTHFR) (Fig. 6c). The residue corresponding to Leu48 is predominantly Gly. While HuMTHFR has a His residue at the corresponding position, the direction of the side chain is oriented away from the NADH binding site, allowing NADH binding.

On the other hand, type 4 MTHFRs, including S6MTHFR, catalyse CH₃-THF oxidation due to the conservation of the three S6MTHFR-specific motifs in loop β2-α3, helix α8, and loop β8-α11. Type 4 MTHFRs constitute a distinct family of enzymes in combination with THF-dependent demethylases.

Discussion

Earlier reports showed that FAD in typical MTHFRs can be reduced by both NADH and CH₃-THF; however, the reduction with the former is substantially faster than that with the latter^7,18,32. Moreover, typically in 1C metabolism, CH₂-THF is synthesised before the MTHFR reaction occurs. Therefore, typical MTHFRs have been thought to receive a hydride ion from NADH and to convert CH₂-THF to CH₃-THF in cells. This is an essential reaction in the folate cycle of 1C metabolism¹. In contrast, our studies suggested a unique enzymatic property of S6MTHFR. SYK-6 obtains a 1C unit from methoxylated aromatic compounds like vanillate and generates CH₃-THF using a THF-dependent demethylase, LigM^15,16. Earlier experimental results suggested that CH₃-THF is converted into CH₂-THF by S6MTHFR¹⁴. In this study, we demonstrated that S6MTHFR converts CH₃-THF into CH₂-THF and rarely reacts with NADH (Figs. 2b-d and 5b). Moreover, our structural analysis revealed that loop β2-α3, helix α8, and loop β8-α11 all play crucial roles in CH₃-THF oxidation (Figs. 4a,5a, 6c).

Of the three fragments, loop β2-α3 and loop β8-α11 in S6MTHFR have different conformations from the corresponding loops of types 1 and 2 MTHFRs (Fig. 6c). This hinders the binding of NADH to the active site of S6MTHFR due to the collision with Leu48, Pro49, and Phe269. The structural comparison between S6MTHFR and other MTHFRs revealed that the conformational difference in loop β8-α11 occurs at the position of Pro268 (Fig. 6c), which is likely to change the conformation of the N-terminal part of loop β8-α11 of type 4 MTHFRs. While Pro268 is conserved in type 4 MTHFRs, its corresponding residue in types 1 and 2 MTHFRs is Thr (Fig. 6a and Supplementary Fig. 5). As described above, the substitution of five amino acids, including Pro268, significantly improved the NADH oxidation activity of S6MTHFR (Fig. 5b) and enabled the detectable generation of CH₃-THF (i.e., the forward reaction). This substitution appears to alter the loop conformation to be similar to the loop conformations found in types 1 and 2 MTHFRs.

Loop β2-α3 is also critical for inhibiting NADH binding to the active site. The side chain of Leu48 in S6MTHFR seems to collide with NADH. However, Leu48 is replaced by Gly in most types 1 and 2 MTHFRs, allowing NADH to be accommodated. The superposition of the structurally known types 1 and 2 MTHFRs reveals diversity in the conformation of this loop region (Fig. 6c). However, amino acid sequence analysis of type 4 MTHFRs suggests that this type has a conserved Leu residue in loop β2-α3 and inhibits NADH binding (Fig. 5a). Furthermore, the side chain conformation of Leu48 is constrained by van der Waals interactions with Pro49 and Arg78 and cannot move away from the NADH binding site. Since Arg78, Leu48, and Pro49 are conserved in type 4 MTHFRs, the conformation of Leu48 appears to be conserved in type 4 MTHFRs.

In addition to the NADH reactivity, the crystal structure of the S6MTHFR‒CH₃-THF complex appears to explain the high CH₃-THF oxidation reactivity of S6MTHFR relative to that of EcMTHFR. The superposition of S6MTHFR and EcMTHFR with folded and extended CH₃-THF, respectively, shows that the distance between the C11 and N10 atoms in the folded CH₃-THF is significantly shorter than in the extended form (Supplementary Fig. 7). Since the distance between the N10 and C11 atoms in S6MTHFR is 3.4 Å, it seems reasonable to predict that the lone pair of the N10 atom attacks the C11 atom of the pterin ring. The geometric arrangement of the lone pair of these atoms seems suitable for the catalytic reaction. On the other hand, the corresponding distance of the extended form of CH₃-THF is rather long, 4.1 Å, for the catalytic reaction, and the direction of the lone pair of the N10 atom is inappropriate for the catalytic reaction.

Interestingly, since the conversion of CH₂-THF to CH₃-THF was not observed in S6MTHFR, the demethylation of the carbon source appears to be the sole pathway for CH₃-THF generation. This suggests that the amount of synthesised CH₃-THF reflects the environmental carbon source levels. Therefore, the amount of methionine seems to reflect the carbon source level. Since methionine is an essential amino acid for initiating protein synthesis as the first amino acid of proteins, the combination of S6MTHFR and demethylase may function as an environmental monitor to determine the growth of SYK-6 in relation to the cellular methionine level. In fact, the growth of SYK-6 on vanillate and syringate is markedly inhibited in the presence of excess methionine³³. This observation indicates that the amount of methionine strictly regulates the catabolic system of lignin-derived aromatic compounds in SYK-6, which may support the above hypothesis.

In summary, we have elucidated the unique enzymatic properties of S6MTHFR. S6MTHFR favours the reverse reaction of the typical MTHFRs, converting CH₃-THF to CH₂-THF. The crystal structures of S6MTHFR revealed that structural differences in loop β2-α3, helix α8, and loop β8-α11 from those of EcMTHFR appear to facilitate CH₃-THF oxidation. Additionally, the inhibition of NADH/NAD⁺ binding to S6MTHFR indicates the presence of alternative electron acceptors in SYK-6 cells. Since the conversion of CH₂-THF to CH₃-THF was not observed in S6MTHFR, the amount of methionine biosynthesis in SYK-6, which requires CH₃-THF, is directly determined by the demethylation of the carbon source in the environment. A database search revealed many S6MTHFR homologues in bacteria, and these enzymes likely function with THF-dependent demethylase to transfer a 1C unit into the folate cycle for 1C metabolism. Our research has established a distinct family of MTHFRs that can function with a demethylase.

Methods

Plasmid construction

A double-stranded DNA encoding S6MTHFR (protein accession number BAK65950.1) of Sphingobium lignivorans SYK-6 (metF, SLG_12750) was synthesised (Eurofins) and amplified by PCR with a synthesised DNA fragment and the primer pairs (SYKmetF-5, 5ʹ-TATAGGATCCGCTACTGCAACGCTCGACAAG-3ʹ and SYKmetF-3, 5ʹ-TATAGTCGACTCAGATGCCCTGCTTCCCCTTG-3ʹ) using a KOD Plus kit (Toyobo, Osaka, Japan). The amplified DNA was inserted into the pET-44a(+) vector (Novagen, Pretoria, South Africa) between the BamHI and SalI sites using the Ligation High Ver.2 kit (Toyobo). We deleted the Nus-tag and inserted the HRV-3C cleavage site between the His-tag and the target gene sequence. The plasmid was cloned into E. coli DH5α. Point mutations of the S6MTHFR gene were introduced by the PCR method. The above plasmid was amplified with a set of outward-facing, overlapping primers containing nucleotide substitutions, then processed by DpnI and cloned into DH5α. All mutant gene sequences were verified. The primers and plasmids used in this study are shown in Supplementary Data 2 and 3. The pET22b-EcMTHFR plasmid, which contains the EcMTHFR (protein accession number AAC76923.1) gene with an HRV-3C cleavage site and His-tag, was synthesised by Eurofins.

Protein expression and purification of S6MTHFR

The above plasmid was transformed into E. coli BL21(DE3) (Novagen). To express recombinant proteins, the E. coli cells were grown in 1 L lysogeny broth (LB) at 37 °C, and isopropyl-D-1-thiogalactopyranoside (IPTG) was added at OD₆₀₀ = 0.5 to a final concentration of 0.5 mM. After 20 h of incubation at 18 °C, the cells were harvested and resuspended in 40 ml of lysis buffer containing 50 mM Tris-HCl (pH 8.0), 300 mM NaCl, 1 mM dithiothreitol (DTT), and 10 mM imidazole (pH 8.0), and then disrupted by sonication using a UD-201 ultrasonic disruptor (Tomy, Tokyo, Japan). After removing the debris and insoluble fraction by centrifugation at 18,000 g for 30 min at 4 °C, the supernatants were collected and filtrated using a 0.22 μm filter (Millipore, Burlington, MA, USA). The filtrated supernatants were mixed with Ni-NTA resin (Qiagen, Hilden, Germany) and incubated on a rotary shaker for 2 h at 4 °C. They were then loaded onto an Econo-Column (Bio-Rad Laboratories, Hercules, CA, USA) filled with Ni-NTA resin and washed with wash buffer containing 50 mM Tris-HCl (pH 8.0), 25 mM NaCl, 1 mM DTT, and 30 mM imidazole (pH 8.0). The His-tag was cleaved on-column by adding PreScission protease (Cytiva, Marlborough, MA, USA) and incubated overnight at 4 °C, after which S6MTHFR was eluted by the wash buffer. Anion exchange chromatography (MonoQ 5/50 GL, Cytiva) was then performed on an Akta pure system (Cytiva). The MonoQ column was equilibrated with 50 mM Tris-HCl (pH 8.0), 25 mM NaCl, and 1 mM DTT (Buffer A) and eluted using a linear gradient of NaCl up to 1 M. The eluted fractions were collected and further purified by size-exclusion chromatography using a Superdex 200 increase 10/300 GL column (Cytiva) under the conditions of 20 mM HEPES (pH 7.5) and 100 mM NaCl. Finally, the purified proteins were concentrated by 30 K MWCO Amicon Ultra and Centricon centrifugal filter units (Millipore) and stored at −80 °C. The enzyme concentration was calculated using the molar extinction coefficient 14,300 at 450 nm, since FAD is a cofactor for MTHFR⁷. The purity of purified proteins was confirmed by SDS-PAGE (Supplementary Fig. 8).

Protein expression and purification of EcMTHFR

The pET22b-EcMTHFR plasmid was transformed into E. coli BL21(DE3) (Novagen). To express the recombinant protein, the E. coli cells were grown in 1 L lysogeny broth (LB) at 37 °C, and IPTG was added at OD600 = 0.6 to a final concentration of 0.5 mM. After overnight incubation at 18 °C, the cells were harvested and resuspended in 50 ml of lysis buffer containing 50 mM Tris-HCl (pH 7.4), 500 mM NaCl, 1 mM dithiothreitol (DTT), and 10 mM imidazole (pH 7.4), and then disrupted by sonication using a UD-201 ultrasonic disruptor (Tomy, Tokyo, Japan). The debris and insoluble fraction were removed by centrifugation at 18,000 g for 30 min at 4 °C. The supernatans was then collected and filtrated using a 0.22 μm filter (Millipore, Burlington, MA, USA). The filtered supernatant was mixed with Ni-NTA resin (Qiagen, Hilden, Germany) and incubated on a rotary shaker for 2 h at 4 °C. The supernatant was centrifuged at 20,000 rpm for 20 mins, resuspended with wash buffer [50 mM Tris-HCl (pH 7.4), 500 mM NaCl, 1 mM dithiothreitol (DTT), and 100 mM imidazole (pH 7.4)], and loaded onto an Econo-Column (Bio-Rad Laboratories, Hercules, CA, USA) filled with Ni-NTA resin. The resin was washed with the washed buffer five times. The His-tag was cleaved on-column by adding PreScission protease (Cytiva, Marlborough, MA, USA) and incubated overnight at 4 °C. After which Ec-MTHFR was eluted by elution buffer containing 50 mM Tris-HCl (pH 7.4), 500 mM NaCl, 1 mM dithiothreitol (DTT), and 300 mM imidazole (pH 7.4). The eluted fractions were collected and further purified by size-exclusion chromatography using a Superdex 200 increase 10/300 GL column (Cytiva) under the conditions of 50 mM Tris-HCl (pH 7.4), 100 mM NaCl and 1 mM DTT. Finally, the purified proteins were concentrated by 30 K MWCO Amicon Ultra and Centricon centrifugal filter units (Millipore) and stored at −80 °C. Enzyme concentration was calculated using the molar extinction coefficient 14,300 at 450 nm, since FAD is a cofactor for EcMTHFR. The purity of purified proteins was confirmed by SDS-PAGE.

Anaerobic titration

Experiments were conducted in an anaerobic chamber filled with a gas mixture (96% N₂, 4% H₂) to prevent the oxidation of reduced S6MTHFR³⁴. S6MTHFR, CH₃-THF (Sigma, St. Louis, MO, USA), and NAD⁺ (Millipore) were degassed in the chamber overnight before titration experiments. A 1.0 ml solution of 19 μM S6MTHFR containing 100 mM potassium phosphate (pH 7.2) was placed in a cuvette, and the enzyme solution was titrated with 0.5 ml of an 8, 10, or 50 mM solution of CH₃-THF/NAD⁺ until saturation. After each addition of CH₃-THF/NAD⁺, an absorbance spectrum between 300 and 800 nm was recorded by a DU730 spectrophotometer (Beckman Coulter, Brea, CA, USA) at room temperature.

Enzyme activity assay

The enzyme reactions of S6MTHFR and its mutants were carried out by incubating 20 nM purified enzymes with 100–1000 µM CH₃-THF and 400 µM menadione in 50 mM KPO₄ buffer (pH 7.2) for 3 min at 30 °C. The reaction was halted by mixing with an equal volume of 20% (v/v) formic acid. The supernatant separated by centrifugation (19,000 g, 10 min at 4 °C) was filtrated, and the CH₃-THF concentration was measured by HPLC. Specific activities were calculated from the decreased amount of CH₃-THF. To identify the reaction product, the reaction mixture was analysed directly by HPLC–MS without adding formic acid to prevent degradation of the reaction product due to the acidic pH. To determine the optimal pH, the reaction was performed with 50 mM GTA buffer (50 mM 3,3-dimethylglutarate, 50 mM Tris, and 50 mM 2-amino-2-methyl-1,3-propanediol; pH 5.0–9.0) at 30 °C. The optimal temperatures were determined in the range of 15–70 °C using 50 mM KPO₄ buffer (pH 7.2) and 200 μM menadione. To determine the kinetic parameters for the conversion of CH₃-THF by S6MTHFR, 5 nM and 20 nM of purified enzyme were used for 5–50 µM and 100–500 µM CH₃-THF, respectively. For the reduction of CH₂-THF, 500 nM of EcMTHFR, 20 nM or 5 µM of S6MTHFR and the LP-PFGGL mutant were incubated with 200 µM or 300 µM CH₂-THF, along with 10 mM DTT and 2 mM NADH, in a 50 mM KPO₄ buffer (pH 7.2) for 30 min at 30 °C. The reaction products were analysed by HPLC–MS. For NADH oxidation assays, 1 μM of S6MTHFR or 1 µM of each of its mutants was incubated with 0–10,000 µM NADH and 400 µM menadione in 50 mM KPO₄ buffer (pH 7.2) at 30 °C. Reaction times were 30 min to determine specific activity and 1 min to determine the kinetic parameters. NADH oxidation was monitored by the decrease in absorbance at 343 nm (molar coefficient of NADH: ε₃₄₃ = 6,220 M⁻¹cm⁻¹) using a BioTek Synergy LX plate reader (Agilent Technologies, Santa Clara, CA, USA)⁷. Specific activity was calculated from the decreased amount of NADH. Values of k_cat and K_m were determined using specific activities fitted to the Michaelis–Menten equation using GRAPHPAD PRISM software (version 10.1.2; GraphPad Software, La Jolla, CA, USA). The NADH oxidation assay was performed according to previously reported experimental conditions³². Reactions were performed in 50 mM KPO₄ buffer (pH 7.2) containing 0.3 mM EDTA, 10% glycerol, and 140 µM menadione. Each reaction mixture contained either 2.45 µM S6MTHFR or 30 nM EcMTHFR, with NADH concentrations ranging from 0 to 375 µM. Specific activity was calculated by monitoring the decrease in NADH absorbance at 343 nm³². An extinction coefficient of 6220 M⁻¹ cm⁻¹ was used for NADH.

HPLC and HPLC–MS analysis

HPLC analysis was performed with an ACQUITY UPLC system (Waters, Milford, MA, USA) and an ACQUITY UPLC I-Class system (Waters)³⁵. All analyses were carried out using a BEH C18 column (2.1 × 100 mm, 1.7 µm particle size; Waters) and a mobile phase consisting of a mixture of solution A (acetonitrile containing 0.1% formic acid) and solution B (water containing 0.1% formic acid) at a flow rate of 0.5 mL/min and 30 °C under the following gradient conditions: 0–1.2 min, 6% solution A; 1.2–2.0 min, a linear gradient of 6% to 35% solution A; 2.0–3.0 min, 35% solution A; 3.0–3.1 min, a decreasing linear gradient of 35% to 6% solution A; 3.1–4.0 min, 6% solution A. The detection wavelength was 290 nm. HPLC–MS analysis was performed using the UPLC I-Class system coupled with an ACQUITY TQ detector (Waters). Mass spectra were obtained using the positive-ion mode with settings: capillary voltage, 3.0 kV; cone voltage, 10 to 40 V; source temperature, 120 °C; desolvation temperature, 350 °C; desolvation gas flow rate, 650 liter/h; and cone gas flow rate, 50 liter/h.³⁵.

SEC-MALS analysis

Size-exclusion chromatography was performed with a Superdex 200 increase 10/300 GL column (Cytiva) using an Alliance 2695 system (Waters). Light scattering (LS) and the refractive index (RI) were measured using a DAWN HELEOS II detector (Wyatt Technology, Santa Barbara, CA, USA) and a 2414 RI detector (Waters), respectively. Before SEC-MALS analysis, the column was equilibrated at 20 °C with 10 mM HEPES-NaOH, pH 7.5, containing 100 mM NaCl. The purified S6MTHFR (5 mg/ml, 30 µl) was injected at a buffer flow rate of 0.5 ml/min. Data were processed with ASTRA 6.1 software (Wyatt Technology).

Crystallization

The initial crystallization screening was performed by using Crystal Screen 1 and 2 (Hampton Research, Aliso Viejo, CA, USA), Wizard Screens I and II (Rigaku, Tokyo, Japan), PEGsII (Qiagen), Index (Hampton Research), PEGIon/PEGIon2 (Hampton Research), and Protein Complex Suite (Qiagen) with the Protein Crystallization System 2 (PXS2) at the Structural Biology Research Center (KEK, Tsukuba, Japan)¹⁶. The sitting-drop vapour-diffusion method with crystallization drops consisting of 0.2 μl protein solutions (10 mg/ml) and 0.2 μl screening solutions at 20 °C and 4 °C was adopted. Twinned plate-shaped crystals were observed within a week under the conditions of 20% (w/v) PEG4000, 0.1 M sodium citrate at pH 4.5 (Protein Complex suite #26) at 20 °C. To obtain single crystals of S6MTHFR, the crystallization conditions were optimised with the hanging-drop vapour-diffusion method. Crystallization with microseeds gave single crystals of S6MTHFR using the same crystallization buffer at 4 °C. Crystals of the CH₃-THF complex were prepared by the soaking method at 4 °C with soaking solution containing 10 mM CH₃-THF, 22% (w/v) PEG4000, 0.1 M sodium citrate at pH 4.5. The soaking time was 1 h. Before diffraction data collection, all crystals were cryo-protected by soaking in a solution containing 30% (w/v) PEG4000, 0.1 M sodium citrate at pH 4.3 for 30 sec.

Data collection and structure determination

X-ray diffraction data of the substrate-free form of S6MTHFR were collected at 95 K using an Eiger X4M detector on BL-1A of the Photon Factory, KEK (Tsukuba, Japan). X-ray diffraction data of the S6MTHFR–CH₃-THF complex were collected using a PILATUS 2M-F detector on X06DA (PXIII) at the Swiss Light Source (Villigen PSI, Switzerland). Diffraction data were processed and scaled by XDS and XSCALE, respectively³⁶. The phases of the substrate-free S6MTHFR were determined using the programme Crank2 with the native SAD method³⁷. The molecular replacement calculation by MOLREP was performed to obtain a higher resolution by using the initial model³⁸. The crystal structure of the S6MTHFR–CH₃-THF complex was determined by the molecular replacement method using the programme MOLREP. Crystallographic refinement and model building were performed using PHENIX.refine and Coot, respectively^39,40.

Bioinformatic analysis

The MTHFR homologous sequences were collected using Protein BLAST and NCBI’s non-redundant protein database (https://www.ncbi.nlm.nih.gov/protein). Various bacteria and eukaryotes were searched for homologues of S6MTHFR, CM4MTHFR, N20MTHR, EcMTHFR, and HuMTHFR. A total of 60 MTHFR sequences were used for phylogenetic analysis (Supplementary Data 4). Substitution models were tested by MEGAX⁴¹, and the LG substitution model with “+G + I” was chosen as the best-fit model based on the Akaike information criterion⁴². The phylogenetic tree was reconstructed by the maximum likelihood method using RAxML-HPC2 on XSEDE under the LG + G model⁴³, and bootstrap values were calculated from 1000 replications.

Statistics and reproducibility

The number of experimental replicates is indicated in the corresponding legend. Data points in each graph represent the means of the replicate measurements and individual data points are indicated by dots.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Any data generated or analysed during this study, associated protocols, primer sequences, plasmid maps, materials, and public databases (such as the PDB database) are included in the article and are also available from the corresponding authors upon request. Structural data from crystallographic analyses are available from the Protein Data Bank (https://www.rcsb.org/): the PDB codes for the crystal structures are 7XG9 (for S6MTHFR-Apo) and 7XLF (for S6MTHFR-Holo (CH3-THF)). The source data for the figures and tables in the main text are provided in Source Data 5, and those for the Supplementary Figs. and tables are available in Source Data 6, included with this paper.
