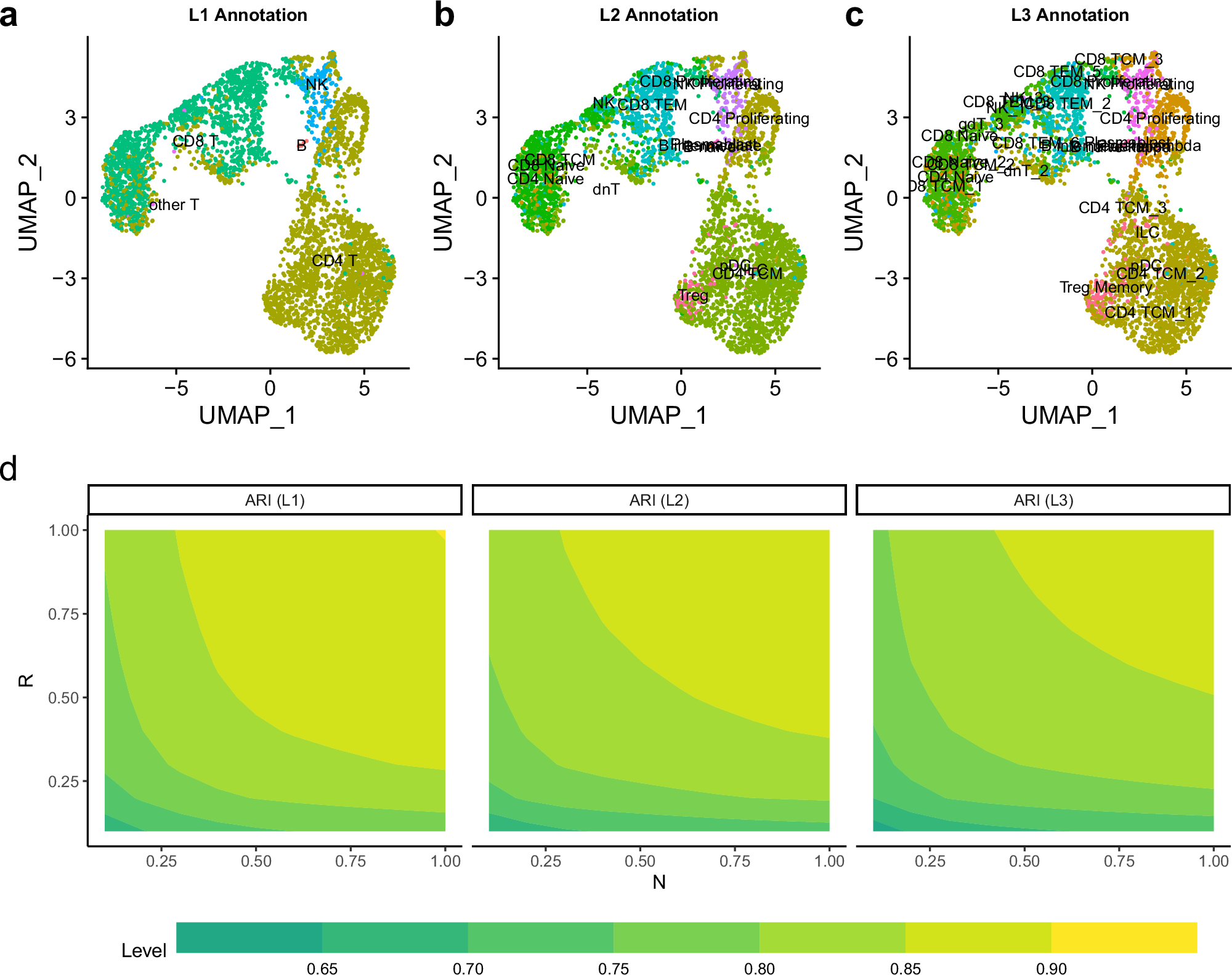

Fig. 8: The prediction stability of Azimuth.
From: A realistic FastQ-based framework FastQDesign for ScRNA-seq study design issues
a–c The UMAPs of AI and BM reference dataset, with predicted cell annotations from Azimuth, using different cell subtype resolutions, where L1 has 7 cell types, L2 has 30 cell types, L3 has 57 cell types respectively. d The contour plots of ARI for predicted cell annotations from Azimuth between the reference and pseudo-design datasets according to different resolutions (L1, L2, or L3).
