Fig. 8: Gene activation in the pPC inhibitory clusters following SOC acquisition and retrieval.
From: Second-order threat conditioning in the amygdala-posterior piriform cortex network

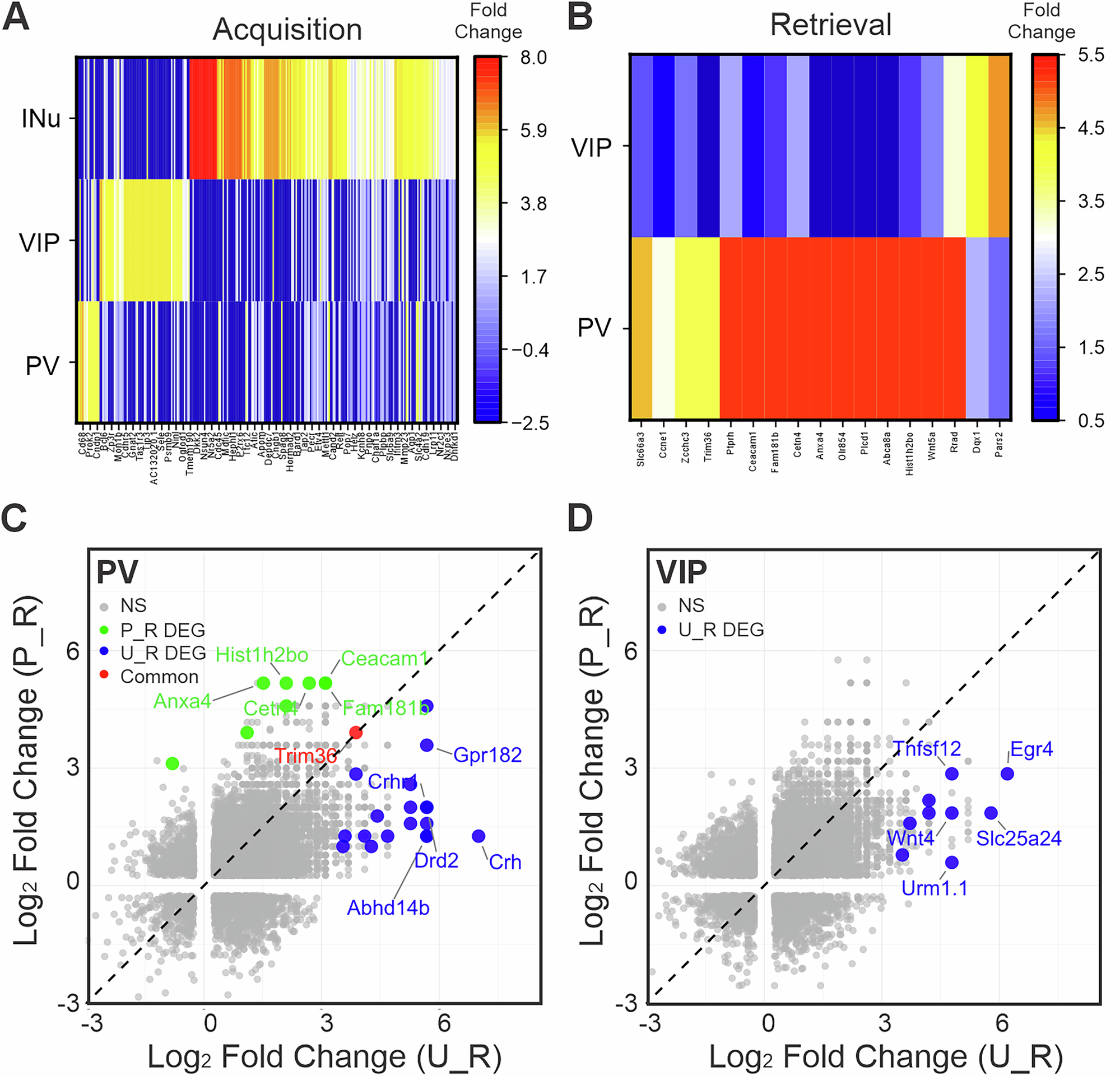

A Heat map showing distinct patters of DEGs in the three inhibitory clusters following SOC acquisition. B Heat map showing distinct patters of DEGs in the inhibitory clusters following SOC retrieval. C Scatter plot displaying DEGs in the U_R and P_R groups within the PV clusters. Blue dots represent DEGs in the P_R group, green dots represent DEGs in the U_R group, and red dots indicate common DEGs between the two groups. D Scatter plot showing DEGs in the U_R and P_R groups within the vasoactive intestinal peptide (VIP) clusters. Only detected genes shared between both groups were included in the scatter plots. Note that Fos was not included in the scatter (C, D) plots due to high fold changes (out of range). U unpaired, P paired, R retrieval. NS: not significant.
