Fig. 2: Representative plots of simulated data.

From: Bayesian optimized parameter selection for density-based clustering applied to single molecule localization microscopy

Fig. 2

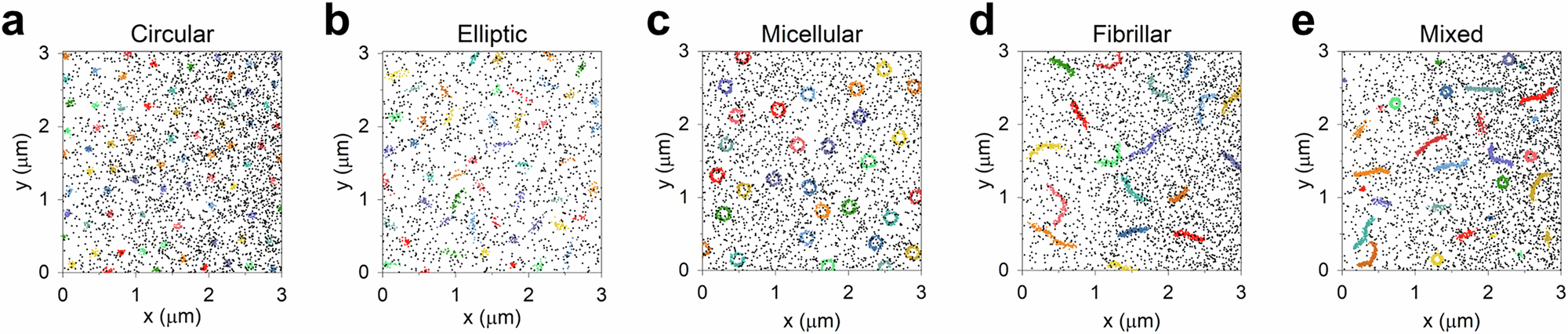

a Circular (C02), b elliptic (E14), c micellular (M22), d fibrillar (F18), and e mixed (V12) cluster scenarios. Alphanumeric code in parentheses corresponds to simulations described in Table S1. Simulated clusters are shown in color, noise is shown in gray. a, d, e have gradient noise. b, c have homogeneous noise.
