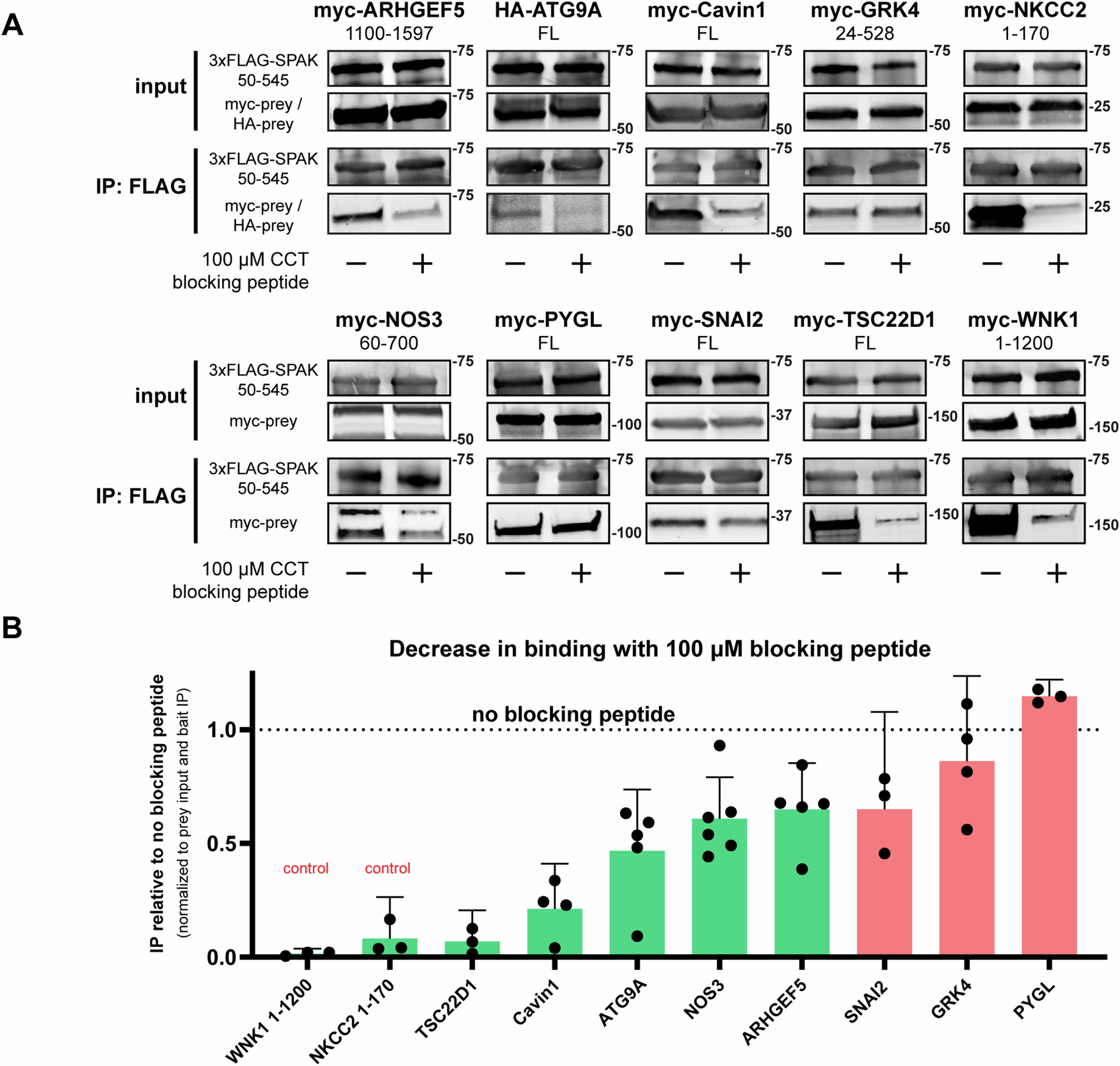

Fig. 5: Validation of interactions via co-IP in HEK293T cells.
From: Kinase interaction analysis predicts actions of the WNK-OSR1/SPAK pathway
A Overexpressed FLAG-hSPAK 50-545 bait protein pre-loaded on beads pulled down overexpressed myc-tagged prey proteins (HA tag for ATG9A) from HEK293T cell lysates. 100 µM CCT blocking peptide (WNK1 1253–1265; NH3+-SAGRRFIVSPVPE-COO−) as control. Supp. Fig. 5 presents the prey input and co-IP bands at identical detection intensities for comparison of the amount of protein remaining after wash steps. B Quantification of (A). n ≥ 3. Error bars indicate 95% confidence intervals. Replicates shown as dots. Green is statistically significant; red is not.
