Fig. 2: The graphical representation of crucial residues in the interaction between ILE and MtbClpC1-NTD as well as MtbClpX-NTD.

From: Mutations in ClpC1 or ClpX subunit of caseinolytic protease confer resistance to ilamycins in mycobacteria

Fig. 2

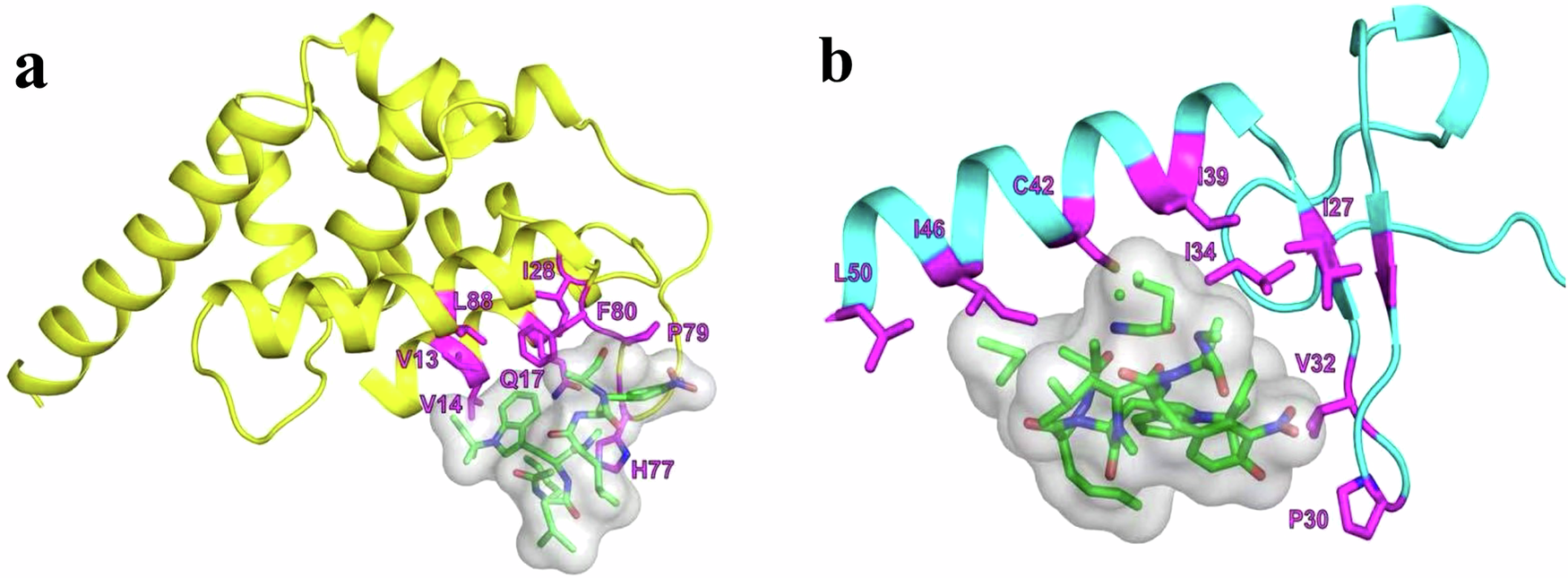

a Crucial residues in the interaction between ILE and MtbClpC1-NTD. b Crucial residues in the interaction between ILE and MtbClpX-NTD. MtbClpC1-NTD N-terminal domain of MtbClpC1 (residues 1–145), MtbClpX-NTD N-terminal domain of MtbClpX (residues 1–112).
