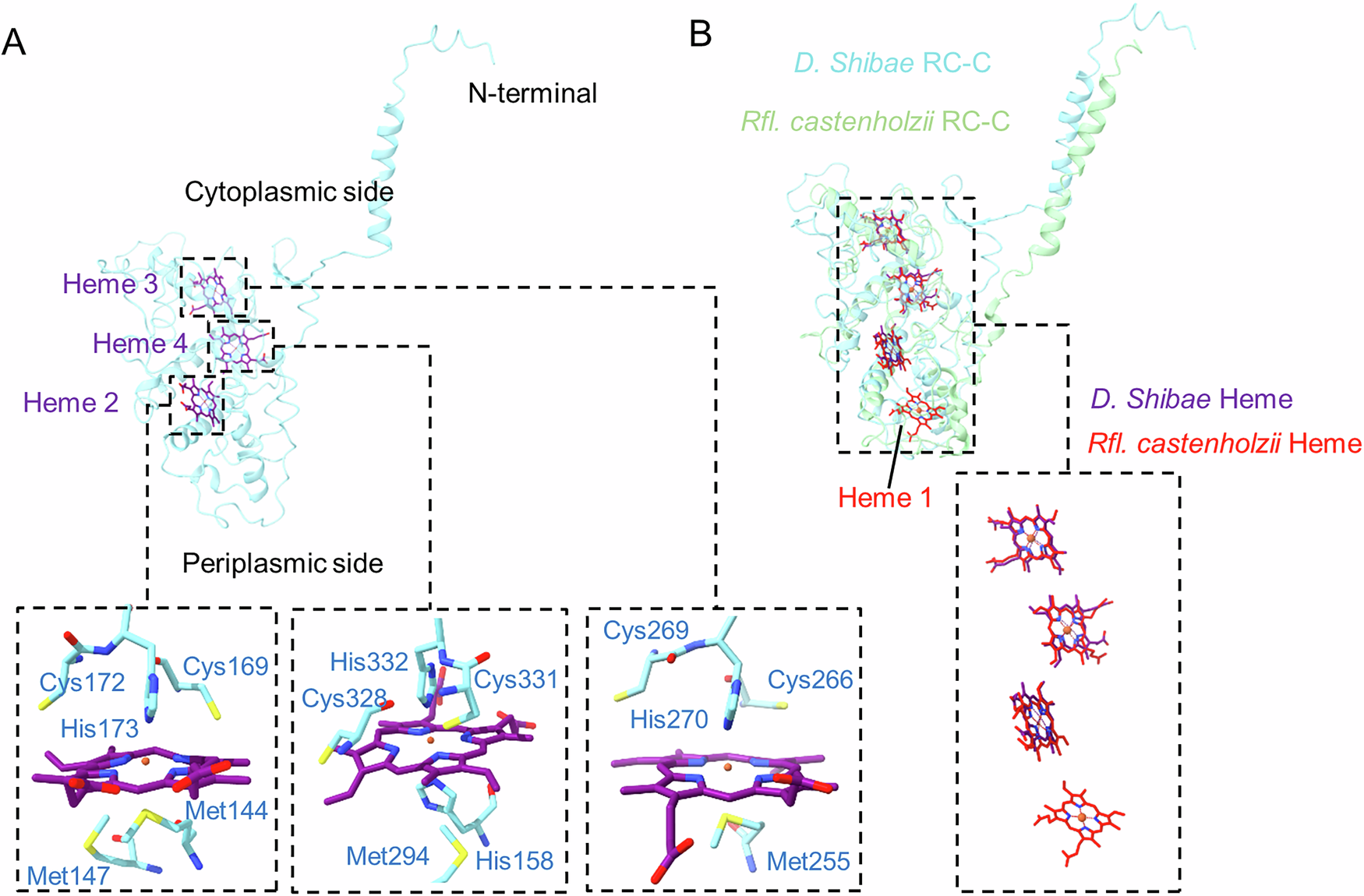

Fig. 3: Structural analysis of the cytochrome c subunit.

A The arrangement of the heme group in the Cyt c subunit and its interactions with adjacent residues. Details are displayed by zoomed-in views. B Comparison between the Cyt c subunits of D. shibae and Rfl. castenholzii. Details are displayed by zoomed-in views.
