Fig. 3: Scatter density plots between ground truth and estimated tissue parameters and Bland-Altman plots comparing the performances of MC-informed forward model 1 with a standard analytical signal model. | Communications Biology

Fig. 3: Scatter density plots between ground truth and estimated tissue parameters and Bland-Altman plots comparing the performances of MC-informed forward model 1 with a standard analytical signal model.

From: Histology-informed microstructural diffusion simulations for MRI cancer characterisation—the Histo-μSim framework

Fig. 3

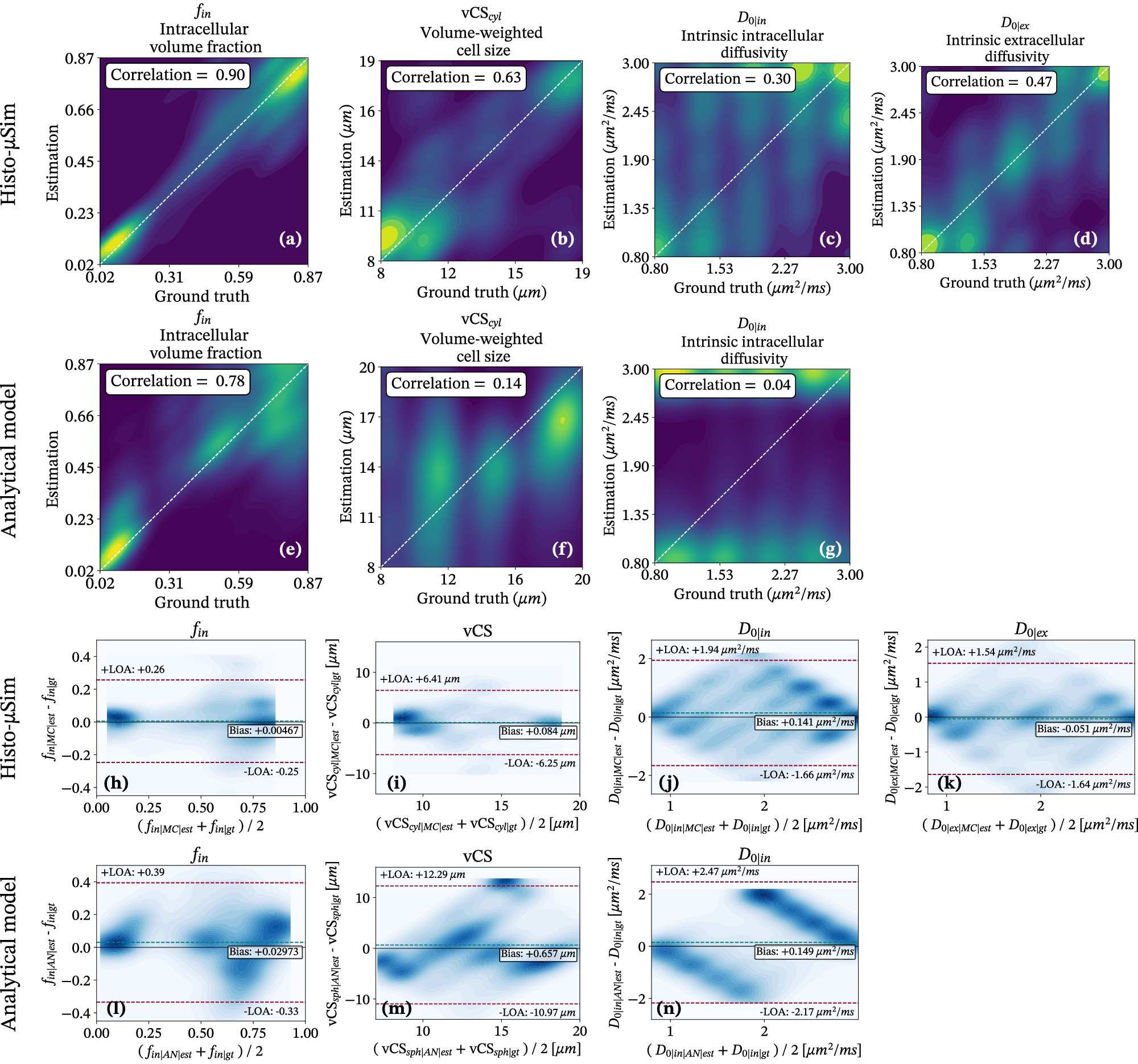

First row, (ad): scatter density plots and correlation between ground truth and estimated parameters for forward model 1 (from left to right: fin, vCScyl, D0in, D0ex). Second row, (eg): scatter density plots and correlation between ground truth and estimated parameters for the analytical signal model (from left to right: fin, vCScyl, D0in). Third row, (hk): Bland-Altman plots for forward model 1 (from left to right: fin, vCScyl, D0in, D0ex). Fourth row, (ln): Bland-Altman plots for the analytical signal model (from left to right: fin, vCScyl, D0in). Scatter density plots also include the identity line for reference, and the Pearson’s correlation coefficient between ground truth and estimated parameter values (n=4050 unique data points from 18 independently-simulated substrates per subplot). Bland-Altman plots relate the average values between estimated/ground truth parameters (x-axis) to their difference (y-axis), and include the bias and upper/lower limit-of-agreement (LOA). The figure refers to the estimation for protocol PGSE-in.
