Introduction

Bacterial conjugation is a form of horizontal gene transfer in which genetic material, most commonly plasmid DNA, is transferred from a donor bacterium to a recipient bacterium through direct cell-to-cell contact1,2. Conjugation is a major route for the spread of antimicrobial resistance genes between bacterial pathogens3 and thus of high biomedical importance. The Escherichia coli F plasmid was the first conjugative plasmid to be identified4 and continues to serve as a model system for dissecting the molecular mechanisms underlying bacterial conjugation1,5,6,7.

Conjugation systems encode a type IV secretion system (T4SS) to mediate DNA transfer between donor and recipient cells8,9,10. In the F plasmid system, the T4SS assembles a long extracellular pilus11. This pilus normally acts as a retractable grappling hook to bring the donor and recipient into close contact12 in a step called mating pair formation. However, under some circumstances, the pilus can also serve as the conduit for DNA transfer, enabling mating at a distance13,14. During conjugation, one strand of the plasmid DNA is transferred through the T4SS into the recipient cell. Upon entry to the recipient cell, the complementary DNA strand is synthesized, and the conjugal DNA becomes fully functional, resulting in the recipient cell becoming a new donor cell (transconjugant).

Many conjugative plasmids encode systems that prevent redundant plasmid transfer into cells that already contain the same or a closely related plasmid15,16, a phenomenon known as plasmid exclusion17. In the E. coli F plasmid and in other conjugative plasmids of the IncF incompatibility group, exclusion is mediated by TraS and TraT proteins18,19. TraS blocks DNA transfer following mating pair formation (“entry exclusion”) whilst TraT acts at an earlier stage to inhibit mating pair formation (“surface exclusion”).

TraT is an outer membrane (OM) lipoprotein18,20,21,22,23 that is exposed at the cell surface24,25,26. It is reported that TraT only excludes donors carrying the parental plasmid, but not closely related plasmids, and therefore shows plasmid specificity27,28. The mechanism by which TraT enables surface exclusion has not been established.

Intriguingly, TraT has been implicated in several functions beyond its role in conjugation. It has long been recognized as a factor conferring resistance to serum complement25,29,30,31,32,33, and has also been reported to protect against phagocytosis34 and some bacteriophages35. Even more remarkably, TraT homologs are coded on the chromosome of many human and animal pathogens, in many cases without any obvious association with conjugation15,25 (and see also a detailed recent phylogenetic analysis36). Taken together, these observations raise the possibility that TraT may function through a mechanism that is independent of specific interactions with the conjugation machinery.

In this work, we provide further insight into the mechanism of conjugal surface exclusion through structural characterization of the F plasmid TraT protein complex.

Results

Structure of the F plasmid TraT complex

To gain insight into the mechanism of surface exclusion, we determined the structure of TraT from the F plasmid. Overproduced, affinity-tagged TraT was solubilised using the detergent dodecylmaltoside (DDM) and purified (Supplementary Fig. 1a, b). Cryo-electron microscopy (cryo-EM) of the TraT preparation revealed homogeneous ~100 Å wide particles (Supplementary Fig. 1c) from which we were able to solve a 2 Å resolution structure of the TraT complex (Fig. 1a, Supplementary Fig. 2 and Table 1).

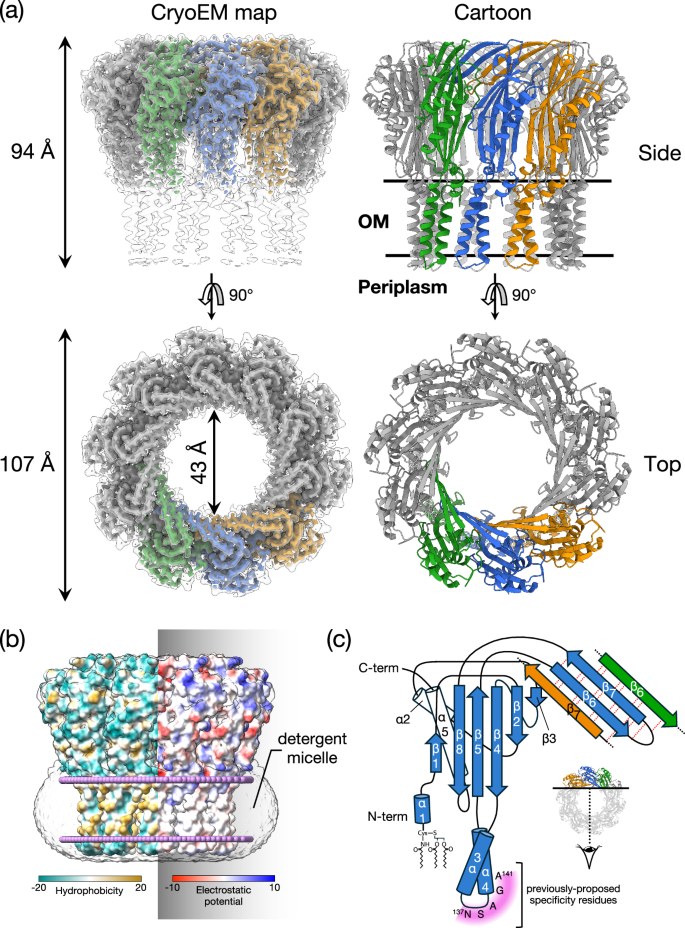

Fig. 1: TraT forms a tubular homodecamer.
Fig. 1: TraT forms a tubular homodecamer.
Full size image

a Cryo-EM structure of the TraT complex. The left-hand panels overlay the unsharpened (transparent) and sharpened (solid colors and dark gray) cryoEM maps. The cartoon model of TraT is shown on the right. Three adjacent subunits within the TraT decamer are colored. The position of the OM is shown based on the analysis in (b). b Surface hydrophobicity (left) and electrostatic potential (right) of the TraT model calculated using ChimeraX61. The position of TraT within the membrane (pink beaded lines) was predicted using the PPM server69 and by overlaying the cryoEM density for the DDM micelle. c Topology diagram of a TraT subunit viewed from inside the complex. The hairpin formed by strands β6 and β7 forms a continuous β sheet with the equivalent strands of the adjacent subunits (tan and green strands are from adjacent subunits, as shown in the inset; hydrogen bonds in this sheet are represented by red dotted lines). Purple shading highlights previously proposed specificity-determining residues27,28.

Table 1 Cryo-EM data collection, refinement, and validation statistics
Full size table

TraT forms a homodecamer (Fig. 1a). The overall structure resembles a chef’s hat in shape but with an internal cavity extending along the entire long axis. The bottom of the ‘hat’ inserts into the OM bilayer as judged from the position of the detergent micelle and from the local surface hydrophobicity (Fig. 1b). The top of the ‘hat’ extends from the membrane, ending in a flattened top. Based on earlier biochemical experiments24,26 the head is assigned to be on the extracellular face of the OM. The entire TraT polypeptide could be modeled, but the density for the N-terminal lipid anchor is not resolved. Nevertheless, the N-terminal cysteine to which the lipid moiety is attached is appropriately positioned to allow the lipid group to be inserted into the membrane surrounding the complex.

The TraT monomer comprises three distinct elements: a globular core domain, two transmembrane α-helices (TMHs), and a long β-hairpin. The globular core domain is composed of two α-helices packed against a predominantly antiparallel five-stranded β-sheet from which the TMHs and the β-hairpin extend (Fig. 1c). This core domain fold can also be found in a number of proteins that bind anionic oligosaccharides, with the closest structural homolog being LptE, a protein involved in lipopolysaccharide (LPS) transport37 (RMSD = 2.5 Å). However, a functional role for TraT in LPS binding is unlikely because the residues essential for LPS binding in LptE37 are not conserved in TraT, and there is no density in our structure that could correspond to bound LPS.

The membrane-spanning portion of each TraT subunit extends from the core domain and consists of two TMHs connected by a short, periplasmic loop of four amino acids (S136-A139). This loop does not extend significantly beyond the surrounding detergent micelle. Notably, the TMHs from neighboring TraT subunits do not pack tightly against each other, rendering them relatively mobile and poorly resolved.

The long β-hairpin (residues 180–205) projects from the membrane-distal end of the core domain. The hairpin structures of adjacent TraT protomers associate into a continuous β-sheet that forms a ring around the interior face of the open end of the TraT cavity (Fig. 1a, c).

In the native cellular environment, the transmembrane end of the TraT cavity is almost certainly sealed by a lipid plug and so does not form an open channel across the OM. We reach this conclusion because the transmembrane end of TraT has a hydrophobic interior, is filled with detergent density in the experimental structure, and is connected to the surrounding OM by gaps between the TMHs of adjacent subunits (Fig. 2). The most constricted regions of the TraT cavity are located at the β-sheet ring (43 Å diameter) and at the ‘top’ of the lipid plug (33 Å diameter) (Figs. 1a, 2).

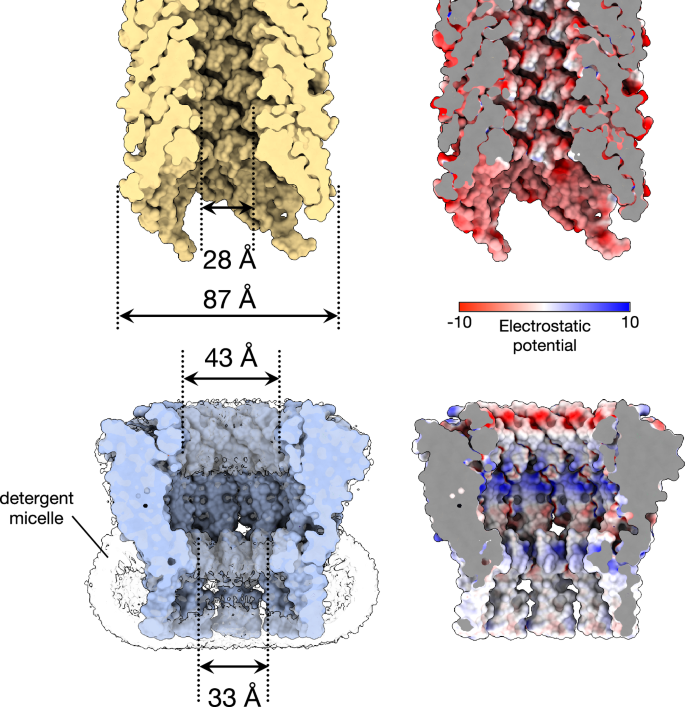

Fig. 2: Comparison of the size and internal surface charge of TraT and the conjugation pilus.
Fig. 2: Comparison of the size and internal surface charge of TraT and the conjugation pilus.
Full size image

Shown are cut-throughs of the space-filled structures of the pilus (top) and TraT complex (bottom, overlaid on the left with the cryoEM density for the detergent micelle). Surface electrostatic potential (right) was calculated using ChimeraX61. The pilus structure shown is that of the conjugation apparatus from the F-like plasmid pED208 and includes the phospholipid molecules that coat the internal face of the pilus tube.

It has previously been suggested that TraT might interact with the end of the conjugative pilus to prevent it from penetrating the OM27. To explore this possibility, we compared the TraT structure with that of the pilus shaft from the F-like plasmid pED208, a structure that we resolved at high resolution in this study (Fig. 2, Supplementary Fig. 3 and Table 1). The diameter of the pilus shaft (87 Å) is similar to the diameter of TraT, suggesting possible size matching between the two structures. The entrance to the TraT cavity is only 43 Å in diameter and so too narrow for the pilus shaft to enter. However, the pilus tip is likely made up of specialized proteins27,38 that are not present in our pilus shaft structure and which are likely to mediate any pilus interactions with TraT. Thus, the identification and structural characterization of the pilus tip proteins will be necessary in order to fully assess whether TraT interacts with the pilus.

The cavity of TraT is markedly different from the lumen of the conjugative pilus through which DNA is transferred during conjugation (Fig. 2). As previously detailed11, the pilus lumen is narrow (28 Å diameter), lined with phospholipids, and negatively charged to reduce interactions with the moving DNA molecule. By contrast, the TraT cavity is much wider and has a non-uniform charge distribution, including both highly acidic and highly basic regions. These differences suggest that TraT is not structurally or electrostatically adapted for direct interaction with the transferring DNA.

The previously proposed specificity region of TraT does not influence the exclusion phenotype

Plasmid exclusion systems are reported to only block conjugation from donors carrying the same plasmid17. In other words, exclusion systems exhibit specificity in their interactions with the conjugation machinery of the donor plasmid. In an earlier study of F-like plasmids, it was reported that exclusion specificity is mediated in part by TraT28. In that study, the authors identified the five amino acid sequence 137NSAGA141 in the F plasmid TraT complex (TraTF) as being responsible for this phenomenon. With the TraT structure now available, this “exclusion specificity sequence” can be seen to correspond to residues within the tight surface loop between the two TMHs of TraTF, together with the first two residues of the second TMH (Fig. 1c). In a later study, it was reported that TraTF fails to exclude plasmid R100 even though it only differs from the sequence of TraTR100 at position 14127. Since residue 141 lies within the earlier-identified “exclusion specificity sequence”, this would appear to support the assigned role of this sequence in entry exclusion. However, the TraTF sequence shown in ref. 27 is incorrect, and the TraT proteins from F and R100 are actually identical in sequence, leaving the difference in their exclusion effects unexplained. Given these uncertainties in the literature, we reinvestigated the effects of sequence changes in the proposed “exclusion specificity sequence” of TraT. We compared three variations of the TraT specificity sequence: NSAGA, which is found in TraT from the plasmids F, R100, R6-5, and R1; NSAGG, which is the incorrect F TraT sequence in ref. 27; and SSAGA, which is found in TraT from the plasmids pED208 and ColB K98 (Supplementary Fig. 4).

To facilitate these experiments, we developed a fluorescence microscopy-based conjugation assay, which allowed more rapid data collection than traditional plating assays (Fig. 3). The method makes use of a fluorescence repressor operator system (FROS)39,40 to identify conjugal plasmid transfer. In our assay, the donor strain contains a F plasmid marked with a tandem array of tetO sites (FtetO) and the recipient strain expresses TetR-mNeonGreen (TetR-mNG). Conjugal transfer of the FtetO plasmid into the recipient strain results in TetR-mNG molecules binding to the tetO sites on the plasmid. This produces bright fluorescent foci, which are automatically detected through subsequent image processing. To allow unambiguous identification of the donor cells in these experiments, donor cells were also engineered to produce chromosomally encoded mScarlet-I.

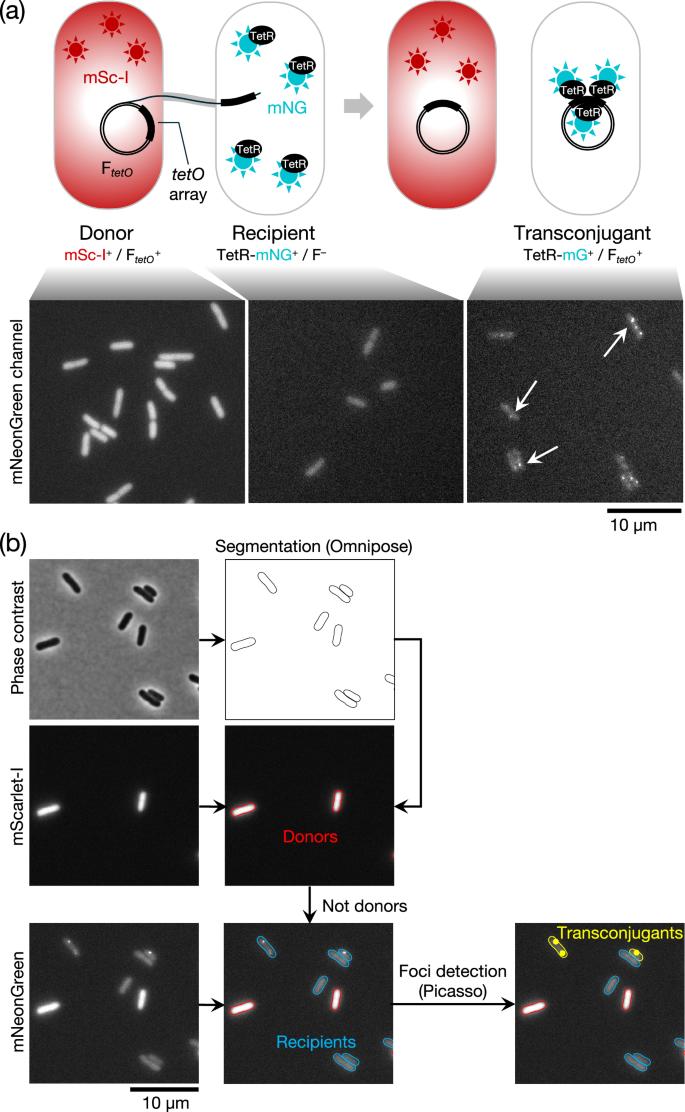

Fig. 3: Microscopy-based conjugation assay.
Fig. 3: Microscopy-based conjugation assay.
Full size image

a (Top) Schematic overview of the conjugation assay. The donor carries a F plasmid bearing a tetO tandem array (FtetO+). The recipient produces a TetR-mNeonGreen fusion (TetR-mNG) that binds to the tetO array on the incoming F plasmid to form a fluorescent focus. The donor strain expresses cytoplasmic mScarlet-I (mSc-I) to allow the cells to be identified during fluorescence imaging. (Bottom) Representative fluorescence images in the mNeonGreen channel of the strains shown schematically above. The fluorescence of the donor marker (mScarlet-I) bleeds into the mNeonGreen channel, so donor and recipient cells have to be separated by using the fluorescence in the mScarlet-I channel. b Microscopy data processing flowchart. The phase contrast image is segmented using Omnipose63 to extract cell outlines. Cells that display fluorescence in the mScarlet channel are labeled as donors; other cells are recipients. Fluorescent foci present in the mNeonGreen channel in recipient cells are detected using Picasso64, and cells with such foci assigned as transconjugants.

We examined the exclusion levels of recipient cells expressing TraTF proteins bearing the three variations of the proposed “exclusion specificity sequence” (Fig. 4a and Supplementary Data 1). We used immunoblotting to confirm that all three variants were produced at the same level (Fig. 4b). This analysis also showed that the recombinant TraT proteins were produced at concentrations close to those produced by the native F plasmid (Fig. 4b) and, therefore, that TraT function was being assessed at physiologically reasonable expression levels. In each case, the TraTF variant reduced conjugation efficiency (as measured by the mating “exclusion index” (EI)) by the same amount (Fig. 4a). Thus, our data do not support the hypothesis that the proposed “exclusion specificity sequence” results in TraT exclusion specificity.

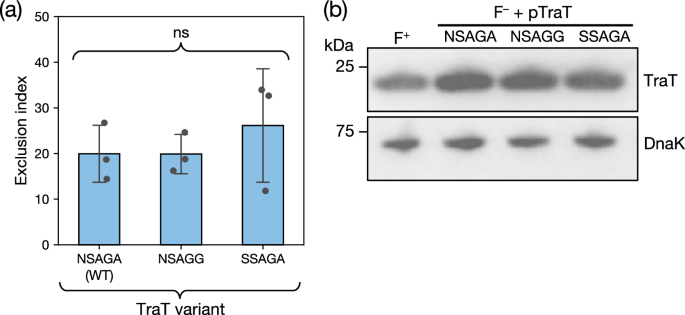

Fig. 4: The previously proposed specificity residues of TraT do not affect surface exclusion.
Fig. 4: The previously proposed specificity residues of TraT do not affect surface exclusion.
Full size image

Recipient cells contained a plasmid expressing the required TraT variant under the control of an IPTG-inducible promoter. The variants differ by the indicated sequence differences in the proposed specificity region encompassing residues 137 and 141 (WT, wild type sequence). Cultures were induced for 30 min with IPTG prior to mixing donor and recipient cells (a) or immunoblotting (b). a Exclusion indices relative to the empty vector control for the TraT variants determined using the conjugation assay described in Fig. 3. Data bars represent the mean ± standard deviation obtained from 3 biological repeats (n = 3), with each repeat represented as a point on the graph. A one-way F ANOVA was used to test the difference between the means of the three variants (ns, not significant at α = 0.05). Source data are provided in Supplementary Data 1. b Immunoblot comparing whole cell TraT levels in recipient strains expressing the indicated TraT variants (F- + pTraT lanes) or containing the F plasmid (F+ lane). DnaK is used as a loading control.

Disruption of conserved residues on the internal surface of TraTF does not abolish surface exclusion

We calculated surface amino acid conservation for TraTF in an attempt to identify residues that might interact with components of the donor conjugation apparatus or serve other important functional roles (Fig. 5a). This analysis revealed an invariant arginine residue (R213) on the internal surface of TraT. This residue appears unlikely to be required for structural stability of the complex and so is a strong candidate to have a functional role in TraT activity. The side chain of R213 is hydrogen bonded to a conserved aspartic acid (D170) on an adjacent β strand (Fig. 5a).

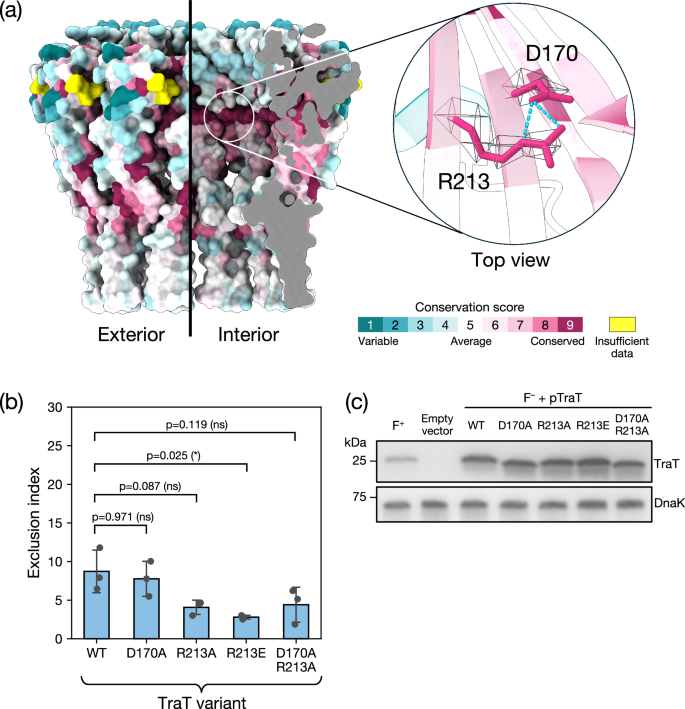

Fig. 5: Disruption of two highly conserved residues in the TraT lumen does not abolish surface exclusion.
Fig. 5: Disruption of two highly conserved residues in the TraT lumen does not abolish surface exclusion.
Full size image

a Surface conservation score calculated by Consurf65 mapped onto the structure of the TraT complex and viewed both from the exterior (left) and interior (right, cutaway view) of the complex. The inset shows a magnified view of a pair of highly conserved residues (R213 and D170) that interact with one another on the interior of the complex through side-chain hydrogen bonds (cyan dashed lines). The EM density for the side chains of these residues is shown over the TraT model. b, c Analysis of TraT variants containing the indicated amino acid substitutions. Recipient cells contained a plasmid expressing the required TraT variant under the control of an IPTG-inducible promoter. Cultures were induced for 30 min with IPTG prior to mixing donor and recipient cells (b) or immunoblotting (c). WT, wild type. b Exclusion indices relative to the empty vector control determined using the conjugation assay described in Fig. 3. Data bars represent the mean ± standard deviation obtained from 3 biological repeats (n = 3), with each repeat represented as a point on the graph. A one-way F ANOVA was used to test the difference between the means of the three variants (significant at p = 0.016). The variants were then analyzed by pairwise Tukey’s HSD tests relative to the WT. ns: non-significant (pajd ≥ 0.05), *: pajd < 0.05. Source data are provided in Supplementary Data 2. c Immunoblot comparing whole cell TraT levels in recipient strains either expressing the indicated TraT variants (F- + TraT lanes) or containing the empty expression plasmid (Empty vector), or bearing the F plasmid (F+ lane). DnaK is used as a loading control.

To assess the importance of R213 and D170 to TraTF function, we altered their side chain properties by either neutralizing their charge (D170A, R213A variants, or the combination of the two substitutions) or reversing it (R213E variant). We then performed conjugation assays to assess the impact of these substitutions on surface exclusion (Fig. 5b and Supplementary Data 2). A control experiment confirmed that the variant and wild-type TraT proteins were expressed at the same levels (Fig. 5c). All the variant TraT proteins retained the ability to mediate surface exclusion (Fig. 5b). For the variants with a substitution of R213, the EI was reduced relative to the wild-type protein. However, this change was only marginally significant for the R213E substitution (Tukey’s HSD test, padj = 0.025) and not statistically significant for the other variants. We, therefore, conclude that D170 and R213 are not essential for TraT function.

TraTF fails to form a complex with complement factor H

TraTF is a resistance factor against serum complement25,29,30,31,32,33 but the molecular basis of this activity has been unclear. Recently, it has been reported that TraT from the fish pathogen Edwardsiella tarda binds complement factor H (CFH)25. We investigated whether this interaction with CFH could also be demonstrated for TraTF as a route to structurally characterize the basis of complement resistance by TraT. However, we were unable to detect complex formation between mouse CFH and our purified TraTF protein (Supplementary Fig. 5) and so could not confirm the reported interaction between TraT and CFH.

Discussion

The structure of the TraT conjugation surface exclusion complex reveals a homodecameric assembly with no obvious structural counterparts among other characterized protein complexes. Each TraT subunit has a lipid anchor, a feature that is typically found on peripherally anchored OM proteins. However, the structural data show that TraT is actually an integral OM protein in which a large globular domain associates with the membrane bilayer through a pair of TMHs in each subunit (Fig. 1). TMHs are exceedingly rare in OM proteins due to the difficulty in preventing their insertion into the IM as they are trafficked to the OM. In this respect, TraT is a highly unusual OM protein and a notable addition to the very small group of OM proteins that are known to contain transmembrane α-helical segments41,42. Why TraT contains TMHs is not immediately apparent. Perhaps the BAM apparatus that inserts OM proteins with a canonical transmembrane β-barrel architecture43 is unable to export the large extra-membranous domains of TraT, and so an alternative biogenesis strategy involving TMHs is required.

The structure of the TraT complex does not immediately suggest the mechanism of surface exclusion. Nevertheless, the structural data provide new insights into the plausibility of different potential mechanisms.

One possible mechanism for surface exclusion is that TraT intercepts the tip of the conjugative pilus, preventing it from penetrating the OM of the recipient cell. This mechanism would be consistent with the observation that TraT blocks induction of the envelope stress responses that take place during conjugation16. A pilus-interception mechanism implies specificity in the interaction between the pilus and TraT. Such an interaction would be expected to require a conserved interaction interface on TraT. However, our structural work reveals no substantive region of high sequence conservation on the surface of TraT (Fig. 5a), and our mutagenic analysis shows that the most conserved surface residues are not required for TraT function (Fig. 5b, c). Alternatively, if TraT is responsible for the plasmid specificity of conjugation exclusion, as suggested by some27,28, but not all18, studies, then this should be mediated through plasmid-specific sequences at the proposed pilus-TraT contact. However, we were not able to substantiate the presence of the previously proposed “exclusion specificity sequence” in TraT28. We speculate that the earlier studies may have measured differences between TraT variants because they did not control for TraT expression levels, which are known to influence TraT activity18. In future work, it would be desirable to assess the possible plasmid-specificity of TraT using a more diverse range of donor plasmids. However, we note that plasmids outside the IncF group do not mate at a distance (i.e., they do not pull cells together using retractable pili), so the mating scenario is different and probably less amenable to blocking by surface exclusion mechanisms.

Another potential mechanism of surface exclusion18,44 is that TraT shields receptors on the recipient cell surface from interacting with either the pilus or the donor surface protein TraN45,46, which stabilizes mating pair formation. In the specific case of the F plasmid, the receptor for TraN is the abundant eight-stranded OM barrel protein OmpA45,47. The transmembrane cavity of the TraT complex would be large enough to sequester a single copy of OmpA away from incoming TraN molecules. However, we did not find OmpA co-purifying with TraT. In addition, TraN proteins from other IncF plasmids interact with receptor proteins that are much larger than OmpA45, and these proteins could not be housed within the TraT cavity. Thus, the structure of TraT does not support a receptor-shielding model for surface exclusion. A receptor shielding mechanism is also disfavored by the relative stoichiometries of TraT and OmpA, since OmpA monomers are in a ~ 30–50 times molar excess in the OM over the decameric TraT18.

Conjugal TraT proteins are known to block surface processes other than conjugation, including attack by serum complement. Moreover, TraT family proteins are often found in genetic contexts unrelated to conjugation. These observations suggest that TraT might not operate through a mechanism that specifically targets the pilus tip or other components involved in mating pair formation but may, instead, act through a more generic interference with cell surface processes. Based on this idea, we now suggest that TraT mediates surface exclusion by altering the physical properties of the OM in a way that reduces the efficiency of pilus tip insertion. This model would be consistent with the inhibition of complement killing by TraT because this process requires the insertion of pore-forming proteins into the OM48. It may also explain why very high levels of TraT are needed to mediate surface exclusion18,24,49,50. The idea that TraT operates by increasing the physical barrier to OM penetration could explain why TraT family proteins are also present in non-conjugative contexts. It is not obvious how the structure of TraT could achieve this proposed barrier effect, although we note that the TraT complex is a highly rigid structure that is likely to strongly withstand external mechanical forces. A prediction of our model is that TraT stiffens the OM. This prediction could be tested in future work by osmotic force extension experiments or direct mechanical measurements using atomic force microscopy51.

In summary, TraT forms a highly unusual and abundant OM complex that protrudes from the OM surface into the extracellular space. The structure of TraT provides a molecular framework with which to unravel the basis of surface exclusion and complement resistance.

While this manuscript was in preparation, structures of TraT complexes from both the F plasmid and from the Klebsiella pneumoniae plasmid pKpQIL were reported by other authors36.

Materials and methods

Strain and plasmid generation

All strains and plasmids used in this study are listed in Supplementary Table 1. All non-conjugative plasmids in this study were generated using Gibson assembly using the primers listed in Supplementary Data 3. All plasmid constructs were verified by sequencing.

Plasmid pNC60 for the isolation of TraT was constructed by introducing the F plasmid traT gene into a pET22b-derived vector that fuses an MDIGINGT linker and Twin-Strep tag to the C-terminus of the inserted protein.

Plasmids to test the function of TraT variants in conjugation assays were constructed by first cloning traT into pQE80L (Qiagen) to produce pNC56 and then introducing the required substitutions using a KLD mutagenesis (NEB).

For conjugation experiments, the F plasmid (pOX38-KanR) was marked with a 22-repeat tetO array inserted between the ygfA and ygeB genes using lambda-red recombineering52 with the linear insertion fragment amplified from pKD3_tetO using primers #72AB and #73AB. The chloramphenicol resistance cassette was flipped out, and the resulting plasmid FtetO plasmid was conjugated into MG1655 mScarlet-I::Tn753, generating the donor strain used in the conjugation assays. The recipient strain AB_2 contains a tetR-mNeonGreen fusion under the control of the native rpoN promoter and the rrnB T1 and T2 terminators. The reporter was inserted into the E. coli chromosome via scarless recombineering54 using pAB5, disrupting the open reading frame of lacZ and fully deleting lacI.

Purification of the TraT complex

An overnight culture of E. coli C4155 containing pNC60 was diluted 1:50 in LB medium56 containing 100 µg/ml of ampicillin. The diluted culture was incubated at 37 °C until OD600 = 0.7, then expression of traT was induced with 1 mM IPTG, and the cells cultured for a further 3.5 h. Cells were harvested by centrifugation at 7500 g for 20 min. The cell pellets were resuspended in lysis buffer (phosphate buffer saline tablets [1 tablet/200 ml] (Sigma-Aldrich), 400 μg/ml lysozyme (Fluka), 30 μg /ml DNAse I (Sigma-Aldrich), UltraCruz EDTA-free protease inhibitor cocktail tablets [1 tablet/50 ml buffer] (Santa Cruz Biotechnology)) at a ratio of 5 ml buffer per g of cell pellet. Cells were lysed by three passages through a French press at 10,000 psi. The lysate was clarified by centrifugation twice at 30,000 g for 30 min at 4 °C. Membranes were recovered from the supernatant by centrifugation at 200,000 g for 1.5 h at 4 °C. Each gram of membrane pellet was resuspended in 8 ml of membrane resuspension buffer (100 mM Tris, 150 mM NaCl, UltraCruz EDTA-free protease inhibitors [1 tablet/50 ml buffer], pH 8 at 10 °C). One milliliter aliquots of the resuspended membranes were snap-frozen in liquid nitrogen and kept at −80 °C for further use. After thawing, a 10% (w/v) stock solution of n-dodecyl-β-D-maltoside (DDM) (Anatrace) was then added to a final concentration of 1% (w/v), and the mixture was incubated at 10 °C for 2 h with gentle agitation to solubilize the membranes. The mixture was centrifuged at 200,000 g for 30 min at 4 °C to remove insoluble material. The supernatant was amended with BioLock (IBA Lifesciences) at 0.5 ml per 7 ml of solubilized membranes and applied to a Streptactin XT 4Flow high-capacity affinity purification column (IBA Lifesciences). The column was washed with 30 ml of wash buffer (100 mM Tris, 150 mM NaCl, 0.2% DDM, 1 mM EDTA, pH 8 at 10 °C) and eluted with 6–12 ml of wash buffer containing 50 mM biotin. The eluate was concentrated 20-fold using a 10 kDa molecular weight cut-off centrifugal concentrator (Merck Millipore), filtered using a 0.22 µm spin filter (Merck Millipore), and run through a Superose 6 increase 10/300GL (Cytiva) size exclusion chromatography column pre-equilibrated with 100 mM Tris, 150 mM NaCl, 0.02% DDM, pH 8 at room temperature. Fractions containing purified TraT were identified by SDS-PAGE followed by Coomassie staining.

Pilus purification

The method was based on that outlined in ref. 11. One hundred microliters of an overnight culture of cells free of non-conjugative pili and flagella (MC4100-AN) carrying pED208 were plated on 120 × 120 mm LB agar plates, and incubated overnight at 37 °C. The next day, cells were scraped off using an L-shaped spreader and ice-cold buffer (25 mM HEPES pH7.15, 150 mM NaCl) (5 ml buffer/plate). An extra 10 ml of buffer was used to rinse all plates to increase the yield. Pili were shaved off using by homogenizing ≈30 times using a Dounce homogenizer. Shaved cells were centrifuged at 10,000 g for 20 min at 4 °C. The supernatant was centrifuged again to remove residual cells. The supernatant was concentrated ≈20 times using a centrifugal concentrator (100 k MWCO) (Merck Millipore).

TraT-CFH pulldown

100 μl of either purified TraT-TS (1.13 mg/ml) in binding buffer (100 mM Tris, 150 mM NaCl, 0.02% DDM, pH8) or binding buffer only were mixed with 1 µl of MagStrep beads (IBA Lifesciences, Cat No. 2-5090-002) that had been washed and equilibrated according to the manufacturer’s protocol. After 30 min of incubation with gentle agitation, the beads were recovered and washed 2 times with 200 µl of binding buffer. 5 μl of mouse CFH (Complement Technology, Cat. No. A137) (1.05 mg/ml) were added to the beads, and the mixture was incubated for another 30 min. The beads were recovered and washed 3 times with 200 µl of binding buffer. The beads were then incubated with 25 µl of binding buffer containing 50 mM biotin for 10 min before separation of the beads and the eluted fraction. Elution was repeated 5 times, before the beads were boiled at 100 °C for 5 min in Laemmli buffer (62.5 mM Tris, pH 6.8, 0.02% SDS, 0.1 M DTT, 10% glycerol). Samples of the different steps were then analyzed by SDS-PAGE, followed by Coomassie staining.

Antisera used

Polyclonal antibodies against the purified TraT complex were raised in rabbits. The following commercial antisera were used: anti-DnaK (ADI-SPA-880-D Enzo Lifesciences), anti-mouse IgG peroxidase conjugate (A4416 Merck), and anti-rabbit IgG peroxidase conjugate (31462 Pierce).

Cryo‐EM sample preparation, data collection, and processing

Purified TraT (3 μL, 12 mg/ml) or pili (3 μL) samples were applied onto glow-discharged (30 s, 15 mA) holey carbon-coated grids (Quantifoil Au, 300-mesh, R1.2/1.3). The sample was adsorbed for 10 s before blotting. Grids were blotted for 3–6 s, at 4 °C with 100% relative humidity using a Vitrobot Mark IV (Thermo Fisher Scientific). Grids were subsequently plunge-frozen in liquid ethane cooled by liquid nitrogen.

Cryo-EM data for both samples were collected in counting mode in Electron Event Representation (EER) format on a cold field emission gun (CFEG) equipped Titan Krios G4 transmission electron microscope (Thermo Fisher Scientific) operated at 300 kV. Selectris X imaging filter (Thermo Fisher Scientific) with a slit width of 10 eV was used in conjunction with a Falcon 4i direct electron detector (Thermo Fisher Scientific). Data were collected with a physical pixel size of 0.732 Å and a total dose of ~54 e−/Å2.

For TraT, the initial preprocessing steps, including patched motion correction (20 × 20), contrast transfer function (CTF) parameter estimation, particle picking, extraction, and reference-free 2D classification, were performed using SIMPLE 3.057. All subsequent processing was carried out in cryoSPARC 3.3.158 as described in the workflow (Supplementary Fig. 2). The final global resolution was estimated as 2.01 Å using a 0.143 criteria and gold standard FSC. Data processing for the pilus sample (Supplementary Fig. 3) was entirely within cryoSPARC 3.3.1 with the exception of particle polishing performed in RELION59. EMD4046 was used as a starting volume for initial alignment with starting helical parameters of 28.1o twist, 12.5 Å rise, which refined to 28.203o twist and 12.086 Å rise. Global resolution was estimated as 2.11 Å using the 0.143 criterion and gold standard FSC.

CryoEM model building and validation

An AlphaFold260 model of a TraT decamer was rigid-body fitted into the Cryo-EM density map using ChimeraX61. Subsequent manual model building was iteratively carried out in COOT61 using both sharpened and unsharpened maps for enhanced interpretability. Models were refined using real-space refinement and symmetry restraints in PHENIX62 to generate the model described in Table 1. Validation of the refined model was performed using MolProbity59 to assess structural integrity and stereochemical quality, including evaluation of bond lengths, angles, torsion outliers, and Ramachandran statistics. Map-to-model correlation coefficients were also used to verify the accuracy of model fitting. For the pilus, PDB 5lfb was roughly positioned in the high-resolution volume and manually adjusted in COOT. Refinement in PHENIX yielded the model described in Table 1.

Microscopy conjugation assays

Overnight cultures of donor (MG_mSC containing FtetO) and recipient strains (AB_2 with the appropriate pNC56-derived traT expression plasmid) were each diluted 1:50 in LB medium, supplemented in the case of the recipient strains with 100 µg/ml of carbenicillin. The cultures were then grown to OD600 = 0.4–0.7 at which point the recipient culture was supplemented with 1 mM IPTG to induce expression of traT and cultured for a further 30 min. Recipient cells were washed 2 times with fresh LB to remove carbenicillin, and both cell suspensions were adjusted to OD600 = 1.5. 400 μl of recipient cells were mixed with 80 µl of donor cells (a 1:5 donor:recipient ratio), and the volume was adjusted to 800 µl with fresh LB. The mixtures were incubated with shaking at 37 °C for 30 min to allow conjugation. The cell mixtures were then spotted onto agarose pads and imaged on a Zeiss AxioObserver widefield microscope equipped with a Colibri 7 LED light source and using a Plan-Apochromat 63x/1.40 oil immersion lens with phase contrast. Images were captured on a Sony ICX 694, EXview HAD CCD II sensor. Images were captured for 150 ms using 20% intensity 555 nm LED light (to visualize mScarlet-I), for 100 ms using 100% intensity 475 nm LED light (to visualize mNeonGreen), and for 200 ms using 15% transmitted light intensity for phase contrast.

Microscopy data processing

Fluorescence microscopy image stacks were processed in the BacSEG Napari plugin (https://github.com/piedrro/napari-bacseg), which implements image segmentation via Omnipose63 and single-molecule localization via Picasso64. We used the Omnipose “bact_phase_omni” model to segment the cells in the phase contrast channel. Processed data were manually curated to remove erroneous segmentation caused by agarose pad imperfections and image focusing errors. Cell segmentation coordinates, transconjugant F plasmid localization coordinates, and the donor mScarlet-I fluorescence images were used to calculate the conjugation efficiencies for each mating experiment using a custom Python script65.

Conjugation efficiencies were calculated using the following formula:

$${{{\rm{Conjugation}}}}\;{{{\rm{efficiency}}}} = \frac{{{{\rm{Number}}}}\;{{{\rm{of}}}}\;{{{\rm{transconjugants}}}}}{{{{\rm{Number}}}}\;{{{\rm{of}}}} \, {{{\rm{total}}}} \, {{{\rm{recipients}}}}}\\ = \frac{{{{\rm{Transconjugants}}}}}{{{{\rm{Transconjugants}}}}+{{{\rm{recipients}}}}}$$

Exclusion indices for TraT-expressing recipients were calculated using the following formula:

$${{{\rm{Exclusion}}}}\;{{{\rm{index}}}}=\frac{{{{\rm{Conjugation}}}}\;{{{\rm{efficiency}}}}\,({{{\rm{strain}}}}\;{{{\rm{with}}}}\;{{{\rm{empty}}}} \, {{{\rm{vector}}}})}{{{{\rm{Conjugation}}}}\;{{{\rm{efficiency}}}}\;({{{\rm{strain}}}}\;{{{\rm{with}}}}\;{{{\rm{pTraT}}}})}$$

Statistics and reproducibility

Data were collected from 3 distinct biological samples for each TraT variant (n = 3). Statistical tests were performed using a one-way F ANOVA. Assumptions were verified using Shapiro’s (normality of residuals) and Bartlett’s (equality of variances) tests. When the ANOVA was significant (p < 0.05), a Tukey’s Honestly Significant Difference (HSD) post-hoc test was performed for pairwise comparisons and to obtain adjusted p-values (padj). The data from 45 to 50 fields of view per sample (10,000–100,000 cells) were combined for each biological repeat. No experiments were excluded, and no blinding was applied. The statistical testing was automated using a custom script66.

Sequence conservation

The conservation score of TraT residues was calculated with the Consurf online server67 using default parameters. Under these settings, the multiple sequence alignment is calculated from Uniref 9068, a database in which sequences with >90% identity are clustered.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
