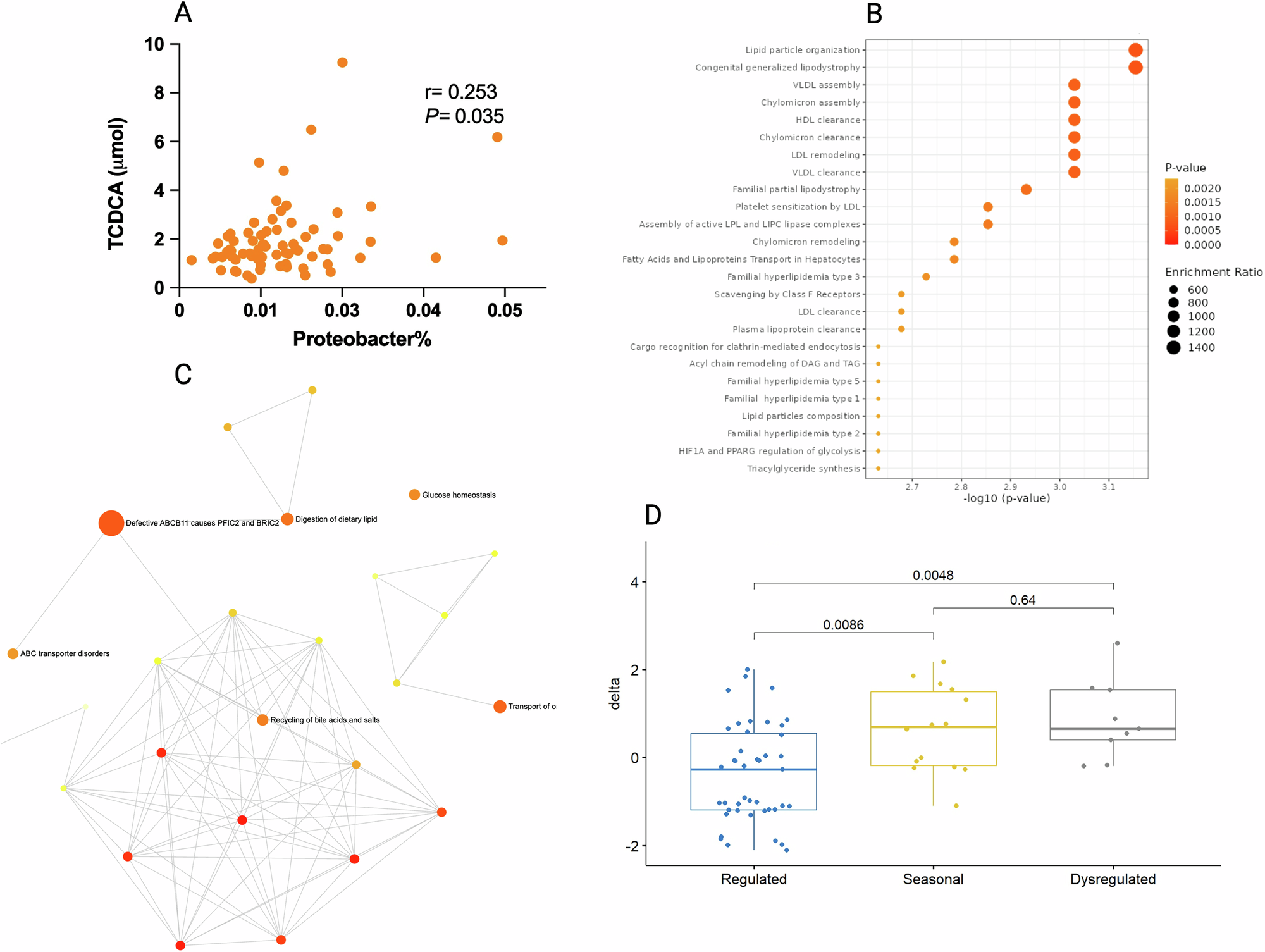

Fig. 3: Scatterplot of mean individual concentration of TCDCA and mean proportion of fecal Proteobacter phyla in individuals from all metabolic groups.
From: Bile acids segregate metabolic syndrome in a cohort of 100 deeply phenotyped horses
A Plasma concentration of TCDCA positively correlates with increased abundance of bacteria from the Proteobacter phyla (Pearsons r = 0.253. P = 0.035). B Enrichment analysis of metabolite pathways for significantly differentially abundant metabolites in MetS individuals. C Network analysis for the top differentially abundant metabolites in SMetS individuals. D Box and whisker plots of delta BCS prediction for individuals by group. TCDCA taurochenodeoxycholic acid, BCS body condition score.
