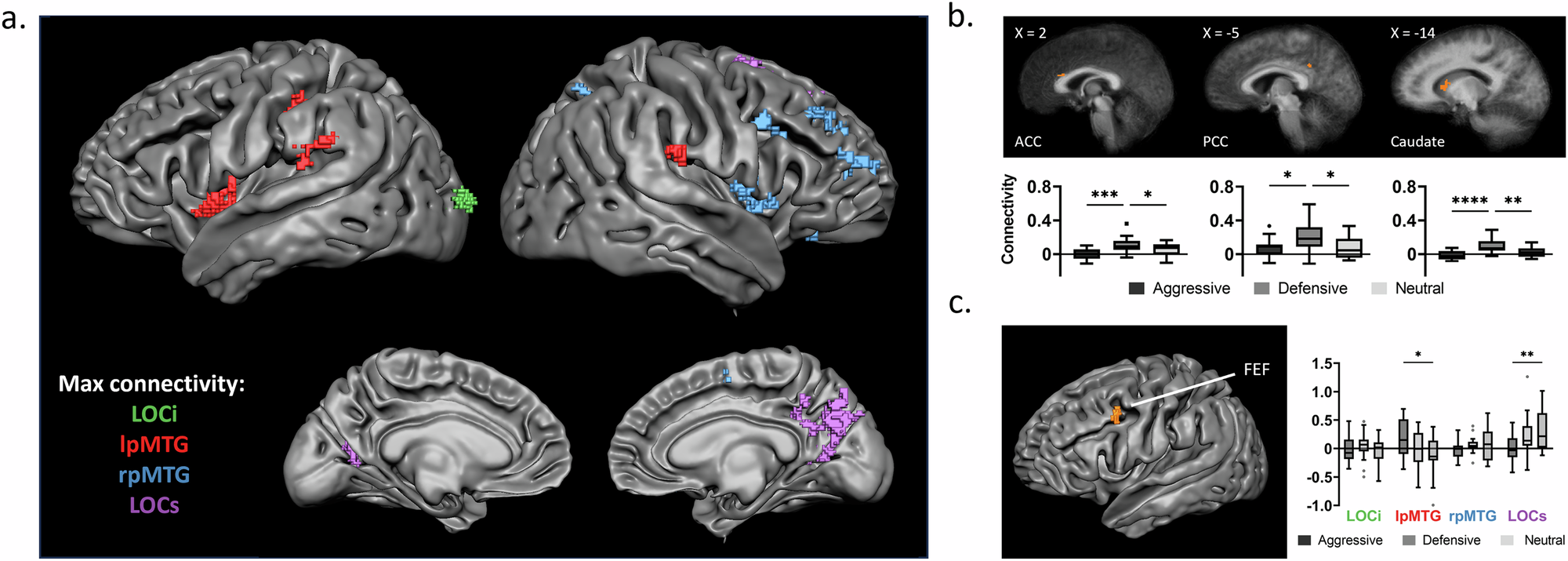

Fig. 3: Whole-brain analysis for subdivision connectivity.
From: Distinct information flows for different whole-body actions across LOTC subdivisions
a Clusters with a significant main effect of the seed on connectivity. Cluster colors indicate the seed with the highest connectivity to the corresponding clusters. b Clusters with a significant main effect of the body condition on LOTC connectivity (averaged across subdivisions). c FEF cluster with significant interaction between the body condition and the seed. In b and c, box plots show the connectivity betas for each ROI, with whiskers (error bars) representing min/max value within 1.5 times the interquartile range from the lower or upper quartile, and the scatters plotted for individual data beyond the upper and lower bounds. For all box plots, asterisks indicate the significant pairwise comparisons after Bonferroni correction (*p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001). Detailed results for the cluster-level statistics are shown in Table 1. Source data are attached in Supplementary Data 2.
