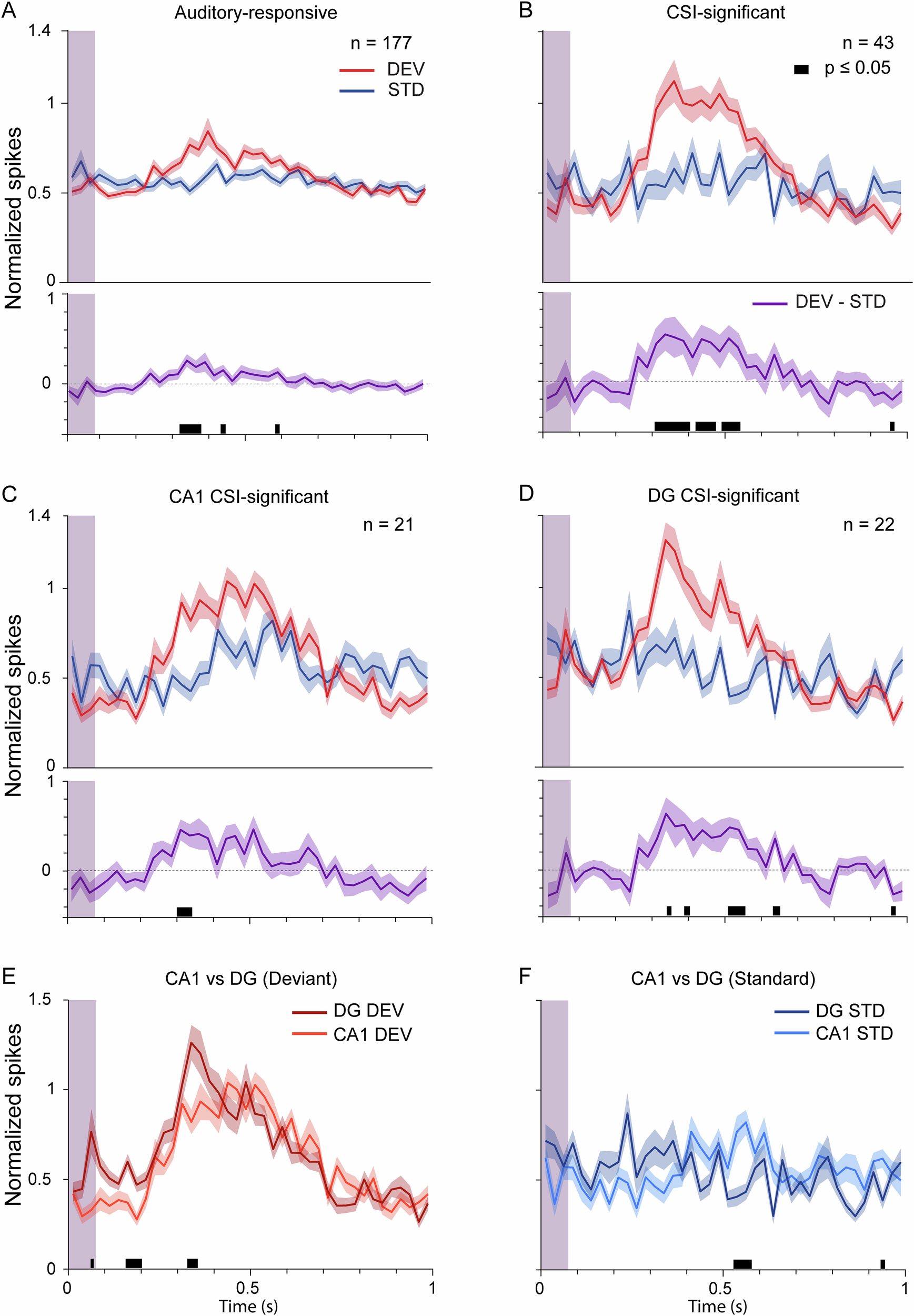

Fig. 3: Average PSTH of auditory-responsive and CSI-significant neurons.
From: Neuronal mismatch responses to auditory stimuli in the dorsal hippocampus of anesthetized rats
Average PSTH responses (mean ± SEM) to DEV tones are shown in red, while average responses to STD tones are shown in blue. The subtraction of the mean STD response from the DEV response (DEV – STD) is shown in purple. The vertical bar on the left of the plots indicates the duration of the sound. The shaded area along the lines represents the SEM error. Statistical significance is denoted by a thick line above the X-axis. A Average response of auditory-responsive units (n = 177; 27 rats). B Average response of CSI-significant units (n = 43; 9 rats). C Average response of CSI-significant units located in CA1 (n = 21; 6 rats). D Average response of CSI-significant units located in DG (n = 22; 5 rats). E Comparison of the average DEV response of CSI-significant units in CA1 vs. DG. F Comparison of the average STD response of CSI-significant units in CA1 vs. DG. The underlying data for this Figure can be found in Supplementary Data 2.
