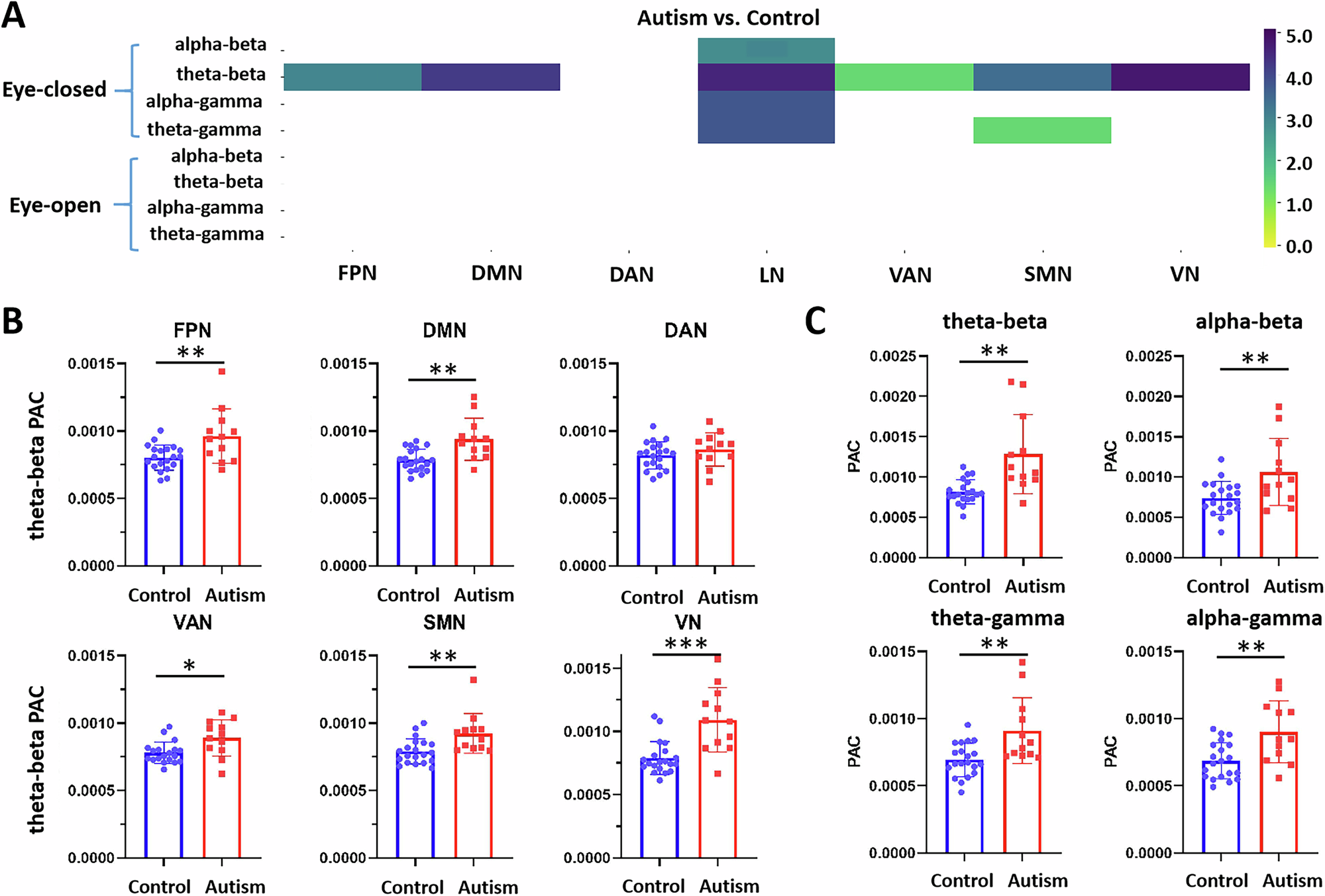

Fig. 2: Within-network PAC comparisons under placebo conditions.
From: Differential GABA dynamics across brain functional networks in autism
A Heatmap plotted using t-values for group comparisons. The four different PAC values under eyes-open and eyes-closed conditions (column) are compared between the autism group and the control group across seven networks (row). Colored rectangular boxes represent conditions with significant group differences, with darker colors indicating higher t values. B Scatter plots of theta-beta PAC values for group comparisons within six networks (excluding the limbic network, LN) under the eye-closed condition. Red represents the autism group, and blue indicates the control group. C Scatter plots of the four PAC values for group comparisons within the LN under the eye-closed condition. All t values were achieved through independent t tests and the corresponding p-values reported were corrected for multiple comparisons using the FDR-BH method. FPN: Frontoparietal Network; DMN: Default Mode Network; DAN: Dorsal Attention Network; VAN: Ventral Attention Network; SMN: Sensorimotor Network; VN: Visual Network; LN: Limbic Network. * the difference is statistically significant with corrected p < 0.05; ** corrected p < 0.01; and *** corrected p < 0.001. Error bars show the standard deviation (SD).
