Fig. 4: Discriminative between-network connections between the autism and control groups as measured by theta-beta PAC.
From: Differential GABA dynamics across brain functional networks in autism

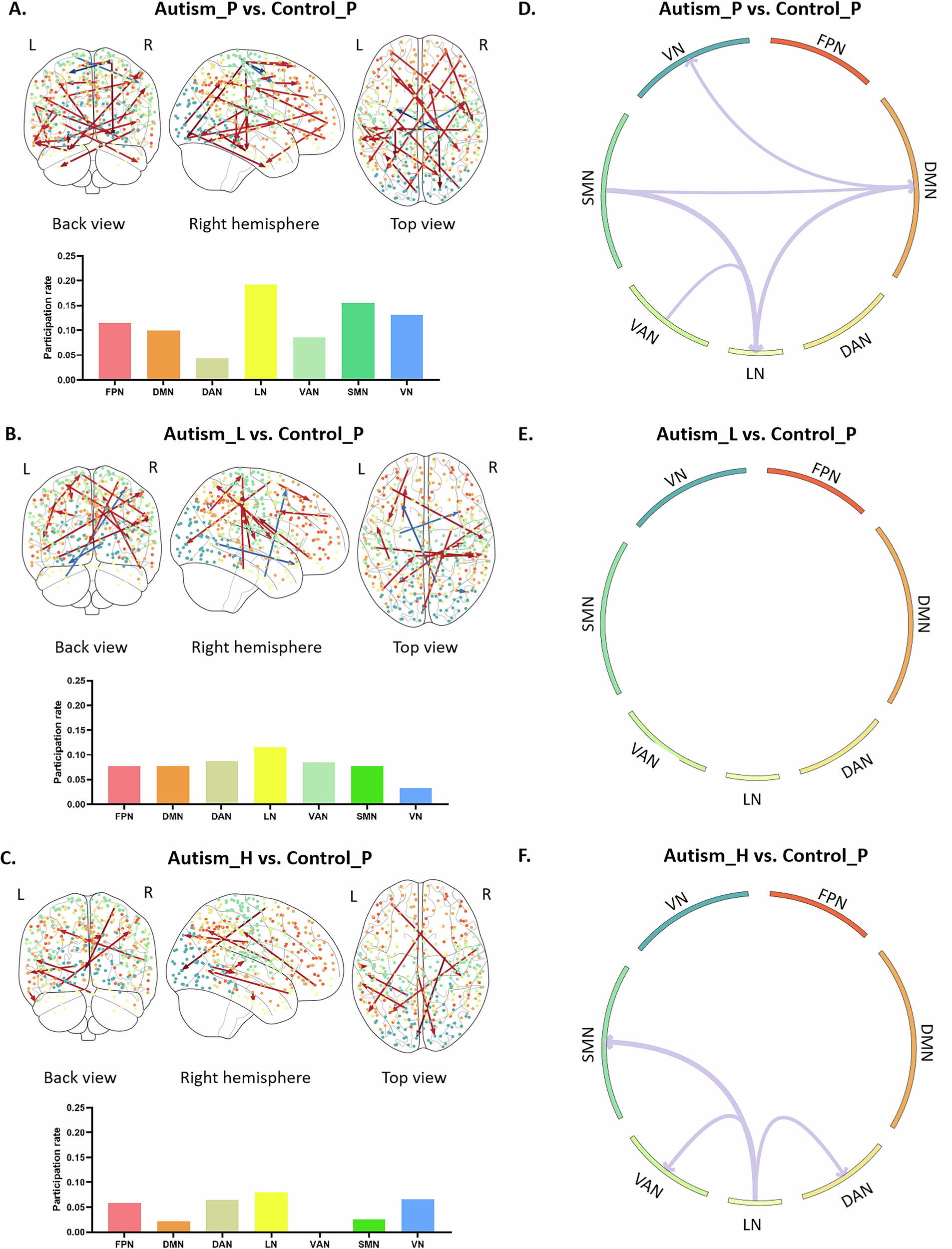

A Top: The spatial distribution of discriminative hyper- (red edge) and hypo-connections (blue edge) for placebo comparison between the Autism_P group and the Control_P group. Bottom: The histogram illustrating the extent to which various networks are affected as quantified by the participation rate. The node or bar color represents the corresponding functional network. B The spatial distribution of discriminative connections (top) and the histogram of affected networks (bottom) for comparison between Autism_L and Control_P. C The spatial distribution of discriminative connections (top) and the histogram of affected networks (bottom) for comparison between Autism_H and Control_P. The overall between-network connectivity based on network characterizations is also plotted for comparisons among Autism_P vs. Control_P (D), Autism_L vs. Control_P (E), and Autism_P vs. Control_P (F). FPN: Frontoparietal Network; DMN: Default Mode Network; DAN: Dorsal Attention Network; VAN: Ventral Attention Network; SMN: Sensorimotor Network; VN: Visual Network; LN: Limbic Network.
