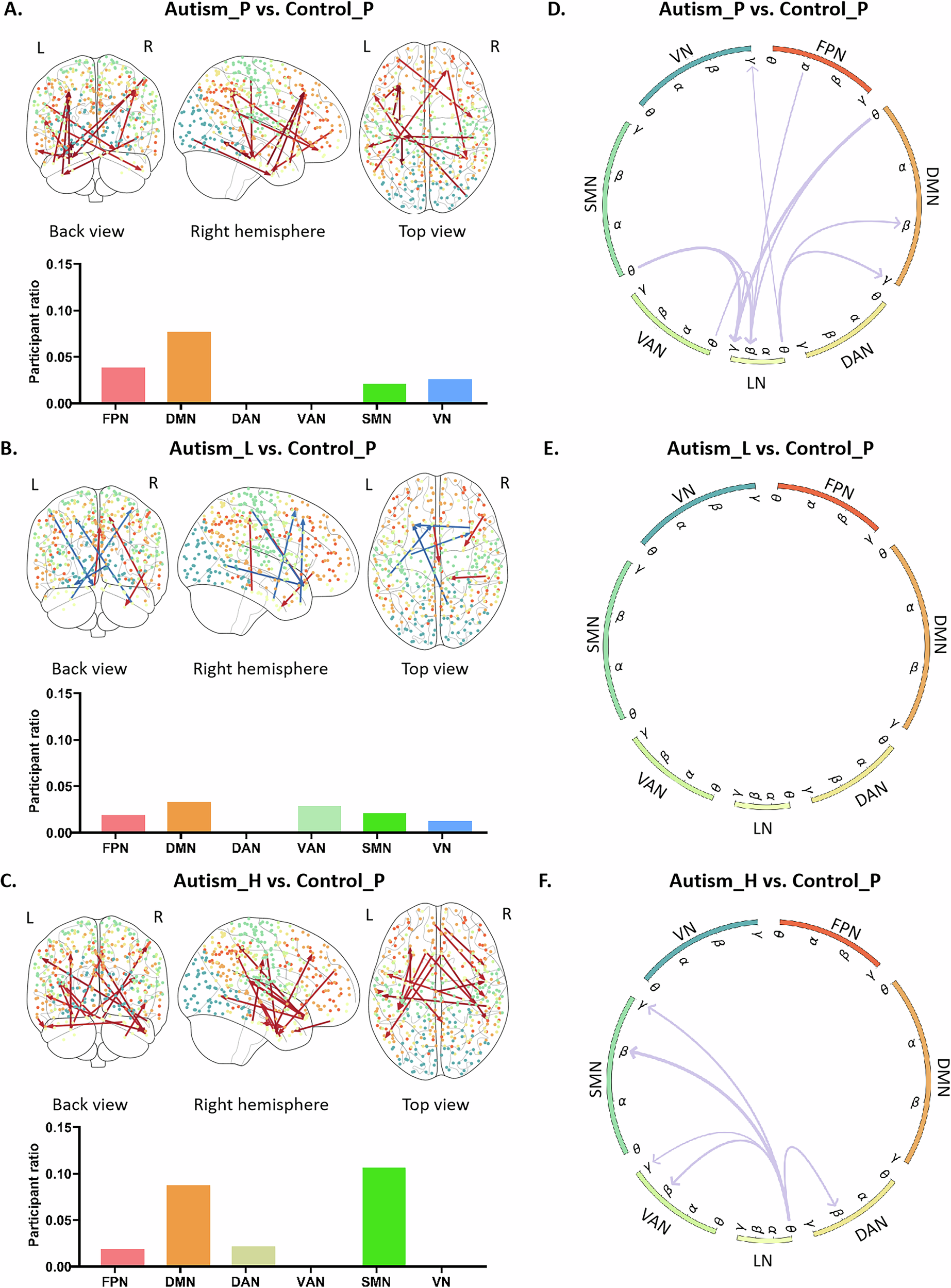

Fig. 5: Discriminative LN-related connections between the autism and control groups as measured by different PAC values.
From: Differential GABA dynamics across brain functional networks in autism
A Top: The spatial distribution of LN-related discriminative connections for placebo comparison between Autism_P and Control_P. Bottom: The histogram illustrating the extent to which various networks are affected as quantified by the participation rate. B The spatial distribution of LN-related discriminative connections (top) and the histogram of affected networks (bottom) for comparison between Autism_L and Control_P. C The spatial distribution of LN-related discriminative connections (top) and the histogram of affected networks (bottom) for comparison between Autism_H and Control_P. LN-related between-network connectivity based on network characterizations, as measured by different PAC values, is also plotted for comparisons among Autism_P vs. Control_P (D), Autism_L vs. Control_P (E), and Autism_P vs. Control_P (F). FPN: Frontoparietal Network; DMN: Default Mode Network; DAN: Dorsal Attention Network; VAN: Ventral Attention Network; SMN: Sensorimotor Network; VN: Visual Network; LN: Limbic Network.
