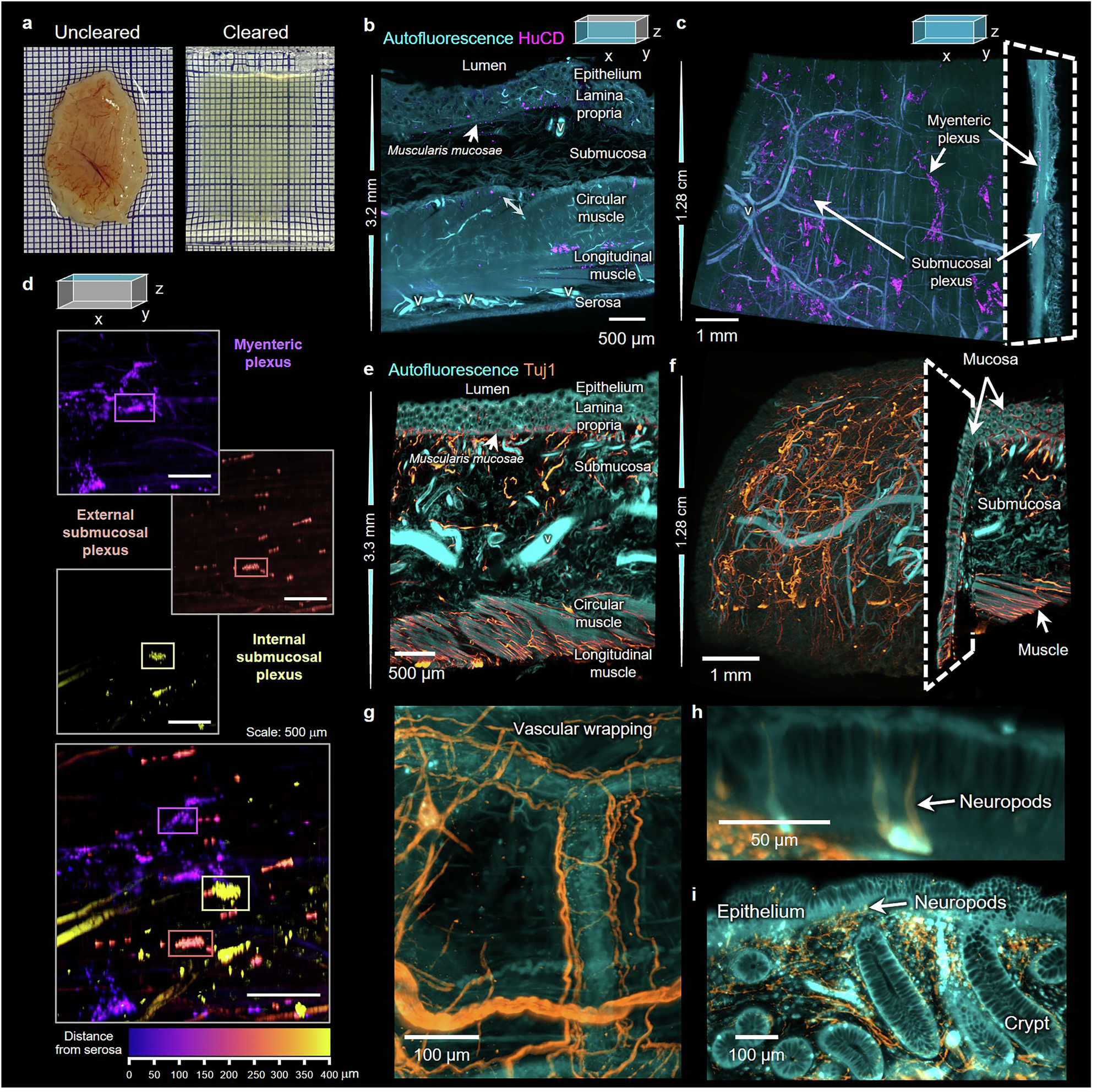

Fig. 5: Enteric nervous system at the network scale in healthy human colon resections.
From: enGLOW 3D microscopy of the enteric nervous system in cleared human and mouse gut
