From: Large-scale analysis of water stability in bromodomain binding pockets with grand canonical Monte Carlo

Fig. 2

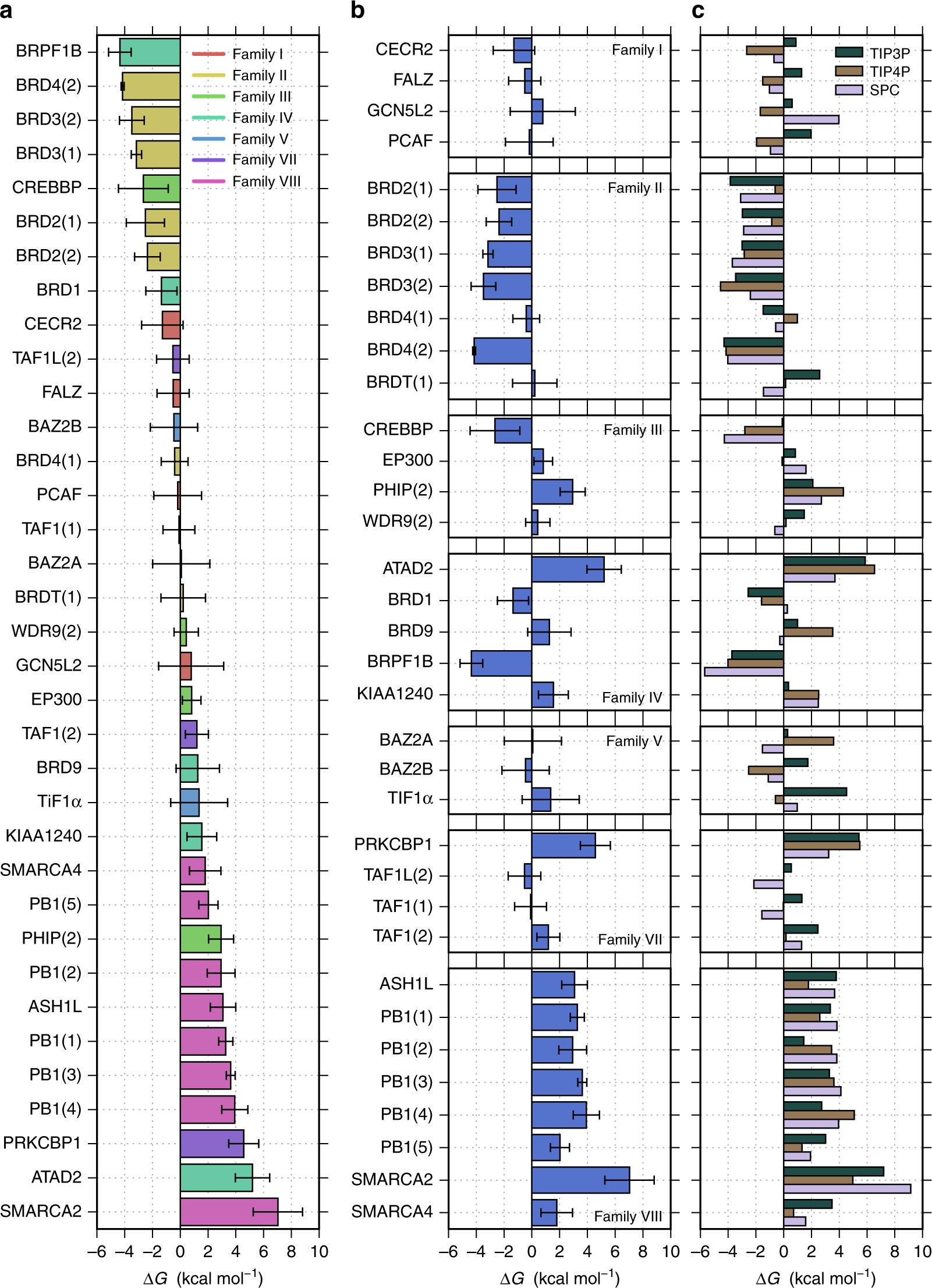

Stability of the water network measured as its binding free energy. a The 35 bromodomains considered are sorted by predicted network stability and color coded by family; the bars and their errors show the weighted means and standard deviations of the three water models. b Bromodomains and their overall results divided by family; here too the weighted means and standard deviations across the three water models are shown. c Bromodomains divided by family with the results for each water model
