Fig. 2
From: Optimized reconstitution of membrane proteins into synthetic membranes

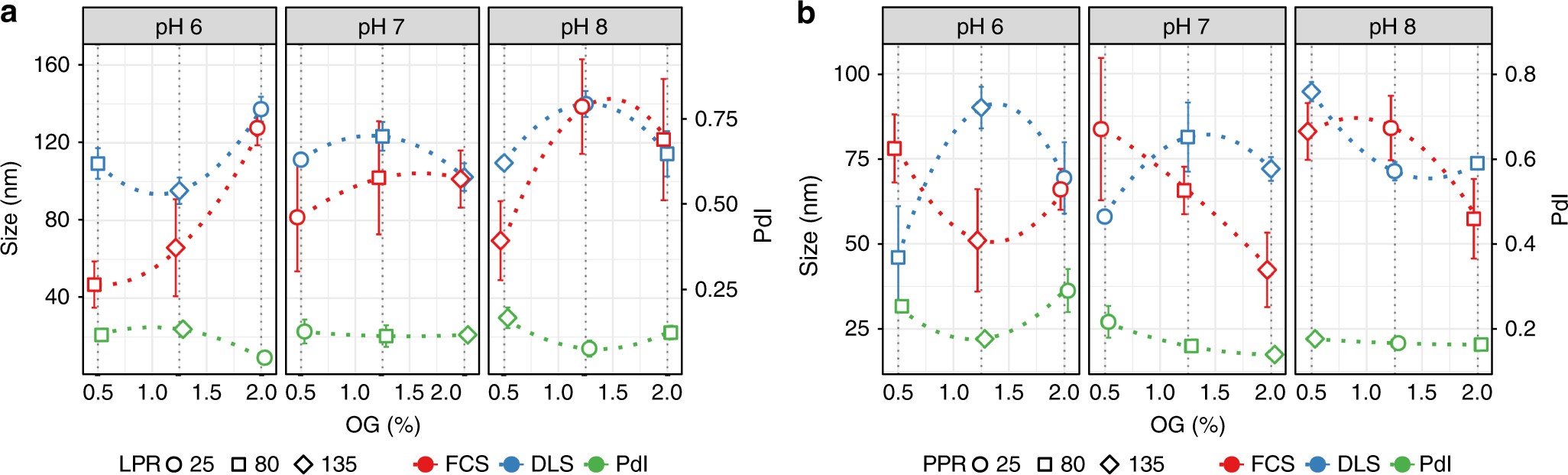

Interaction plots of the proteovesicle formation. The interaction plots show the behavior of formed (a) DOPC proteoliposomes and b ABA proteopolymersomes toward changing reconstitution conditions. The data are grouped by pH value, different LPR or PPR values are indicated by the data point’s symbol and the used OG concentration are presented on the x-axis. The dotted lines show a potential trend-line and serve as a guide to the eye only. Error bars represent the standard error of the mean, n = 3. DLS, FCS and exemplary TEM data can be found in Supplementary Figures 1, 3, 5 and 6
