Fig. 7

From: Harmonic light scattering study reveals structured clusters upon the supramolecular aggregation of regioregular poly(3-alkylthiophene)

Fig. 7

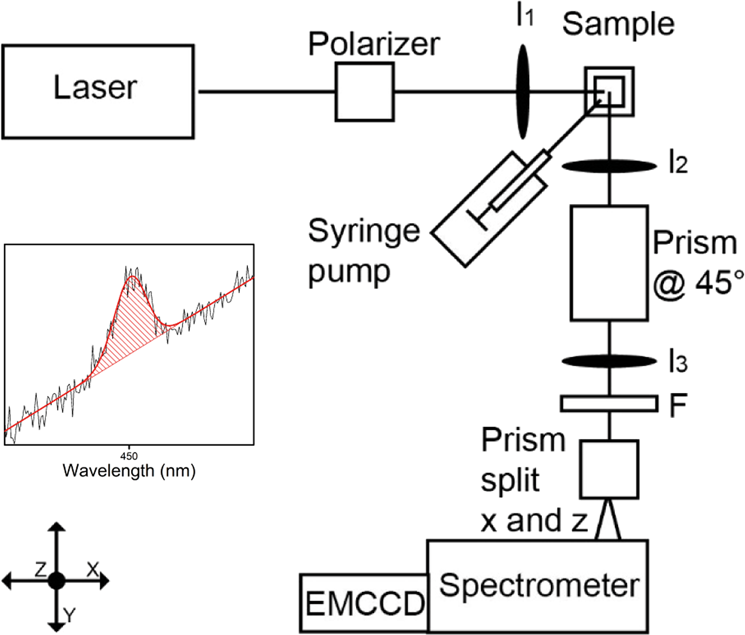

Schematic representation of second- and third-harmonic scattering setup. A femtosecond pulse laser is used to illuminate the sample. Scattering is collected at a 90° angle. The sample holder includes a stirring device and a syringe pump is installed for slow addition of non-solvent. And a typical HLS signal can include MPF. This is eliminated by curve fitting with the combination of a Gaussian and linear curve function. The shaded area is the total signal response
