From: Niobium pentoxide nanomaterials with distorted structures as efficient acid catalysts

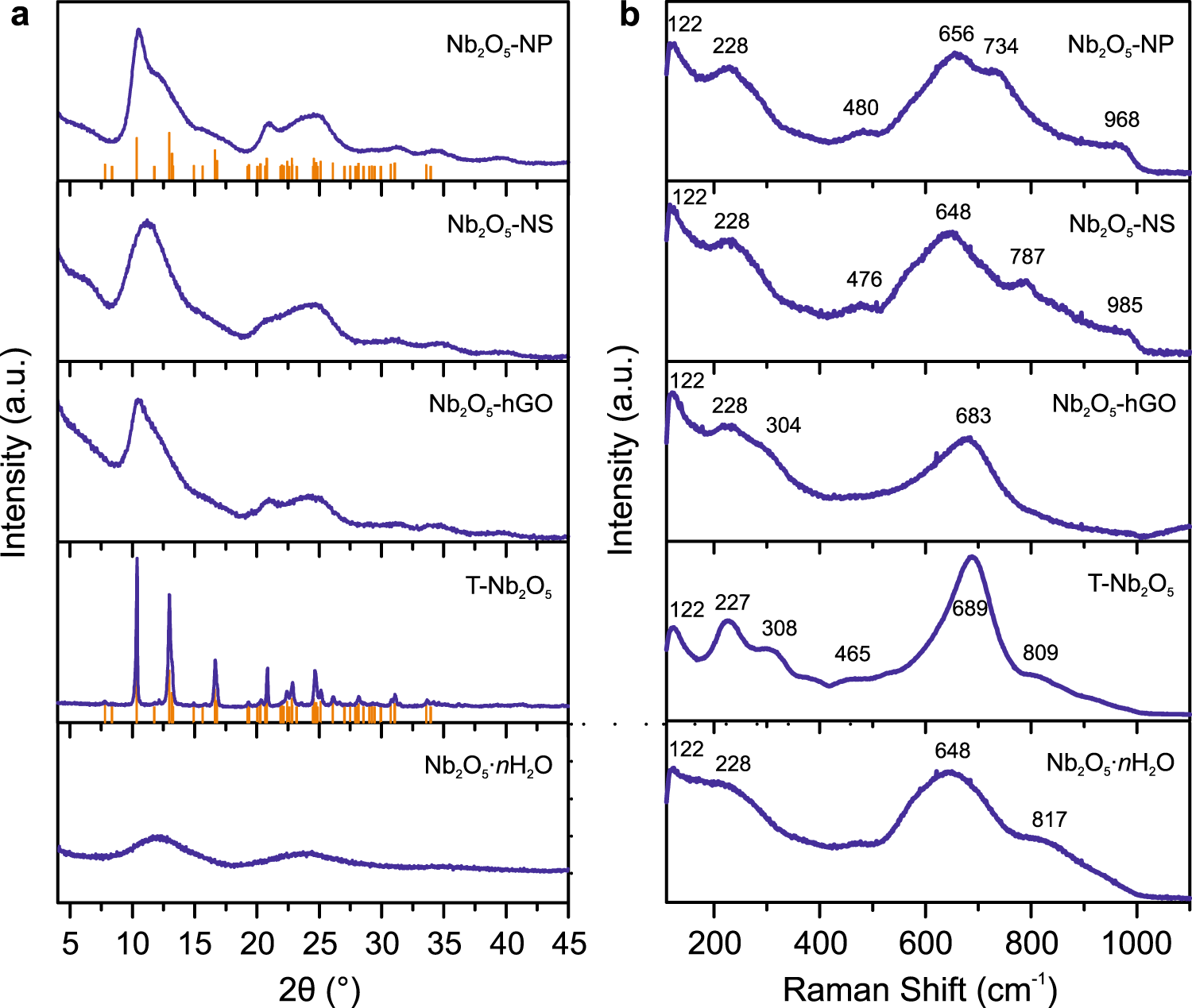

XRD and Raman analyses of the niobium oxides. a XRD patterns (vertical bars represent the orthorhombic T-Nb2O5 reference pattern—ICDD file no. 030-0873). b Micro-Raman spectra
