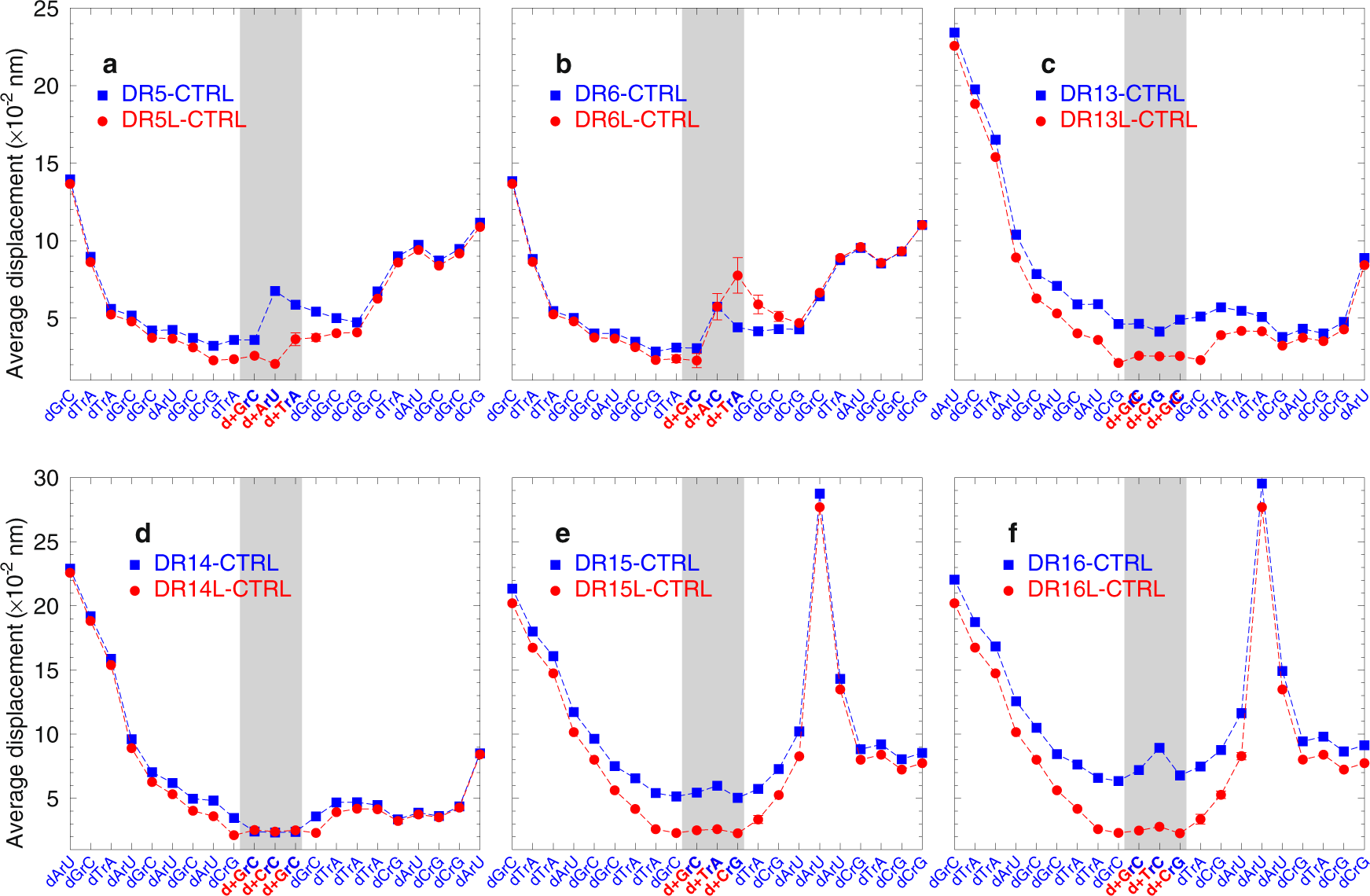

Fig. 4: Calculated average displacement profiles between base pairs for DNA/LNA:RNA.
From: Optical and theoretical study of strand recognition by nucleic acid probes
Panel a is for DR5(L), b for DR6(L), c for DR13(L), d for DR14(L), e for DR15(L), and f for DR16(L). Red bullets are for LNA-containing sequences, and blue boxes are for sequence with unmodified DNA/RNA. The location of the LNAs are indicated by the grey shaded area. The calculated uncertainties are shown as error bars only for the cases where they are larger than the symbol size. For sequences of test systems, see Table 1 and Supplementary Table 15.
