Fig. 3: Contact maps between residues on pKID and KIX.

From: Phosphorylation regulates the binding of intrinsically disordered proteins via a flexible conformation selection mechanism

Fig. 3: Contact maps between residues on pKID and KIX.

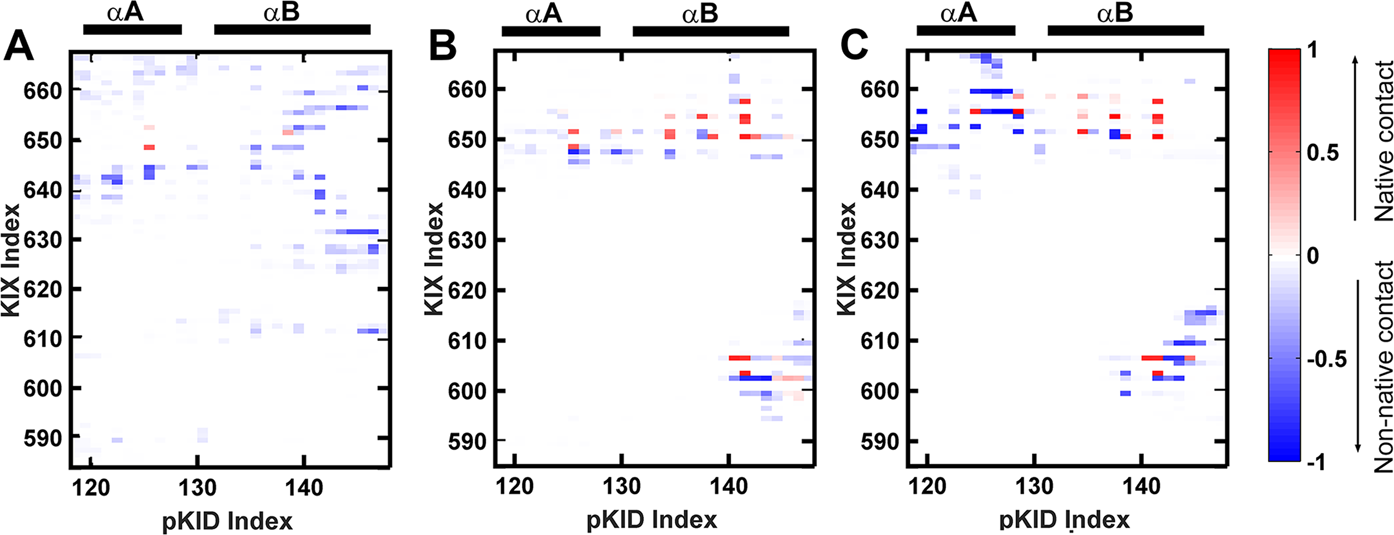

a Contact map between residues of pKID and KIX in the encounter complex (state E). b Contact map of intermediate 1 (state I1); c Contact map of intermediate 2 (state I2); In these contact map, red grid represents the native contacts are formed, blue grids are corresponding to the non-native contacts.
