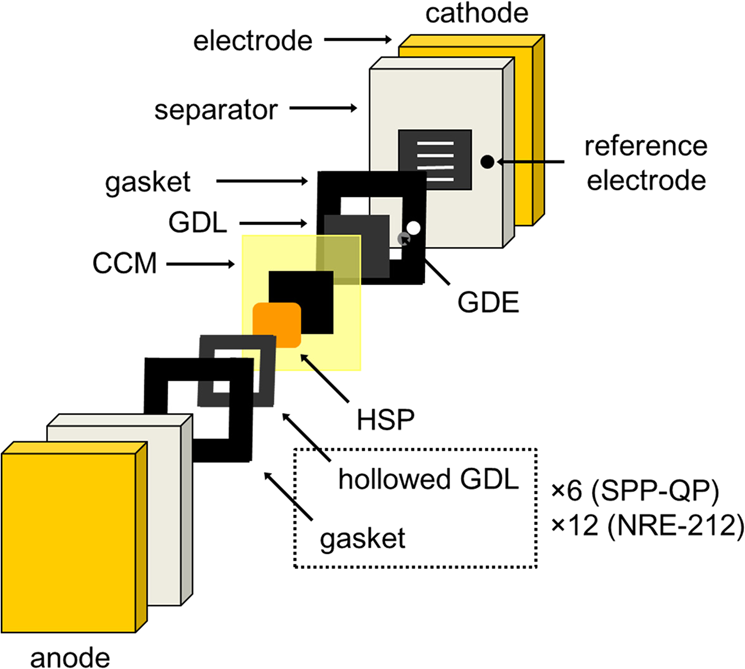

Fig. 2: Configuration of the membrane electrode assembly (MEA) for the RCFC.
From: Rechargeable proton exchange membrane fuel cell containing an intrinsic hydrogen storage polymer
CCM and GDL refer to catalyst-coated membrane and gas diffusion layer, respectively. Number of GDLs and gaskets in the anode side differed depending on the thickness of HSP used in each experiment.
